KV2 Audio » Products » ESD » ESD1.18

ESD1.18 - Passive subwoofer

The ESD1.18 is the passive version of the incredible active EX1.8. The ESD1.18 features neodymium woofer with power handling capabilities of 1000W which makes a firm foundation from which to build an incredibly powerful ESD system, or as a stand alone subwoofer to enhance any existing passive or active system.

Watch the product video

ESD1.18 Technical Data Sheet

Applications

Specifically designed as a passive subwoofer to accompany any of the ESD range to create true full range system performance

  • Fixed installation
  • Portable PA
  • Bars-small entertainment projects
  • Scalable into larger systems

Product code

  • KVV 987 242 - ESD1.18


Features

  • Professional, Baltic birch construction with wear resistant polymer coating
  • 131dB sustained output, 134dB peak
  • Excellent reproduction of bass frequencies with high transient content at high output levels
  • 18" high output, low frequency driver with 4" (100 mm) inside/outside, epoxy baked, high temperature, voice coil assembly and neodymium magnetic structures

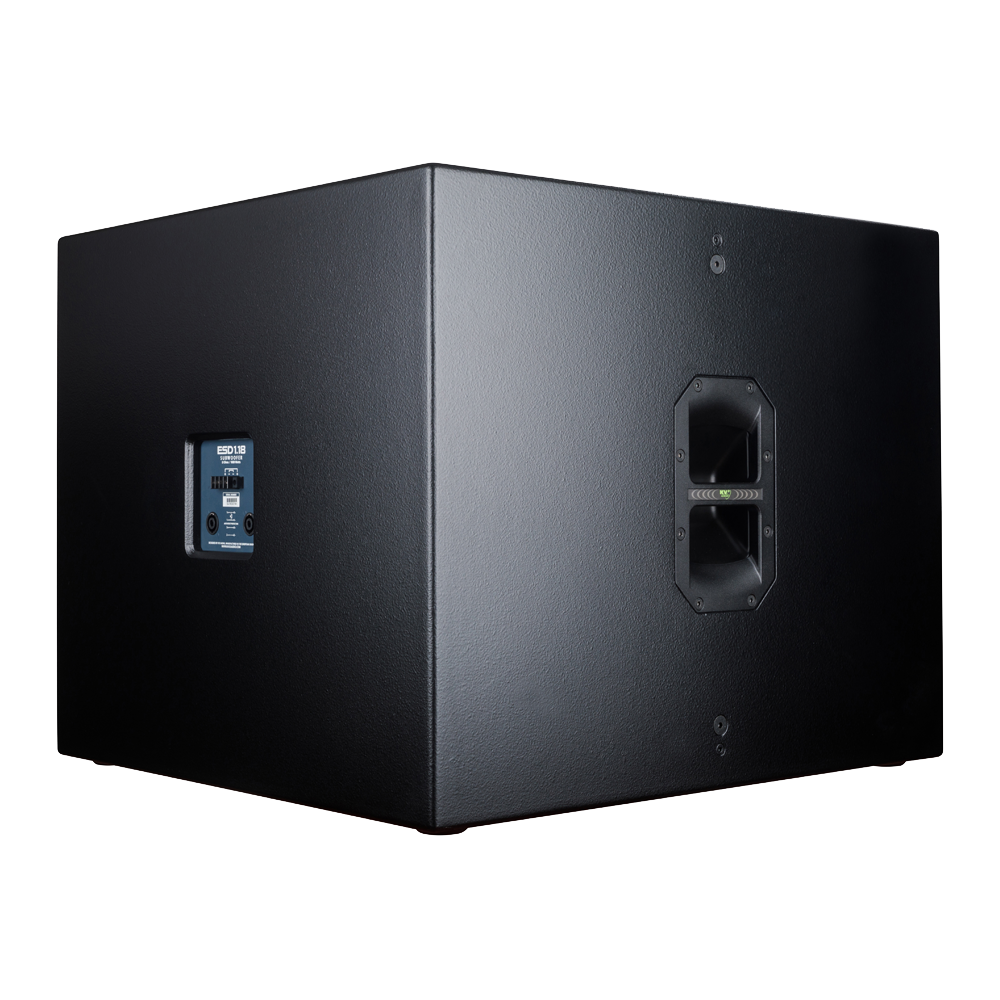

  • Two recessed side handles for simplified handling and carrying
  • Pole mount M20
  • Non-threaded 35 mm Pole mount adaptor available as accessory KVV987290
  • Thermal breaker protection with auto reset


Applications

Specifically designed as a passive subwoofer to accompany any of the ESD range to create true full range system performance

  • Fixed installation
  • Portable PA
  • Bars-small entertainment projects
  • Scalable into larger systems

Product code

  • KVV 987 242 - ESD1.18


System Acoustic Performance

Max SPL Long-term131dB
Max SPL Peak137dB
-3dB Response30Hz to 150Hz
-10dB Response28Hz to 170Hz
Recommended Power1000W
Sensitivity100dB
Impedance
Crossover Point70Hz to 150Hz

Low Frequency Section

Acoustic DesignTwin Asymmetrical loading
Number of Drivers1
Woofer Size / Voice Coil Diameter / Design18" / 4" / Inside outside
Diaphragm MaterialEpoxy Reinforced Cellulose
Magnet TypeNeodymium
ProtectionThermal breaker - autoreset

Speaker Input

Speaker Input 2x Neutrik Speakon®, Terminal Block

Cabinet

Cabinet MaterialBaltic birch
Handles2
Pole MountM20
Flyware8x M10 suspension points
Color"Orange peeled" Matt Black or any RAL

Physical Dimensions

Height612 mm (24.1")
Width700 mm (27.55")
Depth750 mm (29.52")
Weight52 kg (114.7lbs)


Product code

  • KVV 987 242 - ESD1.18

PDF

ESD Subwoofers User Guide

ESD Subwoofers User Manual - rev. 10



PDF

ESD1.18 Data Sheet

ESD1.18 Data Sheet



DWG

ESD1.18 - 3D

3D drawing, 1:1 scale - clamping points - weight - dwg file



PDF

ESD1.18 - 2D

ESD1.18 2D Drawings



SKP

ESD Series SketchUp

ESD Series SketchUp - all boxes and accessories



DWG

ESD1.18 2D DWG

ESD1.18 2D DWG



SKP

ESD1.18 SKP

ESD1.18 SketchUp



DWG

ESD1.18 3D DWG

ESD1.18 3D DWG
