ES1.0 - El núcleo de tu sistema ES

El ES1.0 es un módulo activo de tres vías con muy alto rendimiento cuyo rango es de 130Hz a 20kHz. Fue diseñado como parte de un sistema ES completo y es manejado por la unidad de control y amplificación EPAK2500/R. El ES1.0 es compacto, liviano y puede utilizarse conjuntamente con varios subwoofers de la serie ES. Como sistema único, ofrece una de las soluciones de refuerzo sonoro portátil de mayor calidad del mercado en la actualidad. Cuando funciona con otro ES1.0 (dos colocados de manera horizontal a cada lado), se convierte en una herramienta aún más potente, capaz de lograr 139dB de SPL y un alcance de hasta 40 metros para eventos de hasta 3000 personas.

Ver video del producto

ES1.0 Technical Data Sheet

Aplicaciones

Gabinete compacto de salida extremadamente alta de medias altas frecuencias específicamente diseñado como parte de los sistemas ES

Espectáculos en vivo y música playback
Conciertos en vivo de pequeños a grandes
Pequeñas y medianas discotecas
Templos religiosos
PA portable
Escalable a proyectos y sistemas más grandes de multitareas

Código de producto

KVV 987 002 - ES1.0

Características

Professional Baltic birch construction with wear resistant polymer coating
131dB sustained output, 134dB peak
Controlled wide dispersion 90° x 40°, rotatable mid-high horn for mounting in vertical or horizontal orientation
1.75" (44 mm) Titanium diaphragm compression driver with complex geometry phase plug and neodymium magnetic structure for higher output, incredibly low distortion and extended frequency response
6" mid-range driver with a 1.75" (44 mm) voice coil and neodymium magnet for increased control and output with reduced distortion and weight
Horn loaded, 12" mid-bass driver with a 3" (76 mm) inside/outside, epoxy baked, high temperature voice coil assembly and neodymium magnetic structure
Three way active requirement – 900W from the EPAK2500/R providing 600W for the 12" low mid, 200W for the 6" midrange and 100W for the high frequency driver
Proprietary side handle design for simlified handling and carrying
High impact low friction feet, asymmetrically located on three sides allowing vertical or horizontal system set up, lock-in and easy cabinet movement
Four internal corner braces tied to eight M10 suspension points. A total of 24 suspension points are available for custom installation applications
Top hat for pole mounting applications
Weather proofing option and special paint finishes available on request

Aplicaciones

Gabinete compacto de salida extremadamente alta de medias altas frecuencias específicamente diseñado como parte de los sistemas ES

Espectáculos en vivo y música playback
Conciertos en vivo de pequeños a grandes
Pequeñas y medianas discotecas
Templos religiosos
PA portable
Escalable a proyectos y sistemas más grandes de multitareas

Código de producto

KVV 987 002 - ES1.0

System Acoustic Performance

Max SPL Long-term	131dB
Max SPL Peak	137dB
-3dB Response	130Hz to 20kHz
-10dB Response	85Hz to 28kHz
Impedance	Low 16Ω Mid 8Ω High 8Ω
Crossover Point	130Hz, 500Hz, 2.5kHz

High Frequency Section

High Horn Coverage Horizontal / Vertical	90° x 40° rotatable
High Frequency Amplifier Requirement	100W from EPAK 2500/R
Throat Exit Diameter / Diaphragm Size	1" / 1.75"
Diaphragm Material	Titanium
Magnet Type	Neodymium

Mid Range Section

Acoustic Design	Horn Loaded
Mid Horn Coverage Horizontal / Vertical	90° x 40° rotatable
Midrange Amplifier Requirement	200W from EPAK 2500/R
Woofer Size / Voice Coil Diameter / Design	6" / 1.75"
Diaphragm Material	Epoxy Reinforced Cellulose
Magnet Type	Neodymium

Mid-Bass Section

Acoustic Design	Horn Loaded
Mid-bass Amplifier Requirement	600W from EPAK 2500/R
Woofer Size / Voice Coil Diameter / Design	12" / 3" / Inside Outside
Diaphragm Material	Epoxy Reinforced Cellulose
Magnet Type	Neodymium

Speaker Input

AP6

Cabinet

Cabinet Material	Baltic birch
Handles	2
Pole Mount	35 mm
Color	"Orange peeled" Matt Black or any RAL

Physical Dimensions

Height	700 mm (27.55")
Width	450 mm (17.71")
Depth	450 mm (17.71")
Weight	34 kg (74.8lbs)

Código de producto

KVV 987 002 - ES1.0

User Manuals (2)
Drawings (2)
EASE data (1)

PDF

ES Speakers User Guide

ES1.0, ES1.5, ES1.8, ES2.5, ES2.6 User Guide - English, rev. 8

PDF

FB-0002 Rigging User Guide

FB-0002 Fly-bar and additional arms with different ES systems Supspension & Rigging - English

DWG

ES1.0 - 3D

1:1 scale - clamping points - weight - dwg file

PDF

ES1.0 - 2D

ES1.0 2D Drawings

GLL

ES1.0 EASE data

- GLL file - description

Seleccione

Aditional arms for Bracket FB-0002

Galería

Código de producto

KVV 987 192

Descripción

- 2 pcs ARMS OF FB-0002 - 8 pcs M10 screws - 8 pcs Quick-lock-pins 6mm included

Descargas

DWG

ES1.0, ES1.5, ES1.8, ES2.5, ES2.6 Bracket additional arms 3D DWG

SKP

ES1.0, ES1.5, ES1.8, ES2.5, ES2.6 Bracket additional arms SKP

ES1.0, ES1.5, ES1.8, ES2.5, ES2.6 Bracket additional arms SketchUp

Amphenol AP6 connector

Galería

Código de producto

KVV 987 050

Descripción

- female - cable mount

Amphenol AP6 connector

Galería

Código de producto

KVV 987 051

Descripción

- male - cable mount

ES Cable KIT

Galería

Código de producto

KVV 987 047

Descripción

- consist of four high-quality Amphenol AP cable assemblies designed for use with ES Series - 2 pcs LF15 - 1pc LF40 - 1pc MH60

Mid/Hi speaker cable HM120

Galería

Código de producto

KVV 987 126

Descripción

- 6 wire speaker cable - AP6 connectors - 12m (40ft) length - for Mid/Hi Module hook-up

Mid/Hi speaker cable MH15

Galería

Código de producto

KVV 987 147

Descripción

- 6 wire speaker cable - AP6 connectors - 1,5m (5ft) length - for Mid/Hi Module connection - for VHD1.0 Mid/Hi Module daisy-chaining

Mid/Hi speaker cable HM180

Galería

Código de producto

KVV 987 127

Descripción

- 6 wire speaker cable - AP6 connectors - 18m (60ft) length - for Mid/Hi Module hook-up

Mid/Hi speaker cable HM60

Galería

Código de producto

KVV 987 125

Descripción

- 6 wire speaker cable - AP6 connectors - 6m (20ft) - for Mid/Hi Module hook-up

Cart Wheels

Galería

Código de producto

KVV 987 031

Descripción

- with bolts nuts kit - 4 pcs in pack, rotating, blue
- 16x M8x 25mm Screw Countersunk Hexagon Socket Head
- 16x Nut Hexagon with blue plastic insert M8

Descargas

DWG

ES1.0, ES1.5, EX1.8, EX2.2 Cart wheels 3D DWG

SKP

ES1.0, ES1.5, EX1.8, EX2.2 Cart wheels SKP

ES1.0, ES1.5, EX1.8, EX2.2 Cart wheels SketchUp

ES downfill bracket

Galería

Código de producto

KVV 987 311

Descripción

- 4 pcs Quick-lock-pins 6mm included - 4 pcs M10 hex screws included - 1pc allen key - 6mm included

Descargas

DWG

ES Downfill bracket 3D DWG

SKP

ES Downfill bracket SKP

ES Downfill bracket SketchUp

Fly Bar and Bracket for ES systems

Galería

Código de producto

KVV 987 191

Descripción

- 8 pcs M10 screws - 8 pcs Quick-lock-pins 6mm included - 4 pcs Quick-lock-pins 1/2inch included

Descargas

DWG

ES System flybar and bracket 3D DWG

SKP

ES System flybar and bracket SKP

ES System flybar and bracket SketchUp

DWG

ES System flybar and bracket 2D DWG

Heavy duty cover for ES1.0

Galería

Código de producto

KVV 987 119

Descripción

- Durable material

ES1.0 Full grille

Galería

Código de producto

KVV 987 131

Descripción

Optional full grille for ES1.0

Descargas

DWG

ES1.0 Full grille 3D DWG

SKP

ES1.0 Full grille SKP

ES1.0 Full grille SketchUp

Cart ES1.0, ES1.5

Galería

Código de producto

KVV 987 030

Descripción

- for 2pcs ES1.0 or ES 1.5 - wheels not included
- 16x M8x 25mm Screw Countersunk Hexagon Socket Head
- 16x Nut Hexagon with blue plastic insert M8

Descargas

DWG

ES1.0, ES1.5 Cart 3D DWG

SKP

ES1.0, ES1.5 Cart SKP

ES1.0, ES1.5 Cart SketchUp

Horizontal bracket

Galería

Código de producto

KVV 987 035

Descripción

- for ES1.0, ES1.5 or ESD15 - including top hat cover adaptor plate and two connection bolts - black

Descargas

DWG

ES1.0, ES1.5, ESD15 Horizontal Bracket 3D DWG

SKP

ES1.0, ES1.5, ESD15 Horizontal Bracket SKP

ES1.0, ES1.5, ESD15 Horizontal Bracket SketchUp

Vertical bracket

Vista 3D

Galería

Código de producto

KVV 987 032

Descripción

- for ES1.0, ES1.5 or ESD15 - including two connection bolts - black

Descargas

DWG

ESD15 / ES1.0 / ES1.5 / EX15 Vertical Bracket 2D DWG

DWG

ES1.0, ES1.5, ESD15, EX15 Vertical Bracket 3D DWG

SKP

ES1.0, ES1.5, ESD15, EX15 Vertical Bracket SKP

ES1.0, ES1.5, ESD15, EX15 Vertical Bracket SketchUp

Long bracket for joining ES1.0 and ES1.8 or ES2.5

Galería

Código de producto

KVV 987 046

Descripción

Long bracket for joining ES1.0 and ES1.8 or ES2.5

Descargas

DWG

Long bracket for joining ES1.0 and ES1.8 or ES2.5 - 3D DWG

SKP

Long bracket for joining ES1.0 and ES1.8 or ES2.5 - SketchUp

PDF

Long bracket for joining ES1.0 and ES1.8 or ES2.5 PDF drawing

DWG

Long bracket for joining ES1.0 and ES1.8 or ES2.5 3D DWG

SKP

Long bracket for joining ES1.0 and ES1.8 or ES2.5 SKP

Long bracket for joining ES1.0 and ES1.8 or ES2.5 SketchUp

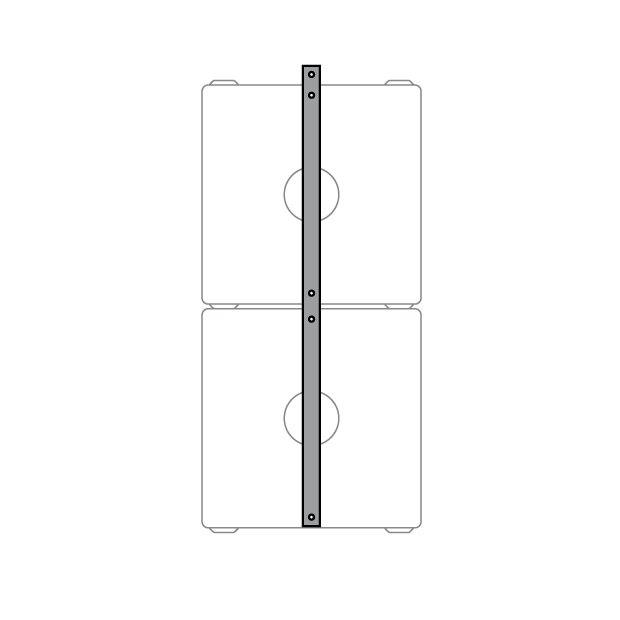

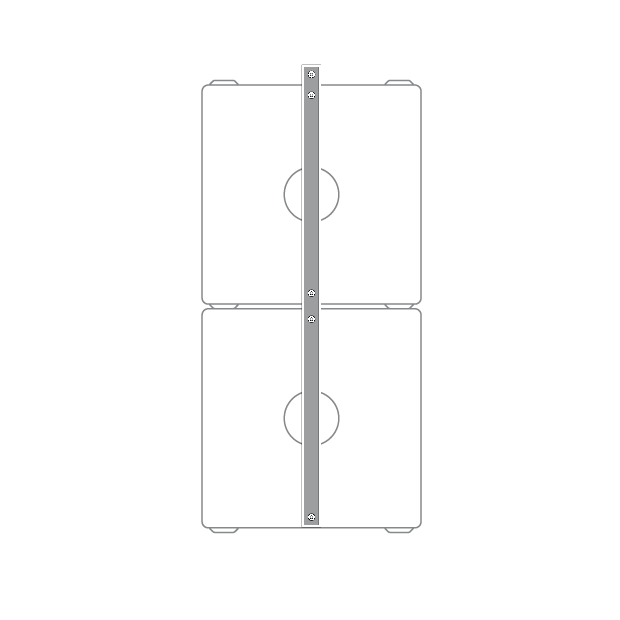

Long bracket for joining two ES1.0 or ES1.5

Galería

Código de producto

KVV 987 026

Descripción

Long bracket for joining two ES1.0 or ES1.5

Descargas

DWG

Long bracket for joining two ES1.0 or ES1.5 - 3D DWG

SKP

Long bracket for joining two ES1.0 or ES1.5 - SketchUp

PDF

Long bracket for joining two ES1.0 or ES1.5 PDF drawing

DWG

Long bracket for joining two ES1.0 or ES1.5 3D DWG

SKP

Long bracket for joining two ES1.0 or ES1.5 SKP

Long bracket for joining two ES1.0 or ES1.5 SketchUp

Set of M10 x 50 closed end bolts for 6mm quick lock pin for ES1.0, ES1.5, ESR212, ESR215MkII, SL2.15, SL412

Galería

Código de producto

KVV 987 383

Descripción

These negate the requirement to remove and replace supplied enclosure bolts depending if attachments are fixed.

Descargas

DWG

Set of M10 x 50 closed end bolts for 6mm quick lock pin for ES1.0, ES1.5, ESR212, ESR215MkII, SL2.15, SL412 3D DWG

SKP

Set of M10 x 50 closed end bolts for 6mm quick lock pin for ES1.0, ES1.5, ESR212, ESR215MkII, SL2.15, SL412 SKP

Set of M10 x 50 closed end bolts for 6mm quick lock pin for ES1.0, ES1.5, ESR212, ESR215MkII, SL2.15, SL412 SketchUp

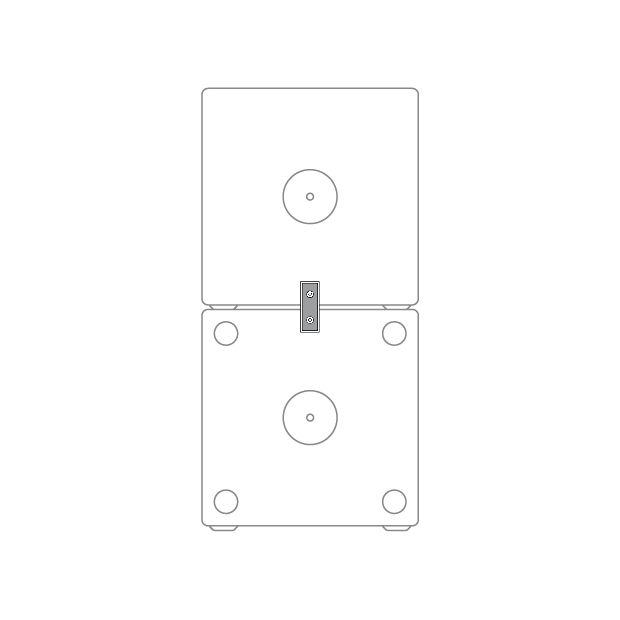

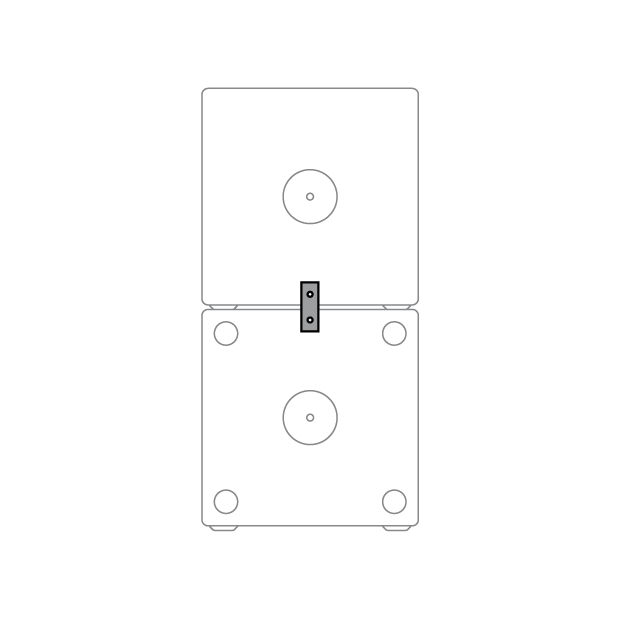

Short bracket for joining two ES1.0 or ES1.5

Galería

Código de producto

KVV 987 027

Descripción

Short bracket for joining two ES1.0 or ES1.5

Descargas

PDF

Short bracket for joining two ES1.0 or ES1.5 PDF drawing

Speaker pole - universal

Galería

Código de producto

KVV 987 130

Descripción

Heavy duty telescopic speakerpole - 0,735 to 1,23 m - diameter 35 mm - weight 2,2 kg - max. load 50 kg - bottom terminal M20 - matte black

Descargas

SKP

Speaker pole - universal SKP

Speaker pole - universal SketchUp

ES Double - A
ES Double - B
ES Double - C
ES Double - D
ES Single - A1
ES Single - A2
ES Single - A3
ES Single - B1
ES Single - B2
ES Single - C
ES Single - D
ES Single - E

Seleccione

ES Double - A

Descripción

Up to 2000 people Number of bass boxes - depend on music style Right side of stereo double system
