The new SL412 and SL2.15 speakers incorporate an eye catching slim stylish cabinet design. Designed to integrate either externally through simple wall mounting, suspension, ground stacking, or internally into walls and surfaces, these units can be designed and supplied with custom colors, grill templates and logos, offering a flexible and true designer integrated product. A single yoke assembly with multiple fixed angle and fixing locations, provides a quick and cost effective solution for simple suspension options.

Watch the video

SLOverview

SL
Overview
Downloads
Accessories
Configurations
Case studies

Description

Using KV2 VHD technology, the SL412 loudspeaker utilizes 4 x 12” low mid-range components and the proven and highly respected horn assembly from the VHD1.0, with a single 8” mid-range and 3” large format NPVD compression driver. This mid-high horn has an extremely coherent-wide horizontal dispersion of over 110° while the purpose designed 4 x 12” configuration dramatically reduces the most common problem of immediate reflections within the 300 to 800Hz range usually associated with wide dispersion loudspeakers.

The end result is full and wide sound propagation exactly where it is required. While the SL412 can be utilized with any of KV2’s wide range of sub woofer systems depending on the actual application, the accompanying SL2.15 utilizes the same slim line design to allow for an aesthetically pleasing and acoustically punchy system that can virtually disappear against a wall. The SL2.15 is a 2 x 15” specially designed to output maximum bass response from a its shallow cabinet design. To achieve deep low bass extension it is recommended to use the SL 2.15 with KV2 18” or 21” subwoofers.

Features

Slim, discreetly profiled wall mount cabinet
The SL Series uses KV2 Audio's Active Driven philosophy
Compact and modular with all the electronics and amplification housed in separate, portable SL3000
Less than 300mm deep, can be installed against a wall, reducing floorspace required

User Manuals (2)
Drawings (6)
EASE data (2)
Brochures (2)

PDF

SL Series User Guide

SL3000, SL412, SL2.15 and configurations

PDF

SL Brackets and Flybars User Guide

- SL Brackets and Flybars instructions

DWG

SL412 - 3D

- 3D drawing, 1:1 scale - clamping points - weight - dwg file

PDF

SL412 - 2D

DWG

SL2.15 - 3D

- 3D drawing, 1:1 scale - clamping points - weight - dwg file

PDF

SL2.15 - 2D

PDF

SL3000 - 2D

DWG

SL3000 - 3D

GLL

SL412 - EASE data

EASE data - .GLL - description

GLL

SL412 EASE Focus

PDF

ES ESR SL brochure

PDF

Technology

Super Live Audio Technology (SLA)

Amphenol AP6 connector

Product code

KVV 987 050

Description

- female - cable mount

Amphenol AP6 connector

Product code

KVV 987 051

Description

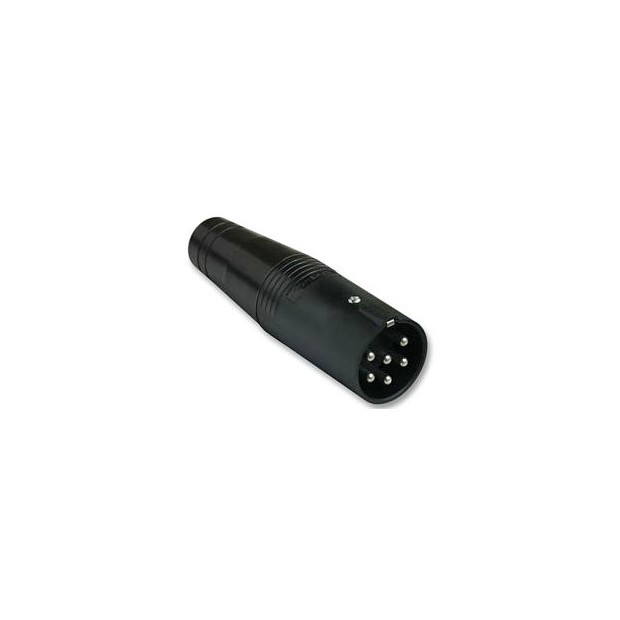

- male - cable mount

Cable Kit

Product code

KVV 987 047

Description

- consist of four high-quality Amphenol AP cable assemblies designed for use with ES Series - 2 pcs LF15 - 1pc LF40 - 1pc MH60

Mid/Hi speaker cable HM120

Product code

KVV 987 126

Description

- 6 wire speaker cable - AP6 connectors - 12m (40ft) length - for Mid/Hi Module hook-up

Mid/Hi speaker cable HM180

Product code

KVV 987 127

Description

- 6 wire speaker cable - AP6 connectors - 18m (60ft) length - for Mid/Hi Module hook-up

Mid/Hi speaker cable HM60

Product code

KVV 987 125

Description

- 6 wire speaker cable - AP6 connectors - 6m (20ft) - for Mid/Hi Module hook-up

Set of M10 x 50 closed end bolts for 6mm quick lock pin

Product code

KVV 987 383

Description

These negate the requirement to remove and replace supplied enclosure bolts depending if attachments are fixed.

SL Top Bracket kit with Quick-lock pins

Product code

KVV 987 312

Description

- 7 pcs M10 hex screws with hole included - 6 pcs Quick-lock-pins 6mm included - 1pc allen key - 6mm included

SL Top Bracket kit with screws

Product code

KVV 987 300

Description

- 7 pcs M10 hex screws included - 1pc allen key - 6mm included

SL412 Flybar

Product code

KVV 987 331

Description

- 2pcs M10 Hex Screwthreads with integral apreture
- 2pcs D6 Quick release pins
- 2pcs Handscrew locks
- 1 pc allen key - 6mm included

SL412/2.15 Vertical Bracket

Product code

KVV 987 293

Description

- 4 pcs Quick-lock-pins 6mm included
- 4 pcs M10 hex screws with a hole included

Amphenol AP4 connector

Product code

KVV 987 048

Description

- female - cable mount

Amphenol AP4 connector

Product code

KVV 987 049

Description

- male - cable mount

Bass speaker cable LF100

Product code

KVV 987 123

Description

- 4 wire speaker cable - AP4 connectors - 10m (33ft) - for ES Bass Module hook-up

Bass speaker cable LF15

Product code

KVV 987 121

Description

- 4 wire speaker cable - AP4 connectors - 1,5m (5ft) - for ES Bass Module daisy-chaining

Bass speaker cable LF200

Product code

KVV 987 124

Description

- 4 wire speaker cable - AP4 connectors - 20m (66ft) - for ES Bass Module hook-up

Bass speaker cable LF40

Product code

KVV 987 122

Description

- 4 wire speaker cable - AP4 connectors - 4m (13ft) - for ES Bass Module hook-up

SL Ground Stack

Product code

KVV 987 320

Description

The SL Ground Stack consists of a two supporting legs, connecting to a metal strip, that has apertures with fixed points to allow the securing of the multiple stacked SL215 Bass enclosures with an SL412 and to prevent tipping when using the SL system stacked, away from the wall, or stacked on a VHD2.21 enclosure. - 6 pcs M10 hex screws with hole included - 6 pcs Quick-lock-pins 6mm included - 2pcs knob with screw included - 1pc allen key - 6mm included

SL Sub Bracket kit

Product code

KVV 987 299

Description

- for joining SL2.15s - 9 pcs M10 hex screws included - 1pc allen key - 6mm included

SL Sub Bracket SL2.15

Product code

KVV 987 341

Description

1x Screw HXG button head M10X30
8x (Drilling) Screw HXG Countersunk M10X25
8x Quick Pin

SL - A
SL - B
SL - C
SL - D
SL-Full range

Choose

SL - A

Description

• Up to 2000 people • Number of bass cabinets and SUB LEVEL setup - depends on the style of music

Products

Count	Product	Type
2	SL412	MID-HI
4	SL2.15	BASS
1	SL3000	MID-HI AMP
1	VHD3200	SUB AMP

Accessories

Count	Accessory	Title
2	Cable MH120	Mid/Hi speaker cable HM120
2	Cable LF15	Bass speaker cable LF15
2	Cable LF40	Bass speaker cable LF40

Images

Front view

Wiring

SL - B

Description

• Up to 2000 people • Number of bass cabinets and SUB LEVEL setup - depends on the style of music

Products

Count	Product	Type
2	SL412	MID-HI
8	SL2.15	BASS
1	SL3000	MID-HI AMP
2	VHD3200	SUB AMP

Accessories

Count	Accessory	Title
2	Cable MH120	Mid/Hi speaker cable HM120
8	Cable LF40	Bass speaker cable LF40

Images

Front view

Wiring

SL - C

Description

• Up to 2000 people • Number of bass cabinets and SUB LEVEL setup - depends on the style of music

Products

Count	Product	Type
2	SL412	MID-HI
8	VHD4.18	SUB
1	SL3000	MID-HI AMP
2	VHD3200	SUB AMP

Accessories

Count	Accessory	Title
2	Cable MH120	Mid/Hi speaker cable HM120
4	Cable LF15	Bass speaker cable LF15
4	Cable LF40	Bass speaker cable LF40

Images

Front view

Wiring

SL - D

Description

• Stereo system requires: 1 x SL3000 - stereo amplifier 2 x VHD3200 - sub amplifier • Up to 2000 people • Number of bass cabinets and SUB LEVEL setup - depends on the style of music

Products

Count	Product	Type
2	SL412	MID-HI
2	VHD2.21	ULTRA SUB
1	SL3000	MID-HI AMP
2	VHD3200	SUB AMP

Accessories

Count	Accessory	Title
2	Cable MH120	Mid/Hi speaker cable HM120
2	Cable LF40	Bass speaker cable LF40

Images

Front view

Wiring

SL-Full range

Description

• Up to 2000 people • Solely for vocal reinforcement and light music playback • One side of stereo system

Products

Count	Product	Type
2	SL412	MID-HI
1	SL3000	MID-HI AMP

Accessories

Count	Accessory	Title
2	Cable MH120	Mid/Hi speaker cable HM120

Images

Front view

References

Stage Theater an der Elbe, Hamburg, Germany

A multi-million investment, this theatre was specifically designed and built for future Stage Entertainment productions and initially showcased an exciting new show about Germany winning the 1954 World cup, called ‘Das Musical WUNDER von BERN’.
