ESR Series

The ESR range has been developed for a particular niche in the market where an all in one box is needed to give clear detailed reproduction over a wide area. The ESR212 and 215 are three way full range enclosures with wide dispersion characteristics. They can be used vertically for theatre, church or cultural centre type installations or horizontally mounted to give excellent coverage over a tiered seating area for stadium or grandstand type applications.

Watch the video


ESR SeriesOverview

Description

Similar to our popular ES range, the ESR cabinets are fully active and driven by a proprietary amplifier, which delivers equalized, and time aligned accurate signal to each of the components. Two ESR cabinets can be driven by a single ESR3000 High Definition Amplifier, which houses all signal processing and amplification, as well as providing control for external subwoofer cabinet configurations if required.

In situations where extended bass response is not needed but full range high definition audio reproduction with extremely good coverage is required, the ESR Range offers an ideal solution. Economies of scale are achieved by the requirement of only one ESR amplifier to run a three way active stereo system where other systems would require processors and multiple amplifiers to achieve a similar configuration.

Features

  • Full range, wide dispersion speakers system
  • The ESR Series uses KV2 Audio's Active Driven philosophy
  • Incorporates Very High Definition and Super Analog with all the electronics and amplification housed in separate, rack mounted ESR amplifiers
  • ESR Speakers can be installed vertically or horizontally to cover applications like tiered seating areas in stadium or grandstands



PDF

ESR Series User Guide

ESR Series User Guide (ESR212 / ESR215, ESR2800 / ESR3000) - English



PDF

ESR2800 and ESR212 User Guide

- User guide for ESR2800 - Rack mounted amlifier and ESR212 - Full range system - english



DWG

ESR212 - 3D

- 3D drawing, 1:1 scale - clamping points - weight - dwg file



GLL

ESR212 EASE data

- GLL file - description





PDF

ESR3000 and ESR215 User Guide

- ESR3000 / ESR215 User Guide - English, rev. 08



DWG

ESR215 - 3D

- 3D drawing, 1:1 scale - clamping points - weight - dwg file



GLL

ESR215 EASE data

- GLL file - description





DWG

ESR2800 - 3D

- 1:1 scale - clamping points - weight - dwg file



DWG

ESR3000 - 3D

- 1:1 scale - clamping points - weight - dwg file







Horizontal Bracket ESR212



Product code

KVV 987 322



Description

ESR212 Horizontal Bracket

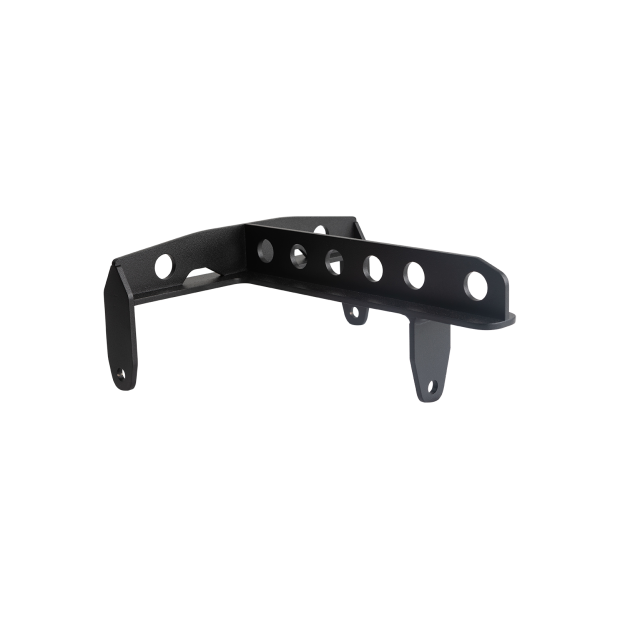

Vertical Bracket ESR212



Product code

KVV 987 291



Description

- for ESR212 flying - 3 pcs M10x35 included

  • 1st position +5 degrees
  • 2nd position 0
  • 3rd position -5 degrees
  • 4th position -10 degrees
  • 5th position -15 degrees






Horizontal Bracket ESR215



Product code

KVV 987 321



Description

ESR215 Horizontal Bracket







Vertical Bracket ESR215



Product code

KVV 987 292



Description

- for ESR215 flying - 3 pcs M10x35 included







Amphenol AP6 connector



Product code

KVV 987 050



Description

- female - cable mount






Amphenol AP6 connector



Product code

KVV 987 051



Description

- male - cable mount






Cable Kit



Product code

KVV 987 047



Description

- consist of four high-quality Amphenol AP cable assemblies designed for use with ES Series - 2 pcs LF15 - 1pc LF40 - 1pc MH60







Mid/Hi speaker cable HM120



Product code

KVV 987 126



Description

- 6 wire speaker cable - AP6 connectors - 12m (40ft) length - for Mid/Hi Module hook-up






Mid/Hi speaker cable MH15



Product code

KVV 987 147



Description

- 6 wire speaker cable - AP6 connectors - 1,5m (5ft) length - for Mid/Hi Module connection - for VHD1.0 Mid/Hi Module daisy-chaining






Mid/Hi speaker cable HM180



Product code

KVV 987 127



Description

- 6 wire speaker cable - AP6 connectors - 18m (60ft) length - for Mid/Hi Module hook-up






Mid/Hi speaker cable HM60



Product code

KVV 987 125



Description

- 6 wire speaker cable - AP6 connectors - 6m (20ft) - for Mid/Hi Module hook-up
