ESR215S - The Ultimate, Full Range, Large Scale System, Slim version

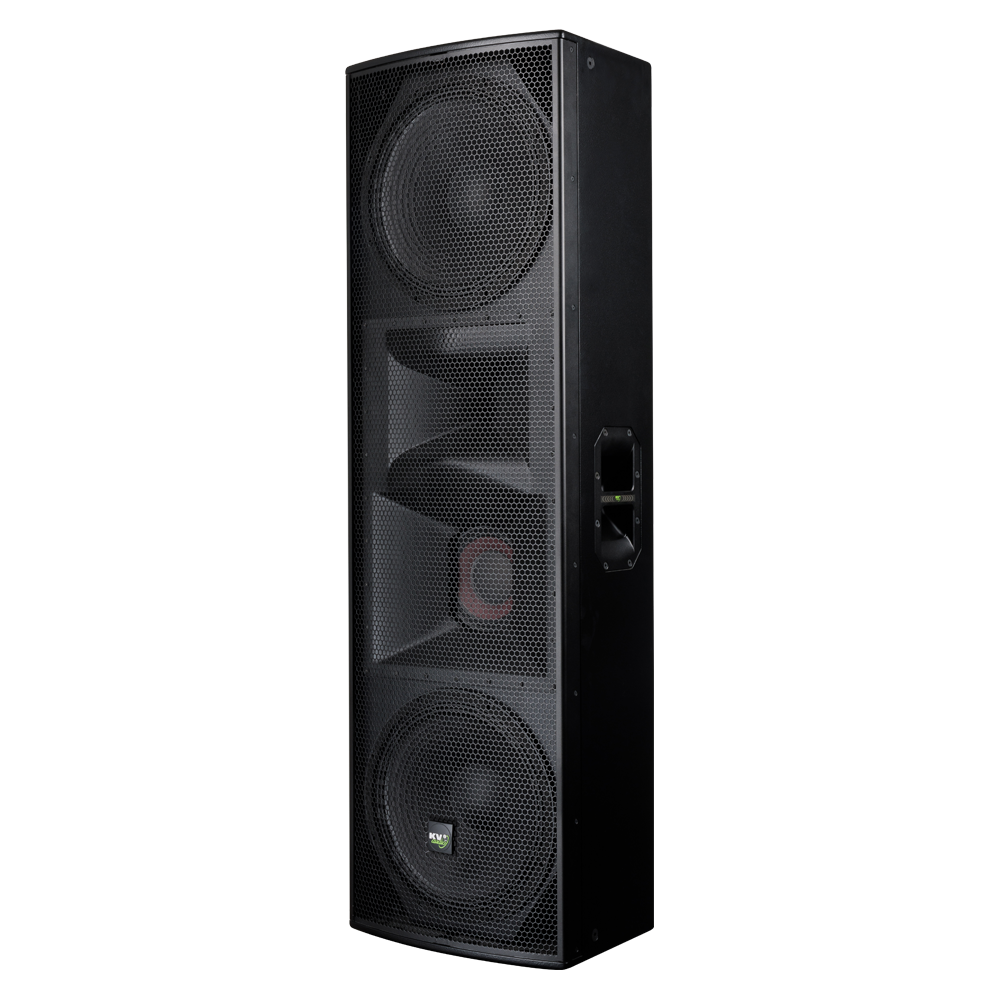

The ESR215S is a slim version of large scale full-range 3-way loudspeaker system with a wide horizontal dispersion of 110 degrees. Designed for use with the ESR3000MkII tri-amplified stereo electronic control pack, the ESR215S loudspeaker system features two 15" woofers, an 8" mid-range driver and the same large scale NPVD 3" compression driver found in KV2 Audio’s VHD mid-hi enclosures. With a wide and smooth frequency response the ESR215S is ideal for theatre or stadium applications. Like the ESR212, it incorporates multiple M10 fly points and various brackets and flyware are also available.

Watch the product video



Download Product’s Data Sheet




Applications

Intentionally designed for use in Theatres and Cultural Centers to provide the highest audio quality from single Column enclosures for stage sides and prosceniums for medium to larger venues

  • Fixed Installations
  • Music venues
  • Classical and opera concerts


Product code

KVV 987 424




Features

  • High-output, full-range 3-way loudspeaker system
  • Slim version of renowed ESR215 box
  • 132dB sustained output
  • Wide dispersion at high frequencies, controlled at lowmids to reduce indoor reflections
  • Mid/High horn design provides optimized transducer loading and controlled dispersion
  • Patent-Pending 3" diaphragm nitride-titanium compression driver with complex geometry phase plug and neodymium magnetic motor structure for higher output and lower distortion performance
  • Eight-inch midrange Transcoil driver with 3" (76 mm) neodymium magnetic motor structure for increased control and output and decreased distortion and weight
  • Proprietary midrange heat dissipation system controls voice coil temperature, ensures high dynamics and extends transducer lifespans
  • Front-loaded, 15-inch mid-bass driver with 3.00" (76 mm) voice coil assembly and ferrite magnetic motor structure
  • Professional, exterior-grade Baltic birch construction with wear-resistant polymer coating Proprietary corner and side handle designs for simplified handling and carrying
  • Acetal copolymer high impact, low friction feet allowing other cabinets lock-in and easy cabinet movement

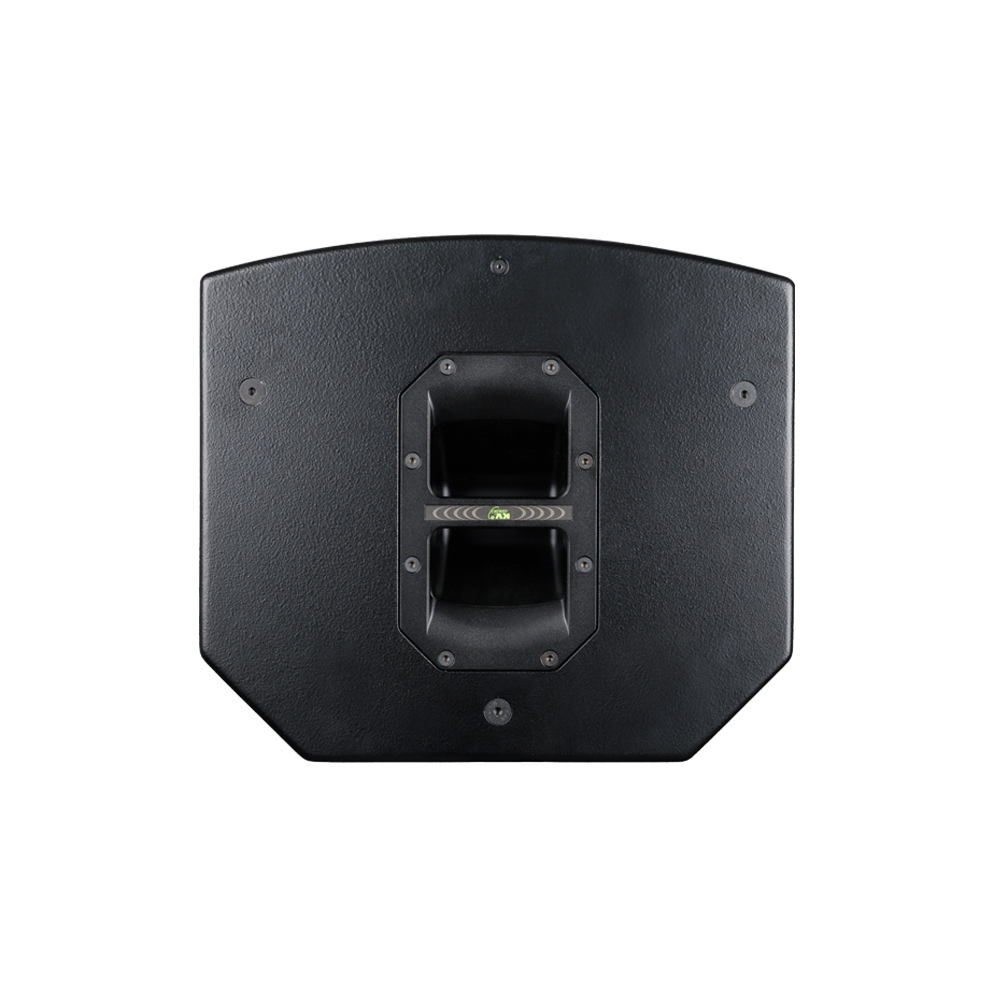

  • Six internal corner and one back brace with M10 suspension points and side and top and bottom handles with M10 suspension points. A total of 17 suspension points are available for custom installation applications
  • Requires ESR3000MkII unit for control electronics and amplification


Applications

Intentionally designed for use in Theatres and Cultural Centers to provide the highest audio quality from single Column enclosures for stage sides and prosceniums for medium to larger venues

  • Fixed Installations
  • Music venues
  • Classical and opera concerts


Product code

KVV 987 424




System Acoustic Performance

Max SPL Long-term132dB
Max SPL Peak135dB
-3dB Response37Hz to 22kHz
-10dB Response30Hz to 28kHz
Crossover Point400Hz, 2.5kHz

High Frequency Section

Acoustic DesignHorn Loaded
High Horn Coverage Horizontal / Vertical110° x 40°
Rotatable HornNO
Sensitivity110dB
High Frequency Amplifier Requirement100W from ESR3000MkII Amplifier
Throat Exit Diameter / Diaphragm Size1.4" / 3"
Diaphragm MaterialNitride Titanium
Magnet TypeNeodymium

Mid Range Section

Acoustic DesignHorn Loaded
Mid Horn Coverage Horizontal / Vertical110° x 40°
Rotatable HornNO
Sensitivity108dB
Midrange Amplifier Requirement200W from ESR3000MkII Amplifier
Woofer Size / Voice Coil Diameter / Design8" / 3" / Trans Coil
Diaphragm MaterialEpoxy Reinforced Cellulose
Magnet TypeNeodymium

Low Frequency Section

Acoustic DesignFront Loaded, Bass Reflex
Sensitivity102dB
Low Frequency Amplifier Requirement1000W from ESR3000MkII Amplifier
Number of Drivers2
Woofer Size / Voice Coil Diameter / Design15" / 3" / Inside Outside
Diaphragm MaterialEpoxy Reinforced Cellulose
Magnet TypeNeodymium

Speaker Input

Speaker Input Amphenol AP-6 male

Cabinet

Cabinet MaterialBaltic birch
Handles4
Color"Orange peeled" Matt Black or any RAL

Physical Dimensions

Height1509 mm (59.41")
Width450 mm (17.72")
Depth400 mm (15.75")
Weight69 kg (152.12 lbs)


Product code

KVV 987 424
