ESR215MkII - The Ultimate, Full Range, Large Scale System

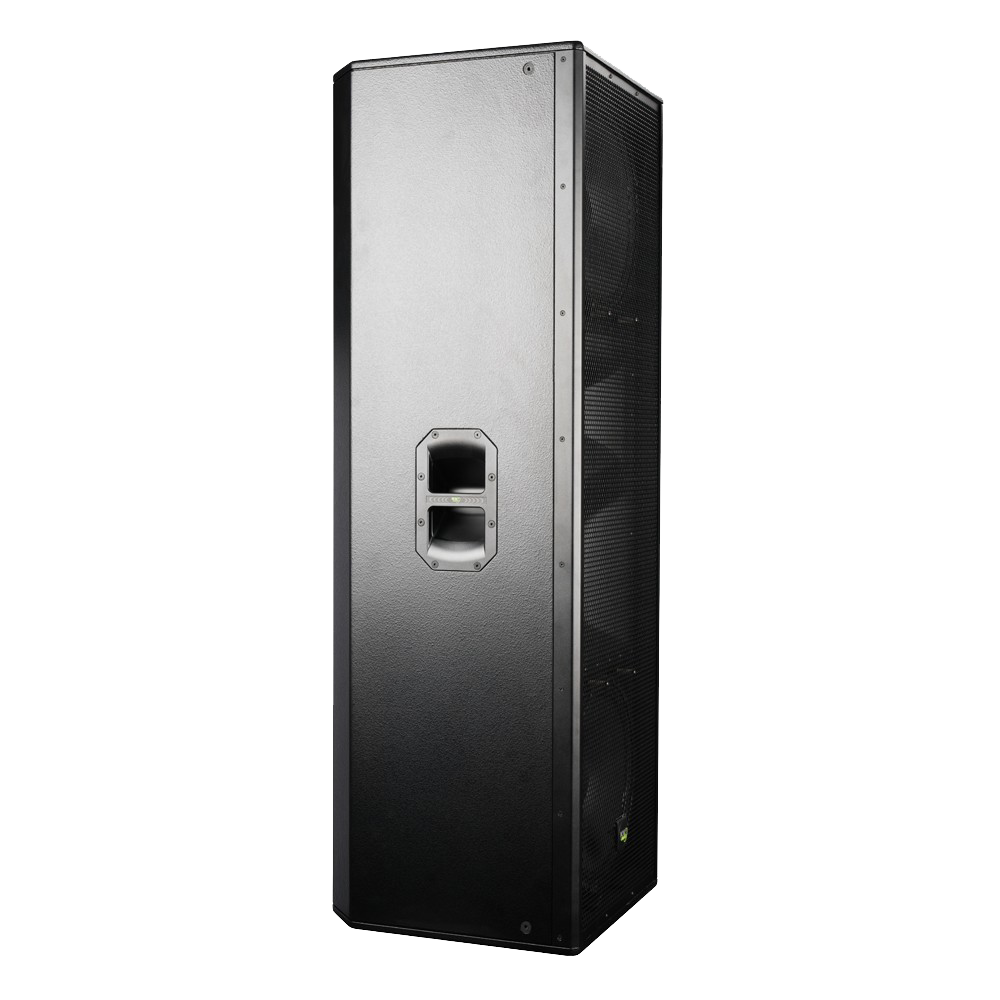

The ESR215MkII is a large scale full-range 3-way loudspeaker system with a wide horizontal dispersion of 110 degrees. Designed for use with the ESR3000MkII tri-amplified stereo electronic control pack, the ESR215MkII loudspeaker system features two 15" woofers, an 8" mid-range driver and the same large scale NPVD 3" compression driver found in KV2 Audio’s VHD mid-hi enclosures. With a wide and smooth frequency response the ESR215MkII is ideal for theatre or stadium applications. Like the ESR212, it incorporates multiple M10 fly points and various brackets and flyware are also available.

Watch the product video

ESR215MkII Technical Data Sheet

Applications

Intentionally designed for use in Theatres and Cultural Centers to provide the highest audio quality from single Column enclosures for stage sides and prosceniums for medium to larger venues

  • Fixed Installations
  • Music venues
  • Classical and opera concerts

Product code

KVV 987 245



Features

  • High-output, full-range 3-way loudspeaker system
  • 132dB sustained output
  • Wide dispersion at high frequencies, controlled at lowmids to reduce indoor reflections
  • Mid/High horn design provides optimized transducer loading and controlled dispersion
  • Patent-Pending 3" diaphragm nitride-titanium compression driver with complex geometry phase plug and neodymium magnetic motor structure for higher output and lower distortion performance
  • Eight-inch midrange Transcoil driver with 3" (76 mm) neodymium magnetic motor structure for increased control and output and decreased distortion and weight
  • Proprietary midrange heat dissipation system controls voice coil temperature, ensures high dynamics and extends transducer lifespans
  • Front-loaded, 15-inch mid-bass driver with 3.00" (76 mm) voice coil assembly and ferrite magnetic motor structure
  • Professional, exterior-grade Baltic birch construction with wear-resistant polymer coating Proprietary corner and side handle designs for simplified handling and carrying
  • Acetal copolymer high impact, low friction feet allowing other cabinets lock-in and easy cabinet movement
  • Six internal corner and one back brace with M10 suspension points and side and top and bottom handles with M10 suspension points. A total of 17 suspension points are available for custom installation applications
  • Requires ESR3000MkII unit for control electronics and amplification


Applications

Intentionally designed for use in Theatres and Cultural Centers to provide the highest audio quality from single Column enclosures for stage sides and prosceniums for medium to larger venues

  • Fixed Installations
  • Music venues
  • Classical and opera concerts

Product code

KVV 987 245



System Acoustic Performance

Max SPL Long-term132dB
Max SPL Peak138dB
-3dB Response35Hz to 22kHz
-10dB Response28Hz to 30kHz
Crossover Point400Hz, 2.5kHz

High Frequency Section

Acoustic DesignHorn Loaded
High Horn Coverage Horizontal / Vertical110° x 40°
Rotatable HornNO
High Frequency Amplifier Requirement100W from ESR3000MkII Amplifier
Throat Exit Diameter / Diaphragm Size1.4" / 3"
Diaphragm MaterialNitride Titanium
Magnet TypeNeodymium

Mid Range Section

Acoustic DesignHorn Loaded
Mid Horn Coverage Horizontal / Vertical110° x 40°
Rotatable HornNO
Sensitivity108dB
Midrange Amplifier Requirement200W ESR3000MkII Amplifier
Woofer Size / Voice Coil Diameter / Design8" / 3" / Trans Coil
Diaphragm MaterialEpoxy Reinforced Cellulose
Magnet TypeNeodymium

Low Frequency Section

Acoustic DesignFront Loaded, Bass Reflex
Sensitivity102dB
Low Frequency Amplifier Requirement1000W ESR3000MkII Amplifier
Number of Drivers2
Woofer Size / Voice Coil Diameter / Design15" / 3" / Inside Outside
Diaphragm MaterialEpoxy Reinforced Cellulose
Magnet TypeNeodymium

Speaker Input

Speaker Input Amphenol AP-6 male

Speaker Output

Speaker Output-

Cabinet

Cabinet MaterialBaltic birch
Handles4
Color"Orange peeled" Matt Black or any RAL

Physical Dimensions

Height1515 mm (59.65")
Width470 mm (18.50")
Depth500 mm (19.69")
Weight71 kg (156.53lbs)


Product code

KVV 987 245


PDF

ESR Series User Guide

ESR Series User Guide (ESR212 / ESR215MkII / ESR215S, ESR2800 / ESR3000MkII) - English



PDF

ESR215MkII Data Sheet

ESR215MkII Data Sheet



PDF

ESR3000 and ESR215 User Guide

- ESR3000 / ESR215 User Guide - English, rev. 08



DWG

ESR215MkII - 3D

3D drawing, 1:1 scale - clamping points - weight - dwg file



DWG

ESR215 Horizontal Bracket 3D DWG

ESR215 Horizontal Bracket 3D DWG



SKP

ESR215 Vertical Bracket SKP

ESR215 Vertical Bracket SketchUp



DWG

ESR215 Vertical Bracket 3D DWG

ESR215 Vertical Bracket 3D DWG



SKP

ESR215MkII SKP

ESR215MkII SketchUp



DWG

ESR215MkII 3D DWG

ESR215MkII 3D DWG



SKP

Set of M10 x 50 closed end bolts for 6mm quick lock pin for ES1.0, ES1.5, ESR212, ESR215MkII, SL2.15, SL412 SKP

Set of M10 x 50 closed end bolts for 6mm quick lock pin for ES1.0, ES1.5, ESR212, ESR215MkII, SL2.15, SL412 SketchUp



DWG

Set of M10 x 50 closed end bolts for 6mm quick lock pin for ES1.0, ES1.5, ESR212, ESR215MkII, SL2.15, SL412 3D DWG

Set of M10 x 50 closed end bolts for 6mm quick lock pin for ES1.0, ES1.5, ESR212, ESR215MkII, SL2.15, SL412 3D DWG



SKP

ESR215 Horizontal Bracket SKP

ESR215 Horizontal Bracket SketchUp



SKP

ESR Series SketchUp

ESR Series SketchUp



DWG

ESR215 Vertical Bracket 2D DWG

ESR215 Vertical Bracket 2D DWG



DWG

ESR215 2D DWG

ESR215 2D DWG



PDF

ESR215MkII - 2D

ESR215MkII 2D Drawings



GLL

ESR215 - EASE data

EASE data - .GLL - description





GLL

ESR215MkII EASE Focus

ESR215MkII EASE Focus





ESR215 Horizontal bracket

Gallery

Product code

KVV 987 321



Description

ESR215 Horizontal Bracket



Downloads

DWG

ESR215 Horizontal Bracket 3D DWG

ESR215 Horizontal Bracket 3D DWG

SKP

ESR215 Horizontal Bracket SKP

ESR215 Horizontal Bracket SketchUp

ESR215 Vertical bracket

Gallery

Product code

KVV 987 292



Description

- for ESR215 flying - 3 pcs M10x35 included



Downloads

DWG

ESR215 Vertical Bracket 3D DWG

ESR215 Vertical Bracket 3D DWG

SKP

ESR215 Vertical Bracket SKP

ESR215 Vertical Bracket SketchUp

Set of M10 x 50 closed end bolts for 6mm quick lock pin for ES1.0, ES1.5, ESR212, ESR215MkII, SL2.15, SL412

Gallery

Product code

KVV 987 383



Description

These negate the requirement to remove and replace supplied enclosure bolts depending if attachments are fixed.



Downloads

DWG

Set of M10 x 50 closed end bolts for 6mm quick lock pin for ES1.0, ES1.5, ESR212, ESR215MkII, SL2.15, SL412 3D DWG

Set of M10 x 50 closed end bolts for 6mm quick lock pin for ES1.0, ES1.5, ESR212, ESR215MkII, SL2.15, SL412 3D DWG

SKP

Set of M10 x 50 closed end bolts for 6mm quick lock pin for ES1.0, ES1.5, ESR212, ESR215MkII, SL2.15, SL412 SKP

Set of M10 x 50 closed end bolts for 6mm quick lock pin for ES1.0, ES1.5, ESR212, ESR215MkII, SL2.15, SL412 SketchUp
