VHD Series

The VHD High Performance Touring and Installation system from KV2 Audio has been designed to revolutionize the concert sound market by offering unparalleled quality, power, and coverage with huge cost savings in terms of size, weight, transportation, storage, and set up time.

Challenging the popular trend of line array technology, VHD builds on the KV2 Audio philosophy of point source theory, offering drastically reduced distortion levels and a hugely increased dynamic range that takes us to a new level of sound reproduction previously unheard in large-scale audio systems. VHD reduces the amount of elements needed to cover a particular area for large-scale sound reinforcement, thus removing the interference problems created by multiple sources in modern line array systems. Time alignment and phase correction is done via KV2’s new 20MHz digital delay line. Boasting the highest sampling rate of any digital speaker processor available, KV2’s on board hybrid signal processing uses the best in analog and digital technology to provide incredible definition and resolution with true dynamic range.

Watch the video



Description

At KV2 we define true dynamic range by the systems ability to produce the low level signals associated with the ambience and timbre of the sound as well as the main higher level signals. The end result is clearer more dynamic sound that will travel considerably further providing high quality audio that is far less effected by air disturbances through crowds, heat and wind.

The VHD1.0 and VHD2.0 Mid High cabinets, driven by a VHD2000 amplifier are at the heart of this solution forming the core of our VHD system. Reinforcing this are the VHD2.16, VHD4.18, VHD1.21 and VHD2.21, four very different active driven subwoofer systems powered by the VHD3200 amplifier. All speakers (except the VHD2.21) are based on identical footprints for easy stacking and proprietary flying system provides quick and easy rigging of VHD for suspended use.

The VHD2.21 Double 21 inch subwoofer has been designed in response to the call for a high output, ultra low frequency subwoofer solution. It is voiced for both live music but also excels in the field of club and dance music. In this situation it works very effectively, operating down to 25Hz, alongside other VHD products, the smaller ES range, or as an incredible stand-alone subwoofer that can complement any other manufacturers systems.

The VHD system represents KV2’s embodiment of the very best available technology in both the analog and digital worlds. Through industry leading engineering, we have managed to optimise the amplifier and speaker relationship to achieve outstanding output with relatively few components. The result is something special, something not just different, but better. VHD will change your thinking towards current large format system trends.

VHD - Very High Definition audio, the pinnacle of KV2 Audio technology.

Features

  • Very High Definition
  • High Performance Touring and Installation system
  • Designed to revolutionize the Live Sound market by offering unparalleled quality, power, and coverage with huge cost savings in terms of size, weight, transportation, storage, and set up time



PDF

VHD2.0, VHD1.0 and Flyware User Guide

VHD2.0, VHD1.0 and Flyware User Guide, English



PDF

VHD1.0 Data Sheet

VHD1.0 Data Sheet



PDF

VHD2.0 Data Sheet

VHD2.0 Data Sheet



PDF

Disarray - The correct theory of arraying KV2 boxes

Disarray - The correct theory of arraying KV2 boxes



PDF

VHD1.21 Data Sheet

VHD1.21 Data Sheet



PDF

VHD Subwoofers User Guide

VHD Series Subwoofers User Guide - VHD2.16, VHD2.18J, VHD4.18, VHD1.21, VHD2.21 / VHD2.21R, English



PDF

VHD2.16 Data Sheet

VHD2.16 Data Sheet



PDF

VHD2.18J Data Sheet

VHD2.18J Data Sheet



PDF

VHD2.18J Flybar Hanging Instructions

VHD2.18J Flybar Hanging Instructions - Maximum allowed hung weight depending upon the chosen hang points.



PDF

VHD4.18 Data Sheet

VHD4.18 Data Sheet



PDF

VHD2.21 Data Sheet

VHD2.21 Data Sheet



PDF

VHD4.21 / VHD4.21R User Guide

VHD4.21 / VHD4.21R Active Passive Bass Module - User Guide (EN)



PDF

VHD4.21 Active /Passive Data Sheet

VHD4.21 Active /Passive Data Sheet



PDF

VHD Amplifiers User Guide

VHD Amplifiers User Guide - VHD2000, VHD3200 - English



PDF

VHD2000 Data Sheet

VHD2000 Data Sheet



PDF

VHD3200 Data Sheet

VHD3200 Data Sheet



PDF

VHD3200D User Guide

VHD3200D User Guide



ZIP

KV2 Control and Diagnostics Tool for Windows

KV2 Diagtool for Windows v1.1



DMG

KV2 Control and Diagnostics Tool for macOS

KV2 Diagtool for macOS v1.1



DWG

VHD1.0 - 3D

1:1 scale - clamping points - weight - dwg file



SKP

VHD1.0 Downfill arm (pair) SKP

VHD1.0 Downfill arm (pair) SketchUp



DWG

VHD1.0 Downfill arm (pair) 3D DWG

VHD1.0 Downfill arm (pair) 3D DWG



SKP

VHD Systems fly bar SKP

VHD Systems fly bar SketchUp



DWG

VHD Systems fly bar 3D DWG

VHD Systems fly bar 3D DWG



SKP

VHD1.0 Cart SketchUp

VHD1.0 Cart SKP



DWG

VHD1.0 Cart 3D DWG

VHD1.0 Cart 3D DWG



SKP

VHD1.0R (right) SKP

VHD1.0R (right) SketchUp



DWG

VHD1.0R (right) 3D DWG

VHD1.0R (right) 3D DWG



SKP

VHD1.0L (left) SKP

VHD1.0L (left) SketchUp



DWG

VHD1.0L 2D DWG

VHD1.0L 2D DWG



DWG

VHD1.0R 2D DWG

VHD1.0R 2D DWG



PDF

VHD1.0 Right - 2D

VHD1.0 Right 2D Drawings



PDF

VHD1.0 Left - 2D

VHD1.0 Left 2D Drawings



SKP

VHD Series Sketchup

VHD Series Sketchup - all boxes and accessories



DWG

VHD1.0L (left) 3D DWG

VHD1.0L (left) 3D DWG



DWG

VHD2.0 - 3D

1:1 scale - clamping points - weight - dwg file



SKP

VHD2.0 Top extension arm (pair) SKP

VHD2.0 Top extension arm (pair) SketchUp



DWG

VHD2.0 Top extension arm (pair) 3D DWG

VHD2.0 Top extension arm (pair) 3D DWG



SKP

VHD Fly bar SKP

VHD Fly bar SketchUp



DWG

VHD Fly bar 3D DWG

VHD Fly bar 3D DWG



SKP

VHD2.0 Cart SKP

VHD2.0 Cart SketchUp



DWG

VHD2.0 Cart 3D DWG

VHD2.0 Cart 3D DWG



SKP

VHD2.0L (left) SKP

VHD2.0L (left) SketchUp



DWG

VHD2.0L (left) 3D DWG

VHD2.0L (left) 3D DWG



SKP

VHD2.0R (right) SKP

VHD2.0R (right) SketchUp



DWG

VHD2.0 Top arm (pair) 3D DWG

VHD2.0 Top arm (pair) 3D DWG



SKP

VHD2.0 Top arm (pair) SKP

VHD2.0 Top arm (pair) SketchUp



PDF

VHD2.0 Right - 2D

VHD2.0 Right 2D Drawings



PDF

VHD2.0 Left - 2D

VHD2.0 Left 2D Drawings



DWG

VHD2.0R 2D DWG

VHD2.0R 2D DWG



DWG

VHD2.0L 2D DWG

VHD2.0L 2D DWG



DWG

VHD2.0R (right) 3D DWG

VHD2.0R (right) 3D DWG



DWG

VHD2.15 - 3D

- 1:1 scale - clamping points - weight - dwg file



SKP

VHD2.15, VHD2.16, VHD4.18 Cart SKP

VHD2.15, VHD2.16, VHD4.18 Cart SketchUp



DWG

VHD2.15, VHD2.16, VHD4.18 Cart 3D DWG

VHD2.15, VHD2.16, VHD4.18 Cart 3D DWG



DWG

VHD1.21 - 3D

- 1:1 scale - clamping points - weight - dwg file



SKP

VHD1.21 SKP

VHD1.21 SketchUp



DWG

VHD1.21 Cart 3D DWG

VHD1.21 Cart 3D DWG



SKP

VHD1.21 Cart SKP

VHD1.21 Cart SketchUp



DWG

VHD1.21 2D DWG

VHD1.21 2D DWG



PDF

VHD1.21 - 2D

VHD1.21 2D Drawings



DWG

VHD1.21 3D DWG

VHD1.21 3D DWG



DWG

VHD2.16 - 3D

- 1:1 scale - clamping points - weight - dwg file



DWG

VHD2.16 3D DWG

VHD2.16 3D DWG



SKP

VHD2.16 SKP

VHD2.16 SketchUp



DWG

VHD Bass arm (pair) 3D DWG

VHD Bass arm (pair) 3D DWG



SKP

VHD Bass arm (pair) SKP

VHD Bass arm (pair) SketchUp



DWG

VHD Bass extension arm (pair) 3D DWG

VHD Bass extension arm (pair) 3D DWG



SKP

VHD Bass extension arm (pair) SKP

VHD Bass extension arm (pair) SketchUp



DWG

VHD2.16 2D DWG

VHD2.16 2D DWG



PDF

VHD2.16 - 2D

VHD2.16 2D Drawings



SKP

VHD2.18J SKP

VHD2.18J SketchUp



DWG

VHD2.18J 2D DWG

VHD2.18J 2D DWG



DWG

VHD2.18J Flybar 2D DWG

VHD2.18J Flybar 2D DWG



DWG

VHD2.18J - 3D

VHD2.18J 3D Drawing - DWG file



PDF

VHD2.18J - 2D

VHD2.18J 2D Drawing



DWG

VHD2.18J 3D DWG

VHD2.18J 3D DWG



DWG

VHD4.18 - 3D

- 1:1 scale - clamping points - weight - dwg file



SKP

VHD4.18 SKP

VHD4.18 SketchUp



DWG

VHD4.18 2D DWG

VHD4.18 2D DWG



PDF

VHD4.18 - 2D

VHD4.18 2D Drawings



DWG

VHD4.18 3D DWG

VHD4.18 3D DWG



DWG

VHD2.21 - 3D

1:1 scale - clamping points - weight - dwg file



SKP

VHD4.21, 2.21 Flybar 3D DWG

VHD4.21, 2.21 Flybar 3D DWG



DWG

VHD2.21 3D DWG

VHD2.21 3D DWG



SKP

VHD2.21 SKP

VHD2.21 SketchUp



DWG

VHD4.21/2.21 Flybar 3D DWG

VHD4.21/2.21 Flybar 3D DWG



DWG

VHD4.21/2.21 Flybar 2D DWG

VHD4.21/2.21 Flybar 2D DWG



SKP

VHD4.21/2.21 Flybar 3D SKP

VHD4.21/2.21 Flybar 3D SKP



PDF

VHD4.21/2.21 Flybar 2D drawing

VHD4.21/2.21 Flybar 2D drawing



DWG

VHD2.21 2D DWG

VHD2.21 2D DWG



PDF

VHD2.21 - 2D

VHD2.21 2D Drawings



SKP

VHD4.21 PASSIVE SKP

VHD4.21 PASSIVE SketchUp



DWG

VHD4.21 PASSIVE 3D DWG

VHD4.21 PASSIVE 3D DWG



SKP

VHD4.21 ACTIVE SKP

VHD4.21 ACTIVE SketchUp





DWG

VHD4.21 ACTIVE 3D DWG

VHD4.21 ACTIVE 3D DWG



DWG

VHD4.21 Active 2D DWG

VHD4.21 Active 2D DWG



DWG

VHD4.21 Passive 2D DWG

VHD4.21 Passive 2D DWG



PDF

VHD4.21 - 2D

VHD4.21 2D Drawings



DWG

VHD4.21 Passive - 3D

1:1 scale - clamping points - weight - dwg file



SKP

EPAK2500R, ESP4000, VHD2000 Rack panel cover SKP

EPAK2500R, ESP4000, VHD2000 Rack panel cover SketchUp



DWG

VHD2000 230V 3D DWG

VHD2000 230V 3D DWG



SKP

VHD2000 230V SKP

VHD2000 230V SketchUp



DWG

VHD2000 115V 3D DWG

VHD2000 115V 3D DWG



SKP

VHD2000 115V SKP

VHD2000 115V SketchUp



DWG

VHD2000 250V 3D DWG

VHD2000 250V 3D DWG



SKP

VHD2000 250V SKP

VHD2000 250V SketchUp



DWG

VHD2000 2D DWG

VHD2000 2D DWG



DWG

VHD2000 - 3D

1:1 scale - clamping points - weight - dwg file



PDF

VHD2000 - 2D

VHD2000 2D Drawings



DWG

EPAK2500R, ESP4000, VHD2000 Rack panel cover 3D DWG

EPAK2500R, ESP4000, VHD2000 Rack panel cover 3D DWG



SKP

VHD3200 230V SKP

VHD3200 230V SketchUp



DWG

VHD3200 115V 3D DWG

VHD3200 115V 3D DWG



SKP

VHD3200 115V SKP

VHD3200 115V SketchUp



DWG

VHD3200 250V 3D DWG

VHD3200 250V 3D DWG



SKP

VHD3200 250V SKP

VHD3200 250V SketchUp



DWG

VHD3200 2D DWG

VHD3200 2D DWG



DWG

VHD3200 - 3D

1:1 scale - clamping points - weight - dwg file



PDF

VHD3200 - 2D

VHD3200 2D Drawings



DWG

VHD3200 230V 3D DWG

VHD3200 230V 3D DWG



DWG

VHD3200D - 3D DWG

VHD3200D - 3D DWG



SKP

VHD3200D - SketchUp

VHD3200D - SketchUp



DWG

VHD3200D - 2D DWG

VHD3200D - 2D DWG



DWG

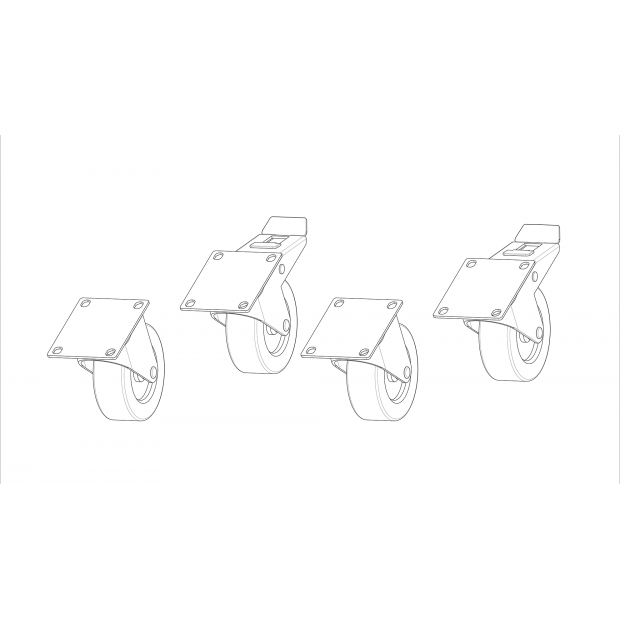

Carts wheel kit (12mm) 3D DWG

Carts wheel kit (12mm) 3D DWG



SKP

VHD Carts wheel kit (12mm) SKP

VHD Carts wheel kit (12mm) SketchUp



DWG

VHD8.10 2D DWG

VHD8.10 2D DWG



DWG

VHD5.0 Power Unit 2D DWG

VHD5.0 Power Unit 2D DWG



GLL

VHD2.0 EASE data package

VHD2.0 EASE data package includes VHD2.0, Double VHD2.0, VHD1.0 standalone, VHD1.0 downfill



GLL

VHD2.18j EASE Data

VHD2.18j EASE data - .GLL - description





GLL

VHD4.21 / VHD2.21 EASE Data

VHD4.21 / VHD2.21 EASE Data - .GLL - description



PDF

SLA Technology

Super Live Audio Technology (SLA)



GLL

VHD2.0 Double EASE Focus

VHD2.0 Double EASE Focus



GLL

VHD2.0 Single EASE Focus

VHD2.0 Single EASE Focus



GLL

VHD2.16 EASE Focus

VHD2.16 EASE Focus



GLL

VHD2.18j EASE Focus

VHD2.18j EASE Focus



GLL

VHD4.18 EASE Focus

VHD4.18 EASE Focus



GLL

VHD4.21 / 2.21 EASE Focus

VHD4.21 / 2.21 EASE Focus





Cable MH120

Gallery

Product code

KVV 987 126



Description

- 6 wire speaker cable - AP6 connectors - 12m (40ft) length - for Mid/Hi Module hook-up



Cable MH15

Gallery

Product code

KVV 987 147



Description

- 6 wire speaker cable - AP6 connectors - 1,5m (5ft) length - for Mid/Hi Module connection - for VHD1.0 Mid/Hi Module daisy-chaining



Cable MH180

Gallery

Product code

KVV 987 127



Description

- 6 wire speaker cable - AP6 connectors - 18m (60ft) length - for Mid/Hi Module hook-up



Mid/Hi speaker cable MH60

Gallery

Product code

KVV 987 125



Description

- 6 wire speaker cable - AP6 connectors - 6m (20ft) - for Mid/Hi Module hook-up


VHD1.0 Cart

Gallery

Product code

KVV 987 156



Description

- cart for easy transport and hanging VHD1.0 - with hardwood bumpers
- wheels are included



Downloads

DWG

VHD1.0 Cart 3D DWG

VHD1.0 Cart 3D DWG

SKP

VHD1.0 Cart SketchUp

VHD1.0 Cart SKP

VHD1.0 Cover

Gallery

Product code

KVV 987 157



Description

- used with cart

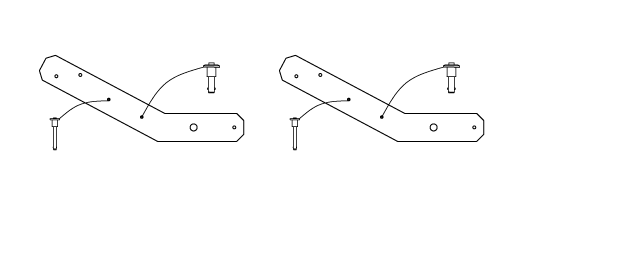

VHD1.0 Downfill arm (pair)

Gallery

Product code

KVV 987 310



Description

The VHD1.0 DOWNFILL ARM is a short, flat pre-angled steel bar that has two pre-fixed apertures at the lower end of the bar to allow different angles of suspension from the enclosure above. The arm is attached to the VHD1.0 down-fill enclosure by means of two apertures that receive the insertion of two D6 QUICK RELEASE PINS. The top of the bar is attached to the bottom of either the VHD2.0 TOP ARM or BASS/VHD2.0 ARM by sliding into the groove and inserting a single D12.6 QUICK RELEASE PIN.



Downloads

SKP

VHD1.0 Downfill arm (pair) SKP

VHD1.0 Downfill arm (pair) SketchUp

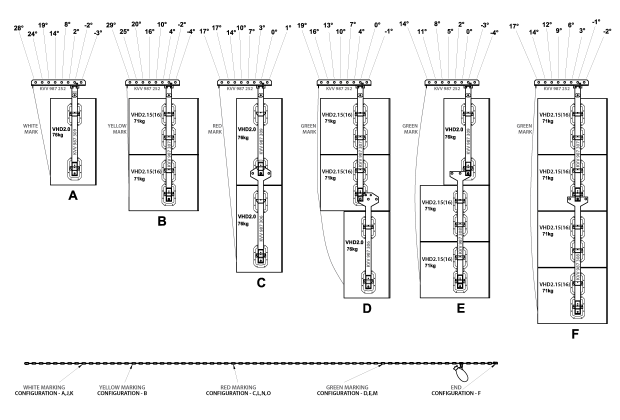

VHD Systems fly bar

Gallery

Product code

KVV 987 252



Description

Must be used with VHD ARM attachments see other Accessories. The CROSSMEMBER hanging bracket is a flat and folded steel bar with returned 90 degree ends. This bracket attaches to the PICKPOINT ARM by simply sliding into two preset grooves, from left to right and secures smoothly and tightly, thus creating a T-Bar effect. Once both bars are attached and joined, it is a simple case of locking and securing the correct position and location, according to which configuration of VHD enclosures are being suspended, either in a Left/Right unit, by inserting a single D6 QUICK RELEASE PIN, which is attached via a small shrouded steel tie at the return edge of the PICKPOINT ARM.



Downloads

DWG

VHD Systems fly bar 3D DWG

VHD Systems fly bar 3D DWG

SKP

VHD Systems fly bar SKP

VHD Systems fly bar SketchUp

DXF

VHD Systems fly bar 2D DXF

VHD Systems fly bar 2D DXF

VHD2.0 Cart

Gallery

Product code

KVV 987 099



Description

- Front mount aluminium VHD2.0 cart - with hardwood bumpers
- Wheels are included



Downloads

DWG

VHD2.0 Cart 3D DWG

VHD2.0 Cart 3D DWG

SKP

VHD2.0 Cart SKP

VHD2.0 Cart SketchUp

VHD2.0 Touring cover

Gallery

Product code

KVV 987 104



Description

- used with cart



VHD2.0 Top arm (pair)

Gallery

Product code

KVV 987 309



Description

The VHD2.0 TOP ARM is a flat steel bar with straight ends, a double groove joint at the lower end and prefixed apertures to accept both D6and D12.6 QUICK RELEASE PINS. A single bar is used on each side of an enclosure. The bar employs a total of two angular wedges that are used to ‘lock into’ the handles on each side of the VHD2.0 enclosure and are then secured by the insertion of a single D6 QUICK RELEASE PIN, (Which are attached to the bars via small shrouded steel ties)into each handle. Once the VHD2.0 TOP ARMS are attached to the VHD2.0, they are then simply attached to the CROSS MEMBER hanging bracket by inserting a single D12.6 QUICK RELEASE PIN through the top aperture of both of the VHD2.0 TOP ARMS and CROSSMEMBER hanging bracket.



Downloads

DWG

VHD2.0 Top arm (pair) 3D DWG

VHD2.0 Top arm (pair) 3D DWG

SKP

VHD2.0 Top arm (pair) SKP

VHD2.0 Top arm (pair) SketchUp

VHD2.0 Top extension arm (pair)

Gallery

Product code

KVV 987 306



Description

The VHD2.0 TOP EXTENSION ARM is of the same design and presentation as the VHD2.0 TOP ARM. It is intended for use where either a single VHD2.0 is required to be suspended below a combination of VHD Subwoofers or as an extension to an existing suspended VHD2.0. It is differentiated by being physically longer and employs a total of two angular wedges to allow locking into an attached secondary VHD2.0 and its enclosure handles. The same method of inserting a single D6 QUICK RELEASE PIN into each handle is employed. The arm has a poly-hex head at the top end of the bar, with prefixed apertures for the insertion of the D12.6 QUICK RELEASE PINS, to allow desired splay angles of the secondary VHD2.0 and is attached by the insertion of a single D12.6 QUICK RELEASE PIN.



Downloads

DWG

VHD2.0 Top extension arm (pair) 3D DWG

VHD2.0 Top extension arm (pair) 3D DWG

SKP

VHD2.0 Top extension arm (pair) SKP

VHD2.0 Top extension arm (pair) SketchUp

Cable LF100 for bass speaker

Gallery

Product code

KVV 987 123



Description

- 4 wire speaker cable - AP4 connectors - 10m (33ft) - for ES Bass Module hook-up



Cable LF15

Gallery

Product code

KVV 987 121



Description

- 4 wire speaker cable - AP4 connectors - 1,5m (5ft) - for ES Bass Module daisy-chaining



Cable LF200 for bass speaker

Gallery

Product code

KVV 987 124



Description

- 4 wire speaker cable - AP4 connectors - 20m (66ft) - for ES Bass Module hook-up



Cable LF40

Gallery

Product code

KVV 987 122



Description

- 4 wire speaker cable - AP4 connectors - 4m (13ft) - for ES Bass Module hook-up



VHD Bass arm (pair)

Gallery

Product code

KVV 987 307



Description

The VHD BASS ARM is a flat steel bar with straight ends, a double groove joint at the lower end and prefixed apertures to accept both D6& D12.6 QUICK RELEASE PINS. This bar is used exclusively to suspend a compliment of two VHD Subwoofers and a single bar is used on each side of the two enclosures. The bar employs a total of four angular wedges that are used to ‘lock into’ the handles on each side of the VHD Subwoofer enclosure and are secured by the insertion of a single D6 QUICK RELEASE PIN, (Which are attached to the bar via small shrouded steel ties) into each handle.



Downloads

DWG

VHD Bass arm (pair) 3D DWG

VHD Bass arm (pair) 3D DWG

SKP

VHD Bass arm (pair) SKP

VHD Bass arm (pair) SketchUp

VHD Bass extension arm (pair)

Gallery

Product code

KVV 987 308



Description

The VHD BASS EXTENSION ARM is of the same design and presentation as the VHD SUBWOOFER ARM, except it is differentiated by being physically longer and employs a total of four angular wedges to allow locking into an attached- secondary double hang of VHD Subwoofers and its enclosure handles. The same method of inserting a single D6 QUICK RELEASE PIN into each handle is employed.

The arm has a poly-hex shape head at the top of the bar, with pre-fixed apertures for the insertion of the D12.6 QUICK RELEASE PINS, and is attached to the lower end of the VHD SUBWOOFER ARM by sliding into the groove and then being secured by the insertion of a single D12.6 QUICK RELEASE PIN. To add extra enclosures to the hang, this method of attachment is repeated.



Downloads

DWG

VHD Bass extension arm (pair) 3D DWG

VHD Bass extension arm (pair) 3D DWG

SKP

VHD Bass extension arm (pair) SKP

VHD Bass extension arm (pair) SketchUp

VHD2.15 Cover

Gallery

Product code

KVV 987 106



Description

- used with cart



VHD2.15, VHD2.16, VHD4.18 Cart

Gallery

Product code

KVV 987 100



Description

- with hardwood bumpers



Downloads

DWG

VHD2.15, VHD2.16, VHD4.18 Cart 3D DWG

VHD2.15, VHD2.16, VHD4.18 Cart 3D DWG

SKP

VHD2.15, VHD2.16, VHD4.18 Cart SKP

VHD2.15, VHD2.16, VHD4.18 Cart SketchUp

VHD1.21 Cart

Gallery

Product code

KVV 987 109



Description

- Front mount aluminium VHD2.21 cart - with hardwood bumpers
- Wheels are included



Downloads

DWG

VHD1.21 Cart 3D DWG

VHD1.21 Cart 3D DWG

SKP

VHD1.21 Cart SKP

VHD1.21 Cart SketchUp

VHD1.21 Cover

Gallery

Product code

KVV 987 107



Description

- used with cart



2 Channel Adapter Cable

Gallery

Product code

KVV 987 450



Description

- 2 channel adapter cable



VHD2.16 Cover

Gallery

Product code

KVV 987 155



Description

- used with cart



Wheel Kit for VHD system (125mm)

Gallery

Product code

KVV 987 379



VHD2.18J Cart

Gallery

Product code

KVV 987 378



Description

- for 2x VHD2.18J units
- wheels (125mm) included



VHD2.18J Cover 2x

Gallery

Product code

KVV 987 380



Description

- used with or without cart



VHD2.18J Flybar

Gallery

Product code

KVV 987 376



EPAK2500, EPAK2500R, ES1.5, ES1.8, ES2.5, ES2.6, SL2.15 Amphenol AP4 connector

Gallery

Product code

KVV 987 048



Description

- female - cable mount



VHD4.18 Cover

Gallery

Product code

KVV 987 105



Description

- used with cart



SL Ground stack

Gallery

Product code

KVV 987 320



Description

The SL Ground Stack consists of a two supporting legs, connecting to a metal strip, that has apertures with fixed points to allow the securing of the multiple stacked SL215 Bass enclosures with an SL412 and to prevent tipping when using the SL system stacked, away from the wall, or stacked on a VHD2.21 enclosure. - 6 pcs M10 hex screws with hole included - 6 pcs Quick-lock-pins 6mm included - 2pcs knob with screw included - 1pc allen key - 6mm included



Downloads

DWG

SL Ground stack 3D DWG

SL Ground stack 3D DWG

SKP

SL Ground stack SKP

SL Ground stack SketchUp

VHD2.21/4.21 Cover

Gallery

Product code

KVV 987 352



Description

Cover for VHD2.21/4.21



VHD4.21R/2.21R Flybar

Gallery

Product code

KVV 987 398



Description

Flybar for VHD4.21R or VHD2.21R. See VHD4.21 user manual for more instructions.



Downloads

SKP

VHD4.21, 2.21 Flybar 3D DWG

VHD4.21, 2.21 Flybar 3D DWG

SKP

VHD4.21 / VHD2.21 Flybar 3D SKP

VHD4.21 / VHD2.21 Flybar 3D SKP
DWG

VHD4.21 / VHD2.21 Flybar 2D DWG

VHD4.21 / VHD2.21 Flybar 2D DWG

VHD4.21 Amplifier transport and fabric cover

Gallery

Product code

KVV 987 390



Description

Transport and Fabric Cover for VHD4.21 Amplifier



EPAK2500R, ESP4000, VHD2000 Rack panel cover

Gallery

Product code

KVV 987 189



Description

- prevents unwanted amplifier setup - 4U



Downloads

DWG

EPAK2500R, ESP4000, VHD2000 Rack panel cover 3D DWG

EPAK2500R, ESP4000, VHD2000 Rack panel cover 3D DWG

SKP

EPAK2500R, ESP4000, VHD2000 Rack panel cover SKP

EPAK2500R, ESP4000, VHD2000 Rack panel cover SketchUp

Super Digital 20MHz, delay board for VHD2000

Gallery

Product code

KVV 987 295



Description

- electronic board - exchange requires professional installation



Q: I want to use more than one single VHD2.0 per side of the stage; can I place them together like an Array?

All KV2 Audio loudspeaker units are designed with low loss, low compression horn assemblies and are low’q’.
Their wide dispersion aspects mean that physical side by side ‘arraying’ is not the correct method or way to utilize the loudspeakers in application, primarily due to the interaction effects which cause poor phase response, frequency response and in-accurate dispersion.
It is entirely feasible to utilize a combination of two VHD2.0 enclosures, providing that they are located and placed as highlighted in the picture below.

Please refer to the ‘Technology’ tab or download Disarray-Theory



Q: Why are there different subwoofer settings on the VHD2000 amplifier? Should I use these depending on which subwoofers I use?

The VHD2000 control Amplifier is permanently ‘pre-set’ for the VHD2.0 mid hi enclosure, however because there are currently a choice of four different subwoofer units for different applications and with the potential to combine units so as to make a complete 4 or 5-way system, it is important to select the correct setting as denoted on the front Amplifier panel, as well as referring to the explanation and instructions within the VHD user guide.
These settings allow the correct and crucial sensitive integration of the designated subwoofers with regards to Crossover point, Phase response, and overall balance between the subwoofers and mid hi enclosures and tonal balance with regards to sound pressure level and output.



Can I use my existing VHD2.0 and VHD1.0 with he new Flybar system?

Yes, it is entirely possible to use existing VHD2.0, VHD2.15 & 2.16 with the new Flybar System incorporating pins instead of the Flyclip and Flytrack systems. However it is NOT POSSIBLE to use the older or existing VHD1.0 DOWNFILL units with the new Flybar System - (unless an existing VHD2.0 which has Flytrack in it being used, then the old VHD1.0 can still be attached with Flyclips), as it requires a Retro-Fit of new mechanical fittings which require that it be returned to the factory for the upgrade.

This upgrade is a customer FOC facility, if this is required, please contact your appropriate Area Sales Director for instructions.



Q: How to set up cardioid Sub patterns with ES and VHD systems?

The quickest route to understanding and applying cardioid sub patterns is to refer to the SDD3 user manual page 8 and 9. If you require further instructions please contact your local dealer.



Q: I own VHD4.21. Is it possible to use only one (active), double 21" speaker?

Yes, it is perfectly normal to operate the Active VHD4.21 as a standalone unit. However be aware that doing so doesn't attain the amplifier full power rating.

VHD Basics



Description

Basic usage of speakers, left and right side of the system. VHD 1.0 can be used as downfill with single VHD 2.0 configurations or other applications as recommended by KV2 Audio Tech support.



Products

CountProductType
1VHD2.0MID-HI
1VHD1.0MID-HI


Accessories

CountAccessoryTitle
1Cable MH15Cable MH15
1Cable MH120Cable MH120


Images

VHD1.0



Description

Up to 2000 people Number of bass boxes - depend on music style Right side of stereo single system For live system 4x 2.16 Subs recommended



Products

CountProductType
1VHD1.0MID-HI
4VHD4.18SUB
1VHD2000MID-HI AMP
1VHD3200SUB AMP


Accessories

CountAccessoryTitle
1Cable MH120Cable MH120
2Cable LF15Cable LF15
2Cable LF40Cable LF40


Images

VHD-Double A



Description

Up to 10000 people Number of bass boxes - depend on music style Right side of stereo double system



Products

CountProductType
2VHD2.0MID-HI
8VHD2.16SUB
2VHD2000MID-HI AMP
2VHD3200SUB AMP


Accessories

CountAccessoryTitle
2Cable MH120Cable MH120
4Cable LF15Cable LF15
4Cable LF40Cable LF40
1VHD2.0 Top arm (pair)VHD2.0 Top arm (pair)
1VHD2.0 Top extension arm (pair)VHD2.0 Top extension arm (pair)
1VHD Systems fly barVHD Systems fly bar


Images

VHD-Double B



Description

Up to 10000 people Number of bass boxes - depend on music style Right side of stereo double system



Products

CountProductType
2VHD2.0MID-HI
4VHD4.18SUB
2VHD2000MID-HI AMP
2VHD3200SUB AMP


Accessories

CountAccessoryTitle
2Cable MH120Cable MH120
4Cable LF15Cable LF15
4Cable LF40Cable LF40
1VHD2.0 Top arm (pair)VHD2.0 Top arm (pair)
1VHD2.0 Top extension arm (pair)VHD2.0 Top extension arm (pair)
1VHD Systems fly barVHD Systems fly bar


Images

VHD-Double C



Description

Up to 10000 people Number of bass boxes - depend on music style Right side of stereo double system



Products

CountProductType
2VHD2.0MID-HI
4VHD2.16SUB
4VHD1.21SUB
2VHD2000MID-HI AMP
2VHD3200SUB AMP


Accessories

CountAccessoryTitle
2Cable MH120Cable MH120
4Cable LF15Cable LF15
2Cable LF40Cable LF40
2Cable LF100Cable LF100 for bass speaker
1VHD2.0 Top arm (pair)VHD2.0 Top arm (pair)
1VHD2.0 Top extension arm (pair)VHD2.0 Top extension arm (pair)
1VHD Bass arm (pair)VHD Bass arm (pair)
1VHD Bass extension arm (pair)VHD Bass extension arm (pair)
1VHD Systems fly barVHD Systems fly bar


Images

VHD-Double D



Description

Up to 10000 people Number of bass boxes - depend on music style Right side of stereo double system



Products

CountProductType
2VHD2.0MID-HI
4VHD2.16SUB
4VHD4.18SUB
2VHD2000MID-HI AMP
2VHD3200SUB AMP


Accessories

CountAccessoryTitle
2Cable MH120Cable MH120
4Cable LF15Cable LF15
2Cable LF40Cable LF40
2Cable LF100Cable LF100 for bass speaker


Images

VHD-Double G



Description

Up to 10000 people Number of bass boxes - depend on music style Right side of stereo double system



Products

CountProductType
2VHD2.0MID-HI
4VHD2.16SUB
2VHD2.21ULTRA SUB
2VHD2000MID-HI AMP
3VHD3200SUB AMP


Accessories

CountAccessoryTitle
2Cable MH120Cable MH120
2Cable LF15Cable LF15
2Cable LF40Cable LF40
2Cable LF100Cable LF100 for bass speaker


Images

VHD-Single A



Description

Up to 5000 people Number of bass boxes - depend on music style Right side of stereo single system



Products

CountProductType
1VHD2.0MID-HI
4VHD2.16SUB
1VHD2000MID-HI AMP
1VHD3200SUB AMP


Accessories

CountAccessoryTitle
2Cable LF15Cable LF15
2Cable LF40Cable LF40
1Cable MH60Mid/Hi speaker cable MH60


Images

VHD-Single B



Description

Up to 5000 people Number of bass boxes - depend on music style Right side of stereo single system



Products

CountProductType
4VHD4.18SUB
1VHD2.0MID-HI
1VHD2000MID-HI AMP
1VHD3200SUB AMP


Accessories

CountAccessoryTitle
1Cable MH60Mid/Hi speaker cable MH60
2Cable LF15Cable LF15
2Cable LF40Cable LF40


Images

VHD-Single C



Description

Up to 5000 people Number of bass boxes - depend on music style Right side of stereo single system



Products

CountProductType
1VHD2.0MID-HI
2VHD2.16SUB
2VHD1.21SUB
1VHD2000MID-HI AMP
1VHD3200SUB AMP


Accessories

CountAccessoryTitle
1Cable MH60Mid/Hi speaker cable MH60
2Cable LF15Cable LF15
2Cable LF40Cable LF40


Images

VHD-Single D



Description

Up to 5000 people Number of bass boxes - depend on music style Right side of stereo single system



Products

CountProductType
1VHD2.0MID-HI
2VHD2.16SUB
2VHD4.18SUB
1VHD2000MID-HI AMP
1VHD3200SUB AMP


Accessories

CountAccessoryTitle
1Cable MH60Mid/Hi speaker cable MH60
2Cable LF15Cable LF15
2Cable LF40Cable LF40


Images

VHD-Single E



Description

Up to 5000 people Number of bass boxes - depend on music style Right side of stereo single system



Products

CountProductType
1VHD2.0MID-HI
4VHD2.16SUB
4VHD4.18SUB
1VHD2000MID-HI AMP
2VHD3200SUB AMP


Accessories

CountAccessoryTitle
1Cable MH60Mid/Hi speaker cable MH60
4Cable LF15Cable LF15
4Cable LF40Cable LF40


Images

VHD-Single F



Description

Up to 5000 people, double bass system Number of bass boxes - depend on music style Right side of stereo single system



Products

CountProductType
1VHD2.0MID-HI
4VHD2.16SUB
4VHD1.21SUB
1VHD2000MID-HI AMP
2VHD3200SUB AMP


Accessories

CountAccessoryTitle
1Cable MH60Mid/Hi speaker cable MH60
4Cable LF15Cable LF15
4Cable LF40Cable LF40


Images

VHD-Single G



Description

Up to 5000 people Number of bass boxes - depend on music style Right side of stereo single system



Products

CountProductType
1VHD2.0MID-HI
4VHD2.16SUB
1VHD2.21ULTRA SUB
1VHD2000MID-HI AMP
2VHD3200SUB AMP


Accessories

CountAccessoryTitle
1Cable MH120Cable MH120
2Cable LF15Cable LF15
1Cable LF40Cable LF40
2Cable LF100Cable LF100 for bass speaker


Images

VHD-Single H



Description

Up to 2000 people. Number of subwoofer depends on music style Right side of stereo double system.



Products

CountProductType
2VHD2.16SUB
1VHD2.0MID-HI
1VHD2.21ULTRA SUB
1VHD2000MID-HI AMP
1VHD3200SUB AMP


Accessories

CountAccessoryTitle
1Cable LF15Cable LF15
1Cable LF100Cable LF100 for bass speaker
1Cable MH120Cable MH120
1Cable LF40Cable LF40
1VHD2.0 Top extension arm (pair)VHD2.0 Top extension arm (pair)
1VHD Bass arm (pair)VHD Bass arm (pair)
1VHD1.0 Downfill arm (pair)VHD1.0 Downfill arm (pair)
1VHD Systems fly barVHD Systems fly bar


Images

VHD-Vocal



Description

Up to 5000 people Solely for vocal reinforcement and light music playback One side of stereo system.



Products

CountProductType
1VHD2.0MID-HI
1VHD2000MID-HI AMP


Accessories

CountAccessoryTitle
1Cable MH120Cable MH120


Images

SL - C



Description

• Up to 2000 people • Number of bass cabinets and SUB LEVEL setup - depends on the style of music



Products

CountProductType
2SL412MID-HI
8VHD4.18SUB
1SL3000MID-HI AMP
2VHD3200SUB AMP


Accessories

CountAccessoryTitle
2Cable MH120Cable MH120
4Cable LF15Cable LF15
4Cable LF40Cable LF40


Images

SL - D



Description

• Stereo system requires: 1 x SL3000 - stereo amplifier 2 x VHD3200 - sub amplifier • Up to 2000 people • Number of bass cabinets and SUB LEVEL setup - depends on the style of music



Products

CountProductType
2SL412MID-HI
2VHD2.21ULTRA SUB
1SL3000MID-HI AMP
2VHD3200SUB AMP


Accessories

CountAccessoryTitle
2Cable MH120Cable MH120
2Cable LF40Cable LF40


Images

SL - A



Description

• Up to 2000 people • Number of bass cabinets and SUB LEVEL setup - depends on the style of music



Products

CountProductType
2SL412MID-HI
4SL2.15Loudspeaker
1SL3000MID-HI AMP
1VHD3200SUB AMP


Accessories

CountAccessoryTitle
2Cable MH120Cable MH120
2Cable LF15Cable LF15
2Cable LF40Cable LF40


Images

SL - B



Description

• Up to 2000 people • Number of bass cabinets and SUB LEVEL setup - depends on the style of music



Products

CountProductType
2SL412MID-HI
8SL2.15Loudspeaker
1SL3000MID-HI AMP
2VHD3200SUB AMP


Accessories

CountAccessoryTitle
2Cable MH120Cable MH120
8Cable LF40Cable LF40


Images



References

Stage Theater an der Elbe, Hamburg, Germany

Stage Theater an der Elbe, Hamburg, Germany

A multi-million investment, this theatre was specifically designed and built for future Stage Entertainment productions and initially showcased an exciting new show about Germany winning the 1954 World cup, called...

Read more »


Contact

Head Office KV2 Audio International spol. s r.o.
Nádražní 936
Milevsko 399 01
Czech Republic

VAT: CZ26051591
Phone: +420 383 809 320 (English)
E-mail: info@kv2audio.com

Distribution

The Future of Sound. Made Perfectly Clear.

© KV2 Audio 2024 – All rights reserved
