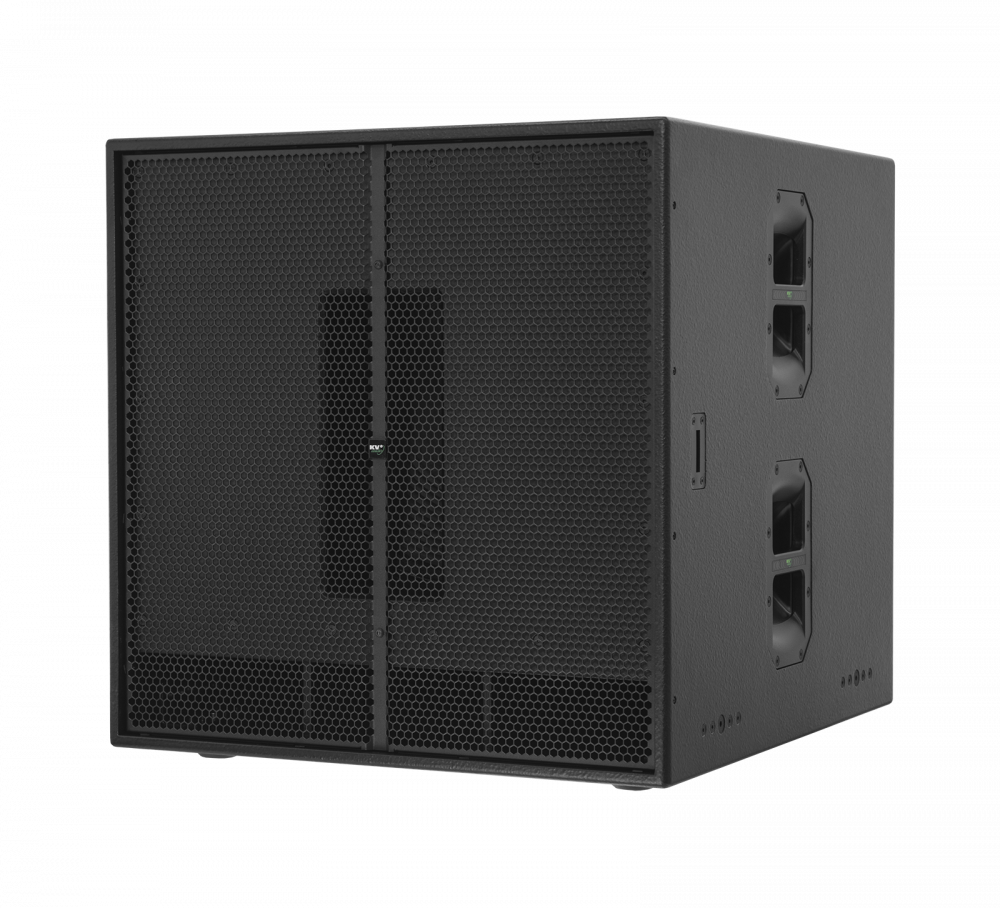

VHD1.21 - Ultra Low Frequency Enclosure

Single 21", Low Q band-pass subwoofer system that adds extension and weight for applications where you want to feel, as well as hear, very high definition audio Working down to 23Hz with an efficiency for two boxes of 102dB, it shares the same footprint as the other VHD subwoofers in a compact lightweight easily transported package. Alongside the VHD2.16, it forms part of a remarkable five way active system.

Watch the product video

VHD1.21 Technical Data Sheet

Applications

Specifically designed to add extreme low frequency extension to the VHD2.0 and VHD1.0 in conjunction with other VHD subwoofers

  • Live performance
  • Fixed installation
  • Cinema
  • Theatre

Product code

  • KVV 987 080 - VHD1.21


Features

  • Professional, Baltic birch construction with highly resistant polymer coating
  • Very High Definition ultra low frequency reproduction
  • 135dB sustained output / 137dB peak (using 2 units of VHD1.21)
  • Large-chamber bass reflex low Q bandpass design
  • Single 21" low frequency driver with 4" (100 mm) inside/outside, epoxy baked, high temperature voice coil assembly and carbon fibre reinforced cone assembly
  • Proprietary side handles (6) for simplified handling and carrying
  • High impact low friction feet, allowing lock- in to other VHD cabinets and easy cabinet movement
  • Front locking aluminium VHD wheel boards with wraparound hardwood bumpers
  • Weather proofing option and special paint finishes available on request


Applications

Specifically designed to add extreme low frequency extension to the VHD2.0 and VHD1.0 in conjunction with other VHD subwoofers

  • Live performance
  • Fixed installation
  • Cinema
  • Theatre

Product code

  • KVV 987 080 - VHD1.21


System Acoustic Performance

Max SPL Long-term135dB (2x VHD1.21)
Max SPL Peak141dB (2x VHD1.21)
-3dB Response29Hz to 185Hz
-10dB Response23Hz to 245Hz
Impedance
Crossover Point70Hz to 120Hz

Low Frequency Section

Acoustic DesignLarge chamber low Q band pass
Low Frequency Amplifier Requirement800W /1x VHD1.21 (VHD 3200 amp.)
Woofer Size / Voice Coil Diameter / Design21" / 4" Inside Outside
Diaphragm MaterialEpoxy Reinforced Cellulose
Magnet TypeNeodymium

Speaker Input

Speaker Input AP4 male

Speaker Output

Speaker OutputAP4 female

Cabinet

Cabinet MaterialBaltic birch
Handles6
ColorBlack (wear resistant polymer coating)

Physical Dimensions

Height700 mm (27.55")
Width700 mm (27.55")
Depth750 mm (29.52")
Weight60 kg (132.0lbs)


Product code

  • KVV 987 080 - VHD1.21

PDF

VHD1.21 Data Sheet

VHD1.21 Data Sheet



PDF

VHD Subwoofers User Guide

VHD Series Subwoofers User Guide - VHD2.16, VHD2.18J, VHD4.18, VHD1.21, VHD2.21 / VHD2.21R, English



DWG

VHD1.21 - 3D

- 1:1 scale - clamping points - weight - dwg file



SKP

VHD1.21 SKP

VHD1.21 SketchUp



DWG

VHD1.21 Cart 3D DWG

VHD1.21 Cart 3D DWG



SKP

VHD1.21 Cart SKP

VHD1.21 Cart SketchUp



DWG

VHD1.21 2D DWG

VHD1.21 2D DWG



SKP

VHD Series Sketchup

VHD Series Sketchup - all boxes and accessories



PDF

VHD1.21 - 2D

VHD1.21 2D Drawings



DWG

VHD1.21 3D DWG

VHD1.21 3D DWG





Cable LF100 for bass speaker

Gallery

Product code

KVV 987 123



Description

- 4 wire speaker cable - AP4 connectors - 10m (33ft) - for ES Bass Module hook-up



Cable LF15

Gallery

Product code

KVV 987 121



Description

- 4 wire speaker cable - AP4 connectors - 1,5m (5ft) - for ES Bass Module daisy-chaining



Cable LF200 for bass speaker

Gallery

Product code

KVV 987 124



Description

- 4 wire speaker cable - AP4 connectors - 20m (66ft) - for ES Bass Module hook-up



Cable LF40

Gallery

Product code

KVV 987 122



Description

- 4 wire speaker cable - AP4 connectors - 4m (13ft) - for ES Bass Module hook-up



VHD1.21 Cart

Gallery

Product code

KVV 987 109



Description

- Front mount aluminium VHD2.21 cart - with hardwood bumpers
- Wheels are included



Downloads

DWG

VHD1.21 Cart 3D DWG

VHD1.21 Cart 3D DWG

SKP

VHD1.21 Cart SKP

VHD1.21 Cart SketchUp

VHD1.21 Cover

Gallery

Product code

KVV 987 107



Description

- used with cart



VHD-Double C



Description
