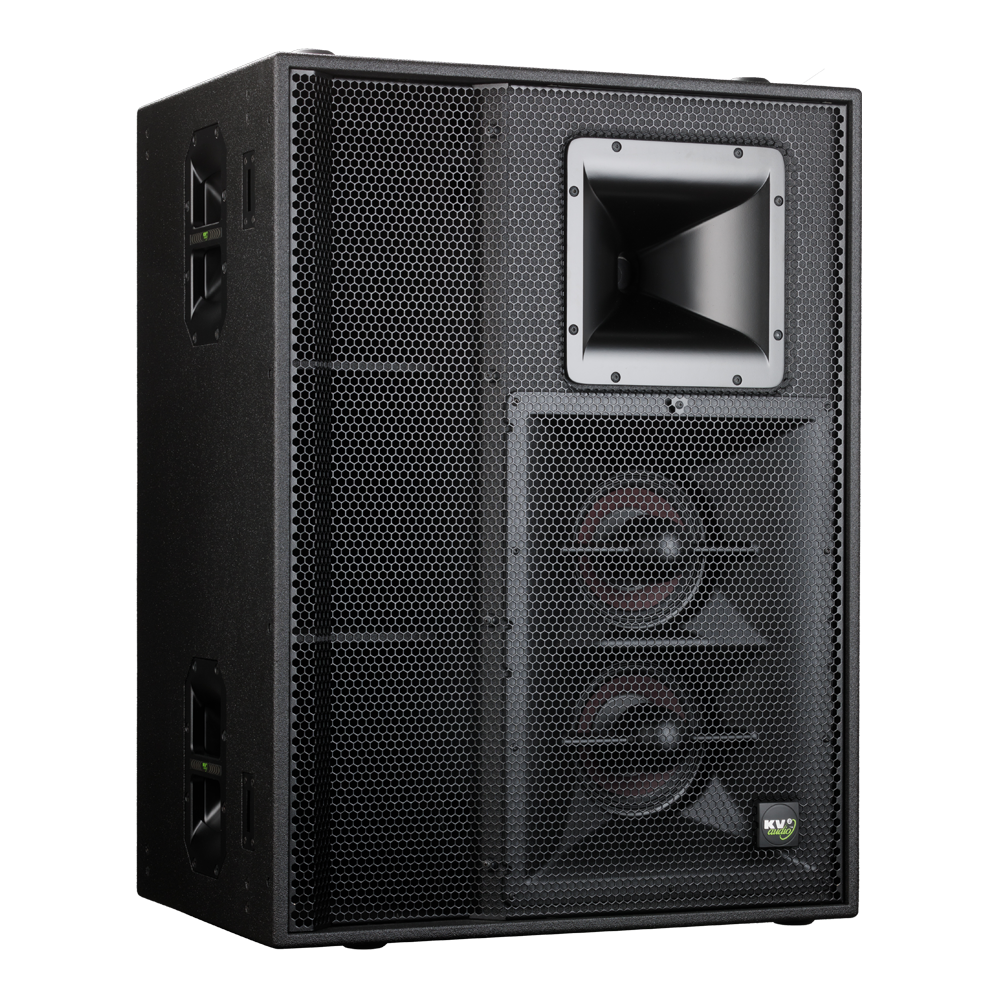

VHD2.0 - Mid High Enclosure

A powerful long throw system for audiences of up to 20,000 people without requirement for additional delay systems. A three-way design featuring a 3" compression driver with NVPD treated dome assembly, two horn loaded 8" speakers featuring AIC technology and two horn loaded 12" mid-bass speakers. All speakers employ neodymium magnets to increase force, improve control and lower weight. The VHD2.0 has an 80° horizontal and 40° vertical dispersion and left and right versions of the speaker are offered in order to create larger format vertical arrays of the mid high system.

Watch the product video

VHD2.0 Technical Data Sheet

Applications

Designed as an extreme high output and performance mid-hi unit as part of the VHD systems Very High Definition for live performance

  • Medium to large concert venues
  • Scalable from small to large systems
  • Full range standalone use in public areas
  • Hire and Production
  • Large Theatres

Product code

  • KVV 987 077 - VHD2.0 R (right)
  • KVV 987 078 - VHD2.0 L (left)


Features

  • Professional Baltic birch construction with wear-resistant polymer coating
  • Four full length pieces of fly-track (two per side) and two five point, pull back pieces on the rear of the cabinet
  • Very High Definition audio reproduction
  • 139dB sustained output, 142dB peak
  • Controlled wide dispersion 80° x 40° Mid / High horn
  • New state of the art 3" (76 mm) Nitride Titanium diaphragm compression driver with complex geometry phase plug and neodymium magnetic structure for higher output, exceptionally low distortion and extended frequency response
  • Two 8" Trans-Coil midrange drivers, with a 3" (76 mm) voice coil and neodymium magnet for increased control and output with reduced distortion and weight
  • Two horn loaded 12" mid-bass drivers with 3" (76 mm) inside/outside, epoxy baked, high temperature voice coil assemblies and neodymium magnetic structures
  • Three way active requirement - 2000W from the VHD 2000 providing 1200W for the 12" Low Mids, 600W for the 8" Midranges and 200W for the High Frequency
  • Proprietary side and top handle design, (6) for simplified handling and carrying
  • High impact low friction feet, allowing lock-in to the VHD subwoofers and easy cabinet movement
  • Front locking aluminium VHD wheel boards with wraparound hardwood bumpers
  • Weather proofing option and special paint finishes available on request


Applications

Designed as an extreme high output and performance mid-hi unit as part of the VHD systems Very High Definition for live performance

  • Medium to large concert venues
  • Scalable from small to large systems
  • Full range standalone use in public areas
  • Hire and Production
  • Large Theatres

Product code

  • KVV 987 077 - VHD2.0 R (right)
  • KVV 987 078 - VHD2.0 L (left)


System Acoustic Performance

Max SPL Long-term139dB (144dB two VHD 2.0’s)
Max SPL Peak145dB (147dB two VHD 2.0’s)
-3dB Response100Hz to 22kHz
-10dB Response85Hz to 30kHz
Full Range mode -3dB Response60Hz to 22kHz
Crossover Point100Hz, 450Hz, 2.2kHz

High Frequency Section

Acoustic DesignHorn Loaded
High Horn Coverage Horizontal / Vertical80° x 40° / 80° x 10° (2x VHD 2.0's)
High Frequency Amplifier Requirement200W (VHD2000 amp.)
Throat Exit Diameter / Diaphragm Size1.4” / 3.0”
Diaphragm MaterialNitride Titanium
Magnet TypeNeodymium

Mid Range Section

Acoustic DesignHorn Loaded
Mid Horn Coverage Horizontal / Vertical80° x 40° / 80° x 10° (2x VHD 2.0's)
Midrange Amplifier Requirement600W (VHD2000 amp.)
Woofer Size / Voice Coil Diameter / Design2x 8" / 3.0" / Trans Coil
Diaphragm MaterialEpoxy Reinforced Cellulose
Magnet TypeNeodymium

Mid Bass Section

Acoustic DesignHorn Loaded
Mid-bass Amplifier Requirement1200W (VHD2000 amp.)
Woofer Size / Voice Coil Diameter / Design2x 12" / 3" / Inside Outside
Diaphragm MaterialEpoxy Reinforced Cellulose
Magnet TypeNeodymium

Speaker Input

Speaker Input AP6 male

Cabinet

Cabinet MaterialBaltic birch
Handles6
ColorBlack (wear resistant polymer coating)

Physical Dimensions

Height933 mm (36.72")
Width700 mm (27.55")
Depth495 mm (19.48")
Weight70 kg (154.0lbs)


Product code

  • KVV 987 077 - VHD2.0 R (right)
  • KVV 987 078 - VHD2.0 L (left)

PDF

VHD2.0, VHD1.0 and Flyware User Guide

VHD2.0, VHD1.0 and Flyware User Guide, English



PDF

VHD2.0 Data Sheet

VHD2.0 Data Sheet



PDF

Disarray - The correct theory of arraying KV2 boxes

Disarray - The correct theory of arraying KV2 boxes



DWG

VHD2.0 - 3D

1:1 scale - clamping points - weight - dwg file



SKP

VHD2.0 Top extension arm (pair) SKP

VHD2.0 Top extension arm (pair) SketchUp



DWG

VHD2.0 Top extension arm (pair) 3D DWG

VHD2.0 Top extension arm (pair) 3D DWG



SKP

VHD Systems fly bar SKP

VHD Systems fly bar SketchUp



DWG

VHD Systems fly bar 3D DWG

VHD Systems fly bar 3D DWG



SKP

VHD Fly bar SKP

VHD Fly bar SketchUp



DWG

VHD Fly bar 3D DWG

VHD Fly bar 3D DWG



SKP

VHD2.0 Cart SKP

VHD2.0 Cart SketchUp



DWG

VHD2.0 Cart 3D DWG

VHD2.0 Cart 3D DWG



SKP

VHD2.0L (left) SKP

VHD2.0L (left) SketchUp



DWG

VHD2.0L (left) 3D DWG

VHD2.0L (left) 3D DWG



SKP

VHD2.0R (right) SKP

VHD2.0R (right) SketchUp



DWG

VHD2.0 Top arm (pair) 3D DWG

VHD2.0 Top arm (pair) 3D DWG



SKP

VHD2.0 Top arm (pair) SKP

VHD2.0 Top arm (pair) SketchUp



PDF

VHD2.0 Right - 2D

VHD2.0 Right 2D Drawings



PDF

VHD2.0 Left - 2D

VHD2.0 Left 2D Drawings



SKP

VHD Series Sketchup

VHD Series Sketchup - all boxes and accessories



DWG

VHD2.0R 2D DWG

VHD2.0R 2D DWG



DWG

VHD2.0L 2D DWG

VHD2.0L 2D DWG



DWG

VHD2.0R (right) 3D DWG

VHD2.0R (right) 3D DWG



GLL

VHD2.0 EASE data package

VHD2.0 EASE data package includes VHD2.0, Double VHD2.0, VHD1.0 standalone, VHD1.0 downfill



GLL

VHD2.0 Double EASE Focus

VHD2.0 Double EASE Focus



GLL

VHD2.0 Single EASE Focus

VHD2.0 Single EASE Focus
