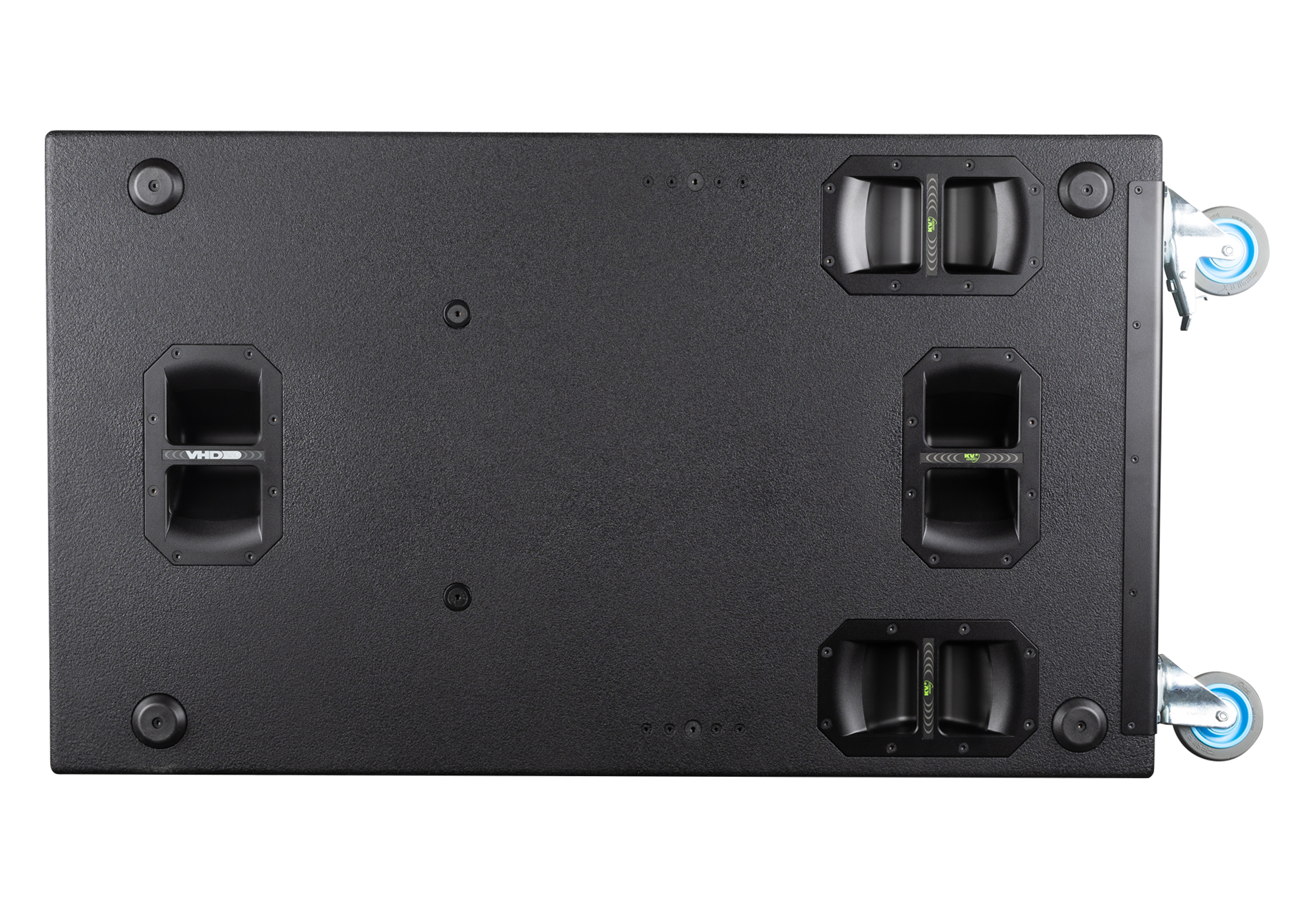

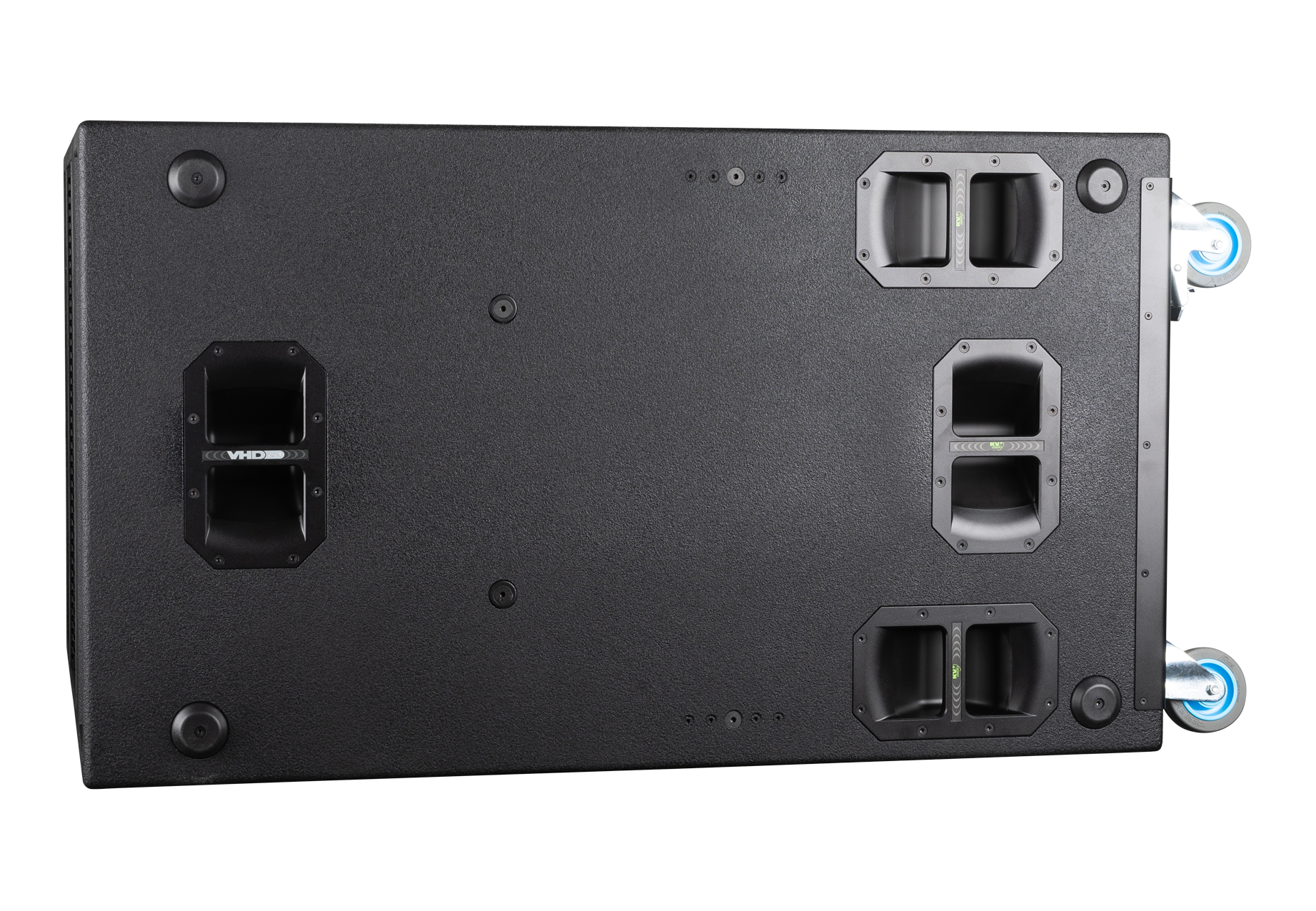

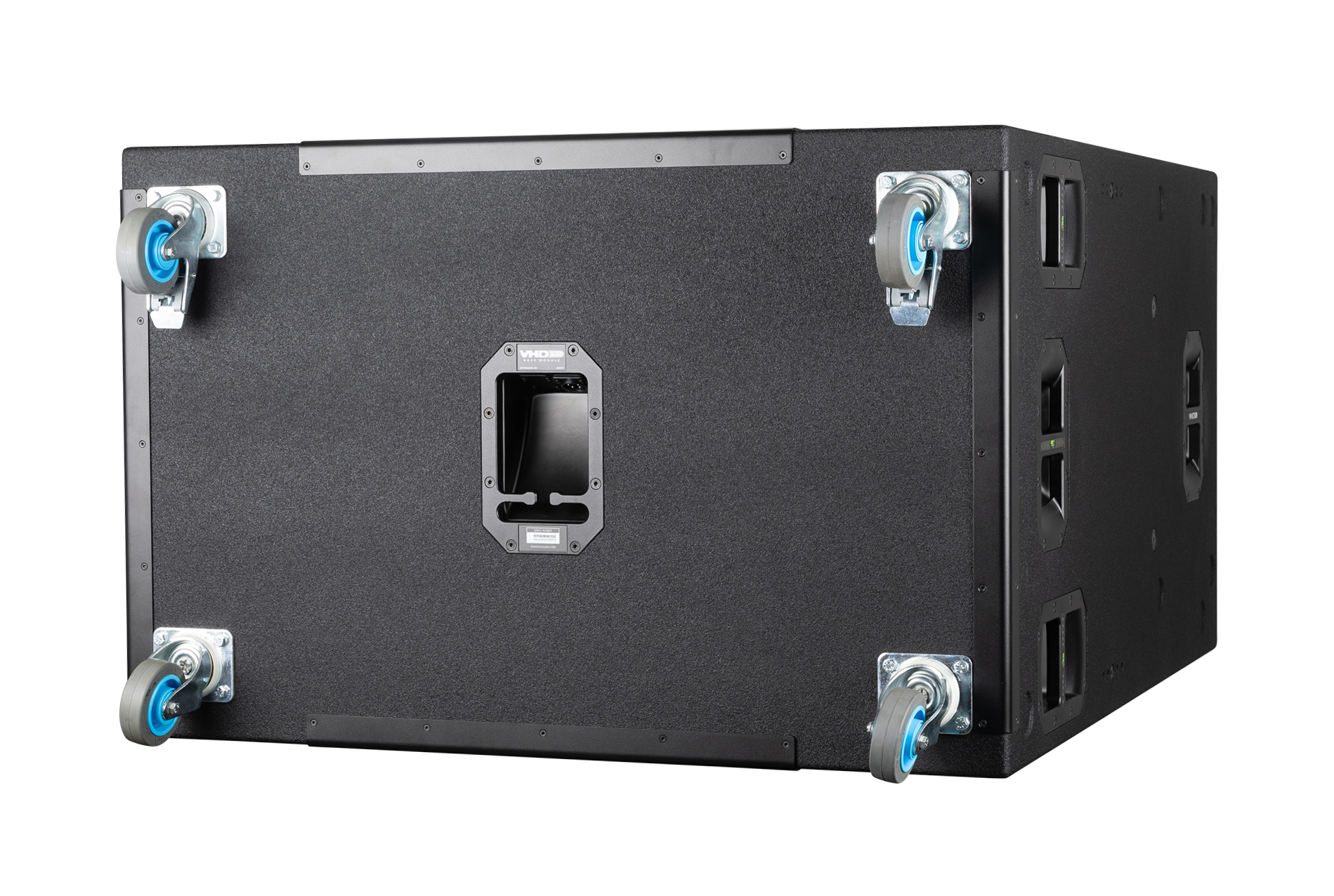

VHD2.21 - Ultra Low Frequency Subwoofer

Originally designed for Super Live Audio as part of a VHD system, the VHD2.21 is voiced for both Live Music but also excels in the field of Club and Dance Music. In this situation it works very effectively, operating down to 25Hz, alongside other VHD products, the smaller ES range, or as an incredible stand-alone subwoofer that can complement any other manufacturers systems. Unlike traditional 21" subwoofers that are typically designed as more of an effect subwoofer, the VHD2.21 boasts tight, fast delivery and extreme dynamics, even at higher bass frequencies – qualities rarely found in such a large unit. One 2.21 can be driven by a single VHD3200. Whilst larger than KV2 Audio’s existing subwoofers it still fits in with the company’s philosophy of providing maximum performance from within a compact footprint. There is also a flyable version available - VHD2.21R (KVV 987 496) with additional fixings and requirements for the VHD4.21 Flybar (KVV 987 398).

Watch the product video

VHD2.21 Technical Data Sheet

Applications

Especially designed to add extreme low frequency-last octave extension with exceptional high output to the VHD2.0 and VHD1.0 in conjunction with other VHD subwoofers

  • Large scale live music and playback performance
  • Hire and Production
  • Large Concert venues
  • Cinema
  • Nightclub
  • Fixed installation
  • Easily incorporated into multiple system projects with ES and SL products

Product code

  • KVV 987 249 - VHD2.21
  • KVV 987 496 - VHD2.21R


Features

  • Designed in response to calls for a high output ultra low frequency subwoofer solution
  • Double 21" subwoofer with an input power handling capability of 3200W
  • Incredibly efficient, the 2.21 has a sensitivity of 106dB at one watt/one meter and can produce output levels in excess of 140dB
  • Frequency response from 28Hz through to 240Hz
  • A flyable version available - VHD2.21R (KVV 987 496) with additional fixings and requirements for the VHD4.21 Flybar (KVV 987 398).


Applications

Especially designed to add extreme low frequency-last octave extension with exceptional high output to the VHD2.0 and VHD1.0 in conjunction with other VHD subwoofers

  • Large scale live music and playback performance
  • Hire and Production
  • Large Concert venues
  • Cinema
  • Nightclub
  • Fixed installation
  • Easily incorporated into multiple system projects with ES and SL products

Product code

  • KVV 987 249 - VHD2.21
  • KVV 987 496 - VHD2.21R


System Acoustic Performance

Max SPL Long-term143dB (2xVHD2.21)
Max SPL Peak149dB (2xVHD2.21)
-3dB Response34Hz to 180Hz
-10dB Response28Hz to 240Hz
Impedance
Crossover Point60Hz to 120Hz

Low Frequency Section

Acoustic DesignBandpass with low port losses
Low Frequency Amplifier Requirement3200W /1x VHD2.21 (bridged VHD3200 amp.)
Woofer Size / Voice Coil Diameter / Design2 x 21" / 4.3"
Magnet TypeNeodymium Advanced Ventilated
Diaphragm MaterialEpoxy Reinforced Cellulose

Speaker Input

Speaker Input AP4 male

Cabinet

Cabinet MaterialBaltic birch
Handles12
ColorBlack (wear resistant polymer coating)

Physical Dimensions

Height700 mm (27.55")
Width1080 mm (42.52")
Depth1200 mm (47.24")
Weight155 kg (341.7lbs)


Product code

  • KVV 987 249 - VHD2.21
  • KVV 987 496 - VHD2.21R

PDF

VHD Subwoofers User Guide

VHD Series Subwoofers User Guide - VHD2.16, VHD2.18J, VHD4.18, VHD1.21, VHD2.21 / VHD2.21R, English



PDF

VHD2.21 Data Sheet

VHD2.21 Data Sheet



DWG

VHD2.21 - 3D

1:1 scale - clamping points - weight - dwg file



SKP

VHD4.21, 2.21 Flybar 3D DWG

VHD4.21, 2.21 Flybar 3D DWG



DWG

VHD2.21 3D DWG

VHD2.21 3D DWG



SKP

VHD2.21 SKP

VHD2.21 SketchUp



DWG

VHD4.21/2.21 Flybar 3D DWG

VHD4.21/2.21 Flybar 3D DWG



DWG

VHD4.21/2.21 Flybar 2D DWG

VHD4.21/2.21 Flybar 2D DWG



SKP

VHD4.21/2.21 Flybar 3D SKP

VHD4.21/2.21 Flybar 3D SKP



PDF

VHD4.21/2.21 Flybar 2D drawing

VHD4.21/2.21 Flybar 2D drawing



DWG

VHD2.21 2D DWG

VHD2.21 2D DWG



SKP

VHD Series Sketchup

VHD Series Sketchup - all boxes and accessories



PDF

VHD2.21 - 2D

VHD2.21 2D Drawings



GLL

VHD4.21 / VHD2.21 EASE Data

VHD4.21 / VHD2.21 EASE Data - .GLL - description



GLL

VHD4.21 / 2.21 EASE Focus

VHD4.21 / 2.21 EASE Focus
