SL6.10 Subwoofer

Following on from our successful SL 2.15 subwoofer, the latest generation SL sub, the SL6.10 incorporates six 10“ directly radiating speakers which radically improve dynamics and definition from the same sized enclosure. Built to integrate aesthetically with the SL412, The SL6.10 produces accurate bass from its slim cabinet design. Bass response is enhanced by coupling or even tripling the cabinets, particularly when the SL6.10 is used against or within a wall, providing optimum output for its compact footprint. It also combines acoustically with the Ultra Low Frequency VHD1.21 and 2.21 subwoofers as part of a five way active driven system.

Download Product’s Data Sheet

Features

  • Slim, discreetly profiled wall mount cabinet
  • 129dB sustained output, 132dB peak with very high dynamic range
  • Simple wall mounting, suspension and ground stacking options and can be installed internally into walls and surfaces
  • These units can be designed and supplied with custom colors, grill templates and logos, offering a flexible and truly designer integrated product
  • A single horizontal yoke assembly with multiple fixed angles and fixing locations, provides a quick and cost effective solution for simple suspension
  • Front-loaded, 6x 10“ bass drivers with 2“ voice coil assembly and ferrite magnetic motor structure
  • Professional, exterior-grade Baltic birch construction with “Orange peeled” Matt Black paint or any RAL (optionally in a wear resistant polymer coating)

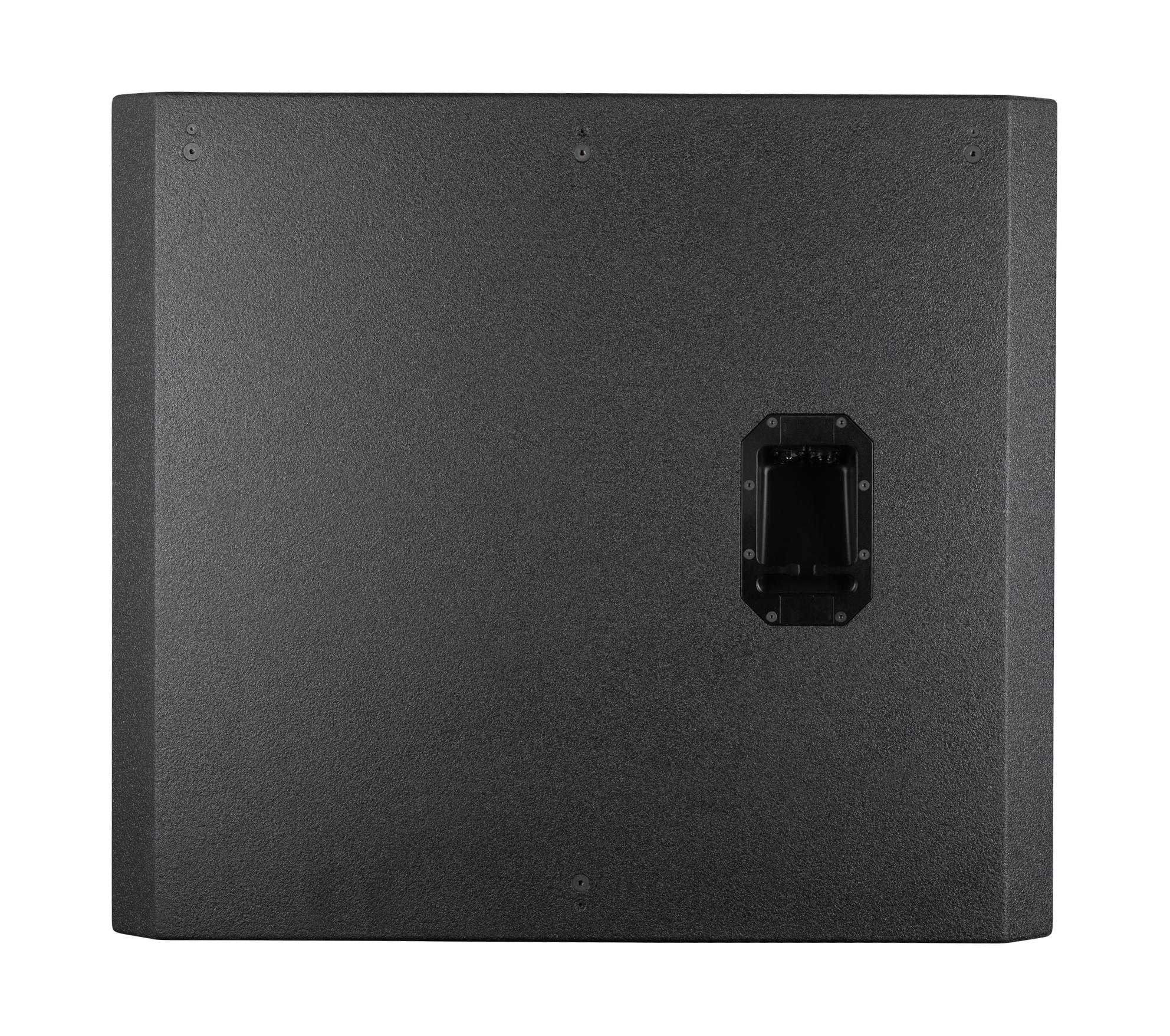

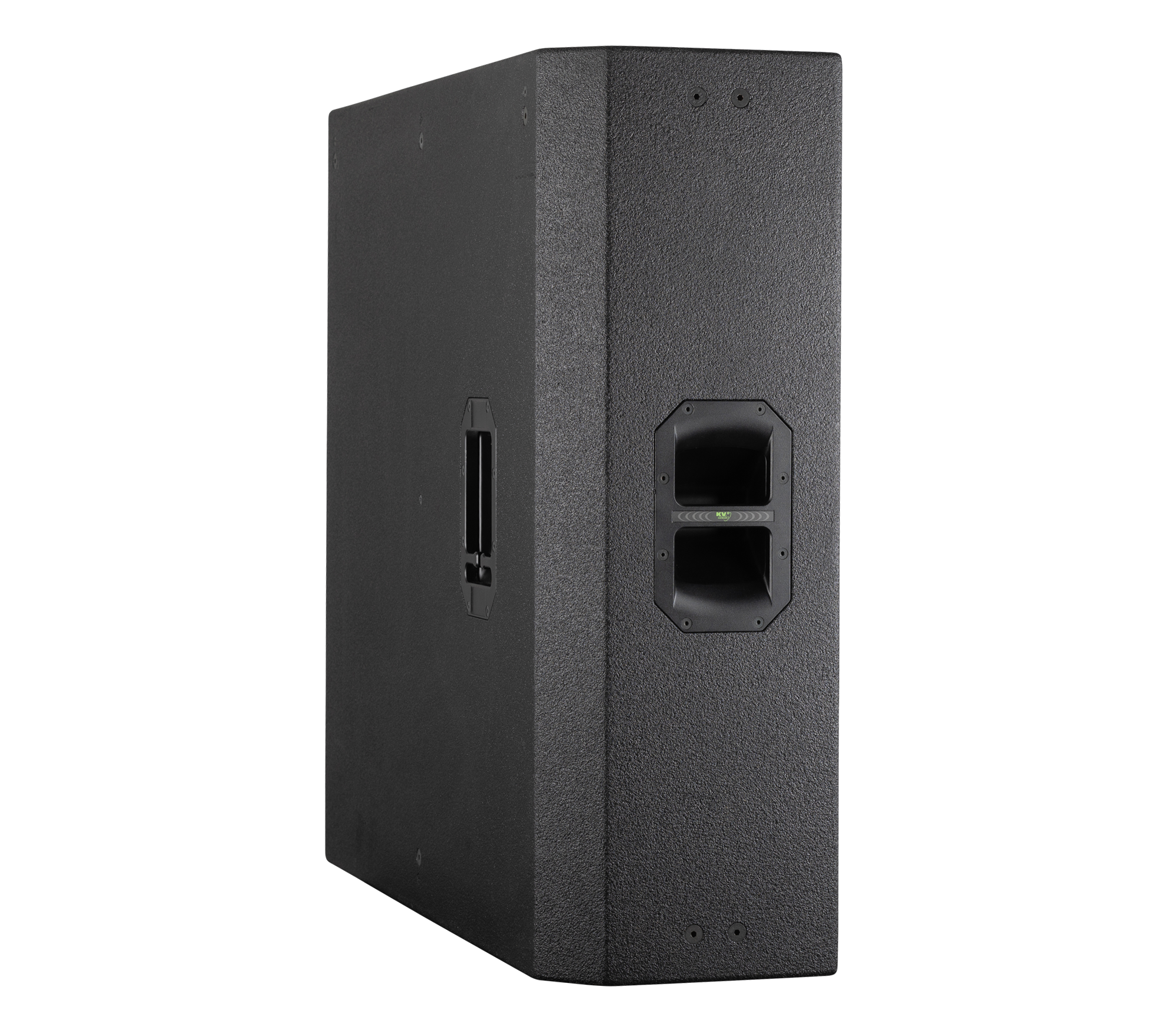

  • Proprietary side handle design for simplified handling and carrying
  • Internal back braces with nine M10 suspension points
  • A total of 23 suspension points are available for custom installation applications
  • Three SL6.10 speakers require one channel of a two channel VHD3200 subwoofer amplifier unit


Applications

Specifically designed subwoofer enclosure to accompany the SL412 as a high powered aesthetically pleasing-full range music playback and performance system

  • Fixed installation
  • Nightclubs
  • Multi use venues

Product code

KVV 987 507



System Acoustic Performance

Max SPL Long-term129dB
Max SPL Peak132dB
-3dB Response50Hz to 500Hz
-10dB Response45Hz to 500Hz
Sensitivity100dB
Impedance12Ω
Crossover Point70Hz to 200Hz

Low Frequency Section

Acoustic DesignDirect-Radiating with Bass Reflex
Low Frequency Amplifier Requirement1800W / 3x SL6.10 (1 ch-VHD3200 amp)
Number of Drivers6
Woofer Size / Voice Coil Diameter / Design6x 10" / 2"
Magnet TypeFerrite
Diaphragm MaterialEpoxy Reinforced Cellulose

Speaker Input

Speaker Input AP4

Speaker Output

Speaker OutputAP4

Cabinet

Cabinet MaterialBaltic birch
Handles2
Color"Orange peeled" Matt Black or PP

Physical Dimensions

Height960 mm (37.8")
Width1080 mm (42.52")
Depth350 mm (13.78")
Weight84 kg (185.2lbs)


Product code

KVV 987 507


PDF

SL6.10 Data Sheet

SL6.10 Data Sheet



PDF

SL Series with SL6.10 User Manual

SL Series with SL6.10 User Manual


SKP

SL6.10 SKP

SL6.10 SKP



DWG

SL6.10 3D DWG

SL6.10 3D DWG



DWG

SL6.10 2D DWG

SL6.10 2D DWG





SL Ground stack

Gallery

Product code

KVV 987 320



Description

The SL Ground Stack consists of a two supporting legs, connecting to a metal strip, that has apertures with fixed points to allow the securing of the multiple stacked SL215 Bass enclosures with an SL412 and to prevent tipping when using the SL system stacked, away from the wall, or stacked on a VHD2.21 enclosure. - 6 pcs M10 hex screws with hole included - 6 pcs Quick-lock-pins 6mm included - 2pcs knob with screw included - 1pc allen key - 6mm included



Downloads

DWG

SL Ground stack 3D DWG

SL Ground stack 3D DWG

SKP

SL Ground stack SKP

SL Ground stack SketchUp

SL Sub / SL412 bracket

Gallery

Product code

KVV 987 515



Description

Bracket for deployment of one suspended SL2.15 or SL6.10 and one SL412

*Note: Special request order
