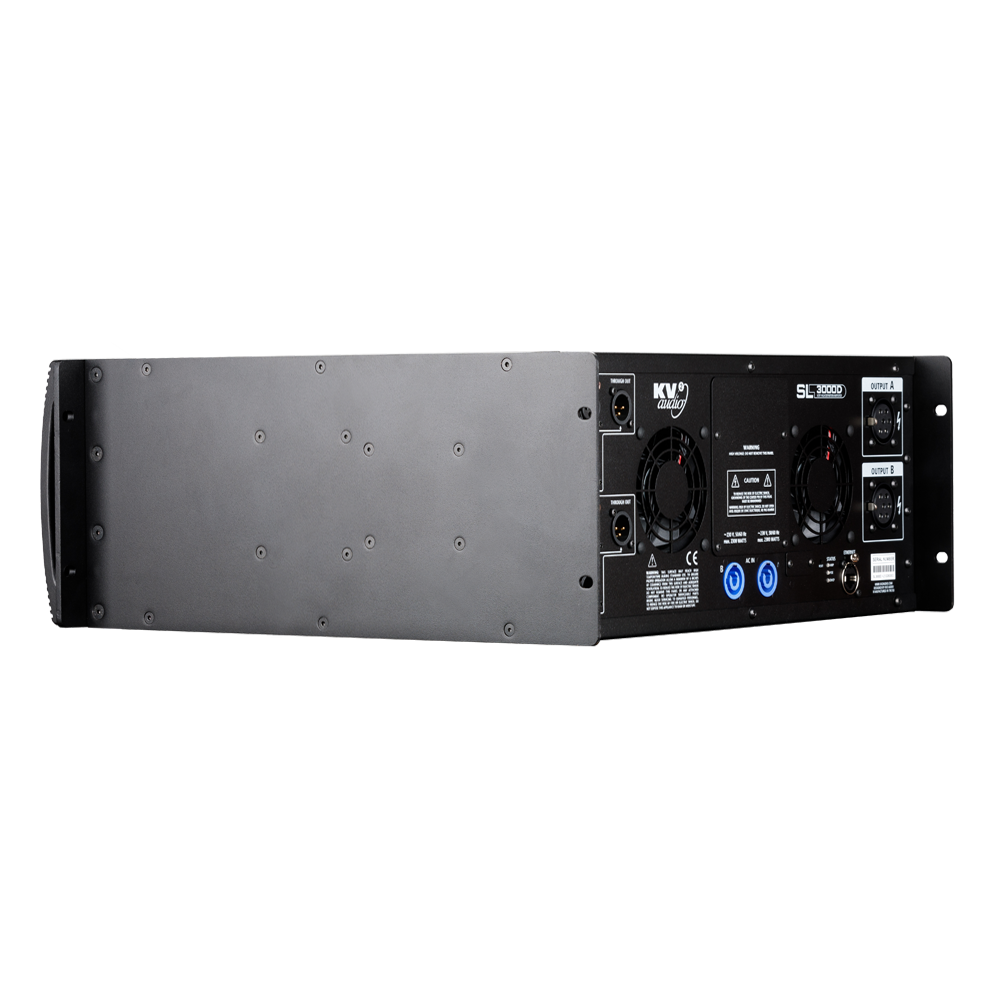

SL3000D Amplifier with Control & Diagnostics Tool

The SL3000D Amplifier is a three-way, active control and amplification system specifically designed for the KV2 Audio SL Series modular loudspeaker systems. It houses all signal processing and amplification as well as providing control for external subwoofer cabinets if needed. (External subwoofers are powered by an external subwoofer amplifier). SL3000D is now configurable via the front panel or remotely using KV2 Control & Diagnostics Tool.

The SL3000D Stereo Amplifier drives and controls one SL412 per channel and follows the typical KV2 holistic approach of matching components with high quality electronics for true direct performance. All time alignment, phase correction and equalisation is provided onboard.

Watch the product video

Download Product’s Data Sheet

Applications

Specifically designed as the amplification and control elements for the SL loudspeaker systems in a 4RU mount module with Control & Diagnostics Tool

  • Fixed Installations
  • Nightclubs
  • Multi-use venues
  • Large bars

Product code

  • KVV 987 456 - SL3000D (250V)
  • KVV 987 455 - SL3000D (230V)
  • KVV 987 454 - SL3000D (115V)


Features

The amplifier compliment inside the SL3000D Amplifier is as follows:

  • High Frequency - 100-watt, Class AB, push pull, low intermodulation design
  • Mid Frequency - 200-watt, Class AB, push pull, low intermodulation design
  • Bass - 1000-watt, high-efficiency, current-enhancing switch mode technology with Linear Active Filter

Configurable via the front panel or remotely using KV2 Control & Diagnostics Tool.



Applications

Specifically designed as the amplification and control elements for the SL loudspeaker systems in a 4RU mount module with Control & Diagnostics Tool

  • Fixed Installations
  • Nightclubs
  • Multi-use venues
  • Large bars

Product code

  • KVV 987 456 - SL3000D (250V)
  • KVV 987 455 - SL3000D (230V)
  • KVV 987 454 - SL3000D (115V)


Output Channels

Number of Channels2 (stereo)
Total Output Power2x 1300W

High Frequency Amplifier Specification

TypeClass AB - Push Pull - Low IM Design, Transformer balanced output
Rated Continuous Power100W
Distortion<0.02%
Operating Bandwidth2.5kHz to 40kHz

Mid Frequency Amplifier Specification

TypeClass AB - Push Pull - Low IM Design, Transformer balanced output
Rated Continuous Power200W
Distortion<0.02%
Operating Bandwidth400Hz to 2,5kHz

Low Frequency Amplifier Specification

TypeHigh efficiency, Current-enhancing switch mode
Rated Continuous Power1000W
Distortion<0.02%
Operating Bandwidth35Hz to 400Hz

Signal Input

Input Sensitivity1.55V RMS
Input Impedance20kΩ (balanced)

Speaker Output

Speaker Output2x AP6

Features

NetworkEthernet: SMNP, Webserver

Power Requirements

Power Connector2x Neutrik PowerCon®
Operating Voltage115V / 230V / 250V
Operating Voltage Range100 to 120V@60Hz | 205 to 240V@50Hz | 225 to 260V@50Hz
Recommended Amperage2x10A 115V | 2x5A 230V | 2x5A 250V

Physical Dimensions

Height177.8 mm (7.0"), 4RU
Width481.4 mm (18.95")
Depth495 mm (19.5")
Weight39.2 kg (86.62lbs)


Product code

  • KVV 987 456 - SL3000D (250V)
  • KVV 987 455 - SL3000D (230V)
  • KVV 987 454 - SL3000D (115V)

PDF

SL3000D User Guide

SL3000D User Guide



ZIP

KV2 Control and Diagnostics Tool for Windows

KV2 Diagtool for Windows v1.1



DMG

KV2 Control and Diagnostics Tool for macOS

KV2 Diagtool for macOS v1.1



DWG

SL3000 115V 3D DWG

SL3000 115V 3D DWG



SKP

SL3000 115V SKP

SL3000 115V SketchUp



DWG

SL3000 230V 3D DWG

SL3000 230V 3D DWG



SKP

SL3000 230V SKP

SL3000 230V SketchUp



DWG

SL3000 250V 3D DWG

SL3000 250V 3D DWG



SKP

SL3000 250V SKP

SL3000 250V SketchUp



DWG

SL3000D - 3D DWG

SL3000D - 3D DWG



SKP

SL3000D - SketchUp

SL3000D - SketchUp



DWG

SL3000D - 2D DWG

SL3000D - 2D DWG
