KV2 Introduces Control & Diagnostics Tool

15/9/2020



VHD5_subs_configurations_templatevlcsnap-2020-09-03-13h49m25s000vlcsnap-2020-09-03-13h48m03s416vlcsnap-2020-09-03-15h00m07s930vlcsnap-2020-09-03-14h59m24s737vlcsnap-2020-09-03-14h59m08s916vlcsnap-2020-09-03-14h56m02s621vlcsnap-2020-09-03-14h54m40s503

d_family_web_30x20mm_72dpi_display


For years people have enjoyed the superior audio quality of KV2’s Super analogue amplifiers, however for certain applications where control was needed, they were forced to use other third party products, relying on basic digital electronics and DSP to give some control, which unfortunately also affected the sound.

Now, in another industry first from KV2 we are able to offer the highest quality Super Analogue engineering, with the added convenience of digital control and diagnostics.

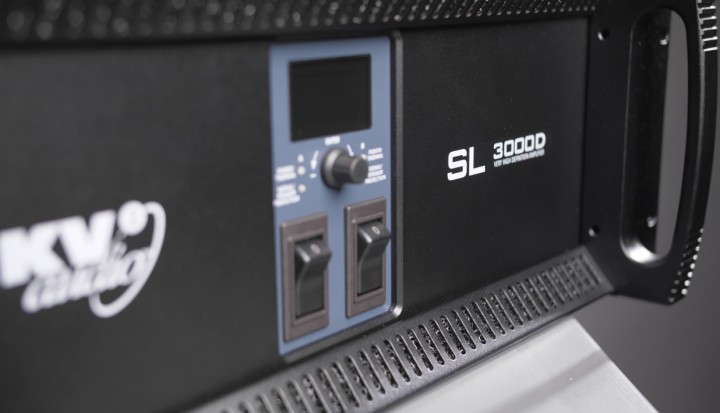

Our new "D series" amplifiers give you the option to set up Gain, operate mutes, configure the limiters, or select filter, EQ and bridge modes depending on the model. Whilst the diagnostics section will give you information on the temperature of heatsinks, mains voltage, real time health checking and the output levels relative to limiting.

With our new KV2 Control & Diagnostics Tool you can also set all your amplifiers individually or as a group including saving and recalling presets or show files.

Featured Amplifiers with built-in KV2 Control & Diagnostics Tool

Overview of the main features

1.    Redundant powering via PoE (power over ethernet)
2.    Separate 32bit ARM diagnostics CPU core (independent of amplifier)
3.    Independent diagnostic network inside amplifier for sensors / control
4.    Rugged FRAM (Ferroelectric Random Access Memory) for configuration storage

Networking

  • Industry standard 100Mbit Ethernet connection with PoE (Neutik etherCON)
  • IPv4 addressing with options for static address, DHCP client or AutoIP
  • mDNS advertisement for network discovery
  • Web based administrative interface for IP and identification setting with online sensor data display for fast setup
  • KV2 diagnostic software as system management tool for easy remote diagnostic and control for venues where large number of amplifers are used
  • Support for Windows PC (MacOS or Linux versions on request)
  • SNMPv2 (Simple Network Managment Protocol)
  • standard diagnostic service for integration in existing systems

Sensors

  • Temperature of heatsinks
  • Overheat protection indication
  • Mains voltage sensing for each mains connection
  • Power good for each amplifier module (sensing all power rails)
  • PoE presence detection
  • Input signal indication
  • Output voltage and current sensing with approximate average impedance and power calculation, speaker detection
  • Realtime health checking – sensing equality of output signal to input
  • RMS limiter activity indication

Controls

  • Mute
  • Gain / Volume – high definition precision digitally controlled analog
  • Configurable RMS limiter functionality

Remote control of specific functions of the amplifier (depending on the model)

  • Bridge mode
  • Full range mode
  • LPF/HPF filters, specific EQ

Configurable via the front panel or remotely using our new Control and Diagnostics software, you can now have Superior Sound with total control.

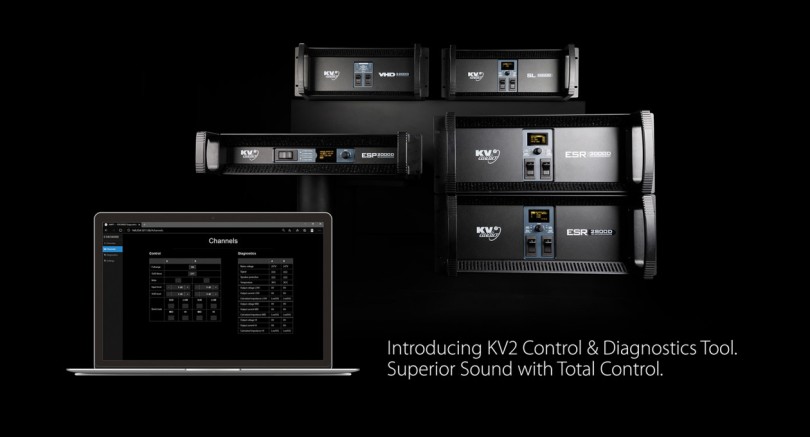

Preview of KV2 Control & Diagnostics Tool

ESR3000D

ESP2000D
