VHD Serie

El sistema para giras VHD de alto rendimiento de KV2 Audio está diseñado para revolucionar el mercado del sonido de concierto. Ofrece calidad, poder y cobertura incomparables, y permite una drástica reducción en el costo del tamaño, peso, transporte, almacenamiento y tiempo de instalación.

La serie VHD desafía las tendencias populares de tecnología de arreglo lineal y construye sobre la filosofía de fuente puntual de KV2 Audio, lo que reduce drásticamente los niveles de distorsión y aumenta en gran medida el rango dinámico. Esto nos lleva a un nivel de reproducción de sonido completamente nuevo en sistemas de altavoces de gran escala. Los VHD reducen la cantidad de elementos necesarios para reforzar el sonido a gran escala en un área determinada. Así, los problemas de interferencia que se crean por las múltiples fuentes en los sistemas modernos de arreglo lineal desaparecen. La sincronización de los tiempos de cada altavoz y la corrección de las fases se hace a través de la nueva línea de retraso digital de 20MHz de KV2 Audio. Con el orgullo de tener la mayor frecuencia de muestreo entre todos los procesadores de altavoces digitales existentes, el procesamiento de señales híbridas integrado de KV2 usa la mejor tecnología digital y analógica para ofrecer definición y resolución increíbles con verdadero rango dinámico.

Ver el video

Descripción

En KV2 definimos al rango dinámico según la habilidad del sistema para reproducir las señales de bajo nivel asociadas a la atmósfera sonora y el timbre del sonido, así como las señales de alto nivel más importantes. El resultado final es un sonido más nítido y dinámico que viajará notablemente más lejos. Ofrecerá, además, audio de alta calidad que se verá mucho menos afectado por las fluctuaciones en el aire, la temperatura y las grandes multitudes.

Los gabinetes de media y alta frecuencia VHD1.0 y VHD2.0 con el amplificador VHD20000 son el corazón de esta solución, y constituyen el núcleo de nuestro sistema VHD. Para reforzar esto, tenemos los subwoofer VHD2.16, VHD4.18, VHD1.21 y VHD2.21, que son cuatro sistemas diferentes activos a través del módulo de amplificación VHD3200. Para facilitar su apilado, las bases de todos los altavoces (excepto del VHD2.21) son idénticas y tienen un sistema de enganche propio que ofrece una solución rápida y sencilla para colgarlos en el uso suspendido del sistema VHD.

El subwoofer doble VHD2.21, de aproximadamente 50cm, está diseñado para satisfacer la necesidad de un subwoofer de muy baja frecuencia y de alto rendimiento. Está pensado no solo para la música en vivo, sino que también se destaca en el campo de la música electrónica. Es sumamente efectivo en esta situación, ya que opera a menos de 25Hz junto con otros productos VHD y la serie menor ES. Incluso puede funcionar como un subwoofer autónomo increíble que puede complementarse con los sistemas de cualquier otro fabricante.

El sistema VHD representa la mejor tecnología disponible tanto en el mundo digital como analógico que ofrece KV2. A través de nuestra ingeniería líder en la industria, hemos logrado optimizar la relación entre altavoces y amplificadores para obtener un rendimiento excelente con pocos componentes. El resultado es especial, no solo algo diferente, sino mucho mejor. Cambiará tu opinión sobre las actuales tendencias de grandes sistemas.

VHD: audio de muy alta definición, la máxima expresión de la tecnología de KV2 Audio.

Características

Muy alta definición
Sistema para giras de alto rendimiento
Diseñada para revolucionar el mercado de sonido en vivo al ofrecer calidad, potencia y cobertura incomparables. Permite grandes ahorros en cuanto a tamaño, peso, transporte, almacenamiento y tiempo de instalación.

User Manuals (18)
Drawings (23)
EASE data (3)
Brochures (2)
EASE Focus (2)

PDF

VHD1.0 Data Sheet

PDF

VHD2.0, VHD1.0 and Flyware User Guide

VHD2.0, VHD1.0 and Flyware User Guide, English

PDF

VHD2.0 Data Sheet

PDF

VHD2.0 operator instructions

PDF

VHD1.21 Data Sheet

PDF

VHD2.16 Data Sheet

PDF

VHD2.16 operator instructions

PDF

VHD2.18J Data Sheet

PDF

VHD Subwoofers User Guide

VHD Series Subwoofers User Guide - VHD2.16, VHD2.18J, VHD4.18, VHD1.21, VHD2.21, English

PDF

VHD2.18J Flybar Hanging Instructions

VHD2.18J Flybar Hanging Instructions - Maximum allowed hung weight depending upon the chosen hang points.

PDF

VHD4.18 Data Sheet

PDF

SL Brackets User Guide

- SL Bracket instructions - SL Top Bracket, SL Sub Bracket - REV.4

PDF

VHD2.21 Data Sheet

PDF

VHD2.21 operator instructions

PDF

VHD4.21 User Guide

VHD4.21 Active Passive Bass Module - User Guide (EN)

PDF

VHD4.21 Active /Passive Data Sheet

PDF

VHD2000 Data Sheet

PDF

VHD3200 Data Sheet

DWG

VHD1.0 - 3D

1:1 scale - clamping points - weight - dwg file

PDF

VHD1.0 right - 2D

VHD1.0 Right 2D Drawings

PDF

VHD1.0 Left - 2D

VHD1.0 Left 2D Drawings

DWG

VHD2.0 - 3D

1:1 scale - clamping points - weight - dwg file

PDF

VHD2.0 Right - 2D

VHD2.0 Right 2D Drawings

PDF

VHD2.0 Left - 2D

VHD2.0 Left 2D Drawings

DWG

VHD2.15 - 3D

- 1:1 scale - clamping points - weight - dwg file

DWG

VHD1.21 - 3D

- 1:1 scale - clamping points - weight - dwg file

PDF

VHD1.21 - 2D

VHD1.21 2D Drawings

DWG

VHD2.16 - 3D

- 1:1 scale - clamping points - weight - dwg file

PDF

VHD2.16 - 2D

VHD2.16 2D Drawings

DWG

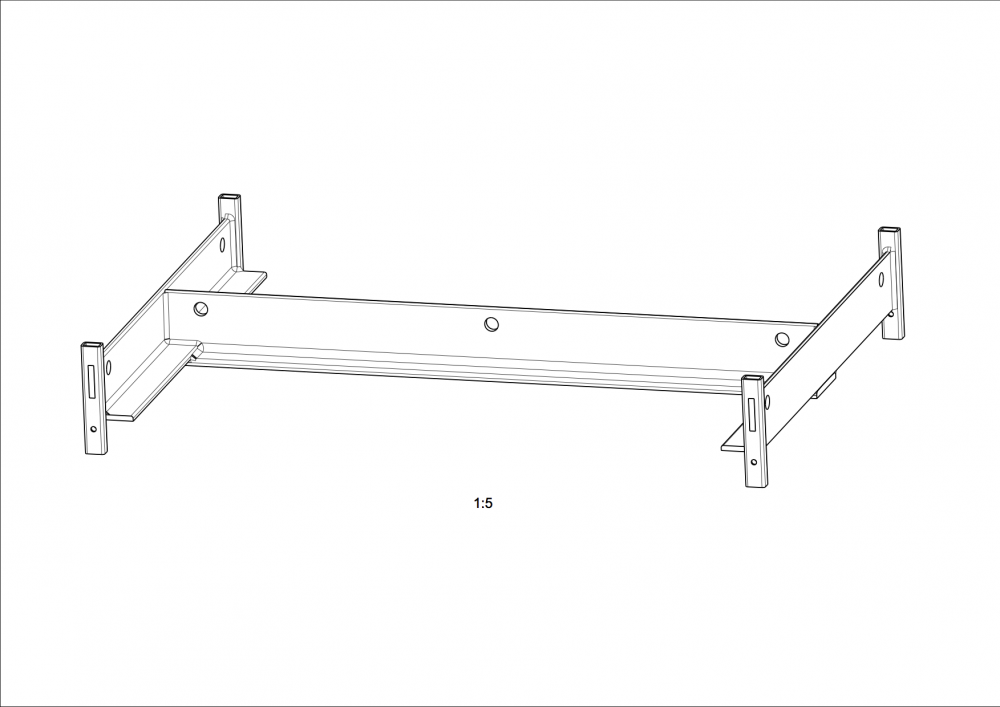

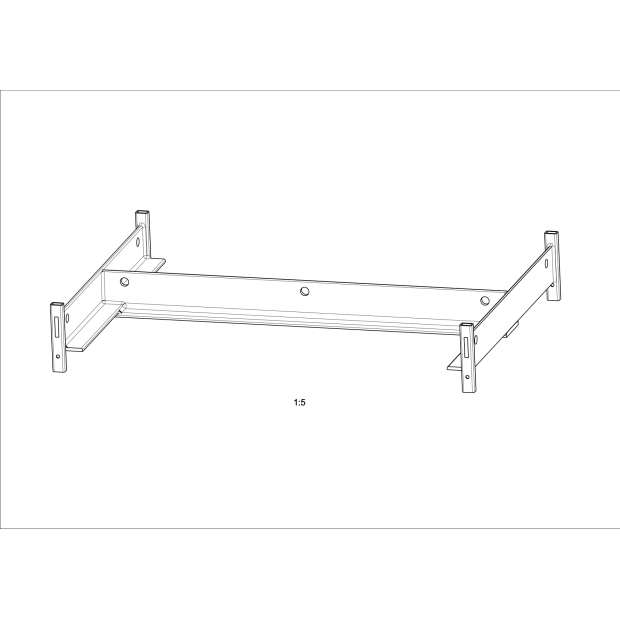

VHD2.18J 3D Drawing

VHD2.18J 3D Drawing - DWG file

PDF

VHD2.18J 2D Drawing

DWG

VHD4.18 - 3D

- 1:1 scale - clamping points - weight - dwg file

PDF

VHD4.18 - 2D

VHD4.18 2D Drawings

DWG

VHD2.21 - 3D

1:1 scale - clamping points - weight - dwg file

PDF

VHD2.21 - 2D

VHD2.21 2D Drawings

PDF

VHD4.21 - 2D

VHD4.21 2D Drawings

DWG

VHD4.21 Passive - 3D

1:1 scale - clamping points - weight - dwg file

PDF

VHD2000 - 2D

VHD2000 2D Drawings

DWG

VHD2000 - 3D

1:1 scale - clamping points - weight - dwg file

PDF

VHD3200 - 2D

VHD3200 2D Drawings

DWG

VHD3200 - 3D

1:1 scale - clamping points - weight - dwg file

GLL

VHD2.0 EASE data package

VHD2.0 EASE data package includes VHD2.0, Double VHD2.0, VHD1.0 standalone, VHD1.0 downfill

GLL

VHD2.18J EASE Data

GLL

VHD4.21 / VHD2.21 EASE Data

VHD4.21 / VHD2.21 EASE Data - .GLL - description

PDF

VHD brochure

PDF

VHD5.0 Brochure

VHD5.0 Constant Power Source Array brochure - ENG

GLL

VHD2.18j EASE Focus

GLL

VHD4.21 / 2.21 EASE Focus

Seleccione

Mid/Hi speaker cable HM120

Galería

Código de producto

KVV 987 126

Descripción

- 6 wire speaker cable - AP6 connectors - 12m (40ft) length - for Mid/Hi Module hook-up

Mid/Hi speaker cable MH15

Galería

Código de producto

KVV 987 147

Descripción

- 6 wire speaker cable - AP6 connectors - 1,5m (5ft) length - for Mid/Hi Module connection - for VHD1.0 Mid/Hi Module daisy-chaining

Mid/Hi speaker cable HM180

Galería

Código de producto

KVV 987 127

Descripción

- 6 wire speaker cable - AP6 connectors - 18m (60ft) length - for Mid/Hi Module hook-up

Mid/Hi speaker cable HM60

Galería

Código de producto

KVV 987 125

Descripción

- 6 wire speaker cable - AP6 connectors - 6m (20ft) - for Mid/Hi Module hook-up

Cover for VHD1.0

Código de producto

KVV 987 157

Descripción

- used with cart

Cart for VHD1.0

Galería

Código de producto

KVV 987 156

Descripción

- cart for easy transport and hanging VHD1.0 - with hardwood bumpers

VHD Fly Bar

Galería

Código de producto

KVV 987 101

Descripción

- Fly Bar for single or multiple VHD cabinets

Fly clip 12"

Galería

Código de producto

KVV 987 108

Descripción

- 12" cable with Fly Clips - for securing VHD cabinets to each other and to the Fly Bar FB-0001

VHD 1.0 DOWNFILL ARM

Galería

Código de producto

KVV 987 310

Descripción

The VHD1.0 DOWNFILL ARM is a short, flat pre-angled steel bar that has two pre-fixed apertures at the lower end of the bar to allow different angles of suspension from the enclosure above. The arm is attached to the VHD1.0 down-fill enclosure by means of two apertures that receive the insertion of two D6 QUICK RELEASE PINS. The top of the bar is attached to the bottom of either the VHD2.0 TOP ARM or BASS/VHD2.0 ARM by sliding into the groove and inserting a single D12.6 QUICK RELEASE PIN.

Touring cover for VHD2.0

Galería

Código de producto

KVV 987 104

Descripción

- used with cart

Cart VHD2.0

Galería

Código de producto

KVV 987 099

Descripción

- Front mount aluminium VHD2.0 cart - with hardwood bumpers

Fly Bar FB003 for VHD systems

Galería

Código de producto

KVV 987 252

Descripción

Must be used with VHD ARM attachments see other Accessories. The CROSSMEMBER hanging bracket is a flat and folded steel bar with returned 90 degree ends. This bracket attaches to the PICKPOINT ARM by simply sliding into two preset grooves, from left to right and secures smoothly and tightly, thus creating a T-Bar effect. Once both bars are attached and joined, it is a simple case of locking and securing the correct position and location, according to which configuration of VHD enclosures are being suspended, either in a Left/Right unit, by inserting a single D6 QUICK RELEASE PIN, which is attached via a small shrouded steel tie at the return edge of the PICKPOINT ARM.

VHD2.0 top arm

Galería

Código de producto

KVV 987 309

Descripción

The VHD2.0 TOP ARM is a flat steel bar with straight ends, a double groove joint at the lower end and prefixed apertures to accept both D6and D12.6 QUICK RELEASE PINS. A single bar is used on each side of an enclosure. The bar employs a total of two angular wedges that are used to ‘lock into’ the handles on each side of the VHD2.0 enclosure and are then secured by the insertion of a single D6 QUICK RELEASE PIN, (Which are attached to the bars via small shrouded steel ties)into each handle. Once the VHD2.0 TOP ARMS are attached to the VHD2.0, they are then simply attached to the CROSS MEMBER hanging bracket by inserting a single D12.6 QUICK RELEASE PIN through the top aperture of both of the VHD2.0 TOP ARMS and CROSSMEMBER hanging bracket.

VHD2.0 top extension arm

Galería

Código de producto

KVV 987 306

Descripción

The VHD2.0 EXTENSION ARM is of the same design and presentation as the VHD2.0 TOP ARM. It is intended for use where either a single VHD2.0 is required to be suspended below a combination of VHD Subwoofers or as an extension to an existing suspended VHD2.0. It is differentiated by being physically longer and employs a total of two angular wedges to allow locking into an attached secondary VHD2.0 and its enclosure handles. The same method of inserting a single D6 QUICK RELEASE PIN into each handle is employed. The arm has a poly-hex head at the top end of the bar, with prefixed apertures for the insertion of the D12.6 QUICK RELEASE PINS, to allow desired splay angles of the secondary VHD2.0 and is attached by the insertion of a single D12.6 QUICK RELEASE PIN.

Bass speaker cable LF100

Galería

Código de producto

KVV 987 123

Descripción

- 4 wire speaker cable - AP4 connectors - 10m (33ft) - for ES Bass Module hook-up

Bass speaker cable LF15

Galería

Código de producto

KVV 987 121

Descripción

- 4 wire speaker cable - AP4 connectors - 1,5m (5ft) - for ES Bass Module daisy-chaining

Bass speaker cable LF200

Galería

Código de producto

KVV 987 124

Descripción

- 4 wire speaker cable - AP4 connectors - 20m (66ft) - for ES Bass Module hook-up

Bass speaker cable LF40

Galería

Código de producto

KVV 987 122

Descripción

- 4 wire speaker cable - AP4 connectors - 4m (13ft) - for ES Bass Module hook-up

Cover for VHD2.15

Galería

Código de producto

KVV 987 106

Descripción

- used with cart

Cart for VHD2.15, VHD2.16, VHD4.18

Galería

Código de producto

KVV 987 100

Descripción

- with hardwood bumpers

VHD BASS ARM

Galería

Código de producto

KVV 987 307

Descripción

The VHD BASS ARM is a flat steel bar with straight ends, a double groove joint at the lower end and prefixed apertures to accept both D6& D12.6 QUICK RELEASE PINS. This bar is used exclusively to suspend a compliment of two VHD Subwoofers and a single bar is used on each side of the two enclosures. The bar employs a total of four angular wedges that are used to ‘lock into’ the handles on each side of the VHD Subwoofer enclosure and are secured by the insertion of a single D6 QUICK RELEASE PIN, (Which are attached to the bar via small shrouded steel ties) into each handle.

VHD BASS EXTENSION ARM

Galería

Código de producto

KVV 987 308

Descripción

The VHD SUBWOOFER EXTENSION ARM is of the same design and presentation as the VHD SUBWOOFER ARM, except it is differentiated by being physically longer and employs a total of four angular wedges to allow locking into an attached- secondary double hang of VHD Subwoofers and its enclosure handles. The same method of inserting a single D6 QUICK RELEASE PIN into each handle is employed. The arm has a poly-hex shape head at the top of the bar, with pre-fixed apertures for the insertion of the D12.6 QUICK RELEASE PINS, and is attached to the lower end of the VHD SUBWOOFER ARM by sliding into the groove and then being secured by the insertion of a single D12.6 QUICK RELEASE PIN. To add extra enclosures to the hang, this method of attachment is repeated.

Cover for VHD1.21

Galería

Código de producto

KVV 987 107

Descripción

- used with cart

Cart for VHD1.21

Galería

Código de producto

KVV 987 109

Descripción

- Front mount aluminium VHD2.21 cart - with hardwood bumpers

Cover for VHD2.16

Galería

Código de producto

KVV 987 155

Descripción

- used with cart

Cover for VHD4.18

Galería

Código de producto

KVV 987 105

Descripción

- used with cart

Código de producto

KVV 987 352

Descripción

Cover for VHD2.21/4.21

SL Ground Stack

Galería

Código de producto

KVV 987 320

Descripción

The SL Ground Stack consists of a two supporting legs, connecting to a metal strip, that has apertures with fixed points to allow the securing of the multiple stacked SL215 Bass enclosures with an SL412 and to prevent tipping when using the SL system stacked, away from the wall, or stacked on a VHD2.21 enclosure. - 6 pcs M10 hex screws with hole included - 6 pcs Quick-lock-pins 6mm included - 2pcs knob with screw included - 1pc allen key - 6mm included

Security panel

Galería

Código de producto

KVV987189

Descripción

- prevents unwanted amplifier setup - 4U

Super Digital 20MHz, delay board for VHD2000

Galería

Código de producto

KVV 987 295

Descripción

- electronic board - exchange requires professional installation

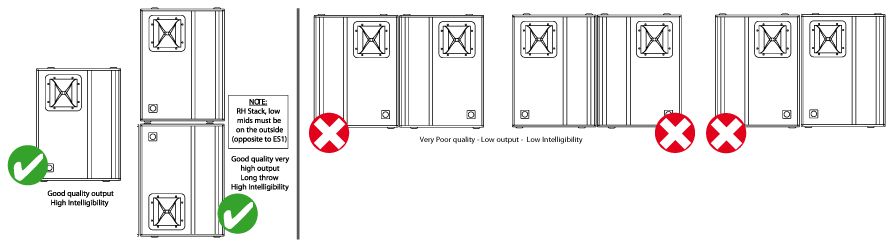

Q: I want to use more than one single VHD2.0 per side of the stage; can I place them together like an Array?

All KV2 Audio loudspeaker units are designed with low loss, low compression horn assemblies and are low’q’.
Their wide dispersion aspects mean that physical side by side ‘arraying’ is not the correct method or way to utilize the loudspeakers in application, primarily due to the interaction effects which cause poor phase response, frequency response and in-accurate dispersion.
It is entirely feasible to utilize a combination of two VHD2.0 enclosures, providing that they are located and placed as highlighted in the picture below.

Please refer to the ‘Technology’ tab or download Disarray-Theory

Q: Why are there different subwoofer settings on the VHD2000 amplifier? Should I use these depending on which subwoofers I use?

The VHD2000 control Amplifier is permanently ‘pre-set’ for the VHD2.0 mid hi enclosure, however because there are currently a choice of four different subwoofer units for different applications and with the potential to combine units so as to make a complete 4 or 5-way system, it is important to select the correct setting as denoted on the front Amplifier panel, as well as referring to the explanation and instructions within the VHD user guide.
These settings allow the correct and crucial sensitive integration of the designated subwoofers with regards to Crossover point, Phase response, and overall balance between the subwoofers and mid hi enclosures and tonal balance with regards to sound pressure level and output.

Can I use my existing VHD2.0 and VHD1.0 with he new Flybar system?

Yes, it is entirely possible to use existing VHD2.0, VHD2.15 & 2.16 with the new Flybar System incorporating pins instead of the Flyclip and Flytrack systems. However it is NOT POSSIBLE to use the older or existing VHD1.0 DOWNFILL units with the new Flybar System - (unless an existing VHD2.0 which has Flytrack in it being used, then the old VHD1.0 can still be attached with Flyclips), as it requires a Retro-Fit of new mechanical fittings which require that it be returned to the factory for the upgrade.

This upgrade is a customer FOC facility, if this is required, please contact your appropriate Area Sales Director for instructions.

VHD Basics
VHD1.0
VHD-Double A
VHD-Double B
VHD-Double C
VHD-Double D
VHD-Double G
VHD-Single A
VHD-Single B
VHD-Single C
VHD-Single D
VHD-Single E
VHD-Single F
VHD-Single G
VHD-Vocal
SL - C
SL - D
SL - A
SL - B

Seleccione

VHD Basics

Descripción

Basic usage of speakers, left and right side of the system. VHD 1.0 can be used as downfill with single VHD 2.0 configurations or other applications as recommended by KV2 Audio Tech support.

Productos

Count	Producto	Tipo
1	VHD2.0	MID-HI
1	VHD1.0	MID-HI

Accesorios

Count	Accesorios	Título
1	Cable MH15	Mid/Hi speaker cable MH15
1	Cable MH120	Mid/Hi speaker cable HM120

Imágenes

Wiring

VHD1.0

Descripción

Up to 2000 people Number of bass boxes - depend on music style Right side of stereo single system For live system 4x 2.16 Subs recommended

Productos

Count	Producto	Tipo
1	VHD1.0	MID-HI
4	VHD4.18	SUB
1	VHD2000	MID-HI AMP
1	VHD3200	SUB AMP

Accesorios

Count	Accesorios	Título
1	Cable MH120	Mid/Hi speaker cable HM120
2	Cable LF15	Bass speaker cable LF15
2	Cable LF40	Bass speaker cable LF40

Imágenes

Wiring

VHD-Double A

Descripción

Up to 10000 people Number of bass boxes - depend on music style Right side of stereo double system

Productos

Count	Producto	Tipo
2	VHD2.0	MID-HI
8	VHD2.16	SUB
2	VHD2000	MID-HI AMP
2	VHD3200	SUB AMP

Accesorios

Count	Accesorios	Título
2	Cable MH120	Mid/Hi speaker cable HM120
4	Cable LF15	Bass speaker cable LF15
4	Cable LF40	Bass speaker cable LF40
1	FLY BAR - 0003 SIMPLE VHD 2.0 ARM	VHD2.0 top arm
1	FLY BAR - 0003 VHD 2.0 ARM	VHD2.0 top extension arm
1	FLY BAR - 0003	Fly Bar FB003 for VHD systems

Imágenes

Wiring

VHD-Double B

Descripción

Up to 10000 people Number of bass boxes - depend on music style Right side of stereo double system

Productos

Count	Producto	Tipo
2	VHD2.0	MID-HI
4	VHD4.18	SUB
2	VHD2000	MID-HI AMP
2	VHD3200	SUB AMP

Accesorios

Count	Accesorios	Título
2	Cable MH120	Mid/Hi speaker cable HM120
4	Cable LF15	Bass speaker cable LF15
4	Cable LF40	Bass speaker cable LF40
1	FLY BAR - 0003 SIMPLE VHD 2.0 ARM	VHD2.0 top arm
1	FLY BAR - 0003 VHD 2.0 ARM	VHD2.0 top extension arm
1	FLY BAR - 0003	Fly Bar FB003 for VHD systems

Imágenes

Wiring

VHD-Double C

Descripción

Up to 10000 people Number of bass boxes - depend on music style Right side of stereo double system

Productos

Count	Producto	Tipo
2	VHD2.0	MID-HI
4	VHD2.16	SUB
4	VHD1.21	SUB
2	VHD2000	MID-HI AMP
2	VHD3200	SUB AMP

Accesorios

Count	Accesorios	Título
2	Cable MH120	Mid/Hi speaker cable HM120
4	Cable LF15	Bass speaker cable LF15
2	Cable LF40	Bass speaker cable LF40
2	Cable LF100	Bass speaker cable LF100
1	FLY BAR - 0003 SIMPLE VHD 2.0 ARM	VHD2.0 top arm
1	FLY BAR - 0003 VHD 2.0 ARM	VHD2.0 top extension arm
1	FLY BAR - 0003 SIMPLE VHD BASS ARM	VHD BASS ARM
1	FLY BAR - 0003 VHD BASS ARM	VHD BASS EXTENSION ARM
1	FLY BAR - 0003	Fly Bar FB003 for VHD systems

Imágenes

Wiring

VHD-Double D

Descripción

Up to 10000 people Number of bass boxes - depend on music style Right side of stereo double system

Productos

Count	Producto	Tipo
2	VHD2.0	MID-HI
4	VHD2.16	SUB
4	VHD4.18	SUB
2	VHD2000	MID-HI AMP
2	VHD3200	SUB AMP

Accesorios

Count	Accesorios	Título
2	Cable MH120	Mid/Hi speaker cable HM120
4	Cable LF15	Bass speaker cable LF15
2	Cable LF40	Bass speaker cable LF40
2	Cable LF100	Bass speaker cable LF100

Imágenes

Wiring

VHD-Double G

Descripción

Up to 10000 people Number of bass boxes - depend on music style Right side of stereo double system

Productos

Count	Producto	Tipo
2	VHD2.0	MID-HI
4	VHD2.16	SUB
2	VHD2.21	ULTRA SUB
2	VHD2000	MID-HI AMP
3	VHD3200	SUB AMP

Accesorios

Count	Accesorios	Título
2	Cable MH120	Mid/Hi speaker cable HM120
2	Cable LF15	Bass speaker cable LF15
2	Cable LF40	Bass speaker cable LF40
2	Cable LF100	Bass speaker cable LF100

Imágenes

Wiring

VHD-Single A

Descripción

Up to 5000 people Number of bass boxes - depend on music style Right side of stereo single system

Productos

Count	Producto	Tipo
1	VHD2.0	MID-HI
4	VHD2.16	SUB
1	VHD2000	MID-HI AMP
1	VHD3200	SUB AMP

Accesorios

Count	Accesorios	Título
2	Cable LF15	Bass speaker cable LF15
2	Cable LF40	Bass speaker cable LF40
1	Cable MH60	Mid/Hi speaker cable HM60

Imágenes

Wiring

VHD-Single B

Descripción

Up to 5000 people Number of bass boxes - depend on music style Right side of stereo single system

Productos

Count	Producto	Tipo
4	VHD4.18	SUB
1	VHD2.0	MID-HI
1	VHD2000	MID-HI AMP
1	VHD3200	SUB AMP

Accesorios

Count	Accesorios	Título
1	Cable MH60	Mid/Hi speaker cable HM60
2	Cable LF15	Bass speaker cable LF15
2	Cable LF40	Bass speaker cable LF40

Imágenes

Alternative

Wiring

VHD-Single C

Descripción

Up to 5000 people Number of bass boxes - depend on music style Right side of stereo single system

Productos

Count	Producto	Tipo
1	VHD2.0	MID-HI
2	VHD2.16	SUB
2	VHD1.21	SUB
1	VHD2000	MID-HI AMP
1	VHD3200	SUB AMP

Accesorios

Count	Accesorios	Título
1	Cable MH60	Mid/Hi speaker cable HM60
2	Cable LF15	Bass speaker cable LF15
2	Cable LF40	Bass speaker cable LF40

VHD-Single D

Descripción

Up to 5000 people Number of bass boxes - depend on music style Right side of stereo single system

Productos

Count	Producto	Tipo
1	VHD2.0	MID-HI
2	VHD2.16	SUB
2	VHD4.18	SUB
1	VHD2000	MID-HI AMP
1	VHD3200	SUB AMP

Accesorios

Count	Accesorios	Título
1	Cable MH60	Mid/Hi speaker cable HM60
2	Cable LF15	Bass speaker cable LF15
2	Cable LF40	Bass speaker cable LF40

Imágenes

Wiring

VHD-Single E

Descripción

Up to 5000 people Number of bass boxes - depend on music style Right side of stereo single system

Productos

Count	Producto	Tipo
1	VHD2.0	MID-HI
4	VHD2.16	SUB
4	VHD4.18	SUB
1	VHD2000	MID-HI AMP
2	VHD3200	SUB AMP

Accesorios

Count	Accesorios	Título
1	Cable MH60	Mid/Hi speaker cable HM60
4	Cable LF15	Bass speaker cable LF15
4	Cable LF40	Bass speaker cable LF40

Imágenes

Wiring

VHD-Single F

Descripción

Up to 5000 people, double bass system Number of bass boxes - depend on music style Right side of stereo single system

Productos

Count	Producto	Tipo
1	VHD2.0	MID-HI
4	VHD2.16	SUB
4	VHD1.21	SUB
1	VHD2000	MID-HI AMP
2	VHD3200	SUB AMP

Accesorios

Count	Accesorios	Título
1	Cable MH60	Mid/Hi speaker cable HM60
4	Cable LF15	Bass speaker cable LF15
4	Cable LF40	Bass speaker cable LF40

Imágenes

Wiring

VHD-Single G

Descripción

Up to 5000 people Number of bass boxes - depend on music style Right side of stereo single system

Productos

Count	Producto	Tipo
1	VHD2.0	MID-HI
4	VHD2.16	SUB
1	VHD2.21	ULTRA SUB
1	VHD2000	MID-HI AMP
2	VHD3200	SUB AMP

Accesorios

Count	Accesorios	Título
1	Cable MH120	Mid/Hi speaker cable HM120
2	Cable LF15	Bass speaker cable LF15
1	Cable LF40	Bass speaker cable LF40
2	Cable LF100	Bass speaker cable LF100

Imágenes

Wiring

VHD-Vocal

Descripción

Up to 5000 people Solely for vocal reinforcement and light music playback One side of stereo system

Productos

Count	Producto	Tipo
1	VHD2.0	MID-HI
1	VHD2000	MID-HI AMP

Accesorios

Count	Accesorios	Título
1	Cable MH120	Mid/Hi speaker cable HM120

Imágenes

Wiring

SL - C

Descripción

• Up to 2000 people • Number of bass cabinets and SUB LEVEL setup - depends on the style of music

Productos

Count	Producto	Tipo
2	SL412	MID-HI
4	VHD4.18	SUB
1	SL3000	MID-HI AMP
2	VHD3200	SUB AMP

Accesorios

Count	Accesorios	Título
2	Cable MH120	Mid/Hi speaker cable HM120
4	Cable LF15	Bass speaker cable LF15
4	Cable LF40	Bass speaker cable LF40

SL - D

Descripción

• Stereo system requires: 1 x SL3000 - stereo amplifier 1 x VHD3200 - sub amplifier • Up to 2000 people • Number of bass cabinets and SUB LEVEL setup - depends on the style of music

Productos

Count	Producto	Tipo
2	SL412	MID-HI
2	VHD2.21	ULTRA SUB
1	SL3000	MID-HI AMP
2	VHD3200	SUB AMP

Accesorios

Count	Accesorios	Título
2	Cable MH120	Mid/Hi speaker cable HM120
2	Cable LF40	Bass speaker cable LF40

Imágenes

Wiring

SL - A

Descripción

• Up to 2000 people • Number of bass cabinets and SUB LEVEL setup - depends on the style of music

Productos

Count	Producto	Tipo
2	SL412	MID-HI
4	SL2.15	BASS
1	SL3000	MID-HI AMP
1	VHD3200	SUB AMP

Accesorios

Count	Accesorios	Título
2	Cable MH120	Mid/Hi speaker cable HM120
2	Cable LF15	Bass speaker cable LF15
2	Cable LF40	Bass speaker cable LF40

Imágenes

Wiring

SL - B

Descripción

• Up to 2000 people • Number of bass cabinets and SUB LEVEL setup - depends on the style of music

Productos

Count	Producto	Tipo
2	SL412	MID-HI
8	SL2.15	BASS
1	SL3000	MID-HI AMP
2	VHD3200	SUB AMP

Accesorios

Count	Accesorios	Título
2	Cable MH120	Mid/Hi speaker cable HM120
8	Cable LF40	Bass speaker cable LF40

Imágenes

Wiring

Case Studies

Stage Theater an der Elbe, Hamburg, Germany

A multi-million investment, this theatre was specifically designed and built for future Stage Entertainment productions and initially showcased an exciting new show about Germany winning the 1954 World cup, called...
