VHD2.21 – Subwoofer de frecuencia ultra baja

El sistema VHD2.21, originalmente diseñado para súper audio en tiempo real como parte de nuestro sistema VHD, se utiliza en música en vivo. Sin embargo, también se destaca en el campo de la música bailable. Opera de forma muy efectiva en esta situación, ya que llega hasta 25Hz junto con otros productos VHD o de la serie ES, o como un subwoofer increíble e independiente que puede complementar sistemas de cualquier otro fabricante. A diferencia de los subwoofers tradicionales de 21” que están típicamente diseñados para ser más bien subwoofers de efecto, el VHD2.21 ofrece respuesta rápida, precisa y de extrema dinámica, incluso a frecuencias bajas más altas, cualidades que difícilmente se encuentran en una caja tan grande. Un único VHD3200 puede manejar un 2.21. Pese a que su tamaño es mayor al de otros subwoofers de KV2 Audio, aun encaja en la filosofía de la empresa sobre ofrecer el mayor rendimiento desde un tamaño compacto.



Ver video del producto

VHD2.21 Technical Data Sheet

Aplicaciones

Especialmente diseñado para agregar e

  • Música en vivo de gran escala y eventos de playback
  • Alquiler y producción
  • Locales para grandes conciertos
  • Cines
  • Discoteca
  • Instalación fija
  • Fácilmente incorporable en múltiples proyectos de sistemas con productos ES y SL

Código de producto

  • KVV 987 249 - VHD2.21


Características

  • Designed in response to calls for a high output ultra low frequency subwoofer solution
  • Double 21" subwoofer with an input power handling capability of 3200W
  • Incredibly efficient, the 2.21 has a sensitivity of 106dB at one watt/one meter and can produce output levels in excess of 140dB
  • Frequency response from 28Hz through to 240Hz


Aplicaciones

Especialmente diseñado para agregar e

  • Música en vivo de gran escala y eventos de playback
  • Alquiler y producción
  • Locales para grandes conciertos
  • Cines
  • Discoteca
  • Instalación fija
  • Fácilmente incorporable en múltiples proyectos de sistemas con productos ES y SL

Código de producto

  • KVV 987 249 - VHD2.21


System Acoustic Performance

Max SPL Long-term143dB (2xVHD2.21)
Max SPL Peak149dB (2xVHD2.21)
-3dB Response34Hz to 180Hz
-10dB Response28Hz to 240Hz
Impedance
Crossover Point60Hz to 120Hz

Low Frequency Section

Acoustic DesignBandpass with low port losses
Low Frequenzy Amplifier Requirement3200W /1x VHD2.21 (bridged VHD3200 amp.)
Woofer Size / Voice Coil Diameter / Design2 x 21" / 4.3"
Magnet TypeNeodymium Advanced Ventilated
Diaphragm MaterialEpoxy Reinforced Cellulose

Speaker Input

Speaker Input AP4 male

Cabinet

Cabinet MaterialBaltic birch
Handles12
ColorBlack (wear resistant polymer coating)

Physical Dimensions

Height700 mm (27.55")
Width1080 mm (42.52")
Depth1200 mm (47.24")
Weight155 kg (341.7lbs)


Código de producto

  • KVV 987 249 - VHD2.21

PDF

SL Brackets User Guide

- SL Bracket instructions - SL Top Bracket, SL Sub Bracket - REV.4



PDF

VHD2.21 Data Sheet

VHD2.21 Data Sheet



DWG

VHD2.21 - 3D

1:1 scale - clamping points - weight - dwg file



PDF

VHD2.21 - 2D

VHD2.21 2D Drawings





2 Channel Adapter Cable

Galería

Código de producto

KVV 987 450



Descripción

- 2 channel adapter cable



Bass speaker cable LF100

Galería

Código de producto

KVV 987 123



Descripción

- 4 wire speaker cable - AP4 connectors - 10m (33ft) - for ES Bass Module hook-up


Bass speaker cable LF40

Galería

Código de producto

KVV 987 122



Descripción

- 4 wire speaker cable - AP4 connectors - 4m (13ft) - for ES Bass Module hook-up

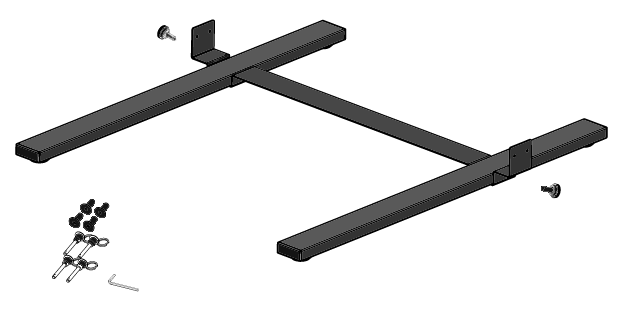

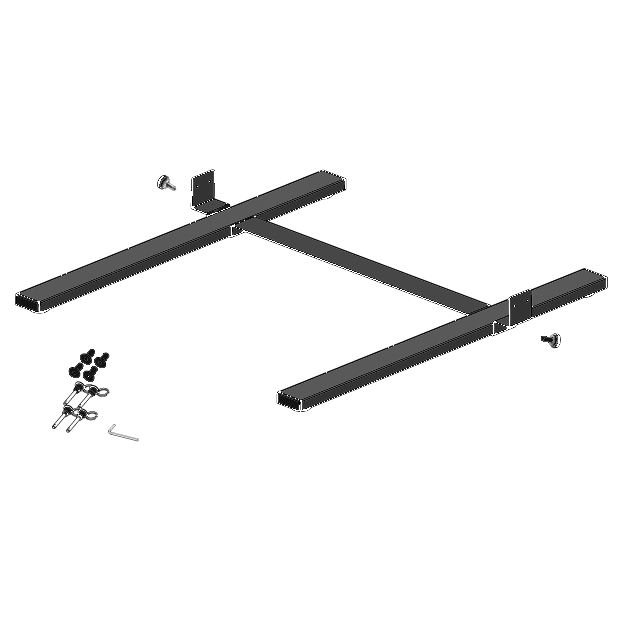

SL Ground Stack

Galería

Código de producto

KVV 987 320



Descripción

The SL Ground Stack consists of a two supporting legs, connecting to a metal strip, that has apertures with fixed points to allow the securing of the multiple stacked SL215 Bass enclosures with an SL412 and to prevent tipping when using the SL system stacked, away from the wall, or stacked on a VHD2.21 enclosure. - 6 pcs M10 hex screws with hole included - 6 pcs Quick-lock-pins 6mm included - 2pcs knob with screw included - 1pc allen key - 6mm included


Descargas

DWG

SL Ground stack 3D DWG

SL Ground stack 3D DWG

SKP

SL Ground stack SKP

SL Ground stack SketchUp

Galería

Código de producto

KVV 987 352



Descripción

Cover for VHD2.21/4.21



VHD4.21/2.21 Flybar

Galería

Código de producto

KVV 987 398



Descripción

Flybar for VHD4.21 or VHD2.21. See VHD4.21 user manual for more instructions.



Descargas

SKP

VHD4.21, 2.21 Flybar 3D DWG

VHD4.21, 2.21 Flybar 3D DWG

SKP

VHD4.21 / VHD2.21 Flybar 3D SKP

VHD4.21 / VHD2.21 Flybar 3D SKP
DWG

VHD4.21 / VHD2.21 Flybar 2D DWG

VHD4.21 / VHD2.21 Flybar 2D DWG

SL - D



Descripción

• Stereo system requires: 1 x SL3000 - stereo amplifier 1 x VHD3200 - sub amplifier • Up to 2000 people • Number of bass cabinets and SUB LEVEL setup - depends on the style of music


Productos

CountProductoTipo
2SL412MID-HI
2VHD2.21ULTRA SUB
1SL3000MID-HI AMP
2VHD3200SUB AMP


Imágenes

VHD-Double G



Descripción

Up to 10000 people Number of bass boxes - depend on music style Right side of stereo double system


Productos

CountProductoTipo
2VHD2.0MID-HI
4VHD2.16SUB
2VHD2.21ULTRA SUB
2VHD2000MID-HI AMP
3VHD3200SUB AMP


Imágenes

VHD-Single G



Descripción

Up to 5000 people Number of bass boxes - depend on music style Right side of stereo single system


Productos

CountProductoTipo
1VHD2.0MID-HI
4VHD2.16SUB
1VHD2.21ULTRA SUB
1VHD2000MID-HI AMP
2VHD3200SUB AMP


Imágenes
