CS12

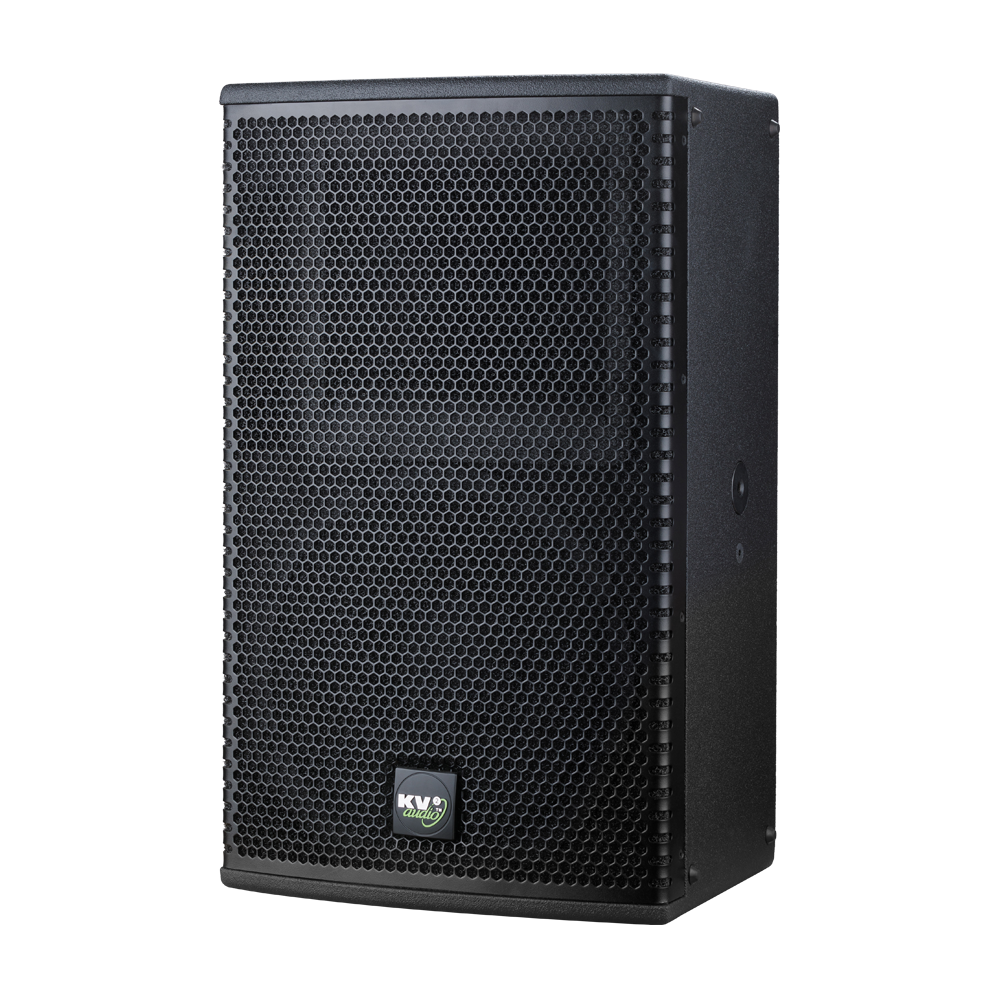

The CS12 is a compact 2-way passive speaker, presented in an aesthetically low profile baltic birch plastic based painted enclosure, to ensure long term protection in transit and use with unique angles for flexible positioning and targeting of listeners.

Minimal fixings and attachments ensure the conservative non-invasive appearance but allow the unit to be applied and set up quickly with minimum effort and handling either on stands, free standing or suspended via multiple ancillaries.

Presenting extremely high-quality speech, music and live performance content with high gain coupled to low feedback properties.

Watch the product video



Download Product’s Data Sheet




Applications

Purpose designed as a discreet portable passive loudspeaker for speech and full range music perfor- mance for Rental and Production companies

  • Corporate presentations and functions
  • Stand-alone full range performance or with addition of subwoofers
  • Infills
  • Monitoring
  • Fixed installations


Product code

KVV 987 426




Features

  • Professional Baltic birch construction with unique angles for flexible use
  • Extremely hard-wearing textured plastic paint
  • Compact enclosure allows discreet placement and application
  • Wide dispersion 80 H x 40 V Horn
  • KV2 Audio SLA technology passive crossover inc. thermal breaker protection
  • 1.4”/ 3”Titanium diaphragm compression driver
  • 12” Neodymium low mid woofer
  • Fixing points for comprehensive attachments


Applications

Purpose designed as a discreet portable passive loudspeaker for speech and full range music perfor- mance for Rental and Production companies

  • Corporate presentations and functions
  • Stand-alone full range performance or with addition of subwoofers
  • Infills
  • Monitoring
  • Fixed installations


Product code

KVV 987 426




System Acoustic Performance

Max SPL Long-term127 dB
Max SPL Peak130 dB
-3dB Response55 Hz to 22 kHz
-10dB Response50 Hz to 30 kHz
Recommended Power500 W
Sensitivity98 dB
Impedance4 Ω
Crossover Point1,2 kHz

High Frequency Section

Acoustic DesignHorn loaded
High Horn Coverage Horizontal / Vertical80° x 40°
Rotatable HornYes
Throat Exit Diameter / Diaphragm Size1,4“ / 3“
Diaphragm MaterialNitride Titanium
Magnet TypeNeodymium
ProtectionRMS Limiter

Low Frequency Section

Acoustic DesignFront Loaded, Bass Reflex
Number of Drivers1
Woofer Size / Voice Coil Diameter / Design12“ / 2.5“ / Trans Coil
Magnet TypeNeodymium
Diaphragm MaterialEpoxy reinforced cellulose
ProtectionThermal breaker - auto reset

Speaker Input

Speaker Input 2x Neutrik Speakon®, Terminal Block

Cabinet

Cabinet MaterialBaltic birch
Handles2
ColorBlack (plastic paint)

Physical Dimensions

Height625 mm
Width374 mm
Depth369 mm
Weight24 kg


Product code

KVV 987 426



PDF

CS Series User Manual

CS Series User Manual



SKP

CS12 3D SKP

CS12 3D SKP



DWG

CS12 3D DWG

CS12 3D DWG



DWG

CS12 2D DWG

CS12 2D DWG







2 Channel Adapter Cable



Product code

KVV 987 450



Description

- 2 channel adapter cable







Angle-set attachment



Product code

KVV 987 451



Description

- angle-set attachment
- quick pin







CS12 Horizontal Bracket



Product code

KVV 987 429



Description

- black
- including two connection bolts and bracket







CS12 Vertical Bracket



Product code

KVV 987 430



Description

- black
- including two connection bolts and bracket
