CS8

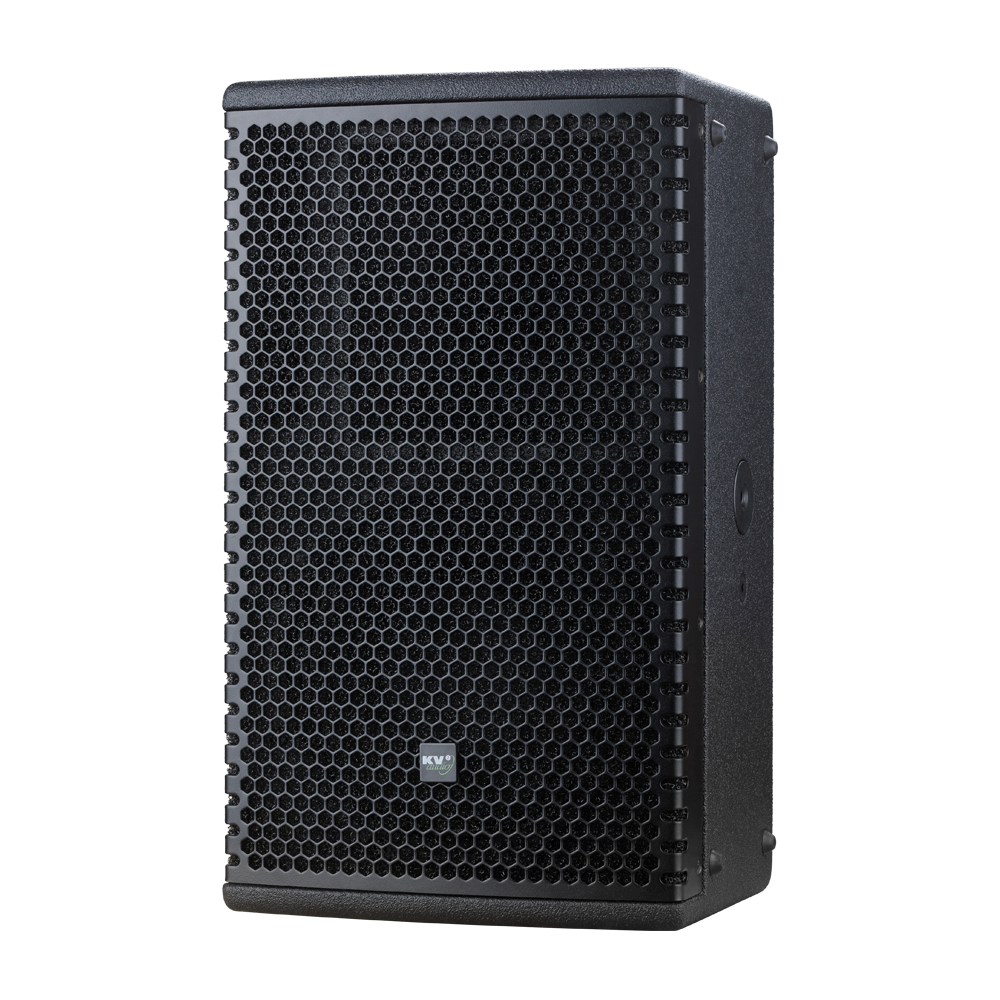

The CS8 is a compact 2-way passive speaker offering the same exceptional speech clarity as the CS6 but with added low frequency extension. As such, the CS8 can also provide excellent musical reproduction for both corporate events and installations. The low profile, multi-angled Baltic Birch cabinet design presents a range of positioning options and the excellent high gain to low feedback properties mean the CS8 can be used very effectively as a compact vocal reference monitor.

Watch the product video

CS8 Data Sheet

Applications

Purpose designed as a discreet portable passive loudspeaker for speech and music content for Rental and Production companies

  • Corporate presentations and functions
  • Full range performance with addition of subwoofers
  • Infills
  • Close monitoring
  • Fixed installations

Product code

KVV 987 425



Features

  • Professional Baltic birch construction with unique angles for flexible use
  • Extremely hard-wearing textured plastic paint
  • Compact enclosure allows discreet placement and application
  • Wide dispersion 100° H x 100° V Horn
  • KV2 Audio SLA technology passive crossover inc. thermal breaker protection
  • 1”/ 1.75”Titanium diaphragm compression driver
  • 8” Neodymium low mid woofer
  • Fixing points for comprehensive attachments


Applications

Purpose designed as a discreet portable passive loudspeaker for speech and music content for Rental and Production companies

  • Corporate presentations and functions
  • Full range performance with addition of subwoofers
  • Infills
  • Close monitoring
  • Fixed installations

Product code

KVV 987 425



System Acoustic Performance

Max SPL Long-term120dB
Max SPL Peak126dB
-3dB Response80Hz – 20 kHz
-10dB Response62Hz – 28 kHz
Recommended Power275 W
Sensitivity94 dB
Impedance8 Ω
Crossover Point2,2 kHz

High Frequency Section

Acoustic DesignHorn loaded
High Horn Coverage Horizontal / Vertical100° x 100°
Rotatable HornSymetric
Throat Exit Diameter / Diaphragm Size1“/1,75“
Diaphragm MaterialTitanium Nitride
Magnet TypeNeodymium
ProtectionRMS limiter

Low Frequency Section

Acoustic DesignFront loaded bass reflex
Number of Drivers1
Woofer Size / Voice Coil Diameter / Design8“/ 2“/ Trans coil
Diaphragm MaterialEpoxy reinforced cellulose
Magnet TypeNeodymium
ProtectionThermal breaker - auto reset

Speaker Input

Speaker Input 2x Neutrik Speakon®, Terminal Block

Cabinet

Cabinet MaterialBaltic birch
Handles1
ColorBlack (wear resistant polymer coating)

Physical Dimensions

Height455 mm (17.91")
Width265 mm (10.43")
Depth260 mm (10.24")
Weight13 kg (28.66 lbs)


Product code

KVV 987 425


PDF

CS Series User Manual

CS Series User Manual



PDF

CS8 Data Sheet

CS8 Data Sheet


SKP

CS8 3D SKP

CS8 3D SKP



DWG

CS8 3D DWG

CS8 3D DWG



DWG

CS8 2D DWG

CS8 2D DWG



SKP

CS8 Vertical Bracket SKP

CS8 Vertical Bracket SketchUp



SKP

CS8 SKP

CS8 SketchUp



GLL

CS8 EASE Focus

CS8 EASE Focus





2 Channel Adapter Cable

Gallery

Product code

KVV 987 450



Description

- 2 channel adapter cable



Angle-set attachment

Gallery

Product code

KVV 987 451



Description

- angle-set attachment
- quick pin



CS8 Horizontal Bracket

Gallery

Product code

KVV 987 427



Description

- black
- including two connection bolts and bracket



Downloads

DWG

CS8 Horizontal Bracket 3D DWG

CS8 Horizontal Bracket 3D DWG
DWG

CS8 Horizontal Bracket 2D DWG

CS8 Horizontal Bracket 2D DWG

CS8 Vertical Bracket

Gallery

Product code

KVV 987 428



Description

- black
- including two connection bolts and bracket



Downloads

SKP

CS8 Vertical Bracket SKP

CS8 Vertical Bracket SketchUp

DWG

CS8 Vertical Bracket 3D DWG

CS8 Vertical Bracket 3D DWG
DWG

CS8 Vertical Bracket 2D DWG

CS8 Vertical Bracket 2D DWG
