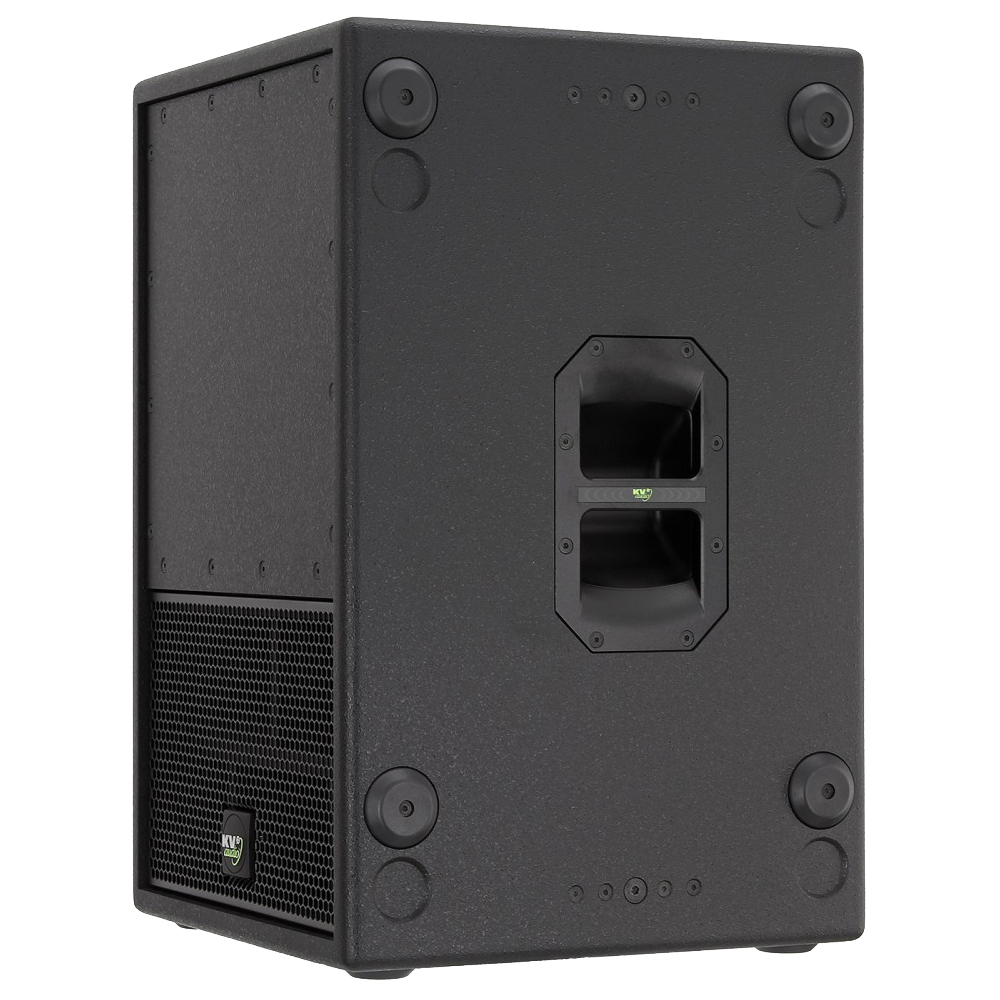

ES1.5 - Compact Active-Driven Subwoofer

The ES1.5 is a single 15", extremely compact, high output subwoofer weighing just 30.8 kg (67.9lbs) designed as part of the ES Series speaker system. Used singularly or in multiples of up to three, alongside a single ES1.0 mid high cabinet, the system is powered by the EPAK2500/R Amplifier ensuring fast, easy set up with perfect balance and complete control. The EPAK2500/R also allows up to two ES1.5’s to be used alongside an ES1.8, where the ES1.5 can either be flown alongside an ES1.0 or ground stacked with the ES1.8.

Watch the product video

ES1.5 Technical Data Sheet

ES1.5

Applications

Specifically designed to accompany and compliment the ES1.0 as a true full range compact system

  • Portable PA
  • Fixed Installations
  • Bars and Nightclubs
  • Houses of worship
  • Can be integrated with other ES subwoofers

Product code

  • KVV 987 003 - ES1.5


Features

  • Professional Baltic birch construction with highly resistant polymer coating
  • 127dB sustained output / 130dB peak per unit and 134dB / 137dB peak when using 3 units
  • Acoustic loading via Asymmetrical Bandpass
  • 15" bass driver with 3" (76 mm) inside/outside, epoxy baked, high temperature voice coil assembly and ferrite magnetic structure
  • Proprietary side handle design for simplified handling and carrying
  • High-impact low friction feet, asymmetrically located on three sides allowing vertical or horizontal system set up, lock-in and easy cabinet movement
  • Four internal corner braces tied to eight M10 suspension points.
    A total of 24 suspension points are available for custom installation applications
  • Weather proofing option and special paint finishes available on request


Applications

Specifically designed to accompany and compliment the ES1.0 as a true full range compact system

  • Portable PA
  • Fixed Installations
  • Bars and Nightclubs
  • Houses of worship
  • Can be integrated with other ES subwoofers

Product code

  • KVV 987 003 - ES1.5


System Acoustic Performance

Max SPL Long-term127dB (134dB - 3x ES1.5)
Max SPL Peak133dB (137dB - 3x ES1.5)
-3dB Response40Hz to 130Hz
-10dB Response36Hz to 130Hz
Impedance16Ω
Crossover Point130Hz

Low Frequency Section

Acoustic DesignTwin Asymmetrical loading
Low Frequency Amplifier Requirement500W / ES1.5 from EPAK 2500/R
Woofer Size / Voice Coil Diameter / Design15" / 3" / Inside Outside
Magnet TypeFerrite
Diaphragm MaterialEpoxy Reinforced Cellulose

Speaker Input

Speaker Input AP4

Speaker Output

Speaker OutputAP4

Cabinet

Cabinet MaterialBaltic birch
Handles2
Color"Orange peeled" Matt Black or any RAL

Physical Dimensions

Height700 mm (27.55")
Width450 mm (17.71")
Depth450 mm (17.71")
Weight30.8 kg (67.9lbs)


Product code

  • KVV 987 003 - ES1.5

PDF

ES Series User Guide

ES1.0, ES1.5, ES1.8, ES2.5, ES2.6 User Guide - English, rev. 8



PDF

ES Cabinets Configurations User Guide

- ES Series - Basic single and double configurations user guide



PDF

ES Flyware - Suspension and Rigging

ES Flyware - Suspension and Rigging - English



PDF

ES1.5 Data Sheet

ES1.5 Data Sheet



DWG

Set of M10 x 50 closed end bolts for 6mm quick lock pin for ES1.0, ES1.5, ESR212, ESR215MkII, SL2.15, SL412 3D DWG

Set of M10 x 50 closed end bolts for 6mm quick lock pin for ES1.0, ES1.5, ESR212, ESR215MkII, SL2.15, SL412 3D DWG



SKP

ES1.0, ES1.5, ES1.8, ES2.5, ES2.6 Bracket additional arms SKP

ES1.0, ES1.5, ES1.8, ES2.5, ES2.6 Bracket additional arms SketchUp



DWG

ES1.0, ES1.5, ES1.8, ES2.5, ES2.6 Bracket additional arms 3D DWG

ES1.0, ES1.5, ES1.8, ES2.5, ES2.6 Bracket additional arms 3D DWG



SKP

ES1.0, ES1.5, ESD15 Horizontal Bracket SKP

ES1.0, ES1.5, ESD15 Horizontal Bracket SketchUp



DWG

ES1.0, ES1.5, ESD15 Horizontal Bracket 3D DWG

ES1.0, ES1.5, ESD15 Horizontal Bracket 3D DWG



SKP

ES1.0, ES1.5, ESD15, EX15 Vertical Bracket SKP

ES1.0, ES1.5, ESD15, EX15 Vertical Bracket SketchUp



DWG

ES1.0, ES1.5, ESD15, EX15 Vertical Bracket 3D DWG

ES1.0, ES1.5, ESD15, EX15 Vertical Bracket 3D DWG



SKP

ES1.0, ES1.5, EX1.8, EX2.2 Cart wheels SKP

ES1.0, ES1.5, EX1.8, EX2.2 Cart wheels SketchUp



DWG

ES1.0, ES1.5, EX1.8, EX2.2 Cart wheels 3D DWG

ES1.0, ES1.5, EX1.8, EX2.2 Cart wheels 3D DWG



SKP

ES1.0, ES1.5 Cart SKP

ES1.0, ES1.5 Cart SketchUp



DWG

ES1.0, ES1.5 Cart 3D DWG

ES1.0, ES1.5 Cart 3D DWG



SKP

Set of M10 x 50 closed end bolts for 6mm quick lock pin for ES1.0, ES1.5, ESR212, ESR215MkII, SL2.15, SL412 SKP

Set of M10 x 50 closed end bolts for 6mm quick lock pin for ES1.0, ES1.5, ESR212, ESR215MkII, SL2.15, SL412 SketchUp



DWG

ES1.5 - 3D

1:1 scale - clamping points - weight - dwg file



PDF

ES1.5 - 2D

ES1.5 2D Drawings



DWG

ES1.5 2D DWG

ES1.5 2D DWG



DWG

ESD15 / ES1.0 / ES1.5 Horizontal Bracket 2D DWG

ESD15 / ES1.0 / ES1.5 Horizontal Bracket 2D DWG



DWG

ESD15 / ES1.0 / ES1.5 / EX15 Vertical Bracket 2D DWG

ESD15 / ES1.0 / ES1.5 / EX15 Vertical Bracket 2D DWG



PDF

Long bracket for joining two ES1.0 or ES1.5 PDF drawing

Long bracket for joining two ES1.0 or ES1.5 PDF drawing



PDF

Short bracket for joining two ES1.0 or ES1.5 PDF drawing

Short bracket for joining two ES1.0 or ES1.5 PDF drawing



SKP

Long bracket for joining two ES1.0 or ES1.5 - SketchUp

Long bracket for joining two ES1.0 or ES1.5 - SketchUp



DWG

Long bracket for joining two ES1.0 or ES1.5 - 3D DWG

Long bracket for joining two ES1.0 or ES1.5 - 3D DWG



SKP

Long bracket for joining two ES1.0 or ES1.5 SKP

Long bracket for joining two ES1.0 or ES1.5 SketchUp



DWG

Long bracket for joining two ES1.0 or ES1.5 3D DWG

Long bracket for joining two ES1.0 or ES1.5 3D DWG



SKP

SKP

ES1.5 SKP

ES1.5 SketchUp



DWG

ES1.5 3D DWG

ES1.5 3D DWG





ES1.0, ES1.5, ES1.8, ES2.5, ES2.6 Bracket additional arms

Gallery

Product code

KVV 987 192



Description

- 2 pcs ARMS OF FB-0002
- 8 pcs M10 screws
- 8 pcs Quick-lock-pins 6mm included



Downloads

DWG

ES1.0, ES1.5, ES1.8, ES2.5, ES2.6 Bracket additional arms 3D DWG

ES1.0, ES1.5, ES1.8, ES2.5, ES2.6 Bracket additional arms 3D DWG

SKP

ES1.0, ES1.5, ES1.8, ES2.5, ES2.6 Bracket additional arms SKP

ES1.0, ES1.5, ES1.8, ES2.5, ES2.6 Bracket additional arms SketchUp

EPAK2500, EPAK2500R, ES1.5, ES1.8, ES2.5, ES2.6, SL2.15 Amphenol AP4 connector

Gallery

Product code

KVV 987 048



Description

- female - cable mount



EPAK2500, EPAK2500R, ES1.5, ES1.8, ES2.5, ES2.6, SL2.15 Amphenol AP4 connector

Gallery

Product code

KVV 987 049



Description

- male - cable mount



Cable LF100 for bass speaker

Gallery

Product code

KVV 987 123



Description

- 4 wire speaker cable - AP4 connectors - 10m (33ft) - for ES Bass Module hook-up



Cable LF15

Gallery

Product code

KVV 987 121



Description

- 4 wire speaker cable - AP4 connectors - 1,5m (5ft) - for ES Bass Module daisy-chaining



Cable LF200 for bass speaker

Gallery

Product code

KVV 987 124



Description

- 4 wire speaker cable - AP4 connectors - 20m (66ft) - for ES Bass Module hook-up



Cable LF40

Gallery

Product code

KVV 987 122



Description

- 4 wire speaker cable - AP4 connectors - 4m (13ft) - for ES Bass Module hook-up



ES1.0, ES1.5, EX1.8, EX2.2 Cart wheels

Gallery

Product code

KVV 987 031



Description

- with bolts nuts kit - 4 pcs in pack, rotating, blue
- 16x M8x 25mm Screw Countersunk Hexagon Socket Head
- 16x Nut Hexagon with blue plastic insert M8



Downloads

DWG

ES1.0, ES1.5, EX1.8, EX2.2 Cart wheels 3D DWG

ES1.0, ES1.5, EX1.8, EX2.2 Cart wheels 3D DWG

SKP

ES1.0, ES1.5, EX1.8, EX2.2 Cart wheels SKP

ES1.0, ES1.5, EX1.8, EX2.2 Cart wheels SketchUp

ES System flybar and bracket

Gallery

Product code

KVV 987 191



Description

- 8 pcs M10 screws - 8 pcs Quick-lock-pins 6mm included - 4 pcs Quick-lock-pins 1/2inch included



Downloads

DWG

ES System flybar and bracket 3D DWG

ES System flybar and bracket 3D DWG

SKP

ES System flybar and bracket SKP

ES System flybar and bracket SketchUp

DWG

ES System flybar and bracket 2D DWG

ES System flybar and bracket 2D DWG

ES1.0, ES1.5 Cart

Gallery

Product code

KVV 987 030



Description

- for 2pcs ES1.0 or ES 1.5 - wheels not included
- 16x M8x 25mm Screw Countersunk Hexagon Socket Head
- 16x Nut Hexagon with blue plastic insert M8



Downloads

DWG

ES1.0, ES1.5 Cart 3D DWG

ES1.0, ES1.5 Cart 3D DWG

SKP

ES1.0, ES1.5 Cart SKP

ES1.0, ES1.5 Cart SketchUp

ES1.0, ES1.5, ESD15 Horizontal bracket

Gallery

Product code

KVV 987 035



Description

Horizontal bracket for ES1.0, ES1.5, ESD15 (or eventually for EX15 when positioned vertically) - including top hat cover adaptor plate and two connection bolts - black



Downloads

DWG

ES1.0, ES1.5, ESD15 Horizontal Bracket 3D DWG

ES1.0, ES1.5, ESD15 Horizontal Bracket 3D DWG

SKP

ES1.0, ES1.5, ESD15 Horizontal Bracket SKP

ES1.0, ES1.5, ESD15 Horizontal Bracket SketchUp

ES1.0, ES1.5, ESD15, EX15 Vertical bracket

3D view

Gallery

Product code

KVV 987 032



Description

Vertical bracket for ES1.0, ES1.5, ESD15, EX15 - including two connection bolts - black



Downloads

DWG

ESD15 / ES1.0 / ES1.5 / EX15 Vertical Bracket 2D DWG

ESD15 / ES1.0 / ES1.5 / EX15 Vertical Bracket 2D DWG

DWG

ES1.0, ES1.5, ESD15, EX15 Vertical Bracket 3D DWG

ES1.0, ES1.5, ESD15, EX15 Vertical Bracket 3D DWG

SKP

ES1.0, ES1.5, ESD15, EX15 Vertical Bracket SKP

ES1.0, ES1.5, ESD15, EX15 Vertical Bracket SketchUp

ES1.5 Cover heavy duty cover

Gallery

Product code

KVV 987 120



Description

- Durable material



Long bracket for joining two ES1.0 or ES1.5

Gallery

Product code

KVV 987 026



Description

Long bracket for joining two ES1.0 or ES1.5



Downloads

DWG

Long bracket for joining two ES1.0 or ES1.5 - 3D DWG

Long bracket for joining two ES1.0 or ES1.5 - 3D DWG

SKP

Long bracket for joining two ES1.0 or ES1.5 - SketchUp

Long bracket for joining two ES1.0 or ES1.5 - SketchUp

PDF

Long bracket for joining two ES1.0 or ES1.5 PDF drawing

Long bracket for joining two ES1.0 or ES1.5 PDF drawing

DWG

Long bracket for joining two ES1.0 or ES1.5 3D DWG

Long bracket for joining two ES1.0 or ES1.5 3D DWG

SKP

Long bracket for joining two ES1.0 or ES1.5 SKP

Long bracket for joining two ES1.0 or ES1.5 SketchUp

Set of M10 x 50 closed end bolts for 6mm quick lock pin for ES1.0, ES1.5, ESR212, ESR215MkII, SL2.15, SL412

Gallery

Product code

KVV 987 383



Description

These negate the requirement to remove and replace supplied enclosure bolts depending if attachments are fixed.



Downloads

DWG

Set of M10 x 50 closed end bolts for 6mm quick lock pin for ES1.0, ES1.5, ESR212, ESR215MkII, SL2.15, SL412 3D DWG

Set of M10 x 50 closed end bolts for 6mm quick lock pin for ES1.0, ES1.5, ESR212, ESR215MkII, SL2.15, SL412 3D DWG

SKP

Set of M10 x 50 closed end bolts for 6mm quick lock pin for ES1.0, ES1.5, ESR212, ESR215MkII, SL2.15, SL412 SKP

Set of M10 x 50 closed end bolts for 6mm quick lock pin for ES1.0, ES1.5, ESR212, ESR215MkII, SL2.15, SL412 SketchUp

Short bracket for joining two ES1.0 or ES1.5

Gallery

Product code

KVV 987 027



Description

Short bracket for joining two ES1.0 or ES1.5



Downloads

PDF

Short bracket for joining two ES1.0 or ES1.5 PDF drawing

Short bracket for joining two ES1.0 or ES1.5 PDF drawing

ES Single - A1



Description

Up to 1000 people. Number of bass boxes and SUB LEVEL setup depend on music style. One side of stereo single system.

Note: Selection of ES amplifier model style is optional (either EPAK2500 or EPAK2500R).



Products

CountProductType
1ES1.0MID-HI
1ES1.5SUB
1EPAK2500R or EPAK2500AMP


Accessories

CountAccessoryTitle
1Cable LF40Cable LF40
1Cable MH60Mid/Hi speaker cable MH60


Images

Front viewWiring

ES Single - A2



Description

Up to 1000 people. Number of bass boxes depends on music style. One side of stereo single system.

Note: Selection of ES amplifier model style is optional (either EPAK2500 or EPAK2500R).



Products

CountProductType
1ES1.0MID-HI
2ES1.5SUB
1EPAK2500R or EPAK2500AMP


Accessories

CountAccessoryTitle
1Cable MH60Mid/Hi speaker cable MH60
1Cable LF40Cable LF40
1Cable LF15Cable LF15


Images

Front viewWiring

ES Single - A3



Description

Up to 1000 people. Number of bass boxes depends on music style. One side of stereo single system.

Note: Selection of ES amplifier model style is optional (either EPAK2500 or EPAK2500R).



Products

CountProductType
1ES1.0MID-HI
3ES1.5SUB
1EPAK2500R or EPAK2500AMP


Accessories

CountAccessoryTitle
1Cable MH60Mid/Hi speaker cable MH60
1Cable LF40Cable LF40
2Cable LF15Cable LF15


Images

Front viewWiring

ES Single - B1



Description

Up to 1000 people. Number of bass boxes depends on music style. One side of stereo single system.

Note: Selection of ES amplifier model style is optional (either EPAK2500 or EPAK2500R).



Products

CountProductType
1ES1.0MID-HI
2ES1.5SUB
1ES1.8SUB
1EPAK2500R or EPAK2500AMP


Accessories

CountAccessoryTitle
1Cable MH60Mid/Hi speaker cable MH60
1Cable LF40Cable LF40
2Cable LF15Cable LF15


Images

Front viewWiring


RSS news feed

Products

About Us

Technology

Contact

Head Office KV2 Audio International spol. s r.o.
Nádražní 936
Milevsko 399 01
Czech Republic

VAT: CZ26051591
Phone: +420 383 809 320 (English)
E-mail: info@kv2audio.com

Distribution

The Future of Sound. Made Perfectly Clear.

© KV2 Audio 2023 – All rights reserved
