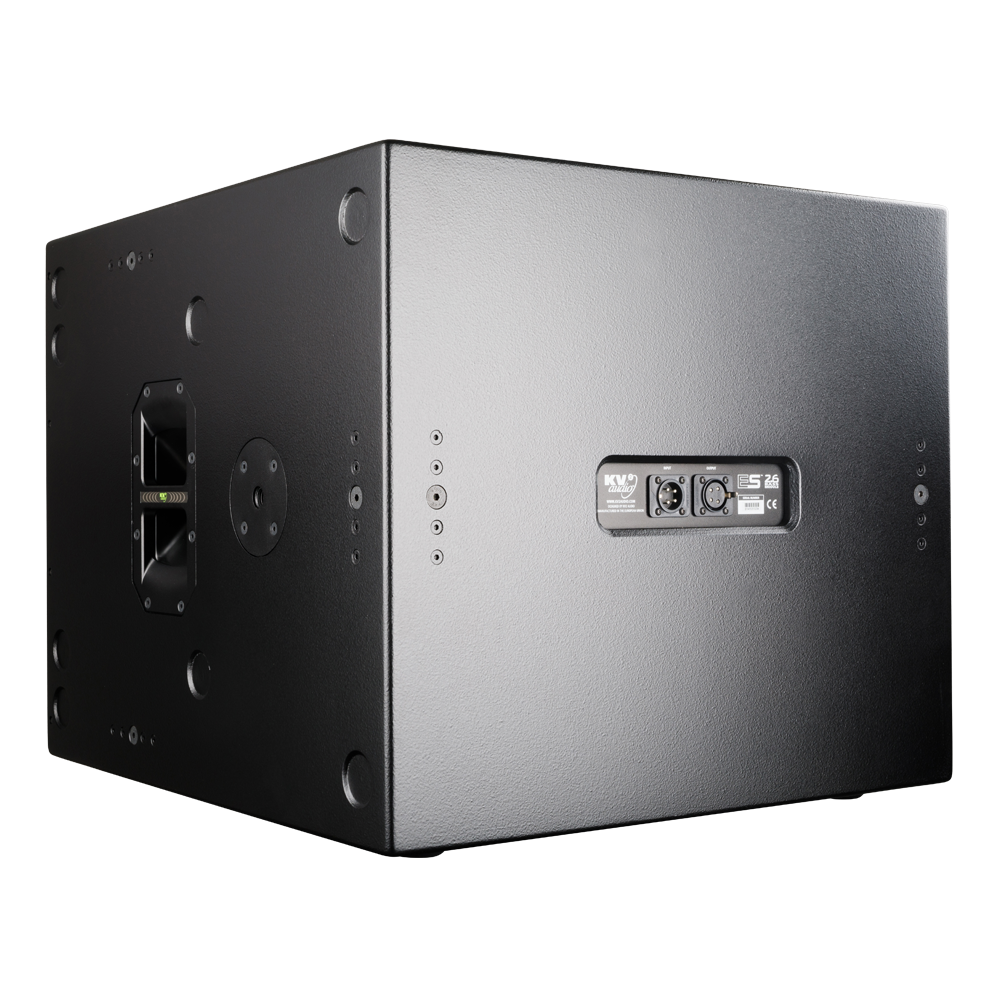

ES2.6 - High Output Active-Driven Subwoofer

The ES2.6 (8 ohms) is a double 15", high output subwoofer designed for the ES Series speaker system. Using new concepts in twin asymmetrical acoustic chambers they deliver very highspeaker loading and intense output from a relatively small cabinet footprint. Reproducing low frequencies with very high transient content, they are ideal for use in live applications or as part of a five way ES system utilising VHD1.21 and 2.21 subwoofers. Together with the ES1.0 and EPAK2500/R, the ES2.5/2.6 delivers the highest dynamic range of any other comparable system providing new levels of clarity, depth and resolution.

Watch the product video

ES2.6 Technical Data Sheet

ES2.6

Applications

Specifically designed to accompany the ES1.0 as a true full range high output system for live performance and music

  • Theatres
  • Houses of worship
  • Portable PA
  • Scalable into larger systems
  • Can be integrated with other ES subwoofers

Product code

  • KVV 987 150 - ES2.6


Features

  • Professional, Baltic birch construction with highly resistant polymer coating
  • 137dB sustained output 140dB peak (when using 2 units of ES2.6)
  • High acoustic loading via twin asymmetrical chambers
  • Two 15" low frequency drivers with 4" (100 mm) inside/outside, epoxy baked, high temperature voice coil assembly
  • Four proprietary side handles for simlified handling and carrying
  • Heavy duty front grille to work with the innovative new ES series magnetic carts
  • High-impact, low friction feet are asymmetrically located on two sides allowing vertical or horizontal system set up, lock-in and easy cabinet movement
  • Six industrial grade internal corner braces with twelve M10 suspension points
  • M20 top hat for pole mounting applications
  • Weather proofing option and special paint finishes available on request


Applications

Specifically designed to accompany the ES1.0 as a true full range high output system for live performance and music

  • Theatres
  • Houses of worship
  • Portable PA
  • Scalable into larger systems
  • Can be integrated with other ES subwoofers

Product code

  • KVV 987 150 - ES2.6


System Acoustic Performance

Max SPL Long-term132dB (137dB - 2x ES2.6)
Max SPL Peak138dB (140dB - 2x ES2.6)
-3dB Response38Hz to 130Hz
-10dB Response34Hz to 130Hz
Impedance8Ω
Crossover Point70Hz to 130Hz

Low Frequency Section

Acoustic DesignTwin Asymmetrical loading
Low Frequency Amplifier Requirement800W / ES2.6 from EPAK2500/R
Number of Drivers2
Woofer Size / Voice Coil Diameter / Design15" / 4" / Inside Outside
Diaphragm MaterialEpoxy Reinforced Cellulose
Magnet TypeFerrite

Speaker Input

Speaker Input AP4

Speaker Output

Speaker OutputAP4

Cabinet

Cabinet MaterialBaltic birch
Handles4
Pole MountM20
Color"Orange peeled" Matt Black or any RAL

Physical Dimensions

Height600 mm (23.62")
Width700 mm (27.55")
Depth750 mm (29.52")
Weight74,7 kg (163.1lbs)


Product code

  • KVV 987 150 - ES2.6

PDF

ES Series User Guide

ES1.0, ES1.5, ES1.8, ES2.5, ES2.6 User Guide - English, rev. 8



PDF

ES2.6 Data Sheet

ES2.6 Data Sheet



PDF

ES Flyware - Suspension and Rigging

ES Flyware - Suspension and Rigging - English



PDF

ES Cabinets Configurations User Guide

- ES Series - Basic single and double configurations user guide



SKP

Front mount magnetic cart for ES1.8, ES2.5, ES2.6, EX2.5MkII SKP

Front mount magnetic cart for ES1.8, ES2.5, ES2.6, EX2.5MkII SketchUp



DWG

Cart wheels for ES1.8, ES2.5, ES2.6, EX2.5 MkII, KT2.15 3D DWG

Cart wheels for ES1.8, ES2.5, ES2.6, EX2.5 MkII, KT2.15 3D DWG



SKP

Cart wheels for ES1.8, ES2.5, ES2.6, EX2.5 MkII, KT2.15 SKP

Cart wheels for ES1.8, ES2.5, ES2.6, EX2.5 MkII, KT2.15 SketchUp



DWG

ES2.6 3D DWG

ES2.6 3D DWG



DWG

ES1.0, ES1.5, ES1.8, ES2.5, ES2.6 Bracket additional arms 3D DWG

ES1.0, ES1.5, ES1.8, ES2.5, ES2.6 Bracket additional arms 3D DWG



SKP

ES1.0, ES1.5, ES1.8, ES2.5, ES2.6 Bracket additional arms SKP

ES1.0, ES1.5, ES1.8, ES2.5, ES2.6 Bracket additional arms SketchUp



SKP

ES2.6 SKP

ES2.6 SketchUp



DWG

ES2.6 2D DWG

ES2.6 2D DWG



PDF

ES2.6 - 2D

ES2.6 2D Drawings



DWG

ES2.6 - 3D

1:1 scale - clamping points - weight - dwg file



DWG

Front mount magnetic cart for ES1.8, ES2.5, ES2.6, EX2.5MkII 3D DWG

Front mount magnetic cart for ES1.8, ES2.5, ES2.6, EX2.5MkII 3D DWG





ES1.0, ES1.5, ES1.8, ES2.5, ES2.6 Bracket additional arms

Gallery

Product code

KVV 987 192



Description

- 2 pcs ARMS OF FB-0002
- 8 pcs M10 screws
- 8 pcs Quick-lock-pins 6mm included



Downloads

DWG

ES1.0, ES1.5, ES1.8, ES2.5, ES2.6 Bracket additional arms 3D DWG

ES1.0, ES1.5, ES1.8, ES2.5, ES2.6 Bracket additional arms 3D DWG

SKP

ES1.0, ES1.5, ES1.8, ES2.5, ES2.6 Bracket additional arms SKP

ES1.0, ES1.5, ES1.8, ES2.5, ES2.6 Bracket additional arms SketchUp

EPAK2500, EPAK2500R, ES1.5, ES1.8, ES2.5, ES2.6, SL2.15 Amphenol AP4 connector

Gallery

Product code

KVV 987 048



Description

- female - cable mount



EPAK2500, EPAK2500R, ES1.5, ES1.8, ES2.5, ES2.6, SL2.15 Amphenol AP4 connector

Gallery

Product code

KVV 987 049



Description

- male - cable mount



Cable Kit

Gallery

Product code

KVV 987 047



Description

- consist of four high-quality Amphenol AP cable assemblies designed for use with ES Series - 2 pcs LF15 - 1pc LF40 - 1pc MH60



Cable LF100 for bass speaker

Gallery

Product code

KVV 987 123



Description

- 4 wire speaker cable - AP4 connectors - 10m (33ft) - for ES Bass Module hook-up



Cable LF15

Gallery

Product code

KVV 987 121



Description

- 4 wire speaker cable - AP4 connectors - 1,5m (5ft) - for ES Bass Module daisy-chaining



Cable LF200 for bass speaker

Gallery

Product code

KVV 987 124



Description

- 4 wire speaker cable - AP4 connectors - 20m (66ft) - for ES Bass Module hook-up



Cable LF40

Gallery

Product code

KVV 987 122



Description

- 4 wire speaker cable - AP4 connectors - 4m (13ft) - for ES Bass Module hook-up



Cart wheels for ES1.8, ES2.5, ES2.6, EX2.5 MkII, KT2.15

Gallery

Product code

KVV 987 128



Description

- with bolts nut kit - 4 pcs in pack, rotating, blue
- 16x M8x 35mm Screw Countersunk Hexagon Socket Head
- 16x Nut Hexagon with blue plastic insert M8



Downloads

DWG

Cart wheels for ES1.8, ES2.5, ES2.6, EX2.5 MkII, KT2.15 3D DWG

Cart wheels for ES1.8, ES2.5, ES2.6, EX2.5 MkII, KT2.15 3D DWG

SKP

Cart wheels for ES1.8, ES2.5, ES2.6, EX2.5 MkII, KT2.15 SKP

Cart wheels for ES1.8, ES2.5, ES2.6, EX2.5 MkII, KT2.15 SketchUp

ES System flybar and bracket

Gallery

Product code

KVV 987 191



Description

- 8 pcs M10 screws - 8 pcs Quick-lock-pins 6mm included - 4 pcs Quick-lock-pins 1/2inch included



Downloads

DWG

ES System flybar and bracket 3D DWG

ES System flybar and bracket 3D DWG

SKP

ES System flybar and bracket SKP

ES System flybar and bracket SketchUp

ES2.6 Cover with cart

Gallery

Product code

KVV 987 154



Description

- Durable material



ES2.6 Cover without cart

Gallery

Product code

KVV 987 153



Description

- Durable material



Front mount magnetic cart for ES1.8, ES2.5, ES2.6, EX2.5MkII

Gallery

Product code

KVV 987 114



Description

- wheels and screws not included



Downloads

DWG

Front mount magnetic cart for ES1.8, ES2.5, ES2.6, EX2.5MkII 3D DWG

Front mount magnetic cart for ES1.8, ES2.5, ES2.6, EX2.5MkII 3D DWG

SKP

Front mount magnetic cart for ES1.8, ES2.5, ES2.6, EX2.5MkII SKP

Front mount magnetic cart for ES1.8, ES2.5, ES2.6, EX2.5MkII SketchUp

Speaker pole - universal

Gallery

Product code

KVV 987 130



Description

Heavy duty telescopic speakerpole
- 0,735 to 1,23 m - diameter 35 mm
- weight 2,2 kg - max. load 50 kg
- bottom terminal M20
- matte black



Downloads

SKP

Speaker pole - universal SKP

Speaker pole - universal SketchUp

ES Double - D



Description

Up to 2000 people. Number of bass boxes depends on music style. One side of stereo single system.

Note: Selection of ES amplifier model style is optional (either EPAK2500 or EPAK2500R).



Products

CountProductType
2ES1.0MID-HI
4ES2.6SUB
2EPAK2500R or EPAK2500AMP


Accessories

CountAccessoryTitle
1ES System flybar and bracketES System flybar and bracket
2Cable MH120Cable MH120
2Cable LF40Cable LF40
2Cable LF15Cable LF15


Images

Front viewWiring

ES Single - B2



Description

Up to 1000 people. Number of bass boxes depends on music style. One side of stereo single system.

Note: Selection of ES amplifier model style is optional (either EPAK2500 or EPAK2500R).



Products

CountProductType
1ES1.0MID-HI
1ES2.6SUB
1ES1.8SUB
1EPAK2500R or EPAK2500AMP


Accessories

CountAccessoryTitle
1Cable MH60Mid/Hi speaker cable MH60
1Cable LF40Cable LF40
1Cable LF15Cable LF15


Images

Front viewAlternativeWiring

ES Single - D



Description

Up to 1000 people. Number of bass boxes depends on music style. One side of stereo single system.

Note: Selection of ES amplifier model style is optional (either EPAK2500 or EPAK2500R).



Products

CountProductType
1ES1.0MID-HI
2ES2.6SUB
1EPAK2500R or EPAK2500AMP


Accessories

CountAccessoryTitle
1Cable MH60Mid/Hi speaker cable MH60
1Cable LF40Cable LF40
1Cable LF15Cable LF15


Images

Front viewAlternativeWiring
