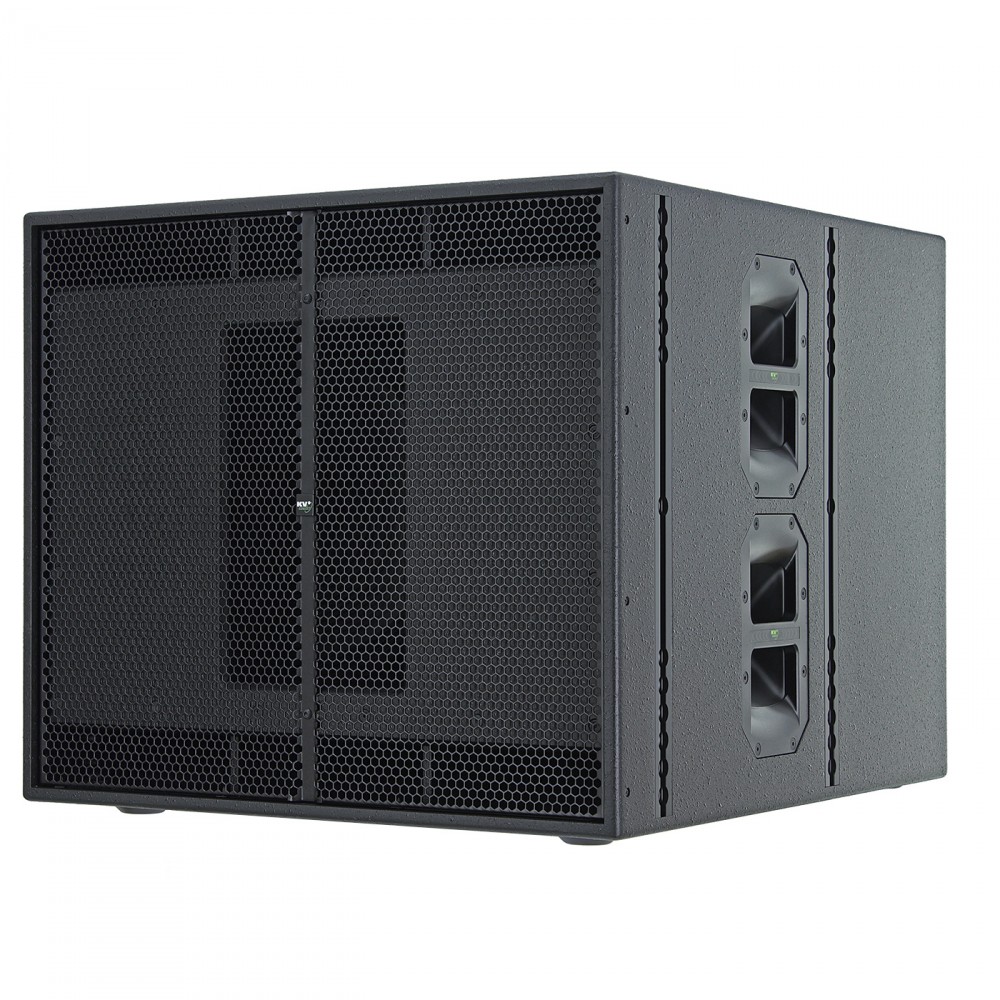

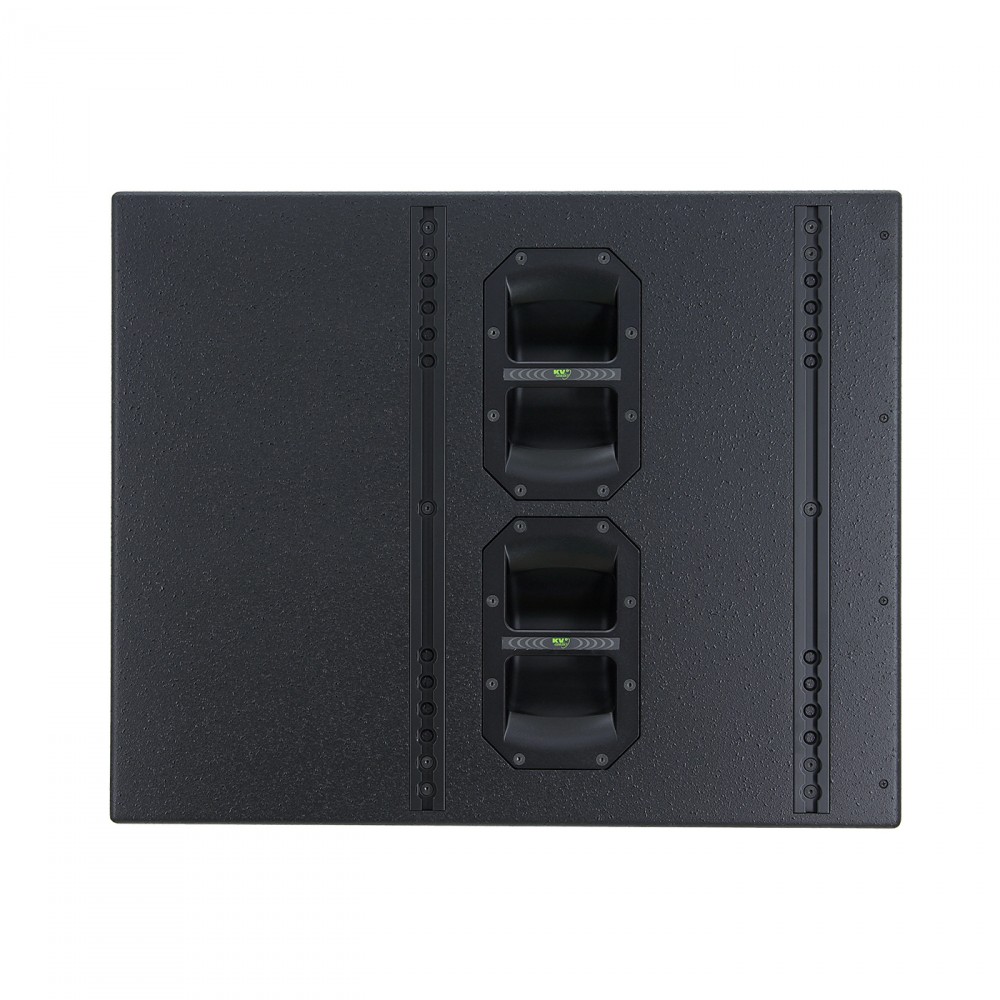

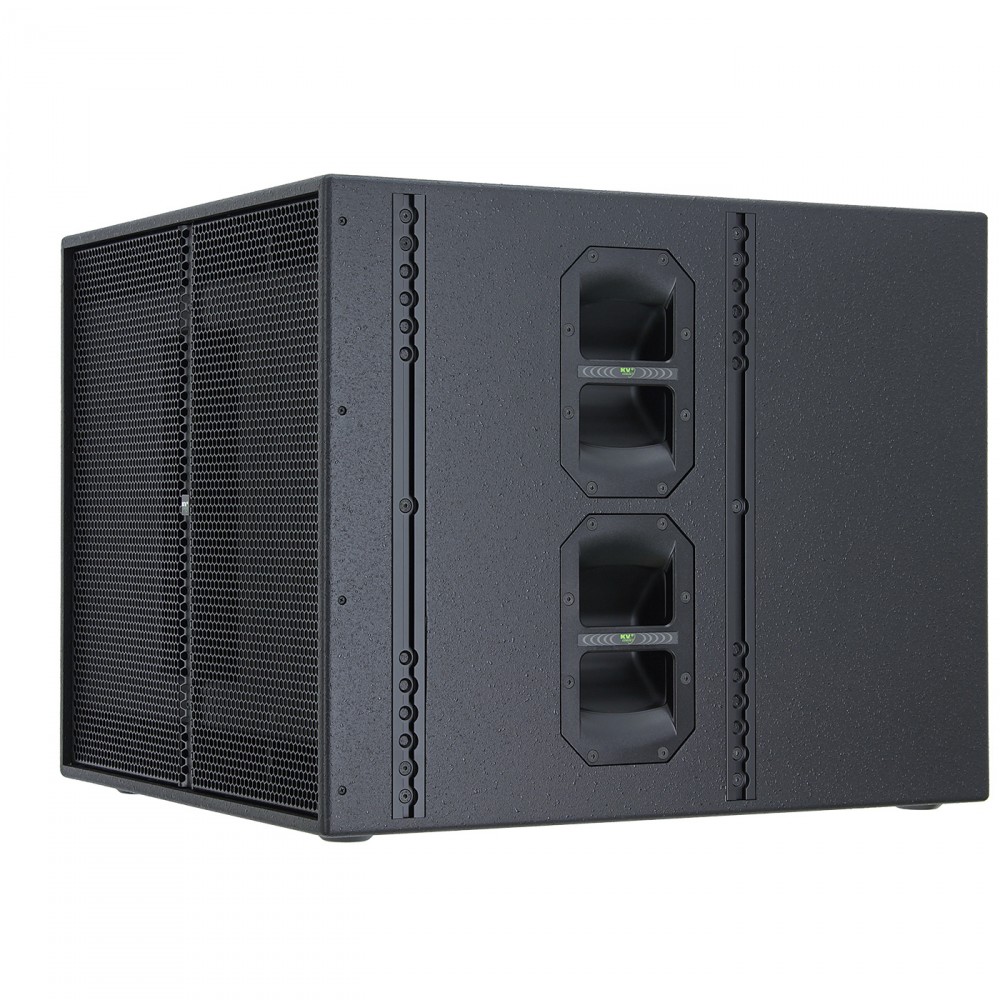

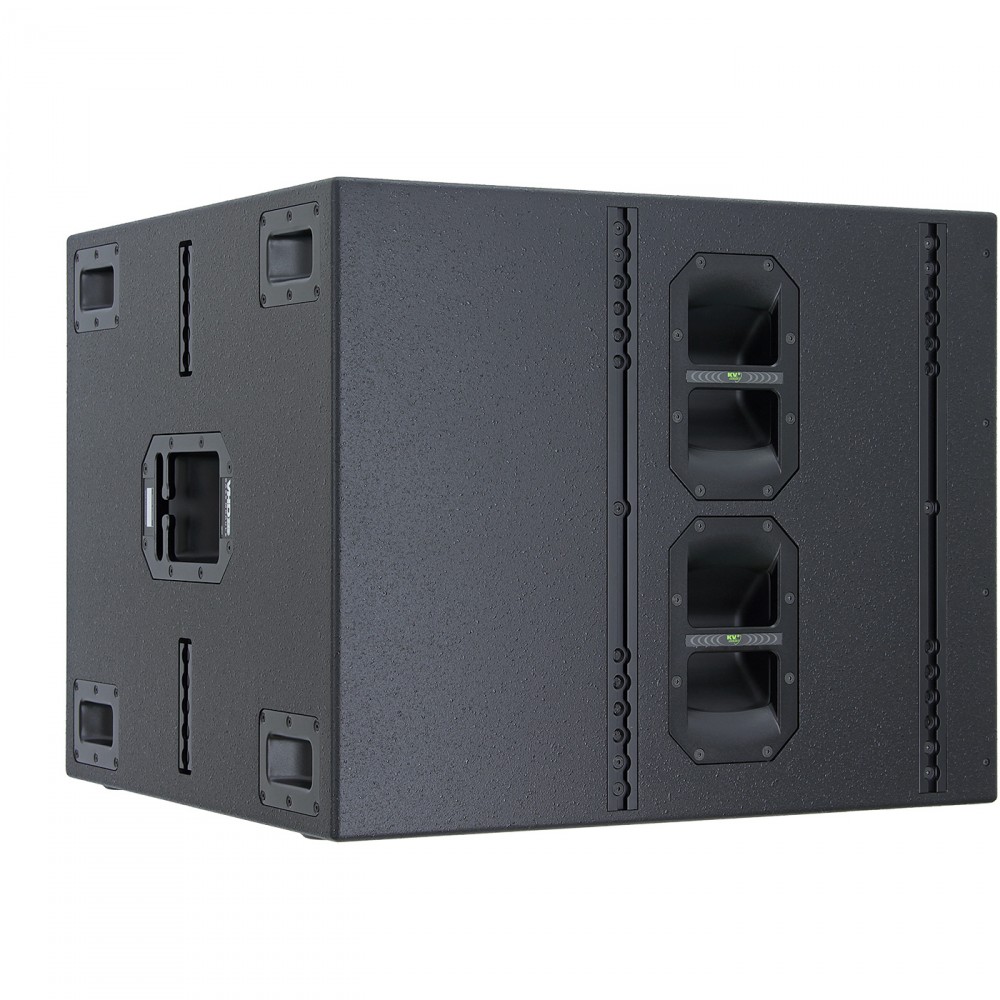

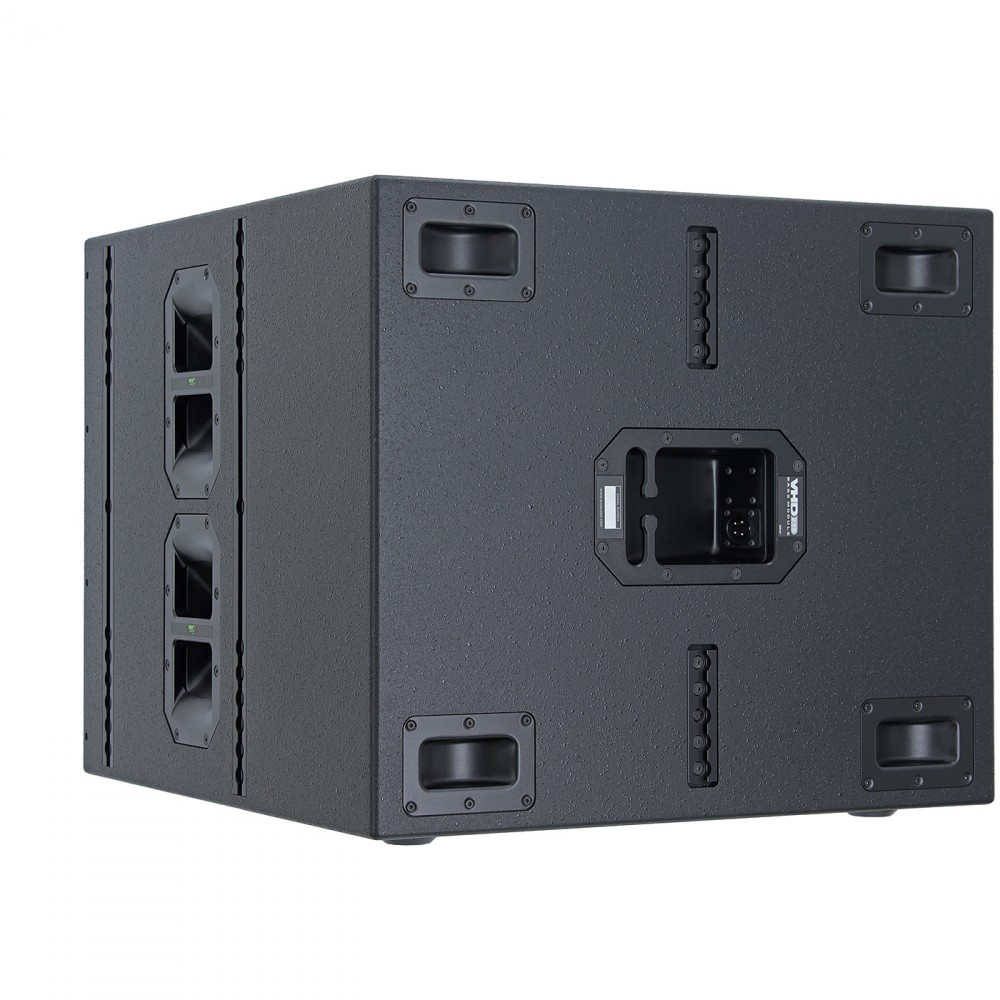

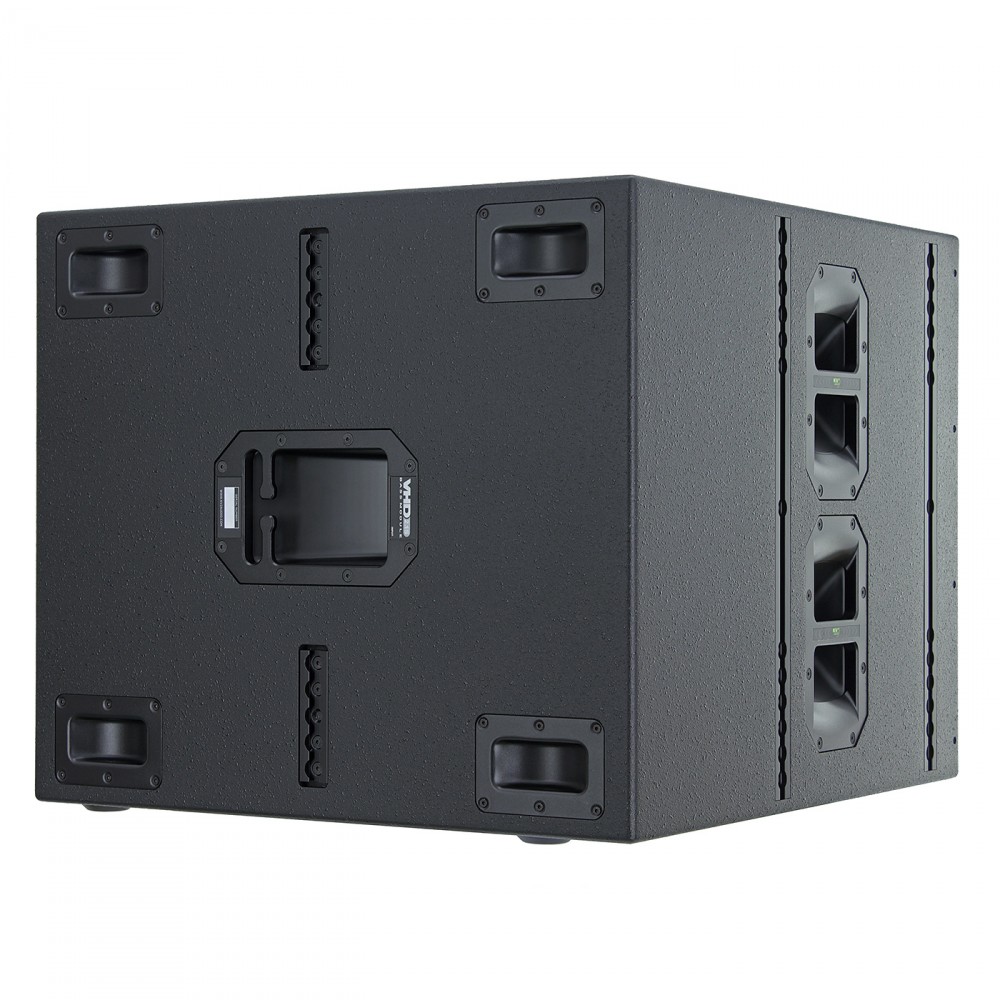

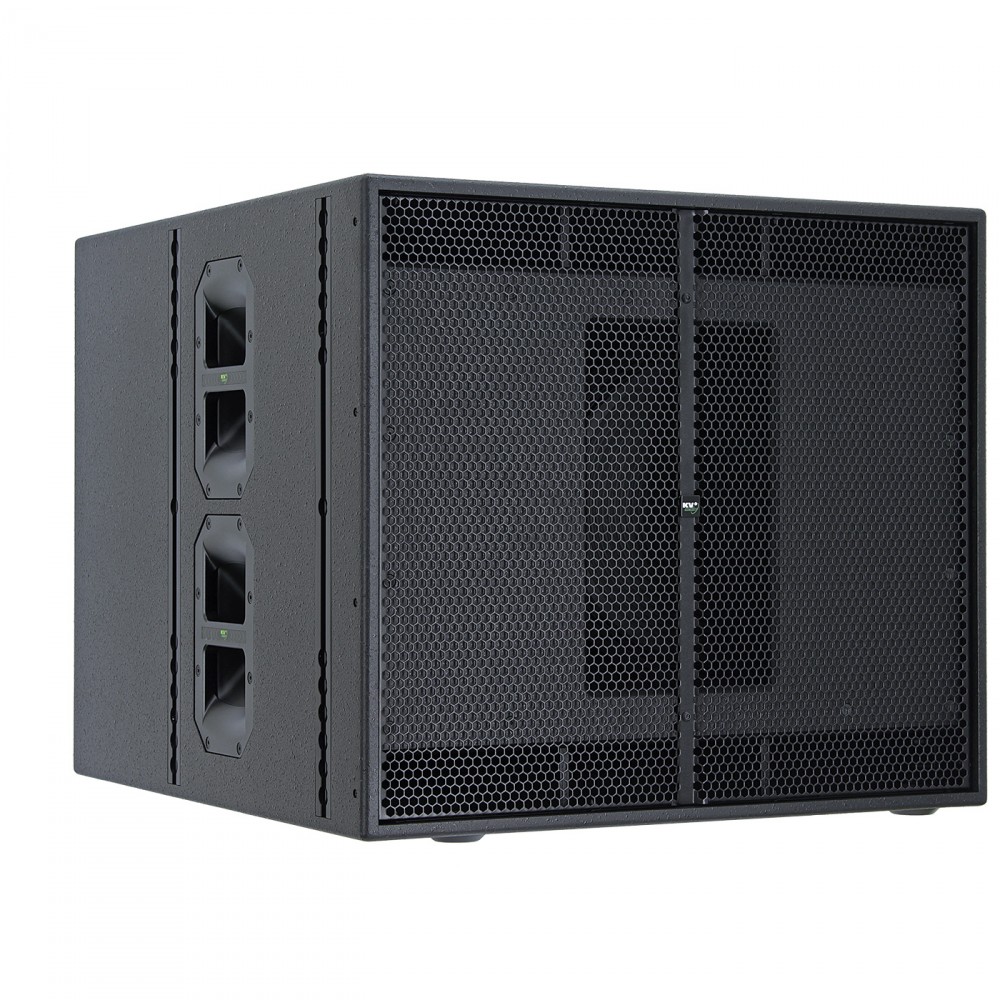

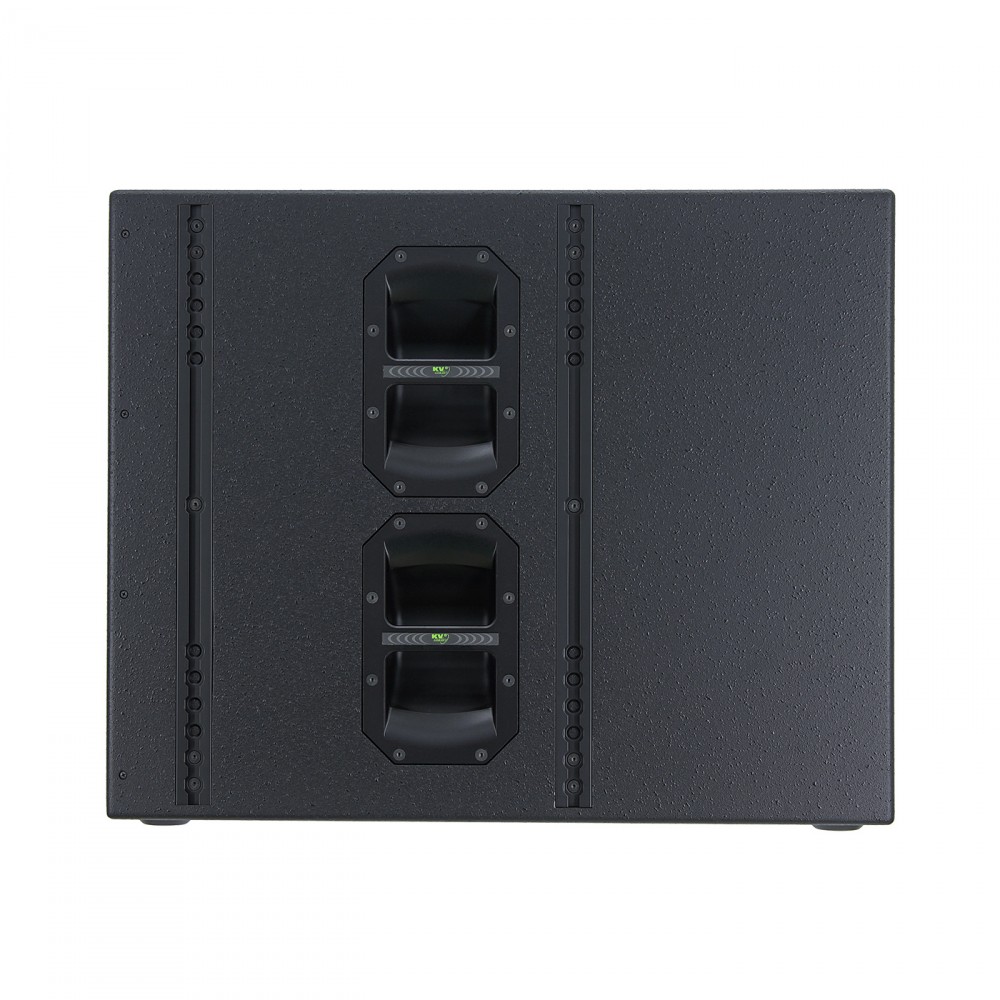

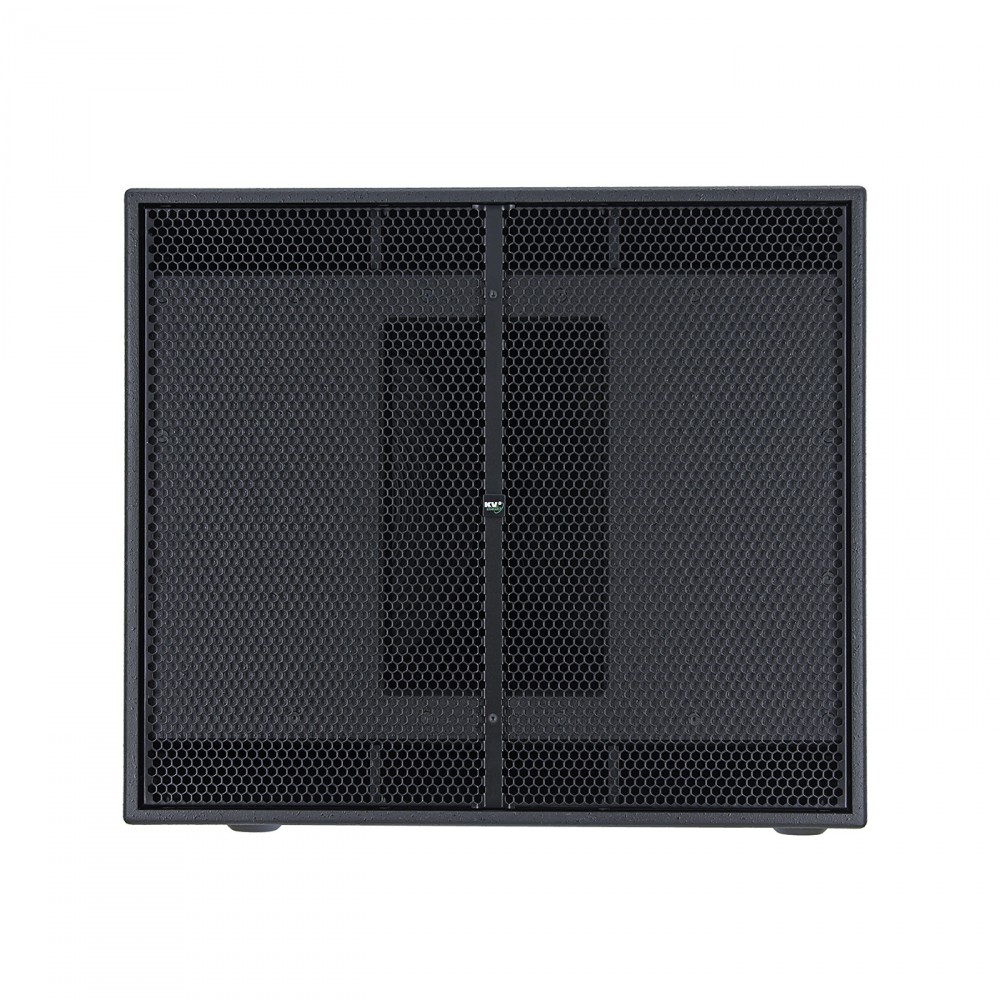

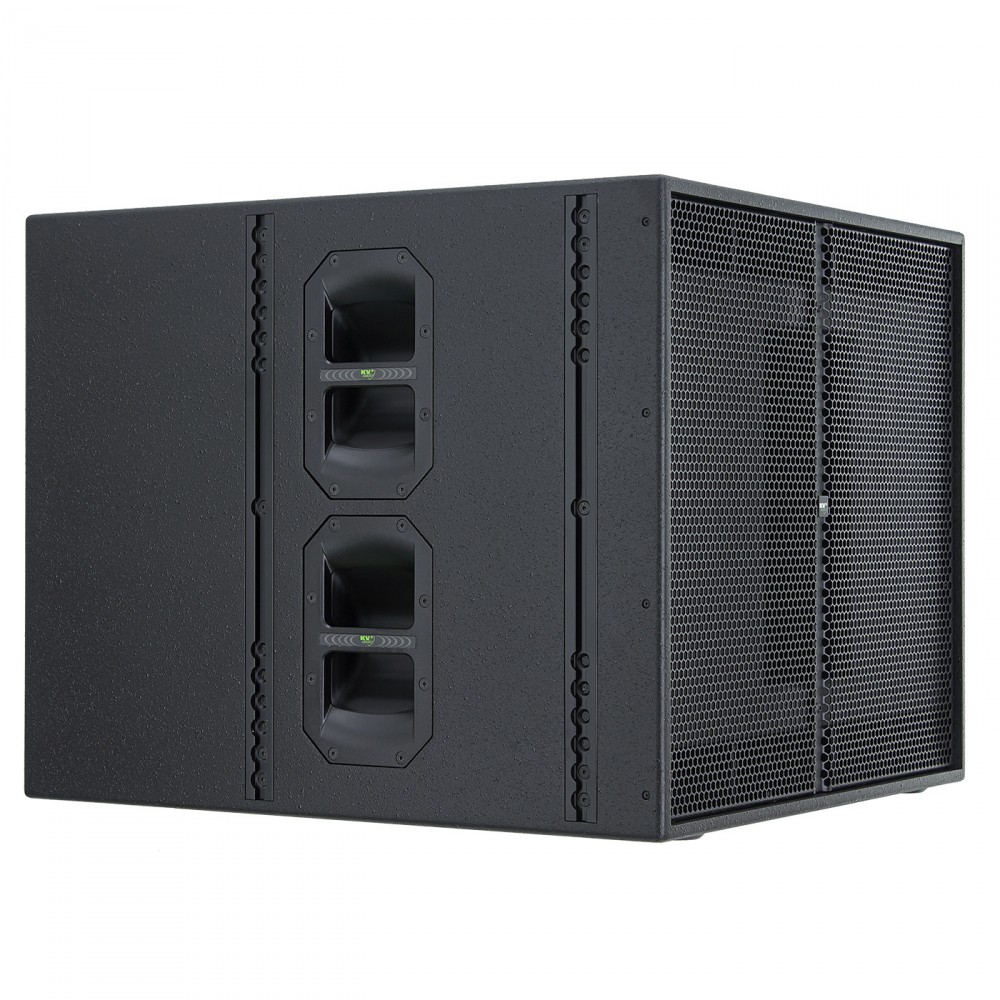

The VHD2.15 (4 ohm) double 15” subwoofer is a development of KV2 Audio’s ES2.5 design that has become a standard for compact, high output subwoofer devices. Acoustical design is based on extreme loading of asymmetrical chambers delivering extreme output and control. The cabinet is built to the same robust standards as the VHD4.18 and comes with integrated fly track to secure the units for ground stacking or flying in multiples with the VHD2.0 / VHD1.0 Mid Highs. It also functions as a very effective upper bass cabinet when used alongside the Ultra Low Frequency VHD1.21 subwoofers as part of a five way active system.
Specifically designed to accompany the VHD2.0 and VHD1.0 as a true full range high output system for live performance and music
| Max SPL Long-term | 134dB (139dB 2x VHD2.15) |
| Max SPL Peak | 137dB (142dB 2x VHD2.15) |
| -3dB Response | 37Hz ÷ 130Hz |
| -10dB Response | 32Hz ÷ 130Hz |
| Sensitivity | 102dB (107dB 2x VHD 2.15) |
| Impedance | 4Ω |
| Crossover Point | 100 ÷ 130Hz |
| Acoustic Design | Twin Asymmetrical loading |
| Low Frequency Amplifier Requirement | 1600W /1x VDH2.15 (VHD3200 amp.) |
| Number of Drivers | 2 |
| Woofer Size / Voice Coil Diameter | 15" / 4" / Inside Outside |
| Magnet Type | Advanced ventilated neodymium |
| Diaphragm Material | Epoxy Reinforced Cellulose |
| Speaker Input | EP4 |
| Cabinet Material | Baltic birch |
| Handles | 6 |
| Flyware | 4x Full length Flybars, 2x Pullback |
| Color | "Orange peeled" Matt Black or any RAL |
| Height | 600mm (23.62") |
| Width | 700mm (27.55") |
| Depth | 750mm (29.52") |
| Weight | 65kg (143lbs) |
KVV 987 123
- 4 wire speaker cable - AP4 connectors - 10m (33ft) - for ES Bass Module hook-up
KVV 987 121
- 4 wire speaker cable - AP4 connectors - 1,5m (5ft) - for ES Bass Module daisy-chaining
KVV 987 124
- 4 wire speaker cable - AP4 connectors - 20m (66ft) - for ES Bass Module hook-up
KVV 987 122
- 4 wire speaker cable - AP4 connectors - 4m (13ft) - for ES Bass Module hook-up
KVV 987 307
The VHD BASS ARM is a flat steel bar with straight ends, a double groove joint at the lower end and prefixed apertures to accept both D6& D12.6 QUICK RELEASE PINS. This bar is used exclusively to suspend a compliment of two VHD Subwoofers and a single bar is used on each side of the two enclosures. The bar employs a total of four angular wedges that are used to ‘lock into’ the handles on each side of the VHD Subwoofer enclosure and are secured by the insertion of a single D6 QUICK RELEASE PIN, (Which are attached to the bar via small shrouded steel ties) into each handle.
VHD Bass arm (pair) 3D DWG
VHD Bass arm (pair) SketchUp
KVV 987 308
The VHD BASS EXTENSION ARM is of the same design and presentation as the VHD SUBWOOFER ARM, except it is differentiated by being physically longer and employs a total of four angular wedges to allow locking into an attached- secondary double hang of VHD Subwoofers and its enclosure handles. The same method of inserting a single D6 QUICK RELEASE PIN into each handle is employed.
The arm has a poly-hex shape head at the top of the bar, with pre-fixed apertures for the insertion of the D12.6 QUICK RELEASE PINS, and is attached to the lower end of the VHD SUBWOOFER ARM by sliding into the groove and then being secured by the insertion of a single D12.6 QUICK RELEASE PIN. To add extra enclosures to the hang, this method of attachment is repeated.
VHD Bass extension arm (pair) 3D DWG
VHD Bass extension arm (pair) SketchUp
KVV 987 252
Must be used with VHD ARM attachments see other Accessories. The CROSSMEMBER hanging bracket is a flat and folded steel bar with returned 90 degree ends. This bracket attaches to the PICKPOINT ARM by simply sliding into two preset grooves, from left to right and secures smoothly and tightly, thus creating a T-Bar effect. Once both bars are attached and joined, it is a simple case of locking and securing the correct position and location, according to which configuration of VHD enclosures are being suspended, either in a Left/Right unit, by inserting a single D6 QUICK RELEASE PIN, which is attached via a small shrouded steel tie at the return edge of the PICKPOINT ARM.
VHD Systems fly bar 3D DWG
VHD Systems fly bar SketchUp
KVV 987 106
- used with cart
KVV 987 100
- with hardwood bumpers
VHD2.15, VHD2.16, VHD4.18 Cart 3D DWG
VHD2.15, VHD2.16, VHD4.18 Cart SketchUp
