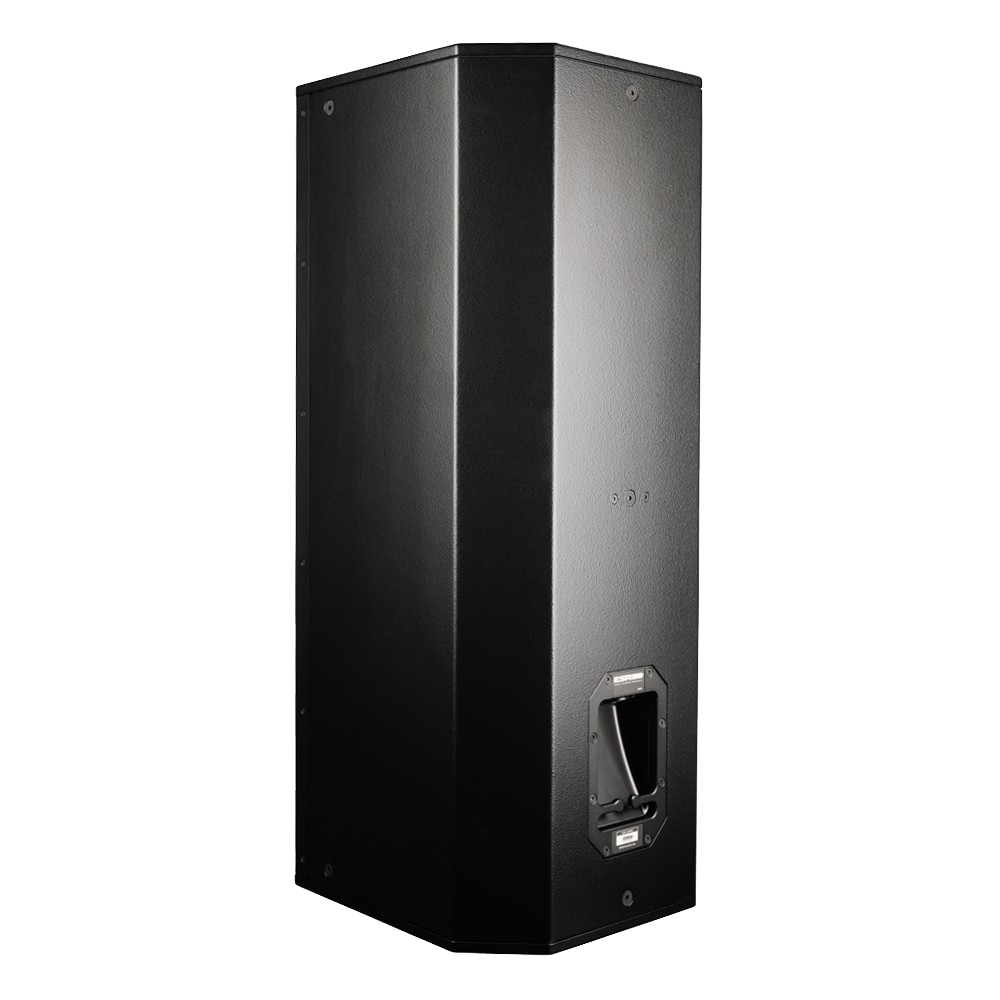

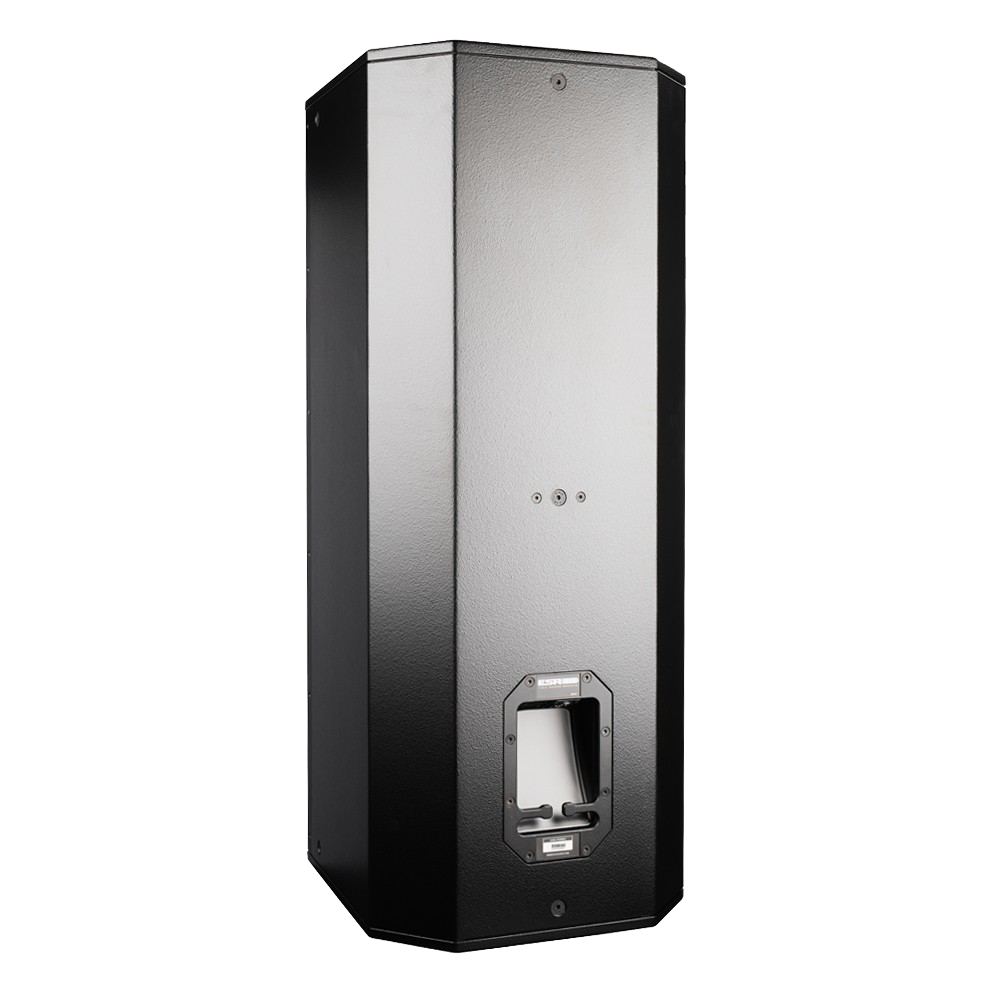

ESR212 - The Ultimate Full Range System

The ESR212 is a full-range 3-way loudspeaker system designed for use with the ESR2800 tri-amplified stereo electronic control pack. The ESR212 loudspeaker system features state of the art transducer design. Comprising of two 12" woofers, a 6" midrange driver and a 1" compression driver, the ESR212 delivers full range high definition audio over large spaces. It has a dispersion of 90 degrees by 40 degrees and can be installed either vertically or horizontally. The ESR212 has multiple M10 fly points as well as custom designed flyware and brackets.

Watch the product video

ESR212 Technical Data Sheet

Applications

Specifically designed for theatres

  • Very high quality fixed installations
  • Live music and multimedia applications
  • Classical music amplification and reproduction
  • Audiophile, very high quality system
  • High quality studio monitoring

Product code

  • KVV 987 247 - ESR212 - The Ultimate Full Range System


Features

  • The ESR212 is a full-range 3-way loudspeaker system
  • Designed for use with its associated ESR2800 tri-amplified stereo electronic control pack
  • The ESR loudspeaker system features Super Analog components throughout and state of the art transducer designs
  • Comprising of two 12" woofers, a 6" midrange driver and a 1" compression driver the ESR212 manages to transfer the atmosphere from a performer on stage to each and every audience member
  • The ESR family offers a true musical solution to the enjoyment of classical music, theatre or live performance on a grand scale


Applications

Specifically designed for theatres

  • Very high quality fixed installations
  • Live music and multimedia applications
  • Classical music amplification and reproduction
  • Audiophile, very high quality system
  • High quality studio monitoring

Product code

  • KVV 987 247 - ESR212 - The Ultimate Full Range System


System Acoustic Performance

Max SPL Long-term128dB
Max SPL Peak134dB
-3dB Response38Hz to 22kHz
-10dB Response33Hz to 28kHz
Crossover Point500Hz, 2.5kHz

High Frequency Section

Acoustic DesignHorn Loaded
High Horn Coverage Horizontal / Vertical90° x 40°
Rotatable HornYES
High Frequency Amplifier Requirement100W from ESR2800 Amplifier
Throat Exit Diameter / Diaphragm Size1" / 1.75"
Diaphragm MaterialNitride Titanium
Magnet TypeNeodymium

Mid Range Section

Acoustic DesignHorn Loaded
Mid Horn Coverage Horizontal / Vertical90° x 40°
Rotatable HornYES
Sensitivity106dB
Midrange Amplifier Requirement200W from ESR2800 Amplifier
Woofer Size / Voice Coil Diameter / Design6" / 1.75"
Diaphragm MaterialEpoxy Reinforced Cellulose
Magnet TypeNeodymium

Low Frequency Section

Acoustic DesignFront Loaded, Bass Reflex
Sensitivity98dB
Low Frequency Amplifier Requirement1000W from ESR2800 Amplifier
Number of Drivers2
Woofer Size / Voice Coil Diameter / Design12" / 3" / Inside Outside
Diaphragm MaterialEpoxy Reinforced Cellulose
Magnet TypeNeodymium

Speaker Input

Speaker Input Amphenol AP-6 Male

Speaker Output

Speaker Output-

Cabinet

Cabinet MaterialBaltic birch
Handles2
ColorBlack / Optional luxury High gloss

Physical Dimensions

Height1135 mm (44.69")
Width447 mm (17.6")
Depth444 mm (17.48")
Weight45 kg (99.2lbs)


Product code

  • KVV 987 247 - ESR212 - The Ultimate Full Range System

PDF

ESR Series User Guide

ESR Series User Guide (ESR212 / ESR215MkII / ESR215S, ESR2800 / ESR3000MkII) - English



PDF

ESR212 Data Sheet

ESR212 Data Sheet



PDF

ESR2800 and ESR212 User Guide

- User guide for ESR2800 - Rack mounted amlifier and ESR212 - Full range system - english



DWG

ESR212 - 3D

3D drawing, 1:1 scale - clamping points - weight - dwg file



DWG

ESR212 Vertical Bracket 2D DWG

ESR212 Vertical Bracket 2D DWG



SKP

ESR Series SketchUp

ESR Series SketchUp



SKP

ESR212 Horizontal Bracket SKP

ESR212 Horizontal Bracket SketchUp



DWG

ESR212 Horizontal Bracket 3D DWG

ESR212 Horizontal Bracket 3D DWG



SKP

ESR212 SKP

ESR212 SketchUp



DWG

ESR212 3D DWG

ESR212 3D DWG



SKP

Set of M10 x 50 closed end bolts for 6mm quick lock pin for ES1.0, ES1.5, ESR212, ESR215MkII, SL2.15, SL412 SKP

Set of M10 x 50 closed end bolts for 6mm quick lock pin for ES1.0, ES1.5, ESR212, ESR215MkII, SL2.15, SL412 SketchUp



DWG

ESR212 Horizontal Bracket 2D DWG

ESR212 Horizontal Bracket 2D DWG



DWG

ESR212 2D DWG

ESR212 2D DWG



DWG

ESR212 Vertical Bracket 2D DWG

ESR212 Vertical Bracket 2D DWG



DWG

ESR212 Horizontal Bracket 2D DWG

ESR212 Horizontal Bracket 2D DWG



PDF

ESR212 - 2D

ESR212 2D Drawings



DWG

Set of M10 x 50 closed end bolts for 6mm quick lock pin for ES1.0, ES1.5, ESR212, ESR215MkII, SL2.15, SL412 3D DWG

Set of M10 x 50 closed end bolts for 6mm quick lock pin for ES1.0, ES1.5, ESR212, ESR215MkII, SL2.15, SL412 3D DWG



GLL

ESR212 - EASE data

EASE data - .GLL - description





GLL

ESR212 EASE Focus

ESR212 EASE Focus





ESR212 Horizontal bracket

Gallery

Product code

KVV 987 322



Description

ESR212 Horizontal Bracket



Downloads

DWG

ESR212 Horizontal Bracket 3D DWG

ESR212 Horizontal Bracket 3D DWG

SKP

ESR212 Horizontal Bracket SKP

ESR212 Horizontal Bracket SketchUp

ESR212 Vertical bracket

Gallery

Product code

KVV 987 291



Description

- for ESR212 flying - 3 pcs M10x35 included

  • 1st position +5 degrees
  • 2nd position 0
  • 3rd position -5 degrees
  • 4th position -10 degrees
  • 5th position -15 degrees


Set of M10 x 50 closed end bolts for 6mm quick lock pin for ES1.0, ES1.5, ESR212, ESR215MkII, SL2.15, SL412

Gallery

Product code

KVV 987 383



Description

These negate the requirement to remove and replace supplied enclosure bolts depending if attachments are fixed.



Downloads

DWG

Set of M10 x 50 closed end bolts for 6mm quick lock pin for ES1.0, ES1.5, ESR212, ESR215MkII, SL2.15, SL412 3D DWG

Set of M10 x 50 closed end bolts for 6mm quick lock pin for ES1.0, ES1.5, ESR212, ESR215MkII, SL2.15, SL412 3D DWG

SKP

Set of M10 x 50 closed end bolts for 6mm quick lock pin for ES1.0, ES1.5, ESR212, ESR215MkII, SL2.15, SL412 SKP

Set of M10 x 50 closed end bolts for 6mm quick lock pin for ES1.0, ES1.5, ESR212, ESR215MkII, SL2.15, SL412 SketchUp
