SL2.15 - SL Bass Enclosure

The SL2.15 is a double 15" direct radiation subwoofer system with augmented bass reflex. Built to integrate aesthetically with the SL412 the SL2.15 produces deep bass from its slim cabinet design. Bass response is enhanced by coupling when the SL2.15 is used against or in a wall, providing optimum output for it’s small footprint. It also combines beautifully with the Ultra Low Frequency VHD1.21 and 2.21 subwoofers as part of a five way active system.

Watch the product video

SL2.15 Technical Data Sheet

Applications

Specifically designed subwoofer enclosure to accompany the SL412 as a high powered aesthetically pleasing full range music playback and performance system

Fixed installation
Nightclubs
Multi use venues

Product code

KVV 987 274 - SL2.15

Features

Slim, discreetly profiled wall mount cabinet
129dB sustained output, 132dB peak with very high dynamic range
Simple wall mounting, suspension and ground stacking options and can be installed internally into walls and surfaces
These units can be designed and supplied with custom colors, grill templates and logos, offering a flexible and truly designer integrated product
A single horizontal yoke assembly with multiple fixed angles and fixing locations, provides a quick and cost effective solution for simple suspension
Front-loaded, 2x 15" bass drivers with 3" voice coil assembly and ferrite magnetic motor structure
Professional, exterior-grade Baltic birch construction with wear-resistant polymer coating
Proprietary side handle design for simplified handling and carrying
Internal back braces with nine M10 suspension points
A total of 23 suspension points are available for custom installation applications
Two SL2.15 speakers require one channel of two channel VHD3200 subwoofer amplifier unit
The SL412i & SL2.15i are identical in performance and finish as the existing SL412 & SL2.15, except they do not incorporate the fixed handles for touring and presentation use. The ‘I’ version is designed for fixed installation use with the same existing mounting and flyware fixings

Applications

Specifically designed subwoofer enclosure to accompany the SL412 as a high powered aesthetically pleasing full range music playback and performance system

Fixed installation
Nightclubs
Multi use venues

Product code

KVV 987 274 - SL2.15

System Acoustic Performance

Max SPL Long-term	129dB
Max SPL Peak	135dB
-3dB Response	40Hz to 500Hz
-10dB Response	35Hz to 500Hz
Sensitivity	100dB
Impedance	8Ω
Crossover Point	70Hz

Low Frequency Section

Acoustic Design	Direct-Radiating with Bass Reflex
Low Frequency Amplifier Requirement	1600W / 2x SL2.15 (VHD3200 amp.)
Number of Drivers	2
Woofer Size / Voice Coil Diameter / Design	2x 15" / 3" Inside Outside
Magnet Type	Ferrite
Diaphragm Material	Epoxy Reinforced Cellulose

Speaker Input

AP4

Speaker Output

AP4

Cabinet

Cabinet Material	Baltic birch
Handles	2
Color	"Orange peeled" Matt Black or any RAL

Physical Dimensions

Height	960 mm (37.8")
Width	1080 mm (42.52")
Depth	350 mm (13.78")
Weight	61 kg (134.5lbs)

Product code

KVV 987 274 - SL2.15

User Manuals (3)
Drawings (11)

PDF

SL Series with SL2.15 User Guide

SL3000, SL412, SL2.15 and configurations

PDF

SL2.15 Data Sheet

PDF

SL Brackets and Flybars User Guide

SL Brackets and Flybars instructions

DWG

SL412, SL2.15 Vertical Bracket 3D DWG

SKP

SL412, SL2.15 Vertical Bracket SKP

SL412, SL2.15 Vertical Bracket SketchUp

DWG

SL2.15 Sub bracket with quick pin 3D DWG

SKP

SL2.15 Sub bracket with quick pin SKP

SL2.15 Sub bracket with quick pin SketchUp

DWG

Set of M10 x 50 closed end bolts for 6mm quick lock pin for ES1.0, ES1.5, ESR212, ESR215MkII, SL2.15, SL412 3D DWG

SKP

Set of M10 x 50 closed end bolts for 6mm quick lock pin for ES1.0, ES1.5, ESR212, ESR215MkII, SL2.15, SL412 SKP

Set of M10 x 50 closed end bolts for 6mm quick lock pin for ES1.0, ES1.5, ESR212, ESR215MkII, SL2.15, SL412 SketchUp

SKP

SL Series Sketchup

DWG

SL2.15 2D DWG

PDF

SL2.15 - 2D

SL2.15 2D Drawings

DWG

SL2.15 - 3D

3D drawing, 1:1 scale - clamping points - weight - dwg file

SKP

SL2.15 SKP

SL2.15 SketchUp

Amphenol AP4 connector
Amphenol AP4 connector
Cable LF100
Cable LF15
Cable LF200
Cable LF40
Set of M10 x 50 closed end bolts for 6mm quick lock pin
SL Ground stack
SL Sub / SL412 bracket
SL Sub bracket
SL2.15 Sub bracket with quick pin
SL412 Flybar
SL412/2.15 Vertical bracket

Choose

EPAK2500, EPAK2500R, ES1.5, ES1.8, ES2.5, ES2.6, SL2.15 Amphenol AP4 connector

Gallery

Product code

KVV 987 048

Description

- female - cable mount

EPAK2500, EPAK2500R, ES1.5, ES1.8, ES2.5, ES2.6, SL2.15 Amphenol AP4 connector

Gallery

Product code

KVV 987 049

Description

- male - cable mount

Cable LF100 for bass speaker

Gallery

Product code

KVV 987 123

Description

- 4 wire speaker cable - AP4 connectors - 10m (33ft) - for ES Bass Module hook-up

Cable LF15

Gallery

Product code

KVV 987 121

Description

- 4 wire speaker cable - AP4 connectors - 1,5m (5ft) - for ES Bass Module daisy-chaining

Cable LF200 for bass speaker

Gallery

Product code

KVV 987 124

Description

- 4 wire speaker cable - AP4 connectors - 20m (66ft) - for ES Bass Module hook-up

Cable LF40

Gallery

Product code

KVV 987 122

Description

- 4 wire speaker cable - AP4 connectors - 4m (13ft) - for ES Bass Module hook-up

Set of M10 x 50 closed end bolts for 6mm quick lock pin for ES1.0, ES1.5, ESR212, ESR215MkII, SL2.15, SL412

Gallery

Product code

KVV 987 383

Description

These negate the requirement to remove and replace supplied enclosure bolts depending if attachments are fixed.

Downloads

DWG

Set of M10 x 50 closed end bolts for 6mm quick lock pin for ES1.0, ES1.5, ESR212, ESR215MkII, SL2.15, SL412 3D DWG

SKP

Set of M10 x 50 closed end bolts for 6mm quick lock pin for ES1.0, ES1.5, ESR212, ESR215MkII, SL2.15, SL412 SKP

Set of M10 x 50 closed end bolts for 6mm quick lock pin for ES1.0, ES1.5, ESR212, ESR215MkII, SL2.15, SL412 SketchUp

SL Ground stack

Gallery

Product code

KVV 987 320

Description

The SL Ground Stack consists of a two supporting legs, connecting to a metal strip, that has apertures with fixed points to allow the securing of the multiple stacked SL215 Bass enclosures with an SL412 and to prevent tipping when using the SL system stacked, away from the wall, or stacked on a VHD2.21 enclosure. - 6 pcs M10 hex screws with hole included - 6 pcs Quick-lock-pins 6mm included - 2pcs knob with screw included - 1pc allen key - 6mm included

Downloads

DWG

SL Ground stack 3D DWG

SKP

SL Ground stack SKP

SL Ground stack SketchUp

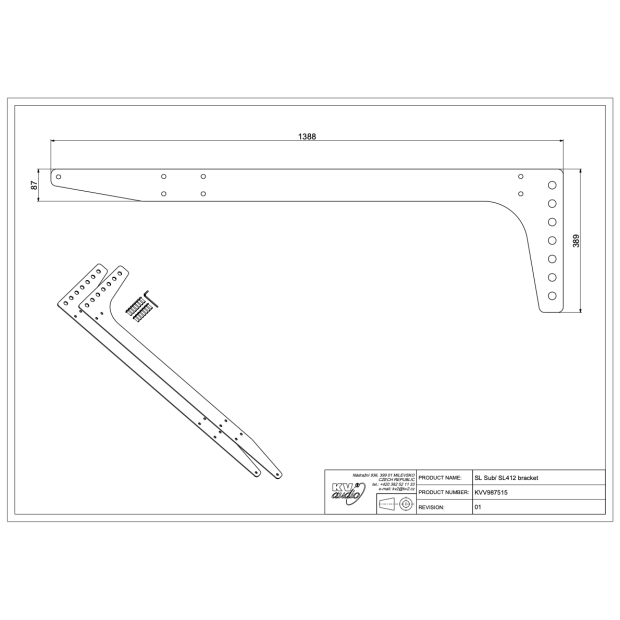

SL Sub / SL412 bracket

Gallery

Product code

KVV 987 515

Description

Bracket for deployment of one suspended SL2.15 or SL6.10 and one SL412

*Note: Special request order

SL Sub bracket kit

Gallery

Product code

KVV 987 299

Description

- for joining SL2.15s - 9 pcs M10 hex screws included - 1pc allen key - 6mm included

Downloads

DWG

SL Sub bracket kit 3D DWG

SKP

SL Sub bracket kit SKP

SL Sub bracket kit SketchUp

SL2.15 Sub bracket with quick pin

Gallery

Product code

KVV 987 341

Description

1x Screw HXG button head M10X30
8x (Drilling) Screw HXG Countersunk M10X25
8x Quick Pin

Downloads

DWG

SL2.15 Sub bracket with quick pin 3D DWG

SKP

SL2.15 Sub bracket with quick pin SKP

SL2.15 Sub bracket with quick pin SketchUp

SL412 Flybar

Gallery

Product code

KVV 987 331

Description

- 2pcs M10 Hex Screwthreads with integral apreture
- 2pcs D6 Quick release pins
- 2pcs Handscrew locks
- 1 pc allen key - 6mm included

Downloads

DWG

SL412 Flybar 3D DWG

SKP

SL412 Flybar SKP

SL412 Flybar SketchUp

SL412/2.15 Vertical bracket

Gallery

Product code

KVV 987 293

Description

- 4 pcs Quick-lock-pins 6mm included
- 4 pcs M10 hex screws with a hole included

Downloads

DWG

SL412, SL2.15 Vertical Bracket 3D DWG

SKP

SL412, SL2.15 Vertical Bracket SKP

SL412, SL2.15 Vertical Bracket SketchUp

SL - A
SL - B

Choose

SL - A

Description

• Up to 2000 people • Number of bass cabinets and SUB LEVEL setup - depends on the style of music

Products

Count	Product	Type
2	SL412	MID-HI
4	SL2.15	Loudspeaker
1	SL3000	MID-HI AMP
1	VHD3200	SUB AMP

Accessories

Count	Accessory	Title
2	Cable MH120	Cable MH120
2	Cable LF15	Cable LF15
2	Cable LF40	Cable LF40

Images

Front view

Wiring

SL - B

Description

• Up to 2000 people • Number of bass cabinets and SUB LEVEL setup - depends on the style of music

Products

Count	Product	Type
2	SL412	MID-HI
8	SL2.15	Loudspeaker
1	SL3000	MID-HI AMP
2	VHD3200	SUB AMP

Accessories

Count	Accessory	Title
2	Cable MH120	Cable MH120
8	Cable LF40	Cable LF40

Images

Front view

Wiring
