VHD5.0 Mid Hi Module

The VHD5.0 is a three‑way enclosure handling low mids, mids and highs over a frequency range from 45Hz through to 20kHz. It incorporates eight front‑loaded ten inch low mid drivers, six horn‑loaded eight inch mid range drivers and three 3“ NVPD (Nitrate Vapour Particle Deposition) Titanium compression drivers on a custom designed, manifold horn assembly with summing waveguide. With the capacity to run full range down to 45Hz the VHD5.0 is usually crossed over at 70Hz to the VHD4.21 Active Sub Bass Modules. Both the VHD5.0 and VHD8.10 cabinets incorporate very simple to use integrated fly ware that links cabinets together quickly and easily.

Watch the product video



Download Product’s Data Sheet




Applications

Designed as an extreme high output and performance mid-hi unit as part of the VHD5 Constant Power Point Source systems for large arenas and stadiums

  • Medium to large concert venues
  • Hire and Production
  • Large Clubs and Arenas


Product code

KVV 987 342





Applications

Designed as an extreme high output and performance mid-hi unit as part of the VHD5 Constant Power Point Source systems for large arenas and stadiums

  • Medium to large concert venues
  • Hire and Production
  • Large Clubs and Arenas


Product code

KVV 987 342




System Acoustic Performance

Max SPL Long-term147dB (with VHD8.10)
Max SPL Peak150dB (with VHD8.10)
-3dB Response50Hz to 20kHz (with VHD8.10)
-10dB Response45Hz to 22kHz (with VHD8.10)
Full Range mode -3dB Response45Hz to 20kHz (with VHD8.10)
Crossover Point70Hz, 400Hz, 2.0kHz (with VHD8.10)

High Frequency Section

Acoustic DesignHorn Loaded
High Horn Coverage Horizontal / Vertical80° x 30°
High Frequency Amplifier RequirementVHD5000
Throat Exit Diameter / Diaphragm Size3x 1.4” / 3.0”
Diaphragm MaterialNitride Titanium
Magnet TypeNeodymium

Mid Range Section

Acoustic DesignHorn Loaded
Mid Horn Coverage Horizontal / Vertical80° x 30°
Midrange Amplifier RequirementVHD5000
Woofer Size / Voice Coil Diameter / Design6x 8” / 3.0” / Trans Coil
Diaphragm MaterialEpoxy Reinforced Cellulose
Magnet TypeNeodymium

Low Mid Section

Acoustic DesignFront Loaded
Low Mid Amplifier RequirementVHD5000
Woofer Size / Voice Coil Diameter / Design8x 10” / 3.0”
Diaphragm MaterialEpoxy Reinforced Cellulose
Magnet TypeNeodymium

Physical Dimensions

Height1125mm (44.29")
Width1110mm (43.7")
Depth500mm (19.69")
Weight151kg (332.2lbs)


Product code

KVV 987 342



PDF

VHD5 Subwoofer Configurations

VHD5 Subwoofer Configurations



PDF

VHD5.0, VHD8.10, VHD5.1 User Guide

VHD5.0, VHD8.10, VHD5.1 User Guide - EN



PDF

VHD5 Rigging Manual

VHD5 Rigging Manual



DWG

VHD5 Tilt Flybar 3D DWG

VHD5 Tilt Flybar 3D DWG



DWG

VHD5 Pan Flybar 3D DWG

VHD5 Pan Flybar 3D DWG



DWG

VHD5.0 Mid High 2D DWG

VHD5.0 Mid High 2D DWG



DWG

VHD5.0 - 3D

1:1 scale - clamping points - weight - dwg file



PDF

VHD5.0 - 2D

VHD5.0 2D Drawing



GLL

VHD5.0 EASE data

VHD5.0 EASE data (1x VHD5.0, 3x VHD8.10) - .GLL - description





GLL

VHD5.0 with SL412 Downfill EASE Data

VHD5.0 EASE data (1x VHD5.0, 3x VHD8.10, 1x SL412 as downfill)



PDF

VHD5.0 Brochure

VHD5.0 Constant Power Source Array brochure - ENG



GLL

VHD5 EASE Focus

VHD5 EASE Focus



GLL

VHD5 with VHD5.1 Downfill EASE Focus

VHD5 with VHD5.1 Downfill EASE Focus



PDF

VHD5.0 Mid High data sheet

VHD5.0 Mid High data sheet







VHD5 Extension cable

Gallery





Product code

KVV 987 409



Description

Extension cable for VHD5.0 System





VHD5 Flybar case

Gallery





Product code

KVV 987 414



Description

Flybar Case for VHD5.0 Flybar





VHD5 Multicable

Gallery





Product code

KVV 987 364



Description

Multicable for VHD5 System.





VHD5 Pan flybar

3D view

Gallery





Product code

KVV 987 413



Description

Pan Flybar for VHD5.0



Downloads

DWG

VHD5 Pan Flybar 3D DWG

VHD5 Pan Flybar 3D DWG



PDF

VHD5 Rigging Manual

VHD5 Rigging Manual



DWG

VHD5 Pan flybar 3D DWG

VHD5 Pan flybar 3D DWG



SKP

VHD5 Pan flybar SKP

VHD5 Pan flybar SketchUp






VHD5 Power unit

Gallery





Product code

KVV 987 363



Description

VHD5.0 dedicated Power Unit



Downloads

DWG

VHD5 Power unit 3D DWG

VHD5 Power unit 3D DWG



SKP

VHD5 Power unit SKP

VHD5 Power unit SketchUp






VHD5 Rack case

Gallery





Product code

KVV 987 365



Description

Rack case for VHD5000, VHD5000S, VHD5100 amplifiers, Power unit and 1 spare rack position.





VHD5 Tilt flybar

3D view

Gallery





Product code

KVV 987 420



Description

Tilt Flybar for VHD5.0



Downloads

DWG

VHD5 Tilt Flybar 3D DWG

VHD5 Tilt Flybar 3D DWG



PDF

VHD5 Rigging Manual

VHD5 Rigging Manual






VHD5.0 Padded cover

Gallery





Product code

KVV 987 370



Description

Padded cover for VHD5.0 Mid Hi module used with cart

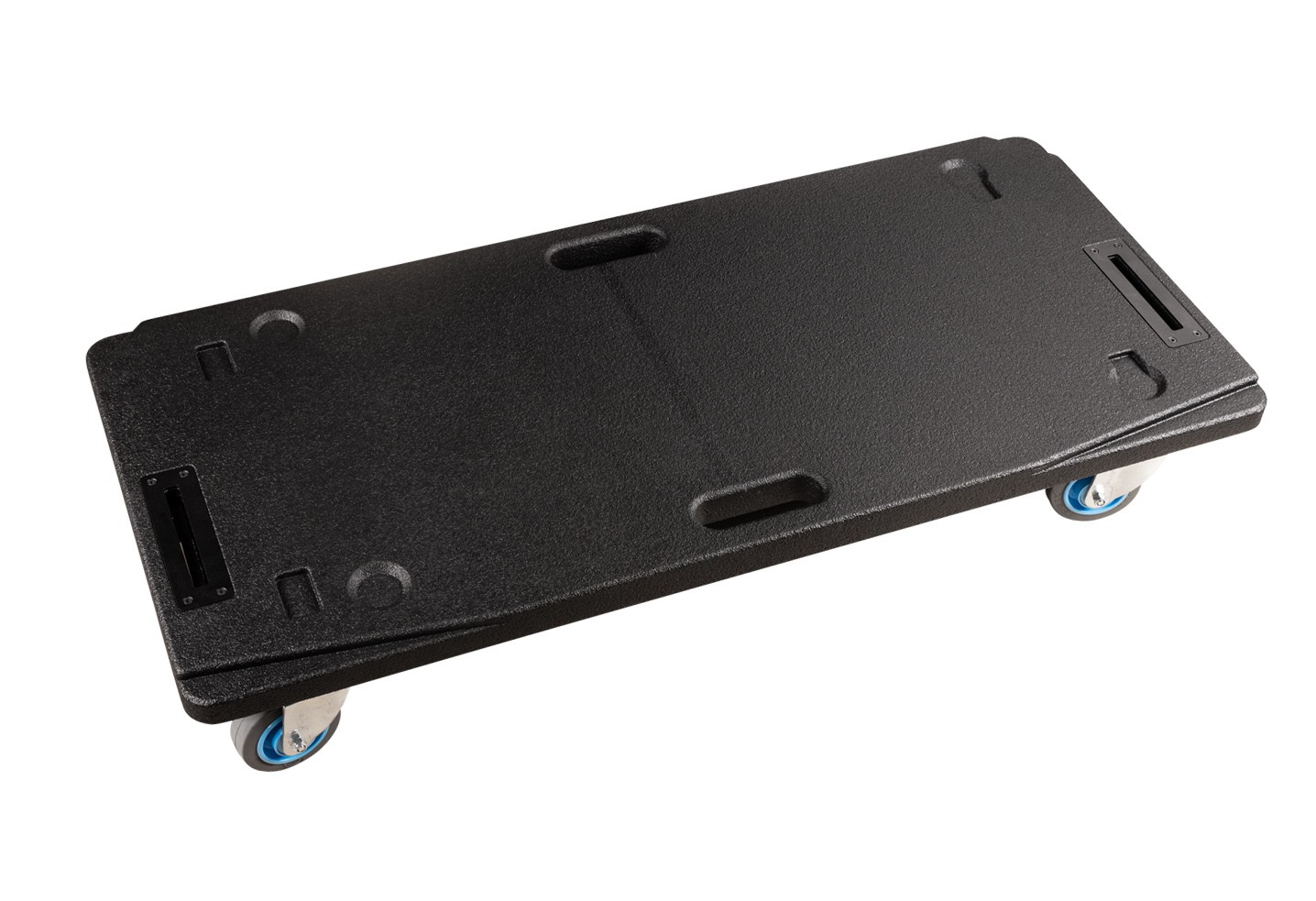

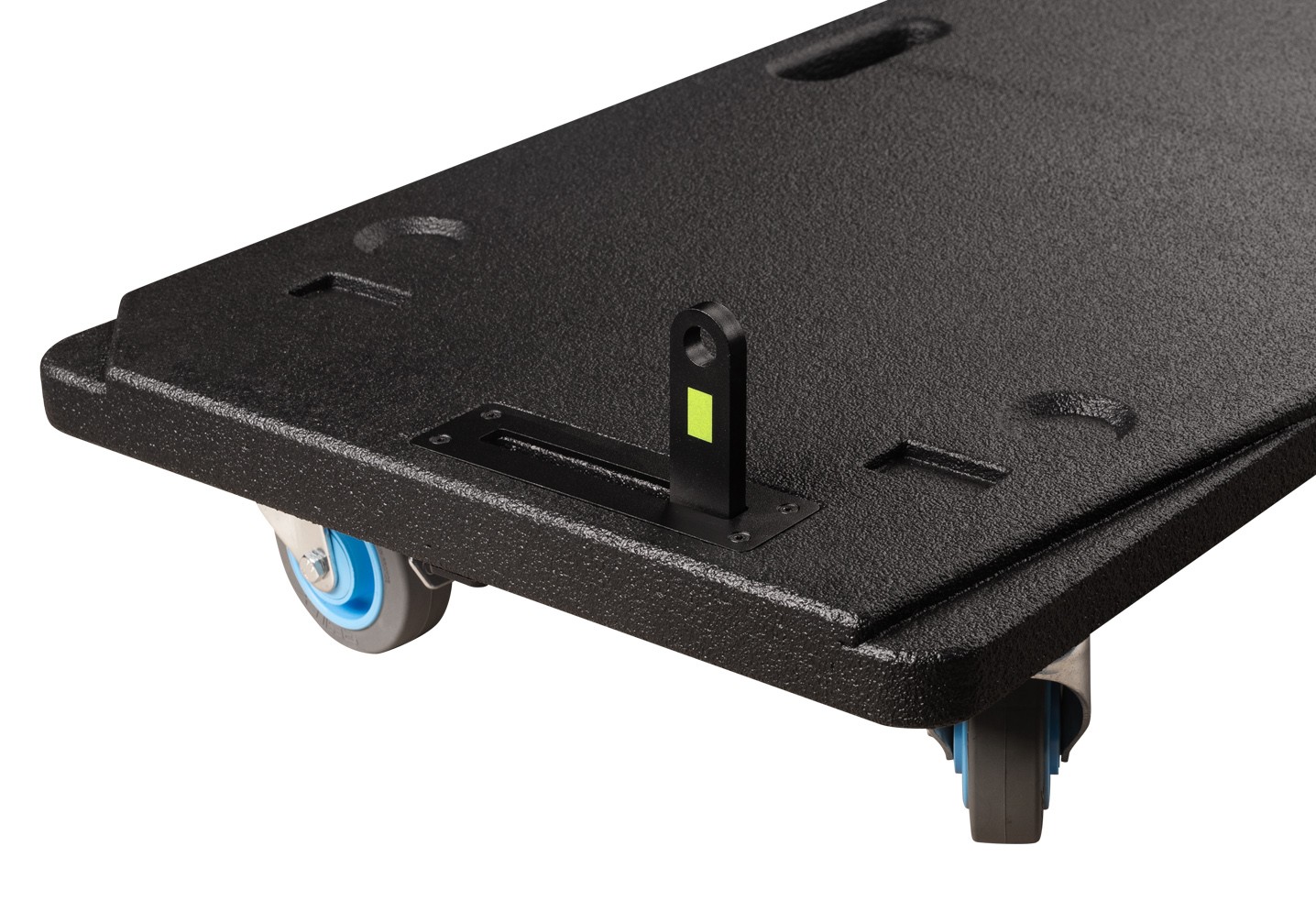

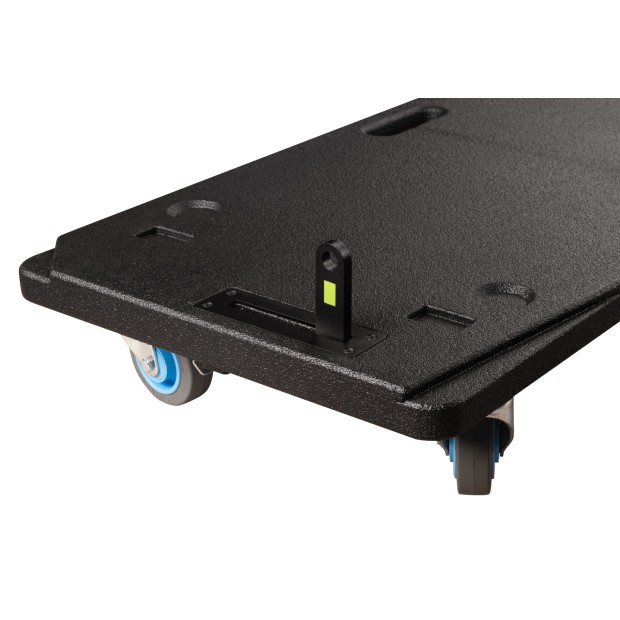

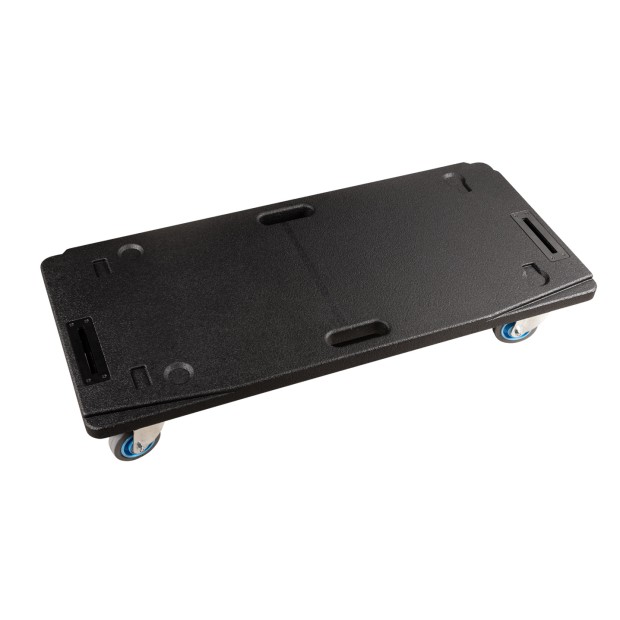

VHD5.0, VHD8.10 Cart

Gallery





Product code

KVV 987 369



Description

Cart for VHD5.0, VHD8.10



Downloads

DWG

VHD5.0, VHD8.10 Cart 3D DWG

VHD5.0, VHD8.10 Cart 3D DWG



SKP

VHD5.0, VHD8.10 Cart SKP

VHD5.0, VHD8.10 Cart SketchUp
