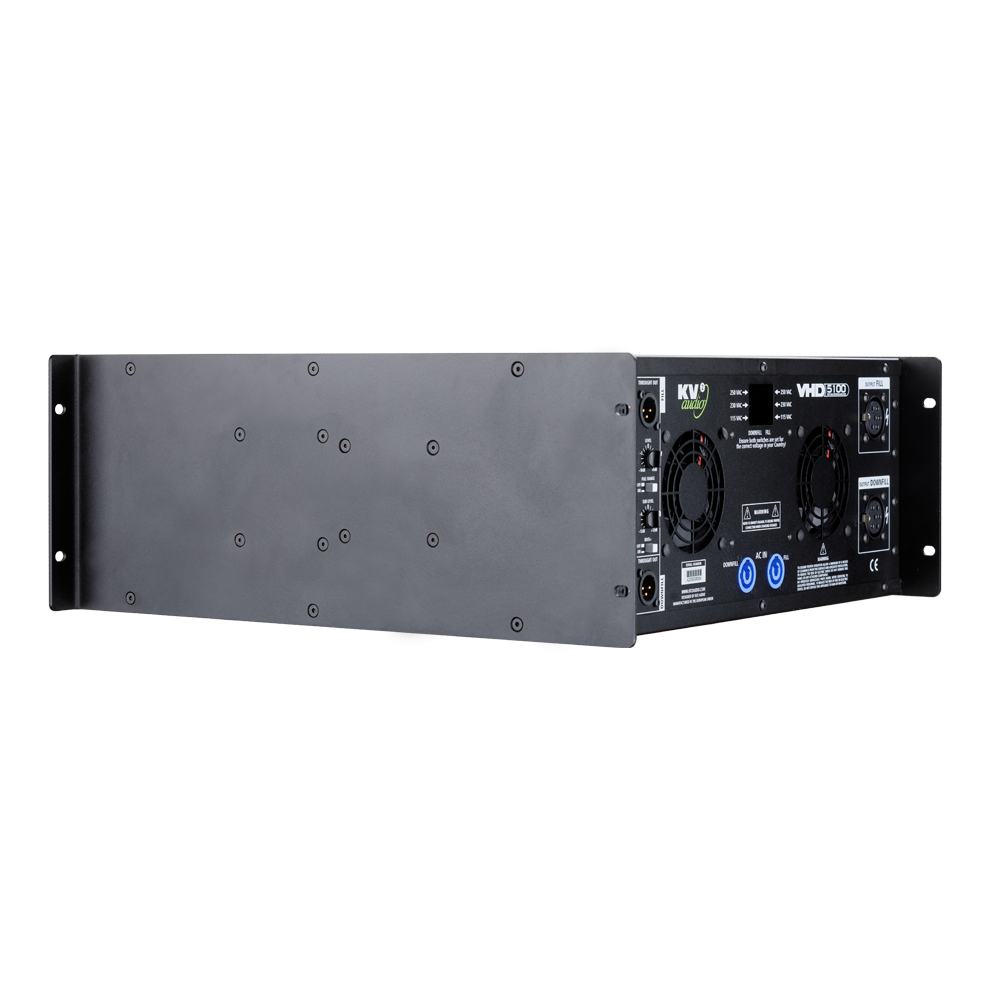

The VHD5100 is a two channel, three-way, active control and amplification system specially designed for the KV2 Audio VHD5.1 Downfill and ESR215MkII loudspeaker system. It houses all signal processing and amplification, as well as providing control and crossover function if needed utilizing a Fill channel external subwoofer. Each channel incorporates three amplifiers consisting of 100-watt, Class AB, push pull, low intermodulation amplifier for high frequencies, 200-watt, Class AB, push pull, low intermodulation design for mids and a 1000-watt, high-efficiency, current- enhancing switch mode technology amplifiers for bass.
VHD5100 Download Product’s Data Sheet
3 amplifier modules consisting of:
Specifially designed as the amplifiation and control unit for powering the 1x VHD5.1 Downfill and 1x ESR215MkII as a general use Fill module
| Number of Channels | 2 (Fill + DownFill) |
| Total Output Power | 2x 1300W |
| Type | Class AB - Push Pull - Low IM Design, Transformer balanced output |
| Rated Continuous Power | 100W |
| Distortion | <0.02% |
| Operating Bandwidth | 2,5kHz to 40kHz |
| Type | Class AB - Push Pull - Low IM Design, Transformer balanced output |
| Rated Continuous Power | 200W |
| Distortion | <0.02% |
| Operating Bandwidth | 400Hz to 2,5kHz |
| Type | High efficiency, Current-Enhancing, Switched-Rail Amplifier |
| Rated Continuous Power | 1000W |
| Distortion | <0.02% |
| Operating Bandwidth | 10Hz to 400Hz |
| Input Sensitivity Fill | 1.55V RMS (+8dB / -10dB) |
| Input Impedance | 20kΩ (balanced) |
| Input Sensitivity Downfill | 1.55V RMS |
| Speaker Output | 2x AP6 female |
| Power Connector | 2x Neutrik PowerCon® |
| Operating Voltage | 115V / 230V / 250V |
| Operating Voltage Range | 100 to 120V@60Hz | 205 to 240V@50Hz |225 to 260V@50Hz |
| Recommended Amperage | 2x10A 115V | 2x5A 230V | 2x5A 250V |
| Height | 177.8 mm (7.0"), 4RU |
| Width | 481.4 mm (18.95") |
| Depth | 455.3 mm (17.93") |
| Weight | 39 kg (86lbs) |
The VHD5 is a Constant Power Point Source System designed for large audiences, extremely long throw and intended to be flown at a minimum height of 10 metres.

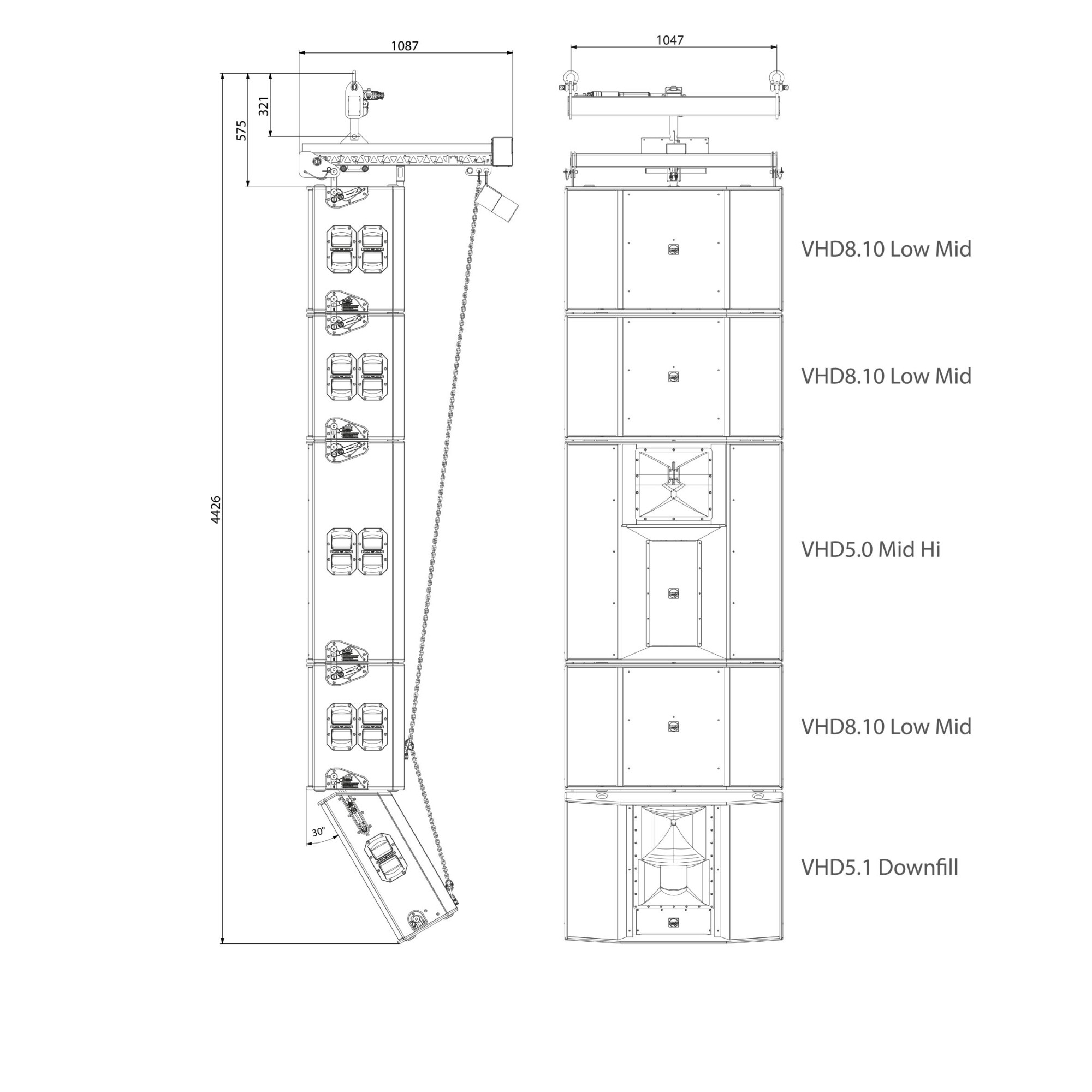

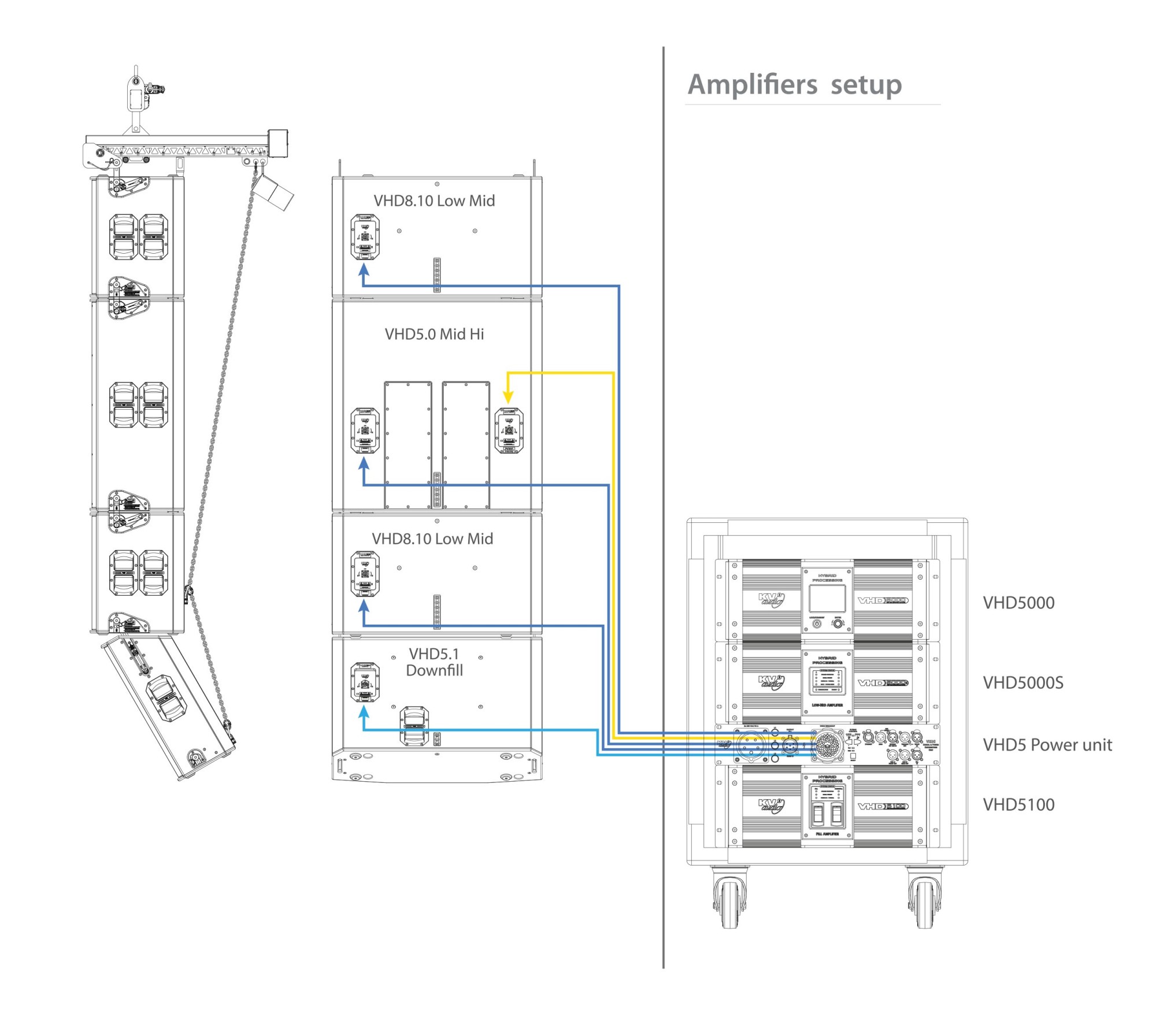

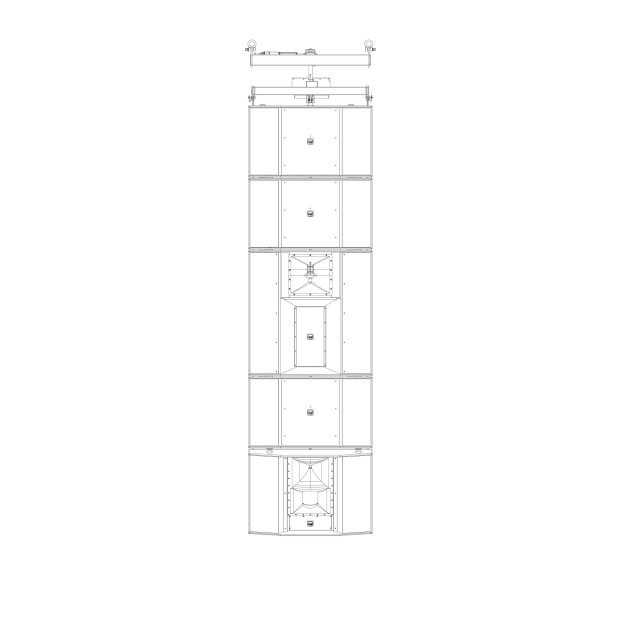

One side of the full system with three VHD8.10 Low Mid modules, one VHD5.0 Mid Hi and a VHD5.1 downfill. Amplification provided by three rack amplifiers: VHD5000 for Mid-Hi, VHD5000S for Low Mid, and VHD5100 for downfill. Everything is distributed by a single multicable through the Power Unit.
With KV2’s flying systems, all of the internal flyware is pre-configured for each box and does not require any adjustments or changes of angles in the field. In addition there is an innovative remote controlled motorised Flybar that allows the whole system, once hung, to be rotated / panned or tilted at the simple push of a button.
| Count | Product | Type |
|---|---|---|
| 1 | VHD5.0 Mid Hi | MID-HI |
| 3 | VHD8.10 Low Mid | Low Mid |
| 1 | VHD5.1 Downfill | MID-HI |
| 1 | VHD5000 | Amplifier |
| 1 | VHD5000S | Amplifier |
| 1 | VHD5100 | Amplifier |
| Count | Accessory | Title |
|---|---|---|
| 1 | VHD5 Power unit | VHD5 Power unit |
| 1 | VHD5 Tilt flybar | VHD5 Tilt flybar |
| 1 | VHD5 Pan flybar | VHD5 Pan flybar |
| 1 | VHD5 Multicable | VHD5 Multicable |
| 1 | VHD5 Extension cable | VHD5 Extension cable |
| 1 | VHD5 Downfill bracket | VHD5 Downfill bracket |
The VHD5 is a Constant Power Point Source System designed for large audiences, extremely long throw and intended to be flown at a minimum height of 10 metres.

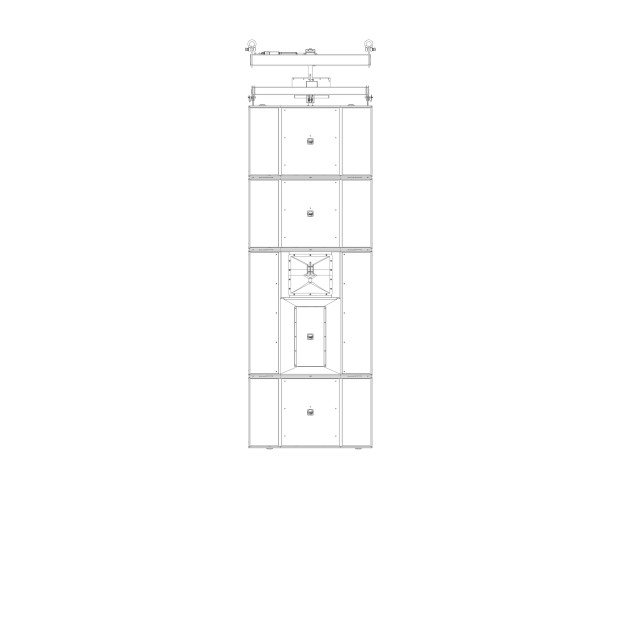

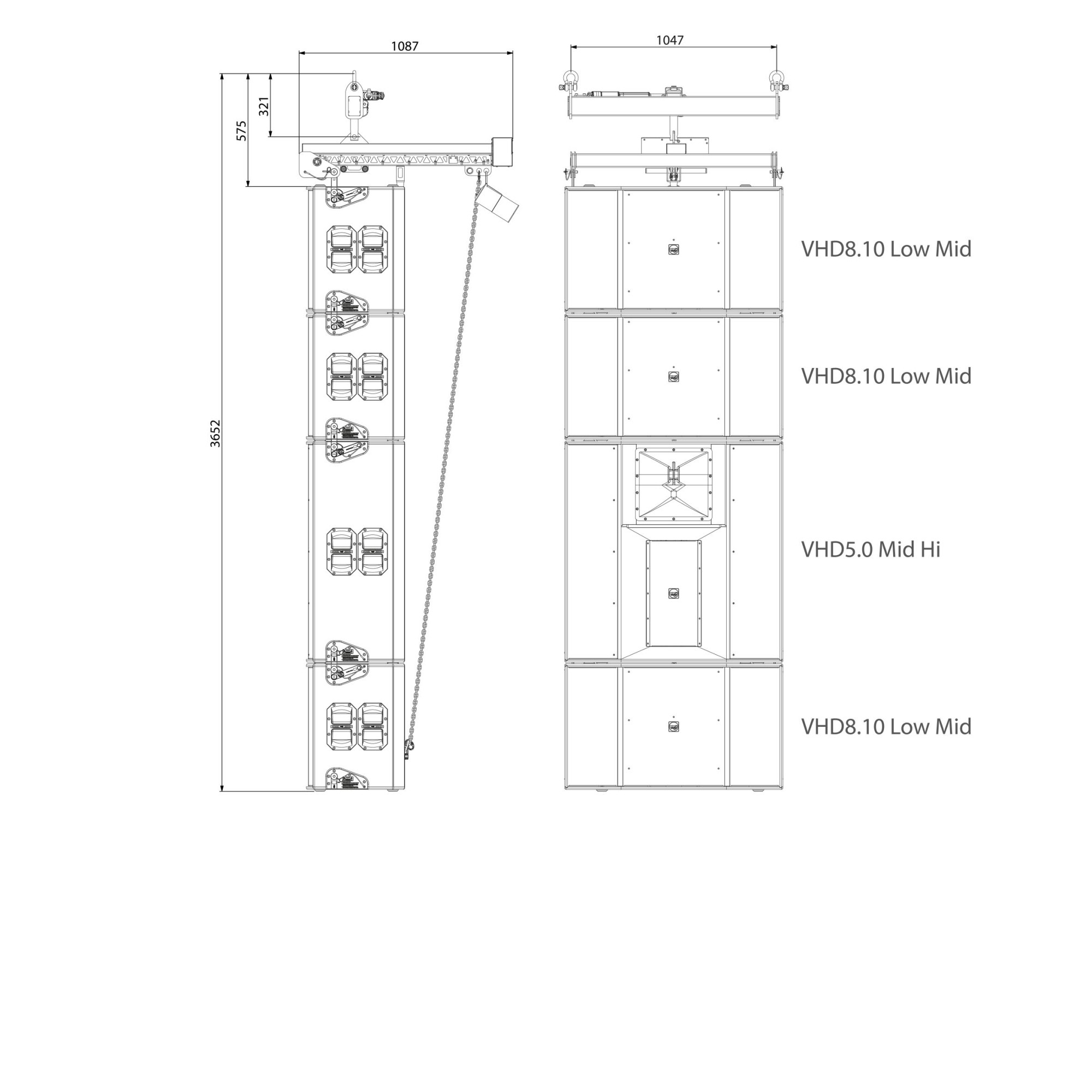

One side of the full system with two VHD8.10 Low Mid modules and one VHD5.0 Mid Hi. Amplification provided by two rack amplifiers: VHD5000 for Mid-Hi, VHD5000S for Low Mid.
Everything is distributed by a single multicable through the Power Unit. With KV2’s flying systems, all of the internal flyware is pre-configured for each box and does not require any adjustments or changes of angles in the field. In addition there is an innovative remote controlled motorised Flybar that allows the whole system, once hung, to be rotated / panned or tilted at the simple push of a button.
| Count | Product | Type |
|---|---|---|
| 1 | VHD5.0 Mid Hi | MID-HI |
| 3 | VHD8.10 Low Mid | Low Mid |
| 1 | VHD5000 | Amplifier |
| 1 | VHD5000S | Amplifier |
| 1 | VHD5100 | Amplifier |
| Count | Accessory | Title |
|---|---|---|
| 1 | VHD5 Power unit | VHD5 Power unit |
| 1 | VHD5 Tilt flybar | VHD5 Tilt flybar |
| 1 | VHD5 Pan flybar | VHD5 Pan flybar |
| 1 | VHD5 Multicable | VHD5 Multicable |
| 1 | VHD5 Extension cable | VHD5 Extension cable |

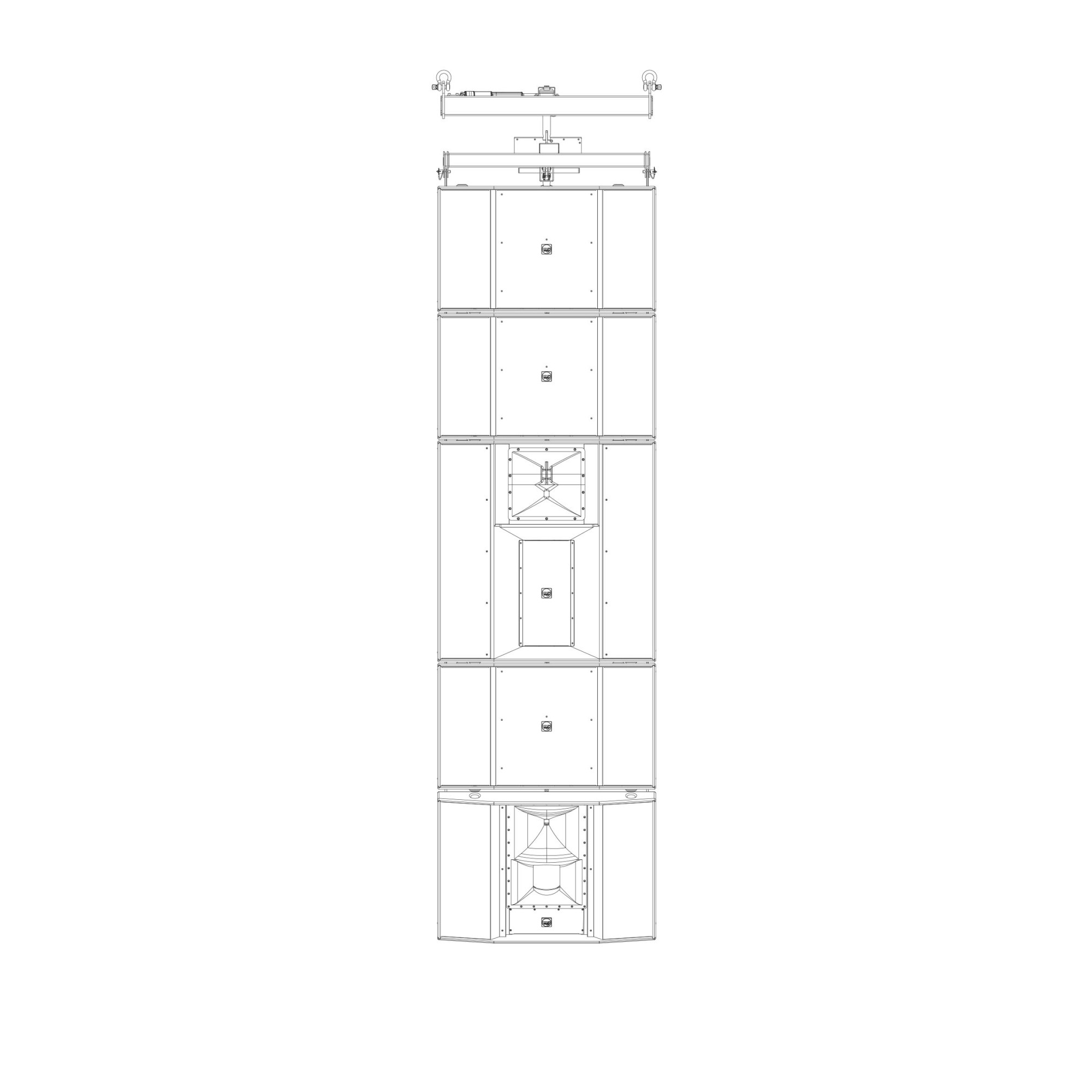

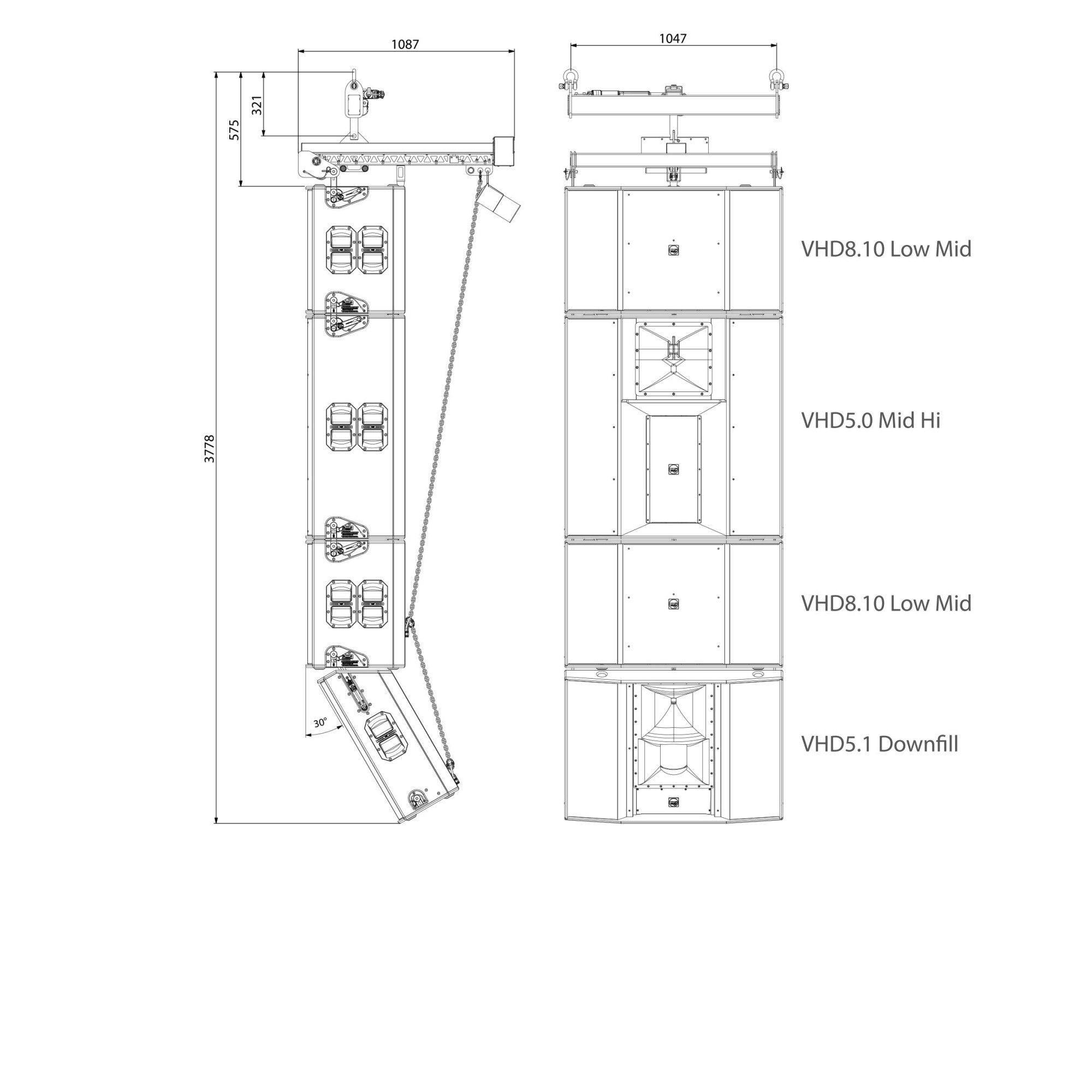

The VHD5 is a Constant Power Point Source System designed for large audiences, long throw and intended to be flown at a minimum height of 10 metres.One side of the full system with two VHD8.10 Low Mid modules, one VHD5.0 Mid Hi and a VHD5.1 downfill.

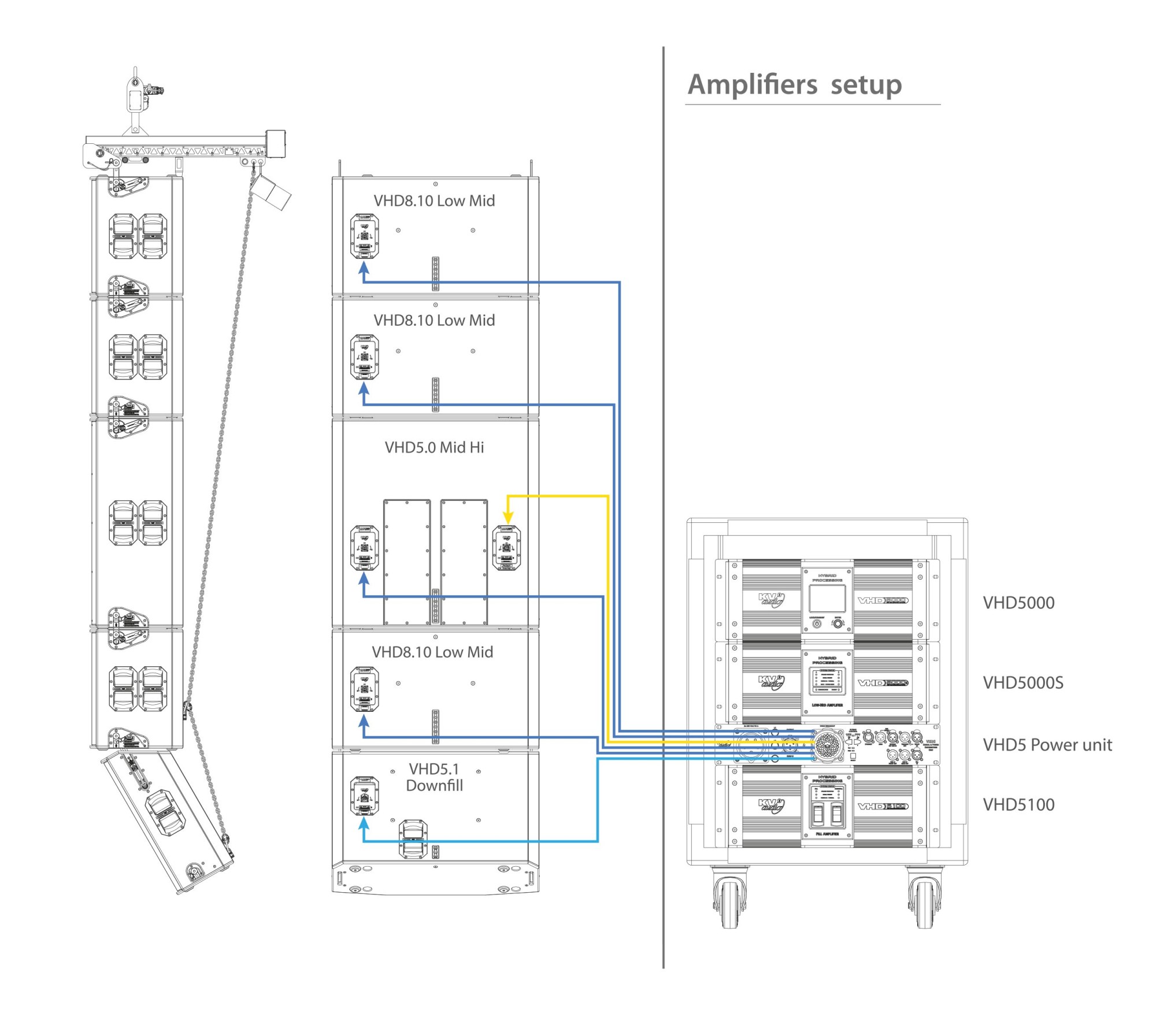

Amplification provided by three rack amplifiers: VHD5000 for Mid-Hi, VHD5000S for Low Mid, and VHD5100 for downfill. Everything is distributed by a single multicable through the Power Unit.
With KV2’s flying systems, all of the internal flyware is pre-configured for each box and does not require any adjustments or changes of angles in the field. In addition there is an innovative remote controlled motorised Flybar that allows the whole system, once hung, to be rotated / panned or tilted at the simple push of a button.
| Count | Product | Type |
|---|---|---|
| 1 | VHD5.0 Mid Hi | MID-HI |
| 2 | VHD8.10 Low Mid | Low Mid |
| 1 | VHD5.1 Downfill | MID-HI |
| 1 | VHD5000 | Amplifier |
| 1 | VHD5000S | Amplifier |
| 1 | VHD5100 | Amplifier |
| Count | Accessory | Title |
|---|---|---|
| 1 | VHD5 Power unit | VHD5 Power unit |
| 1 | VHD5 Tilt flybar | VHD5 Tilt flybar |
| 1 | VHD5 Pan flybar | VHD5 Pan flybar |
| 1 | VHD5 Multicable | VHD5 Multicable |
| 1 | VHD5 Extension cable | VHD5 Extension cable |
| 1 | VHD5 Downfill bracket | VHD5 Downfill bracket |
Head Office KV2 Audio International spol. s r.o.
Nádražní 936
Milevsko 399 01
Czech Republic
VAT: CZ26051591
Phone: +420 383 809 320 (English)
E-mail: info@kv2audio.com

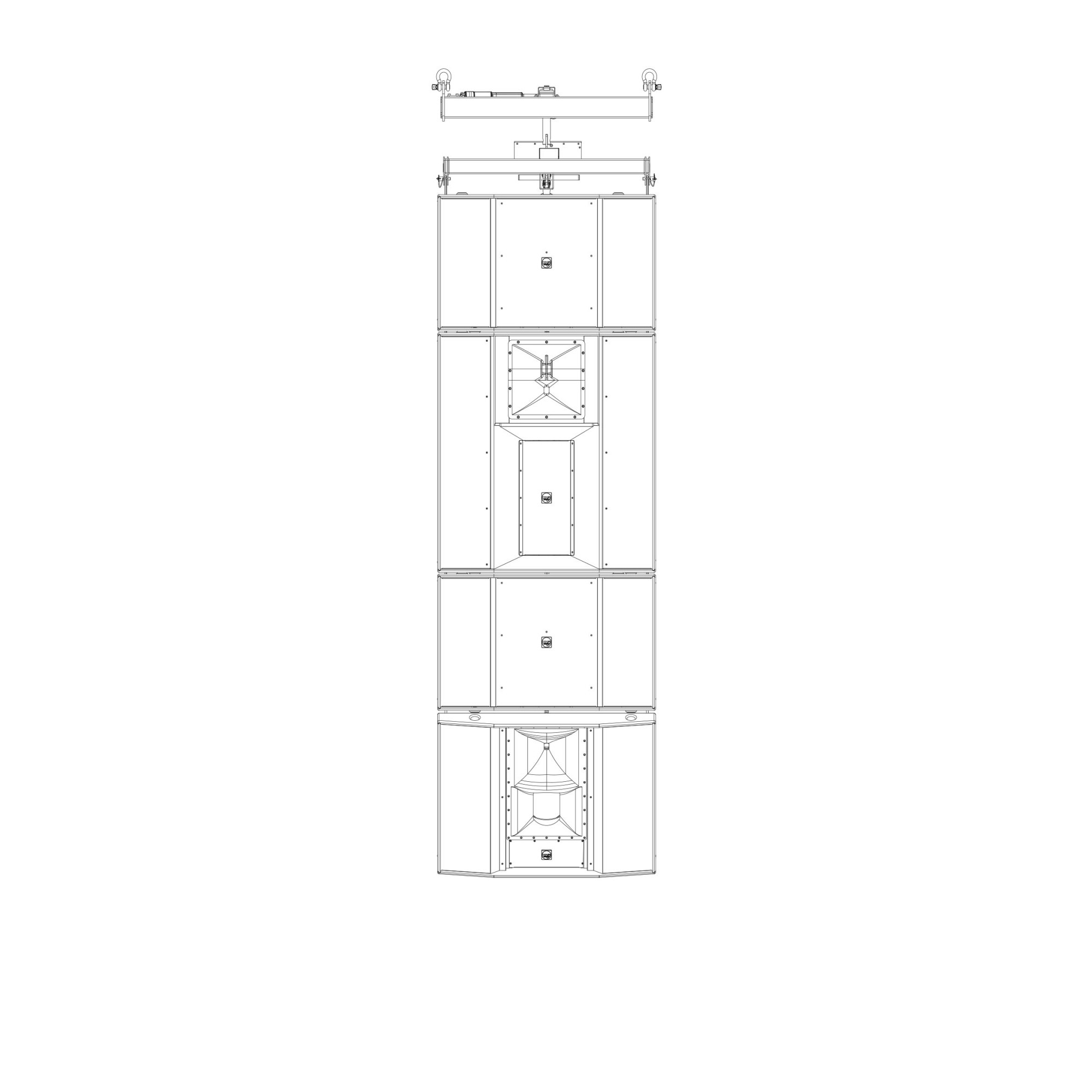

VHD5 - A

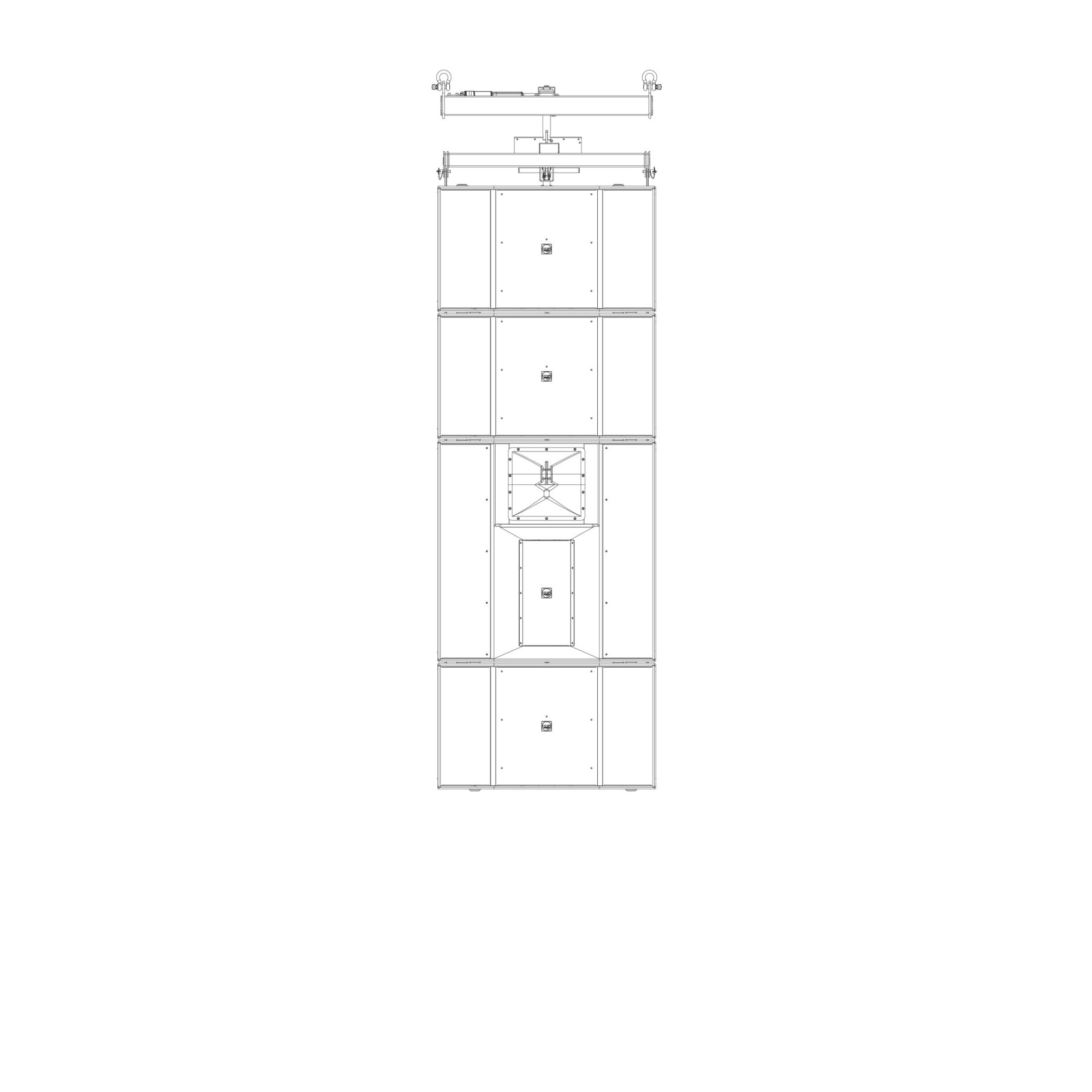

VHD5 - B

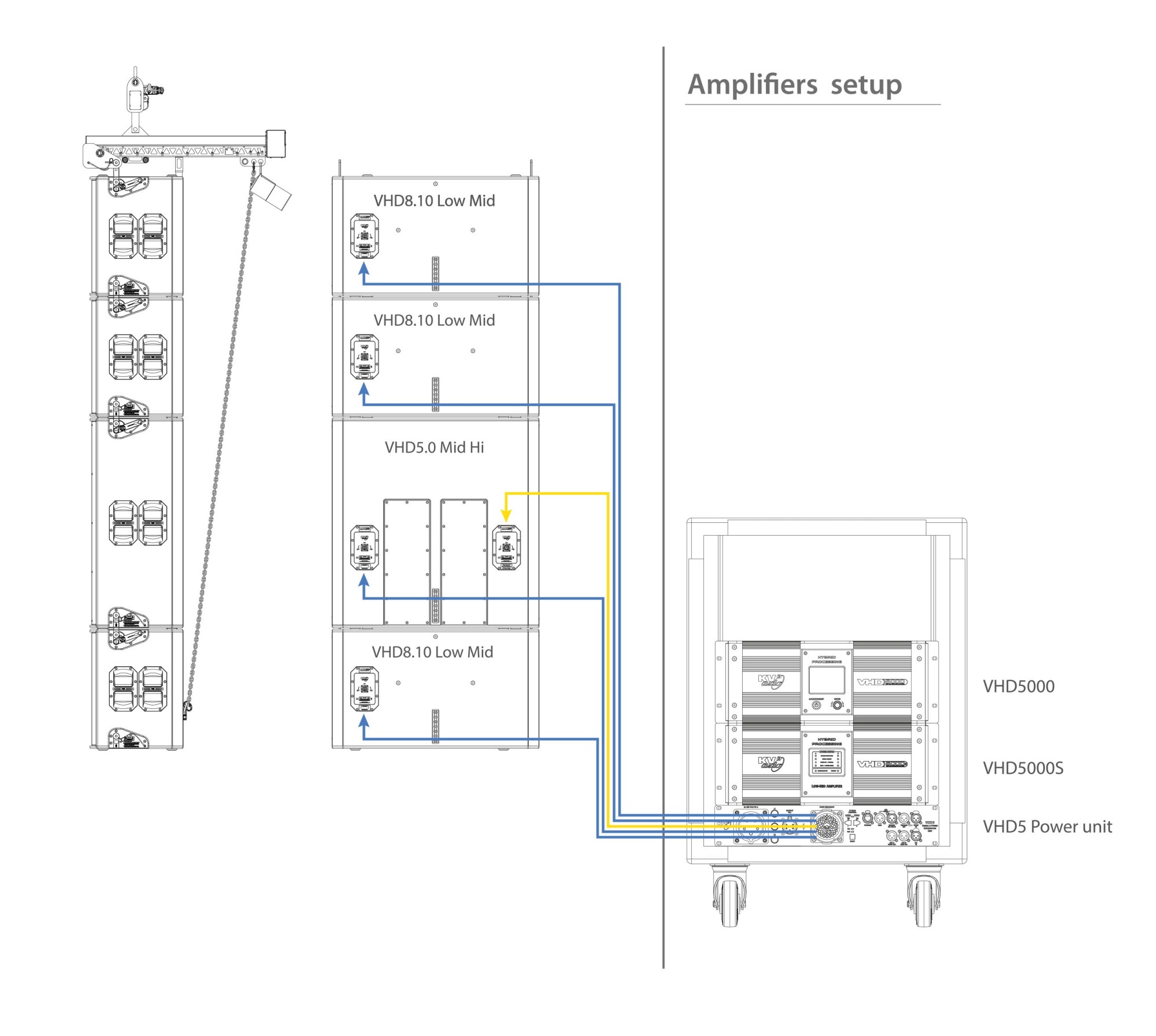

VHD5 - C
