KV2 Audio » Products » VHD5 » VHD5000S

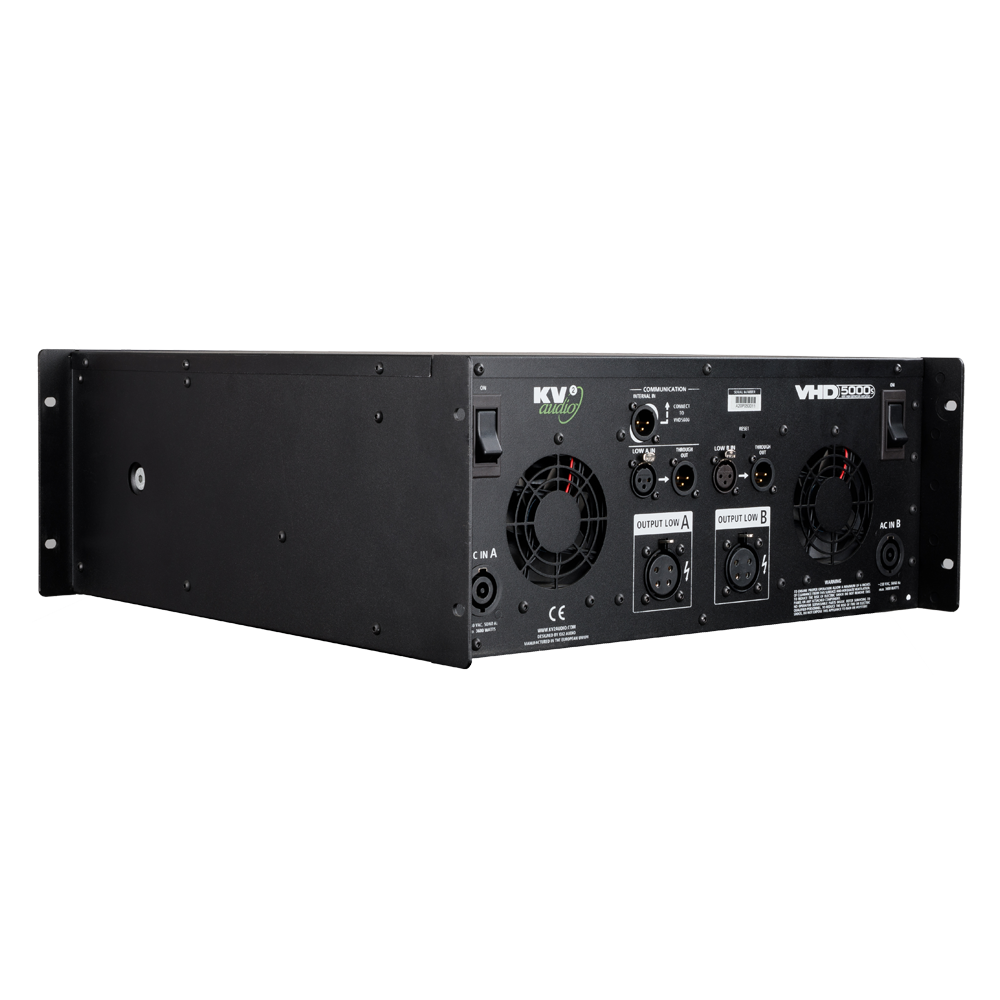

The VHD5000S is a rack mounted, high efficiency, low/mid amplifier, specifically designed in conjunction with VHD5000 for powering the VHD5 low/mid loudspeaker system. The unit contains two separate 2500 watt amplifiers with individual power supplies, signal paths and inputs and outputs within a single four rack space chassis. The unit acts as a slave for the VHD5000, which provides audio and control signal.
Watch the product videoVHD5000S Download Product’s Data Sheet
Specifically designed as the amplification and control unit for powering the 1xLow/Mid VHD5.0 part and 3x VHD8.10 loudspeakers in a rack mount modules
KVV 987 356
Specifically designed as the amplification and control unit for powering the 1xLow/Mid VHD5.0 part and 3x VHD8.10 loudspeakers in a rack mount modules
KVV 987 356
| Number of Channels | 2 |
| Type | High efficiency, Current-Enhancing, Switched-Rail Amplifier |
| Rated Continuous Power | 2500W |
| Min. Load Impedance | 2Ω |
| Distortion | <0.05% |
| Operating Bandwidth | 20Hz to 450Hz |
| Input Channels | XLR |
| Input Sensitivity | 1.55V RMS |
| Input Impedance | 10kΩ |
| Output channels | Through Out |
| Speaker Output | 2x AP4 |
| Indicators | 2x Power ON/Thermal, Signal/Limiter/Communication |
| Remote control | Ethernet |
| Power Connector | 2x Neutrik PowerCon® 32A |
| Operating Voltage | 230V |
| Operating Voltage Range | 195 to 260V AC |
| Recommended Amperage | 2x20A 205V | 2x16A 230V |
| Soft Start | Yes |
| Protection | Thermal breaker |
| Cooling | Front-to-back, active |
| Height | 177.8 mm (7.0"), 4HE |
| Width | 481.4 mm (18.95") |
| Depth | 495 mm (19.5") |
| Weight | 42 kg (92.6lbs) |
KVV 987 356
KVV 987 363
VHD5.0 dedicated Power Unit
VHD5 Power unit 3D DWG
VHD5 Power unit SketchUp
The VHD5 is a Constant Power Point Source System designed for large audiences, extremely long throw and intended to be flown at a minimum height of 10 metres.
One side of the full system with three VHD8.10 Low Mid modules, one VHD5.0 Mid Hi and a VHD5.1 downfill. Amplification provided by three rack amplifiers: VHD5000 for Mid-Hi, VHD5000S for Low Mid, and VHD5100 for downfill. Everything is distributed by a single multicable through the Power Unit.
With KV2’s flying systems, all of the internal flyware is pre-configured for each box and does not require any adjustments or changes of angles in the field. In addition there is an innovative remote controlled motorised Flybar that allows the whole system, once hung, to be rotated / panned or tilted at the simple push of a button.
| Count | Product | Type |
|---|---|---|
| 1 | VHD5.0 Mid Hi | MID-HI |
| 3 | VHD8.10 Low Mid | Low Mid |
| 1 | VHD5.1 Downfill | MID-HI |
| 1 | VHD5000 | Amplifier |
| 1 | VHD5000S | Amplifier |
| 1 | VHD5100 | Amplifier |
| Count | Accessory | Title |
|---|---|---|
| 1 | VHD5 Power unit | VHD5 Power unit |
| 1 | VHD5 Tilt flybar | VHD5 Tilt flybar |
| 1 | VHD5 Pan flybar | VHD5 Pan flybar |
| 1 | VHD5 Multicable | VHD5 Multicable |
| 1 | VHD5 Extension cable | VHD5 Extension cable |
| 1 | VHD5 Downfill bracket | VHD5 Downfill bracket |
The VHD5 is a Constant Power Point Source System designed for large audiences, extremely long throw and intended to be flown at a minimum height of 10 metres.
One side of the full system with two VHD8.10 Low Mid modules and one VHD5.0 Mid Hi. Amplification provided by two rack amplifiers: VHD5000 for Mid-Hi, VHD5000S for Low Mid.
Everything is distributed by a single multicable through the Power Unit. With KV2’s flying systems, all of the internal flyware is pre-configured for each box and does not require any adjustments or changes of angles in the field. In addition there is an innovative remote controlled motorised Flybar that allows the whole system, once hung, to be rotated / panned or tilted at the simple push of a button.
| Count | Product | Type |
|---|---|---|
| 1 | VHD5.0 Mid Hi | MID-HI |
| 3 | VHD8.10 Low Mid | Low Mid |
| 1 | VHD5000 | Amplifier |
| 1 | VHD5000S | Amplifier |
| 1 | VHD5100 | Amplifier |
| Count | Accessory | Title |
|---|---|---|
| 1 | VHD5 Power unit | VHD5 Power unit |
| 1 | VHD5 Tilt flybar | VHD5 Tilt flybar |
| 1 | VHD5 Pan flybar | VHD5 Pan flybar |
| 1 | VHD5 Multicable | VHD5 Multicable |
| 1 | VHD5 Extension cable | VHD5 Extension cable |
The VHD5 is a Constant Power Point Source System designed for large audiences, long throw and intended to be flown at a minimum height of 10 metres.One side of the full system with two VHD8.10 Low Mid modules, one VHD5.0 Mid Hi and a VHD5.1 downfill.
Amplification provided by three rack amplifiers: VHD5000 for Mid-Hi, VHD5000S for Low Mid, and VHD5100 for downfill. Everything is distributed by a single multicable through the Power Unit.
With KV2’s flying systems, all of the internal flyware is pre-configured for each box and does not require any adjustments or changes of angles in the field. In addition there is an innovative remote controlled motorised Flybar that allows the whole system, once hung, to be rotated / panned or tilted at the simple push of a button.
| Count | Product | Type |
|---|---|---|
| 1 | VHD5.0 Mid Hi | MID-HI |
| 2 | VHD8.10 Low Mid | Low Mid |
| 1 | VHD5.1 Downfill | MID-HI |
| 1 | VHD5000 | Amplifier |
| 1 | VHD5000S | Amplifier |
| 1 | VHD5100 | Amplifier |
| Count | Accessory | Title |
|---|---|---|
| 1 | VHD5 Power unit | VHD5 Power unit |
| 1 | VHD5 Tilt flybar | VHD5 Tilt flybar |
| 1 | VHD5 Pan flybar | VHD5 Pan flybar |
| 1 | VHD5 Multicable | VHD5 Multicable |
| 1 | VHD5 Extension cable | VHD5 Extension cable |
| 1 | VHD5 Downfill bracket | VHD5 Downfill bracket |
