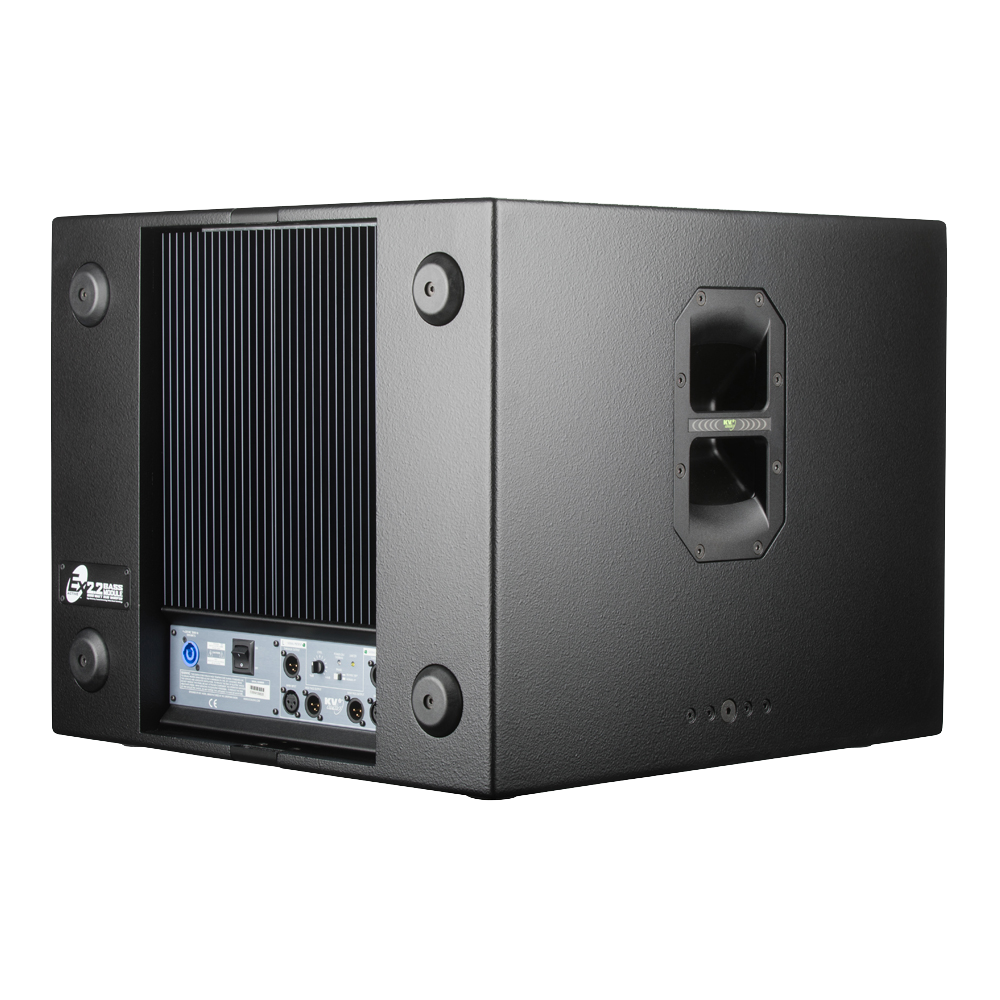

EX2.2 - Active subwoofer system

The EX2.2 is a double 12", compact, active subwoofer system. On- board electronics include a stereo crossover with high pass outputs and full overdrive protection. Featuring KV2 Audio’s switching amplifier technology, precision manufactured woofer designs and a high efficiency, twin chamber acoustic design, the EX2.2 delivers tight, fast, controlled bass response at very high output levels from a small cabinet footprint.

Watch the product video

EX2.2 Technical Data Sheet

Applications

Specifically designed to accompany and compliment the EX10 / EX26 as a true full range high output system

  • Portable PA applications
  • Fixed Installations
  • Scalable into multiple-larger systems
  • Easy to add to existing systems

Product code

  • KVV 987 135 - EX2.2 250V
  • KVV 987 013 - EX2.2 230V
  • KVV 987 014 - EX2.2 115V


Features

  • Professional, Baltic birch construction with wear resistant polymer coating
  • 130dB sustained output, 133dB peak
  • 1000W high efficiency, current-enhancing, switching, low frequency amplifier
  • Complete on board subwoofer management including equalization, crossover filters, amplifier overdrive protection, output level and phase controls
  • Excellent reproduction of bass frequencies with high transient content at high output levels
  • Stereo or Mono inputs with through signal outputs and 120Hz High Pass outputs
  • Two 12" high output, low frequency drivers with 3" (75 mm) inside/outside, epoxy baked, high temperature, voice coil assembly and neodymium magnetic structures
  • Two recessed side handles for simplified handling and carrying
  • Acetyl copolymer, high impact, low friction feet are located on two sides allowing lock-in and easy cabinet movement
  • Two internal corner braces with four M10 suspension points
  • M20 top hat for pole mounting applications
  • LED indicators for signal present, limiter, thermal condition and power ON status


Applications

Specifically designed to accompany and compliment the EX10 / EX26 as a true full range high output system

  • Portable PA applications
  • Fixed Installations
  • Scalable into multiple-larger systems
  • Easy to add to existing systems

Product code

  • KVV 987 135 - EX2.2 250V
  • KVV 987 013 - EX2.2 230V
  • KVV 987 014 - EX2.2 115V


System Acoustic Performance

Max SPL Long-term130dB
Max SPL Peak136dB
-3dB Response45Hz to 125Hz
-10dB Response40Hz to 125Hz
Crossover Point125Hz

Low Frequency Section

Acoustic DesignTwin Asymmetrical loading
Number of Drivers2
Woofer Size / Voice Coil Diameter / Design12" / 3" / Inside outside
Diaphragm MaterialEpoxy Reinforced Cellulose
Magnet TypeNeodymium

Low Frequency Amplifier Specification

TypeHigh efficiency, Current-Enhancing, Switched-Rail Amplifier
Rated Continuous Power1000W
Distortion<0.05%
Operating Bandwidth40Hz to 125Hz

Signal Input

Input Channels2
Input Sensitivity1.0V RMS
Input Impedance20kΩ (balanced)

Signal Output

Signal Output ChannelsMid/High, Through

Features

Input Level Control-6 - +6dB
Phase0° / 180°
RMS LimiterYES

Power Requirements

Power ConnectorNeutrik PowerCon®
Operating Voltage115V / 230V / 250V
Operating Voltage Range100 to 120V@60Hz | 205 to 240V@50Hz | 225 to 260V@50Hz
Recommended Amperage10A 115V | 5A 230V | 5A 250V
CoolingPassive

Cabinet

Cabinet MaterialBaltic birch
Handles2
Pole MountM20
Color"Orange peeled" Matt Black or any RAL

Physical Dimensions

Height491 mm (19.33")
Width594 mm (23.38")
Depth616 mm (24.25")
Weight49 kg (107.8lbs)


Product code

  • KVV 987 135 - EX2.2 250V
  • KVV 987 013 - EX2.2 230V
  • KVV 987 014 - EX2.2 115V

PDF

EX2.2 Data Sheet

EX2.2 Data Sheet



PDF

EX Subwoofers User Guide

EX Subwoofers User Guide - English



DWG

EX2.2 - 3D

1:1 scale - clamping points - weight - dwg file



SKP

ES1.0, ES1.5, EX1.8, EX2.2 Cart wheels SKP

ES1.0, ES1.5, EX1.8, EX2.2 Cart wheels SketchUp



DWG

EX2.2 230V 3D DWG

EX2.2 230V 3D DWG



SKP

EX2.2 230V SKP

EX2.2 230V SketchUp



DWG

EX2.2 115V 3D DWG

EX2.2 115V 3D DWG



SKP

EX2.2 115V SKP

EX2.2 115V SketchUp



DWG

EX2.2 Cart 3D DWG

EX2.2 Cart 3D DWG



SKP

EX2.2 Cart SKP

EX2.2 Cart SketchUp



DWG

EX2.2 250V 3D DWG

EX2.2 250V 3D DWG



SKP

EX2.2 250V SKP

EX2.2 250V SketchUp



SKP

EX Series SketchUp

EX Series SketchUp



DWG

EX2.2 2D DWG

EX2.2 2D DWG



PDF

EX2.2 - 115V - 2D

EX2.2 - 115V 2D Drawing



PDF

EX2.2 - 230V - 2D

EX2.2 - 230V 2D Drawing



PDF

EX2.2 - 250V - 2D

EX2.2 - 250V 2D Drawing



DWG

ES1.0, ES1.5, EX1.8, EX2.2 Cart wheels 3D DWG

ES1.0, ES1.5, EX1.8, EX2.2 Cart wheels 3D DWG





ES1.0, ES1.5, EX1.8, EX2.2 Cart wheels

Gallery

Product code

KVV 987 031



Description

- with bolts nuts kit - 4 pcs in pack, rotating, blue
- 16x M8x 25mm Screw Countersunk Hexagon Socket Head
- 16x Nut Hexagon with blue plastic insert M8



Downloads

DWG

ES1.0, ES1.5, EX1.8, EX2.2 Cart wheels 3D DWG

ES1.0, ES1.5, EX1.8, EX2.2 Cart wheels 3D DWG

SKP

ES1.0, ES1.5, EX1.8, EX2.2 Cart wheels SKP

ES1.0, ES1.5, EX1.8, EX2.2 Cart wheels SketchUp

EX2.2 Cart

Gallery

Product code

KVV 987 025



Description

- wheels not included



Downloads

DWG

EX2.2 Cart 3D DWG

EX2.2 Cart 3D DWG

SKP

EX2.2 Cart SKP

EX2.2 Cart SketchUp

EX2.2 Heavy duty cover

Gallery

Product code

KVV 987 072



Description

- durable material



EX2.2 Heavy duty cover with cart

Gallery

Product code

KVV 987 133



Description

- durable material



Speaker pole - universal

Gallery

Product code

KVV 987 130



Description

Heavy duty telescopic speakerpole
- 0,735 to 1,23 m - diameter 35 mm
- weight 2,2 kg - max. load 50 kg
- bottom terminal M20
- matte black



Downloads

SKP

Speaker pole - universal SKP

Speaker pole - universal SketchUp
