EX2.5 MkII - Active subwoofer system

The EX2.5MkII is a double 15" subwoofer and the ‘active’ brother of the ES2.6 passive bass module. It provides real depth and power where high bass output is required. The product uses the same low frequency amplifier found inside the EPAK2500/2500R and features in-built stereo crossovers, high pass outputs, and full overdrive protection. It also features a new speaker level output on an AP4 connector to drive one additional passive ES2.6 subwoofer from its own internal amplifier. (Not to be used with a passive ES2.5)

Watch the product video

EX2.5 MkII Technical Data Sheet

Applications

Specifically designed to accompany and compliment the EX Mid High speakers to create a true full range high output system

  • Easily incorporated as a system with multiples of any of the EX range
  • Scalable into multiple-larger systems
  • Fixed installations

Product code

  • KVV 987 180 - EX2.5 MkII 250V
  • KVV 987 179 - EX2.5 MkII 230V
  • KVV 987 178 - EX2.5 MkII 115V


Features

  • Professional, Baltic birch construction with wear resistant polymer coating
  • 137dB sustained output 140dB peak (when used with an ES2.6)
  • 1600W high efficiency, current enhancing, switching low frequency amplifier
  • Speaker level AP4 output to drive one additional passive ES2.6 subwoofer
  • Complete on board subwoofer management including equalization, crossover, filters, amplifier overdrive protection, output level and phase controls
  • Excellent reproduction of sub bass frequencies with high transient content at high output levels
  • Stereo or Mono inputs with through signal outputs and 125Hz High Pass outputs
  • Two 15" high output, low frequency drivers with 4" (100 mm) inside/outside, epoxy baked, high temperature, voice coil assembly and ferrite magnetic structures

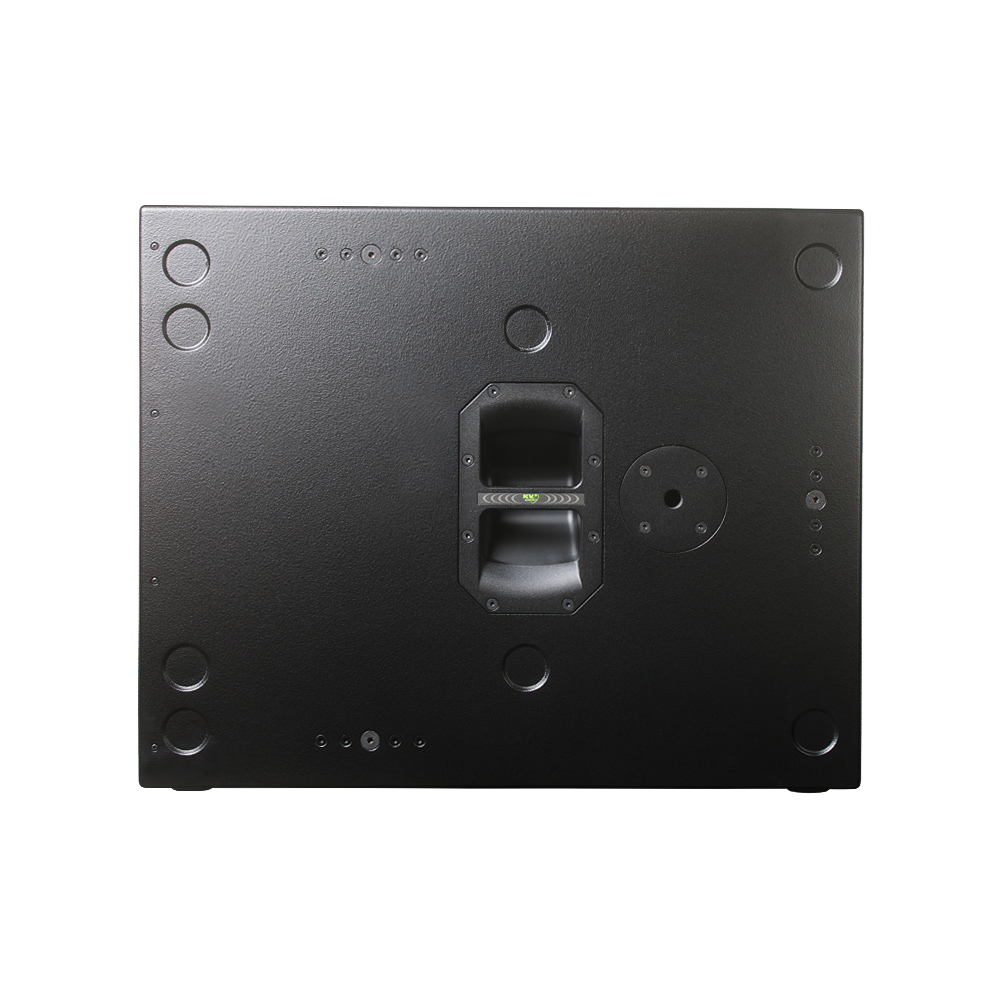

  • Four propietry side handles for simplified handling and carrying
  • Heavy duty front grille to work with the innovative new EX2.5 magnetic cart
  • Acetyl copolymer high impact, low friction feet are located on two sides allowing vertical or horizontal set up and easy cabinet movement Feet lock in to the new ES subwoofers
  • Six internal corner braces with twelve M10 suspension points M20 top hat for pole mounting applications
  • LED indicators for signal present, limiter, thermal condition and power ON status


Applications

Specifically designed to accompany and compliment the EX Mid High speakers to create a true full range high output system

  • Easily incorporated as a system with multiples of any of the EX range
  • Scalable into multiple-larger systems
  • Fixed installations

Product code

  • KVV 987 180 - EX2.5 MkII 250V
  • KVV 987 179 - EX2.5 MkII 230V
  • KVV 987 178 - EX2.5 MkII 115V


System Acoustic Performance

Max SPL Long-term132dB (137dB - with Slave ES2.6)
Max SPL Peak138dB (140dB - with Slave ES2.6)
-3dB Response38Hz to 125Hz
-10dB Response34Hz to 125Hz
Impedance
Crossover Point125Hz

Output Channels

Number of Channels1
Minimum load impedance per channel

Low Frequency Section

Acoustic DesignTwin Asymmetrical loading
Woofer Size / Voice Coil Diameter / Design2x 15" / 4" / Inside Outside
Diaphragm MaterialEpoxy Reinforced Cellulose
Magnet TypeFerrite

Low Frequency Amplifier Specification

TypeHigh efficiency, Low frequency, Current-enhancing switch mode
Rated Continuous Power1600W
Distortion<0.05%
Operating Bandwidth34Hz to 125Hz

Signal Input

Input Channels2
Input Sensitivity1.0V RMS
Input Impedance20kΩ (balanced)

Signal Output

Signal Output ChannelsMid/High, Through
Slave Speaker OutputAP4

Features

Input Level Control-6 to +6dB
Phase0° / 180°
RMS LimiterYES
IndicatorsPower ON/Thermal, Limiter

Power Requirements

Power ConnectorNeutrik PowerCon®
Output Power ConnectorNeutrik PowerCon®
Operating Voltage115V / 230V / 250V
Operating Voltage Range100 to 120V@60Hz | 205 to 240V@50Hz | 225 to 260V@50Hz
Recommended Amperage16A 115V | 8A 230V | 8A 250V

Cabinet

Cabinet MaterialBaltic birch
Handles4
Pole MountM20
Color"Orange peeled" Matt Black or any RAL

Physical Dimensions

Height711.5 mm (28.0")
Width602.6 mm (23.72")
Depth750 mm (29.52")
Weight97 kg (214lbs)


Product code

  • KVV 987 180 - EX2.5 MkII 250V
  • KVV 987 179 - EX2.5 MkII 230V
  • KVV 987 178 - EX2.5 MkII 115V
