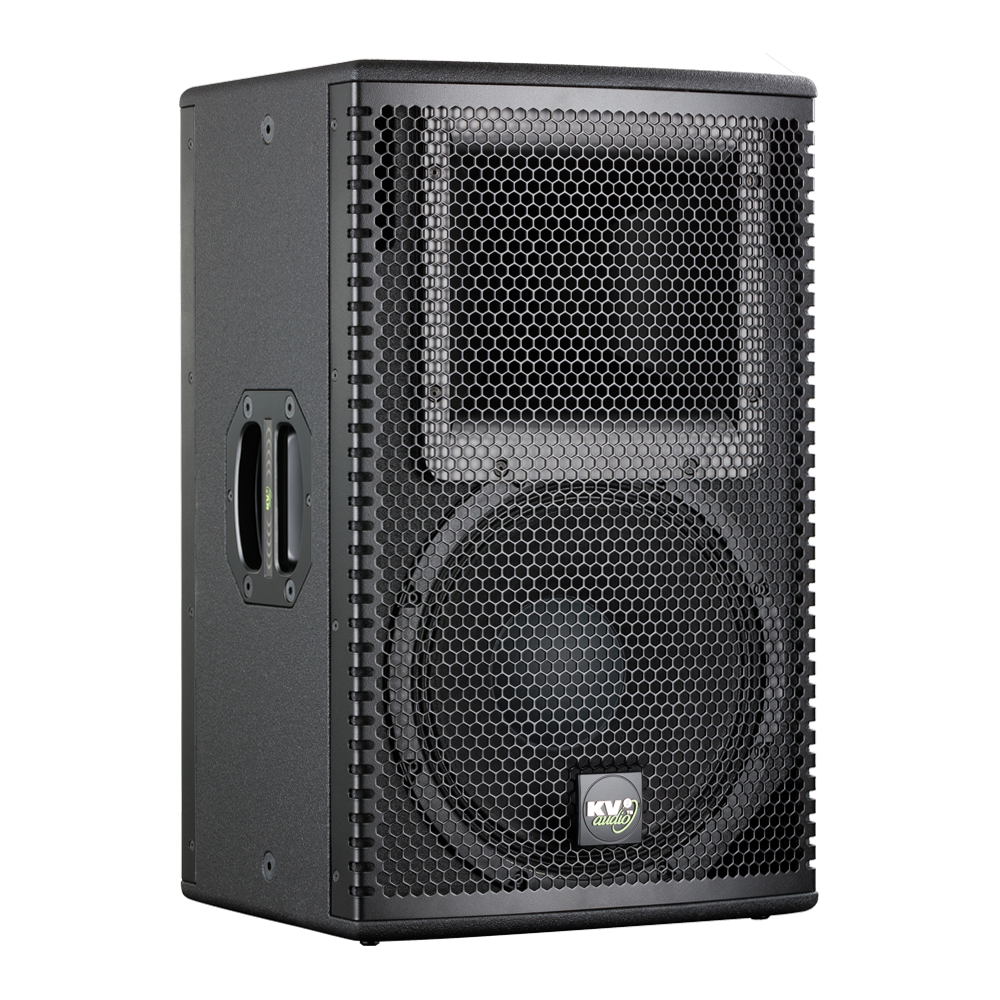

EX12 - 2-way Active speaker system

The EX12 further builds on the success of the EX6 and EX10 by implementing the revolutionary 3" NVPD large  format compression driver found in our flagship VHD range of products. This makes for one of the most perfectly  balanced and accurate, compact, 2-way active boxes available on the market today. Complete onboard control  courtesy of electronic crossovers, phase alignment, equalization and speaker protection are all integrated into the  EX12’s amplifier module.

Watch the product video

EX12 Technical Data Sheet

Applications

Designed for the highest quality vocal and full range live performance in medium size applications

  • Suitable for medium to large conference, Theatre and small to medium scale concerts
  • Scalable from stand alone to full range large systems incorporating EX subwoofers
  • Fixed installations
  • Stage monitoring

Product code

  • KVV 987 095 - EX12 250V
  • KVV 987 059 - EX12 230V
  • KVV 987 060 - EX12 115V


Features

  • Professional, Baltic birch construction with wear resistant polymer coating
  • 127dB sustained output, 130dB peak with very high dynamic range and low noise floor
  • 500W of total power with complete on-board speaker management system
  • 450W high efficiency, current enhancing, switching low frequency amplifier
  • Very high quality 50W, low IM distortion, Class AB, high frequency amplifier with transformer balanced output
  • Compact asymmetrical trapezoidal design allows for use in stage monitor or under balcony applications with high pass filter to adjust equalisation and phase response
  • Wide dispersion 80° H x 40° V horn
  • New state of the art 3" (76 mm) Nitride Titanium diaphragm compression driver with complex geometry phase plug and neodymium magnetic structure for higher output, exceptionally low distortion and extended frequency response
  • 12" woofer with revolutionary Active Impedance Control (AIC) voice coil technology and neodymium magnetic motor structure dramatically increases force, lowers distortion and provides increased frequency response linearity

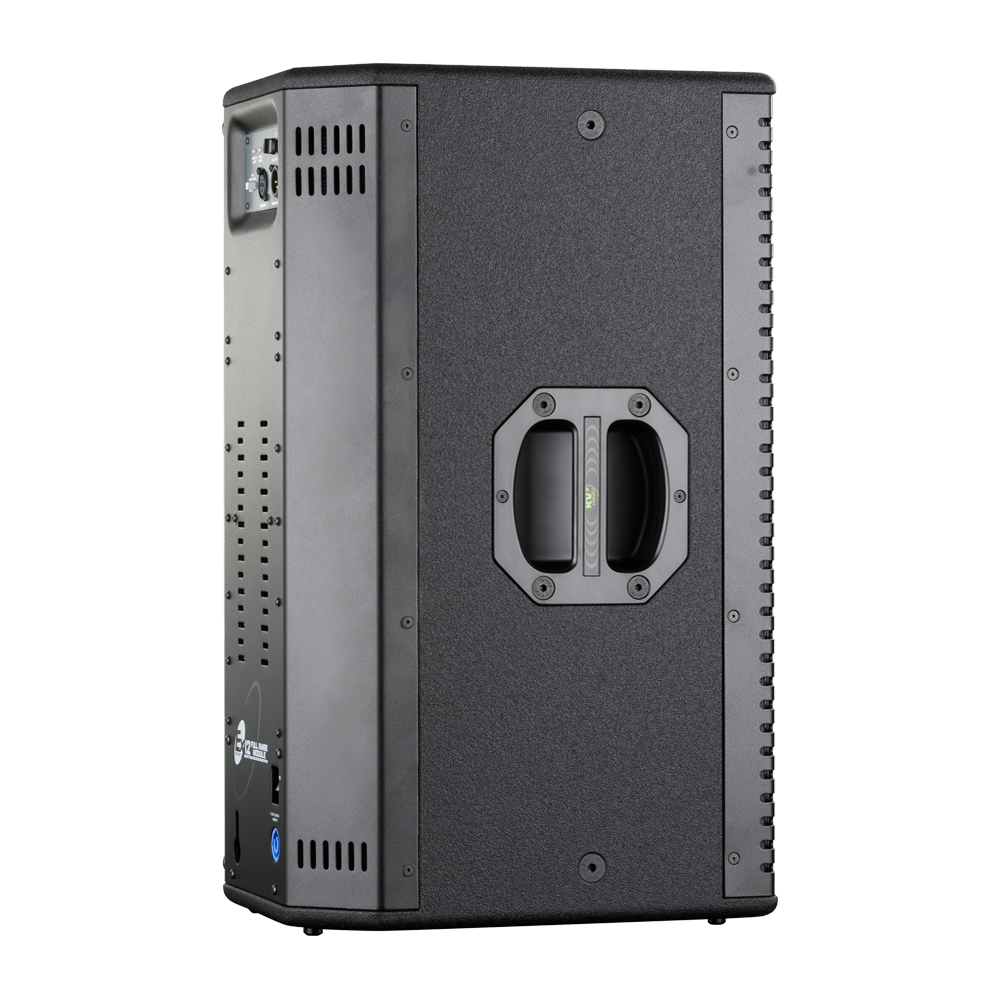

  • Proprietary top and side handle designs for simplified handling and carrying, integrates one M10 hang point, OmniMountTM bracket point and four M6 bracket points
  • Ten additional M10 suspension points for flexible rigging and installation options
  • Top hat for pole mounting applications
  • LED indicators for signal present, limiter, thermal condition and power ON status


Applications

Designed for the highest quality vocal and full range live performance in medium size applications

  • Suitable for medium to large conference, Theatre and small to medium scale concerts
  • Scalable from stand alone to full range large systems incorporating EX subwoofers
  • Fixed installations
  • Stage monitoring

Product code

  • KVV 987 095 - EX12 250V
  • KVV 987 059 - EX12 230V
  • KVV 987 060 - EX12 115V


System Acoustic Performance

Max SPL Long-term127dB
Max SPL Peak133dB
-3dB Response55Hz to 22kHz
-10dB Response45Hz to 30kHz
Crossover Point1.1kHz

High Frequency Section

Acoustic DesignHorn Loaded
High Horn Coverage Horizontal / Vertical80° x 40°
Rotatable HornNO
Throat Exit Diameter / Diaphragm Size1.4" / 3"
Diaphragm MaterialNitride Titanium
Magnet TypeNeodymium

High Frequency Amplifier Specification

TypeClass AB Push-Pull
Rated Continuous Power50W
Distortion<0.05%
Operating Bandwidth1.1kHz to 30kHz

Low Frequency Section

Acoustic DesignFront Loaded, Bass Reflex
Woofer Size / Voice Coil Diameter / Design12" / 3.0" / Trans Coil
Magnet TypeNeodymium
Diaphragm MaterialEpoxy Reinforced Cellulose

Low Frequency Amplifier Specification

TypeHigh efficiency, Current-Enhancing, Switched-Rail Amplifier
Rated Continuous Power450W
Distortion<0.05%
Operating Bandwidth45Hz to 1.1kHz

Signal Input

Input Sensitivity1.0V RMS
Input Impedance20 kΩ

Power Requirements

Power ConnectorNeutrik PowerCon®
Operating Voltage Range100 to 120V@60Hz | 205 to 240V@50Hz | 225 to 260V@50Hz
Recommended Amperage6A 115V | 3A 230V | 3A 250V

Cabinet

Cabinet MaterialBaltic birch
Handles2
Pole Mount35 mm
Color"Orange peeled" Matt Black or any RAL

Physical Dimensions

Height596 mm (23.46")
Width368 mm (14.49")
Depth368 mm (14.49")
Weight29 kg (63.8lbs)


Product code

  • KVV 987 095 - EX12 250V
  • KVV 987 059 - EX12 230V
  • KVV 987 060 - EX12 115V

PDF

EX Series User Guide

User Guide for EX6, EX10, EX12, EX15, EX26 and EX28 - English



PDF

EX12 Vertical Bracket Double - User Guide

- User Guide for EX12 Double bracket - english



PDF

EX12 Data Sheet

EX12 Data Sheet



PDF

Disarray - The correct theory of arraying KV2 boxes

Disarray - The correct theory of arraying KV2 boxes



DWG

EX12 - 3D

1:1 scale - clamping points - weight - dwg file



DWG

EX12 230V 3D DWG

EX12 230V 3D DWG



SKP

EX12 230V SKP

EX12 230V SketchUp



DWG

EX12 115V 3D DWG

EX12 115V 3D DWG



SKP

EX12 115V SKP

EX12 115V SketchUp



DWG

EX12 250V 3D DWG

EX12 250V 3D DWG



SKP

EX12 250V SKP

EX12 250V SketchUp



DWG

EX12 Vertical Bracket double 3D DWG

EX12 Vertical Bracket double 3D DWG



SKP

EX12 Horizontal Bracket SKP

EX12 Horizontal Bracket SketchUp



DWG

EX12 Horizontal Bracket 3D DWG

EX12 Horizontal Bracket 3D DWG



SKP

Top hat adapter for ESD10, ESD12, ESD36, ESD6, EX10, EX12, EX26 SKP

Top hat adapter for ESD10, ESD12, ESD36, ESD6, EX10, EX12, EX26 SketchUp



DWG

Top hat adapter for ESD10, ESD12, ESD36, ESD6, EX10, EX12, EX26 3D DWG

Top hat adapter for ESD10, ESD12, ESD36, ESD6, EX10, EX12, EX26 3D DWG



SKP

ESD12 / EX12 Vertical Bracket 3D SKP

Vertical Bracket for ESD12 / EX12 3D SKP



DWG

ESD12 / EX12 Vertical Bracket 3D DWG

Vertical Bracket for ESD12, EX12 3D DWG



DWG

ESD12 / EX12 Vertical Bracket 2D DWG

Vertical Bracket for ESD12 / EX12 2D DWG


SKP

ESD12 Horizontal Bracket 3D SKP

ESD12 Horizontal Bracket 3D SketchUp


DWG

ESD12 Horizontal Bracket 2D DWG

Horizontal Bracket for ESD12 2D DWG



SKP

EX12 Vertical Bracket double SKP

EX12 Vertical Bracket double SketchUp



DWG

EX12 Grill strong 3D DWG

EX12 Grill strong 3D DWG



PDF

EX12 - 230V - 2D

EX12 - 230V 2D Drawing



DWG

EX12 Vertical Bracket 2D DWG

EX12 Vertical Bracket 2D DWG



DWG

EX12 2D DWG

EX12 2D DWG



DWG

EX12 Horizontal Bracket 2D DWG

EX12 Horizontal Bracket 2D DWG



DWG

EX12 Vertical Bracket 2D DWG

EX12 Vertical Bracket 2D DWG



DWG

ESD12 2D DWG

ESD12 2D DWG



SKP

EX Series SketchUp

EX Series SketchUp



SKP

EX12 Grill - fine SKP

EX12 Grill - fine SketchUp



DWG

EX12 Grill - fine 3D DWG

EX12 Grill - fine 3D DWG



SKP

EX12 Grill strong SKP

EX12 Grill strong SketchUp



DWG

ESD12 Horizontal Bracket 3D DWG

Horizontal Bracket for ESD12 3D DWG



GLL

EX12 - EASE data

EASE data - .GLL - description



GLL

EX12 EASE Focus

EX12 EASE Focus





ESD12 / EX12 Vertical bracket

Gallery

Product code

KVV 987 488



Description

Vertical bracket for EX12, ESD12
- including two connection bolts - black



Downloads

DWG

ESD12 / EX12 Vertical Bracket 3D DWG

Vertical Bracket for ESD12, EX12 3D DWG

SKP

ESD12 / EX12 Vertical Bracket 3D SKP

Vertical Bracket for ESD12 / EX12 3D SKP

DWG

ESD12 / EX12 Vertical Bracket 2D DWG

Vertical Bracket for ESD12 / EX12 2D DWG

EX12 Heavy duty cover

Gallery

Product code

KVV 987 067



Description

- Durable material



EX12 Grill - fine

Gallery

Product code

KVV 987 329



Description

- elegant design - suitable for installations



Downloads

DWG

EX12 Grill - fine 3D DWG

EX12 Grill - fine 3D DWG

SKP

EX12 Grill - fine SKP

EX12 Grill - fine SketchUp

EX12 Grill strong

Gallery

Product code

KVV 987 286



Description

- bend resistant - suitable when using EX12 as a monitor or touring



Downloads

DWG

EX12 Grill strong 3D DWG

EX12 Grill strong 3D DWG

SKP

EX12 Grill strong SKP

EX12 Grill strong SketchUp

EX12 Horizontal bracket

Gallery

Product code

KVV 987 058



Description

- for EX12 - including two connection bolts - black



Downloads

DWG

EX12 Horizontal Bracket 3D DWG

EX12 Horizontal Bracket 3D DWG

SKP

EX12 Horizontal Bracket SKP

EX12 Horizontal Bracket SketchUp

DWG

EX12 Horizontal Bracket 2D DWG

EX12 Horizontal Bracket 2D DWG

EX12 Weather Cover

Gallery

Product code

KVV 987 190


Description

Heavy duty weatherproof speaker cover for EX12 - sound-permeable


Speaker pole - universal

Gallery

Product code

KVV 987 130



Description

Heavy duty telescopic speakerpole
- 0,735 to 1,23 m - diameter 35 mm
- weight 2,2 kg - max. load 50 kg
- bottom terminal M20
- matte black



Downloads

SKP

Speaker pole - universal SKP

Speaker pole - universal SketchUp

Top hat adapter for ESD10, ESD12, ESD36, ESD6, EX10, EX12, EX26

Gallery

Product code

KVV 987 090



Description

- including bolts - black



Downloads

DWG

Top hat adapter for ESD10, ESD12, ESD36, ESD6, EX10, EX12, EX26 3D DWG

Top hat adapter for ESD10, ESD12, ESD36, ESD6, EX10, EX12, EX26 3D DWG

SKP

Top hat adapter for ESD10, ESD12, ESD36, ESD6, EX10, EX12, EX26 SKP

Top hat adapter for ESD10, ESD12, ESD36, ESD6, EX10, EX12, EX26 SketchUp
