EX10 - 2-way Active speaker system

The EX10 is a very compact 2-way, high-output, full range active speaker system. Despite its 10" woofer and remarkably small footprint it successfully takes on many larger 12" models and is favored by audio visual and rental companies all over the world for its sheer quality and tremendous output. On-board electronics ensure fast, easy set up and complete control with electronic crossovers, phase alignment, equalization and speaker protection integrated into the EX10’s amplifier module.

Watch the product video

EX10 Technical Data Sheet

Applications

Specifically designed for high quality, high output multi-tasking, portable music playback and live performance in small applications

  • Full range stand-alone solution or scalable to larger capabilities with subwoofers for large conference, meetings and small to medium performance venues
  • Multi-purpose fixed installations
  • Personal monitoring
  • Infill for larger main KV2 Audio systems

Product code

  • KVV 987 097 - EX10 250V
  • KVV 987 011 - EX10 230V
  • KVV 987 012 - EX10 115V


Features

  • Professional, Baltic birch construction with wear resistant polymer coating
  • 126dB sustained output, 129dB peak with very high dynamic range and low noise floor
  • 500W of total power with complete on-board speaker management system
  • 450W high efficiency, current enhancing, switching low frequency amplifier
  • Very high quality 50W, low IM distortion, Class AB, high frequency amplifier with transformer balanced output
  • Compact, asymmetrical, trapezoidal cabinet design allows for use in stage monitor or under balcony applications with high pass filter to adjust equalization and phase response
  • Wide dispersion, 100° H x 80° V rotatable horn
  • 1.75" (44 mm) Titanium diaphragm compression driver with complex geometry phase plug for higher output, exceptionally low distortion, extended frequency response and neodymium magnet structure
  • 10" woofer with revolutionary Active Impedance Control (AIC) voice coil technology and neodymium magnetic motor structure dramatically increases force, lowers distortion and provides increased frequency response linearity
  • Proprietary top handle design for simplified handling and carrying, integrates one M10 suspension point, OmniMountTM bracket point and four M6 bracket points
  • Four additional M10 suspension points for flexible rigging and installation options

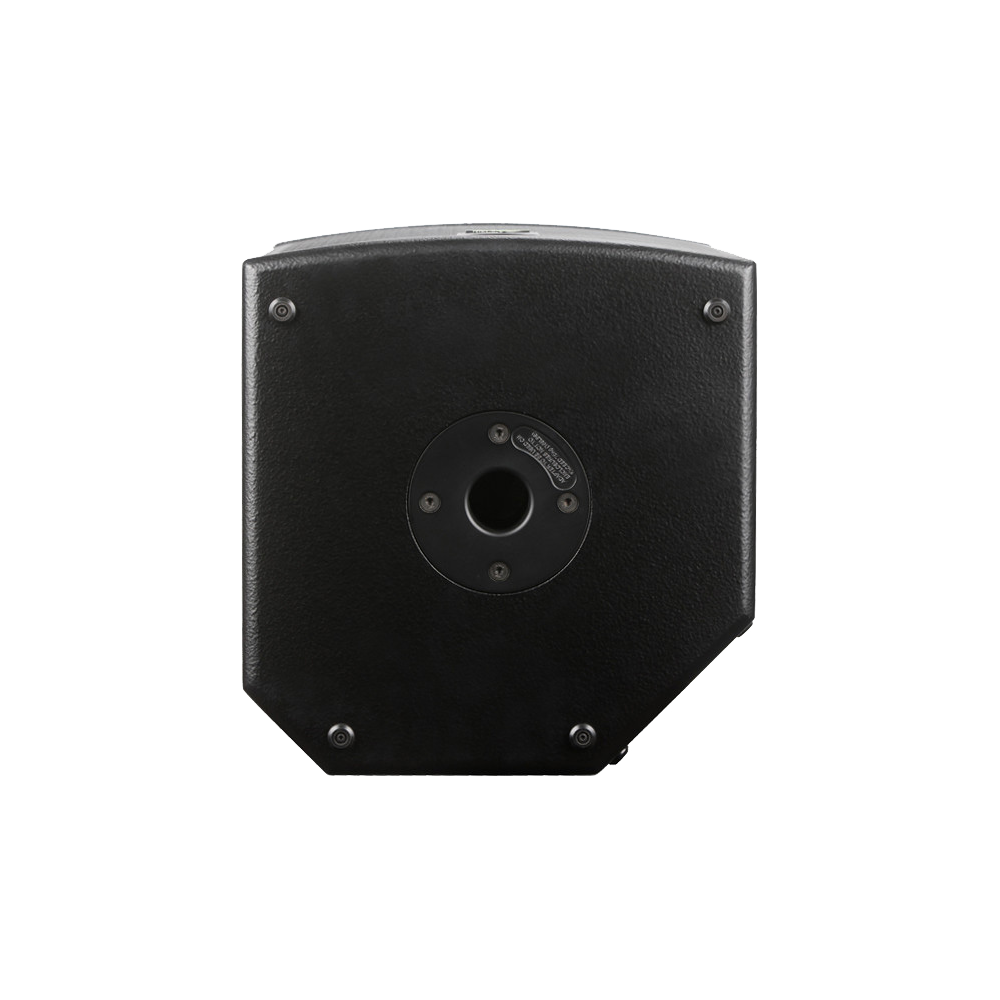

  • Top hat for pole mounting applications
  • LED indicators for signal present, limiter, thermal condition and power ON status


Applications

Specifically designed for high quality, high output multi-tasking, portable music playback and live performance in small applications

  • Full range stand-alone solution or scalable to larger capabilities with subwoofers for large conference, meetings and small to medium performance venues
  • Multi-purpose fixed installations
  • Personal monitoring
  • Infill for larger main KV2 Audio systems

Product code

  • KVV 987 097 - EX10 250V
  • KVV 987 011 - EX10 230V
  • KVV 987 012 - EX10 115V


System Acoustic Performance

Max SPL Long-term126dB
Max SPL Peak132dB
-3dB Response65Hz to 20kHz
-10dB Response55Hz to 28kHz
Crossover Point1.6kHz

High Frequency Section

Acoustic DesignHorn Loaded
High Horn Coverage Horizontal / Vertical100° x 80°
Rotatable HornYES
Throat Exit Diameter / Diaphragm Size1" / 1.75"
Diaphragm MaterialTitanium
Magnet TypeNeodymium

High Frequency Amplifier Specification

TypeClass AB Push-Pull
Rated Continuous Power50W
Distortion<0.05%
Operating Bandwidth1.6kHz to 28kHz

Low Frequency Section

Acoustic DesignFront Loaded, Bass Reflex
Woofer Size / Voice Coil Diameter / Design10" / 2.5" / Trans Coil
Diaphragm MaterialEpoxy Reinforced Cellulose
Magnet TypeNeodymium

Low Frequency Amplifier Specification

TypeHigh efficiency, Current-Enhancing, Switched-Rail Amplifier
Rated Continuous Power450W
Distortion<0.05%
Operating Bandwidth55Hz to 1.6kHz

Signal Input

Input Sensitivity0.775V RMS
Input Impedance20 kΩ

Power Requirements

Power ConnectorNeutrik PowerCon®
Operating Voltage Range100 to 120V@60Hz | 205 to 240V@50Hz | 225 to 260V@50Hz
Recommended Amperage6A 115V | 3A 230V | 3A 250V

Cabinet

Cabinet MaterialBaltic birch
Handles1
Pole Mount3 5mm
Color"Orange peeled" Matt Black or any RAL

Physical Dimensions

Height514 mm (20.23")
Width310 mm (12.20")
Depth326 mm (12.83")
Weight22 kg (48.4lbs)


Product code

  • KVV 987 097 - EX10 250V
  • KVV 987 011 - EX10 230V
  • KVV 987 012 - EX10 115V

PDF

EX Series User Guide

User Guide for EX6, EX10, EX12, EX15, EX26 and EX28 - English



PDF

EX10 Data Sheet

EX10 Data Sheet



PDF

Disarray - The correct theory of arraying KV2 boxes

Disarray - The correct theory of arraying KV2 boxes



DWG

EX10 - 3D

1:1 scale - clamping points - weight - dwg file



DWG

ESD10, EX10 Horizontal Bracket 3D DWG

ESD10, EX10 Horizontal Bracket 3D DWG



SKP

ESD10, EX10 Horizontal Bracket SKP

ESD10, EX10 Horizontal Bracket SketchUp



DWG

Top hat adapter for ESD10, ESD12, ESD36, ESD6, EX10, EX12, EX26 3D DWG

Top hat adapter for ESD10, ESD12, ESD36, ESD6, EX10, EX12, EX26 3D DWG



SKP

Top hat adapter for ESD10, ESD12, ESD36, ESD6, EX10, EX12, EX26 SKP

Top hat adapter for ESD10, ESD12, ESD36, ESD6, EX10, EX12, EX26 SketchUp



DWG

EX10 230V 3D DWG

EX10 230V 3D DWG



SKP

EX10 230V SKP

EX10 230V SketchUp



DWG

EX10 115V 3D DWG

EX10 115V 3D DWG



SKP

ESD10, EX10 Vertical Bracket SKP

ESD10, EX10 Vertical Bracket SketchUp



DWG

ESD10, EX10 Vertical Bracket 3D DWG

ESD10, EX10 Vertical Bracket 3D DWG



PDF

ESD10 / EX10 Horizontal Bracket PDF

ESD10 / EX10 Horizontal Bracket PDF



SKP

ESD10 / EX10 Horizontal Bracket SKP

ESD10 / EX10 Horizontal Bracket SKP



DWG

ESD10 / EX10 Horizontal Bracket 2D DWG

ESD10 / EX10 Horizontal Bracket 2D DWG



DWG

ESD10 / EX10 Horizontal Bracket 3D DWG

ESD10 / EX10 Horizontal Bracket 3D DWG



PDF

ESD10 / EX10 Vertical Bracket PDF

ESD10 / EX10 Vertical Bracket PDF



SKP

ESD10 / EX10 Vertical Bracket SKP

ESD10 / EX10 Vertical Bracket SKP



DWG

ESD10 / EX10 Vertical Bracket 2D DWG

ESD10 / EX10 Vertical Bracket 2D DWG



DWG

ESD10 / EX10 Vertical Bracket 3D DWG

ESD10 / EX10 Vertical Bracket 3D DWG



SKP

EX10 115V SKP

EX10 115V SketchUp



DWG

EX10 250V 3D DWG

EX10 250V 3D DWG



SKP

EX10 250V SKP

EX10 250V SketchUp



PDF

EX10 - 250V - 2D

EX10 - 250V 2D Drawing



PDF

EX10 - 230V - 2D

EX10 - 230V 2D Drawing



PDF

EX10 - 115V - 2D

EX10 - 115V 2D Drawing



DWG

EX10 Vertical Bracket 2D DWG

EX10 Vertical Bracket 2D DWG



DWG

EX10 2D DWG

EX10 2D DWG



DWG

EX10/ESD10 Horizontal Bracket 2D DWG

EX10/ESD10 Horizontal Bracket 2D DWG



DWG

EX10 Vertical Bracket 2D DWG

EX10 Vertical Bracket 2D DWG



DWG

ESD10 2D DWG

ESD10 2D DWG



SKP

EX Series SketchUp

EX Series SketchUp



SKP

EX10 Grille - fine SKP

EX10 Grille - fine SketchUp



DWG

EX10 Grille - fine 3D DWG

EX10 Grille - fine 3D DWG



SKP

EX10 Grill strong SKP

EX10 Grill strong SketchUp



DWG

EX10 Grill strong 3D DWG

EX10 Grill strong 3D DWG



GLL

EX10 - EASE data

EASE data - .GLL - description



GLL

EX10 EASE Focus

EX10 EASE Focus .gll




ESD10 / EX10 Horizontal bracket

Gallery

Product code

KVV 987 486



Description

Horizontal bracket for ESD10 / EX10



Downloads

DWG

ESD10 / EX10 Horizontal Bracket 3D DWG

ESD10 / EX10 Horizontal Bracket 3D DWG

DWG

ESD10 / EX10 Horizontal Bracket 2D DWG

ESD10 / EX10 Horizontal Bracket 2D DWG

SKP

ESD10 / EX10 Horizontal Bracket SKP

ESD10 / EX10 Horizontal Bracket SKP

PDF

ESD10 / EX10 Horizontal Bracket PDF

ESD10 / EX10 Horizontal Bracket PDF

ESD10 / EX10 Vertical Bracket

Gallery

Product code

KVV 987 485



Description

Vertical bracket for ESD10 / EX10



Downloads

DWG

ESD10 / EX10 Vertical Bracket 3D DWG

ESD10 / EX10 Vertical Bracket 3D DWG

DWG

ESD10 / EX10 Vertical Bracket 2D DWG

ESD10 / EX10 Vertical Bracket 2D DWG

SKP

ESD10 / EX10 Vertical Bracket SKP

ESD10 / EX10 Vertical Bracket SKP

PDF

ESD10 / EX10 Vertical Bracket PDF

ESD10 / EX10 Vertical Bracket PDF

EX10 Cover

Gallery

Product code

KVV 987 068



Description

- heavy duty - padded



EX10 Grill strong

Gallery

Product code

KVV 987 301



Description

- bend resistant - suitable when using EX10 as a monitor or touring



Downloads

DWG

EX10 Grill strong 3D DWG

EX10 Grill strong 3D DWG

SKP

EX10 Grill strong SKP

EX10 Grill strong SketchUp

EX10 Grille - fine

Gallery

Product code

KVV 987 330



Description

- elegant design - suitable for installations



Downloads

DWG

EX10 Grille - fine 3D DWG

EX10 Grille - fine 3D DWG

SKP

EX10 Grille - fine SKP

EX10 Grille - fine SketchUp

Speaker pole - universal

Gallery

Product code

KVV 987 130



Description

Heavy duty telescopic speakerpole
- 0,735 to 1,23 m - diameter 35 mm
- weight 2,2 kg - max. load 50 kg
- bottom terminal M20
- matte black



Downloads

SKP

Speaker pole - universal SKP

Speaker pole - universal SketchUp

Top hat adapter for ESD10, ESD12, ESD36, ESD6, EX10, EX12, EX26

Gallery

Product code

KVV 987 090



Description

- including bolts - black



Downloads

DWG

Top hat adapter for ESD10, ESD12, ESD36, ESD6, EX10, EX12, EX26 3D DWG

Top hat adapter for ESD10, ESD12, ESD36, ESD6, EX10, EX12, EX26 3D DWG

SKP

Top hat adapter for ESD10, ESD12, ESD36, ESD6, EX10, EX12, EX26 SKP

Top hat adapter for ESD10, ESD12, ESD36, ESD6, EX10, EX12, EX26 SketchUp
