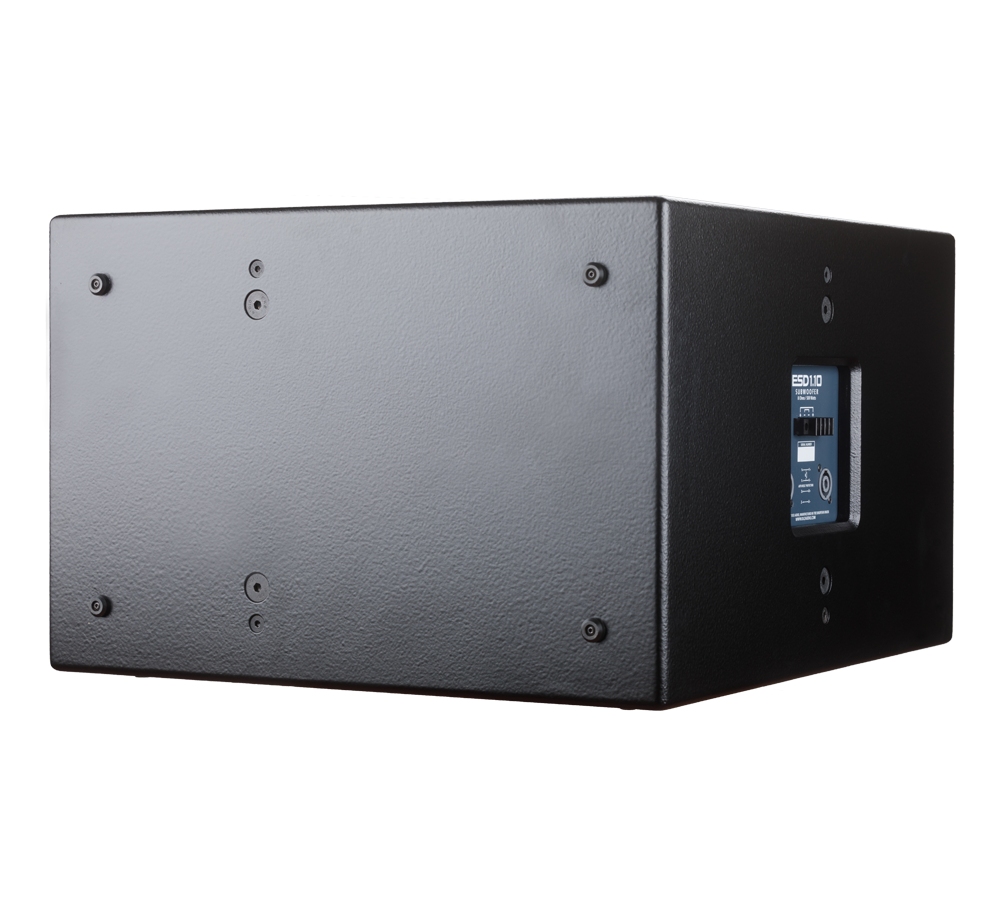

ESD1.10 Compact Passive Subwoofer

The ESD1.10 is a compact passive 10" subwoofer featuring a high quality neodymium transducer. The smallest subwoofer within the KV2 range, it has been designed to compliment the ESD Cube Ultra compact Passive loudspeaker, creating a full range system solution when partnered with the Cube and ESP1000 amplifier. With power handling of 500 watts the ESD1.10 is capable of delivering tight, fast and controlled bass response, at high output levels from a very compact cabinet and is ideal for any discreet low frequency applications alongside other KV2 Audio products.




Download Product’s Data Sheet



ESD1.10Overview

Features

  • Professional, Baltic birch construction with wear resistant polymer coating
  • 121dB sustained output, 124dB peak
  • Excellent reproduction of bass frequencies with high transient content at high output levels
  • 10" high efficiency low frequency woofer with a 3" (75 mm)
  • inside/outside, epoxy baked, high temperature, voice coil assembly and neodymium magnetic structure


Applications

Specifically designed as a passive subwoofer to accompany and compliment the ESD Cube systems, or as a standalone compact low frequency solution for space limited applications.

  • Fixed installations
  • Bars-small entertainment projects and peripheral sound
  • Museums or Theme park projects
  • Small footprint and dimensions allow placement under seating and fixtures



Product code

  • KVV 987 391 - ESD1.10



System Acoustic Performance

Max SPL Long-term121dB
Max SPL Peak124dB
-3dB Response40Hz - 150Hz
-10dB Response35Hz
Recommended Power500W
Sensitivity94dB
Impedance
Crossover Point150Hz

Low Frequency Section

Acoustic DesignTwin Asymetrical Loading
Number of Drivers1
Woofer Size / Voice Coil Diameter / Design10" / 3" / Inside outside
Magnet TypeNeodymium
Diaphragm MaterialEpoxy Reinforced Cellulose
ProtectionThermal breaker - autoreset

Speaker Input

Speaker Input 2x Neutrik Speakon®, Terminal Block

Cabinet

Cabinet MaterialBaltic birch
Handles1
Pole MountM20
Color"Orange peeled" Matt Black or any RAL

Physical Dimensions

Height335 mm (13.2")
Width530 mm (20.9")
Depth500 mm (19.7")
Weight21,3 kg (46.96 lbs)


Product code

  • KVV 987 391 - ESD1.10


PDF

ESD Subwoofers User Guide

ESD Subwoofers User Manual - rev. 9



PDF

ESD1.10 2D drawing

ESD1.10 2D drawing



PDF

The ESD Cube System Brochure

The ESD Cube System Brochure including ESD1.10 and ESP1000.
