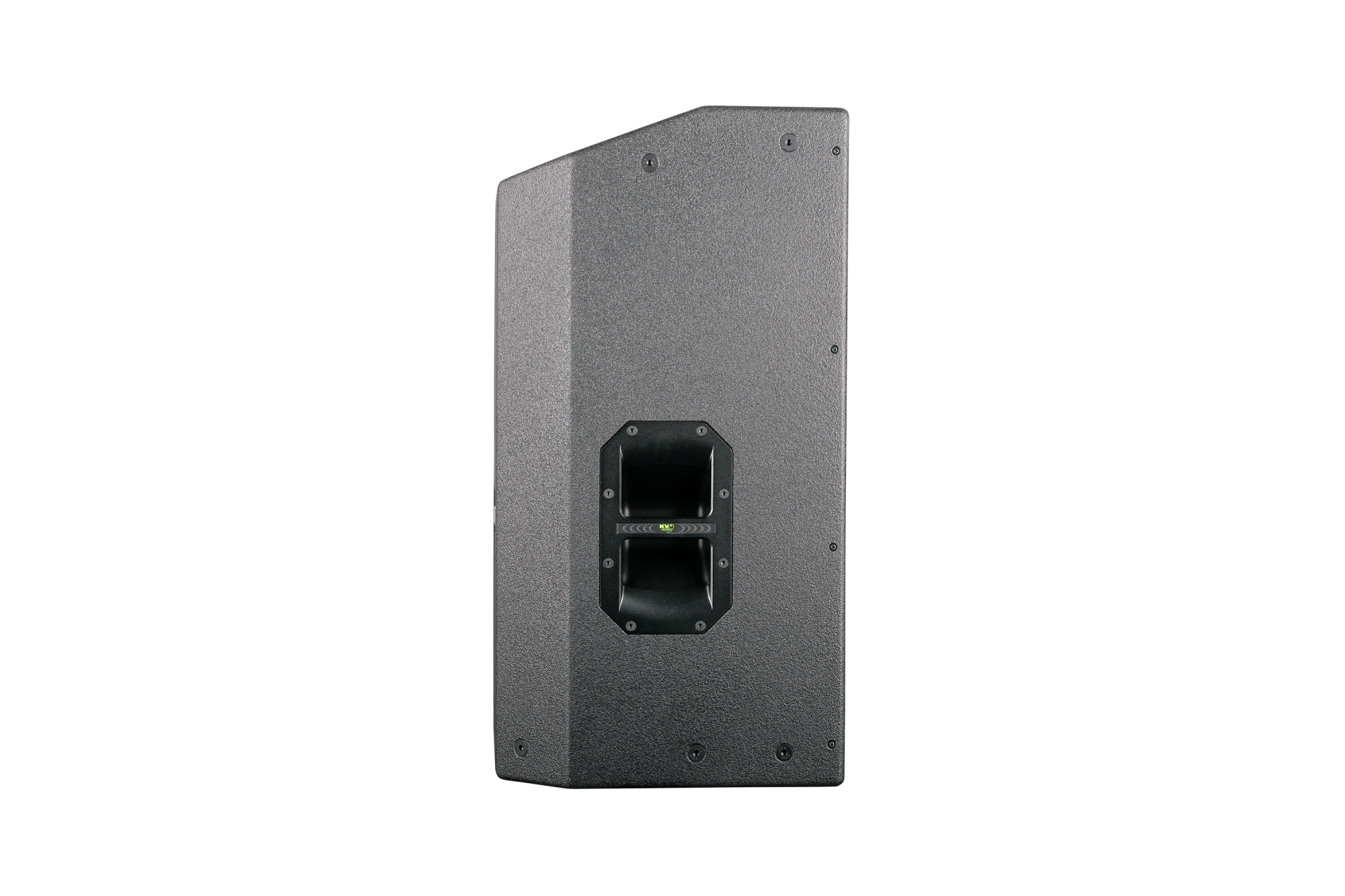

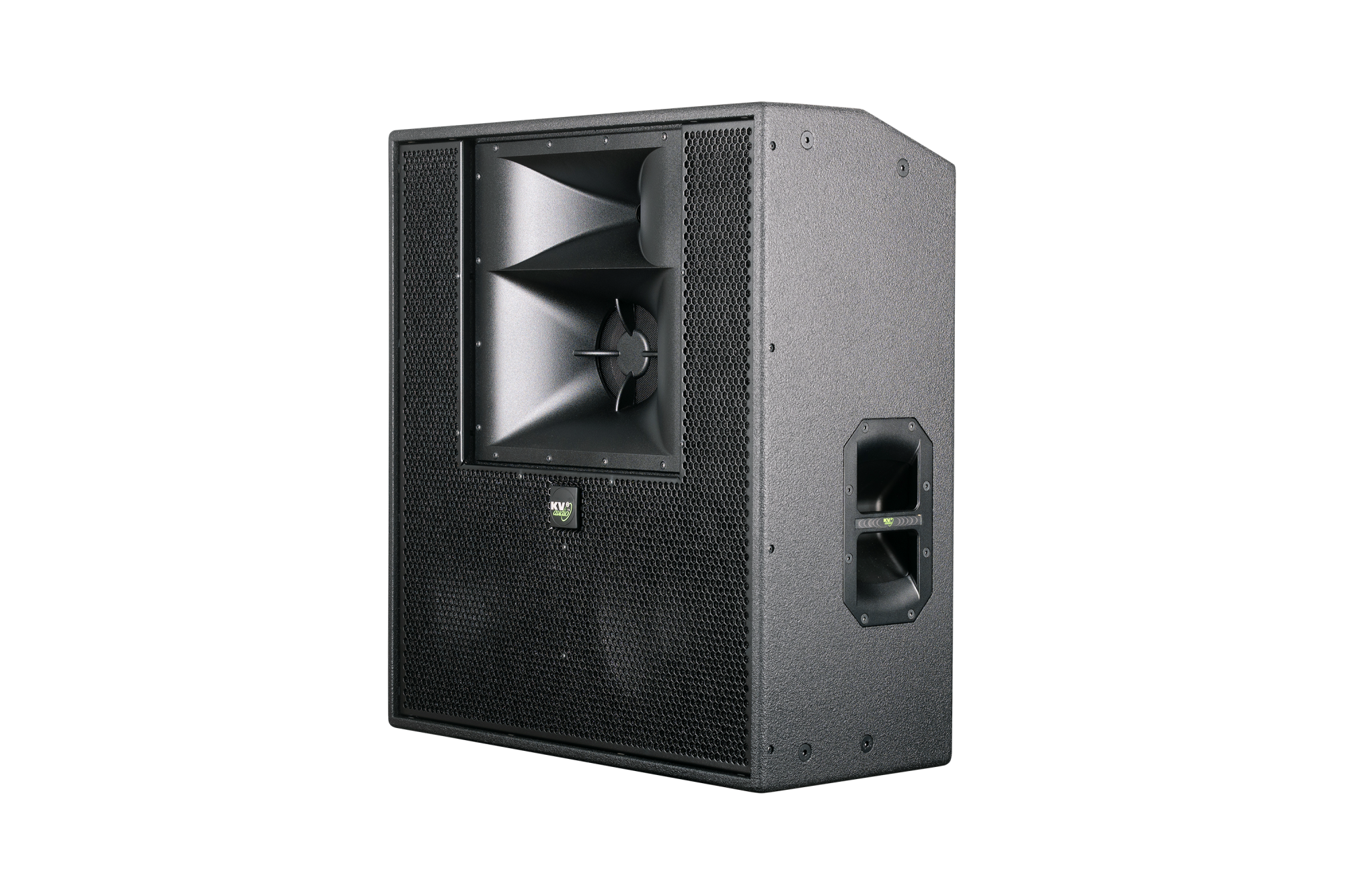

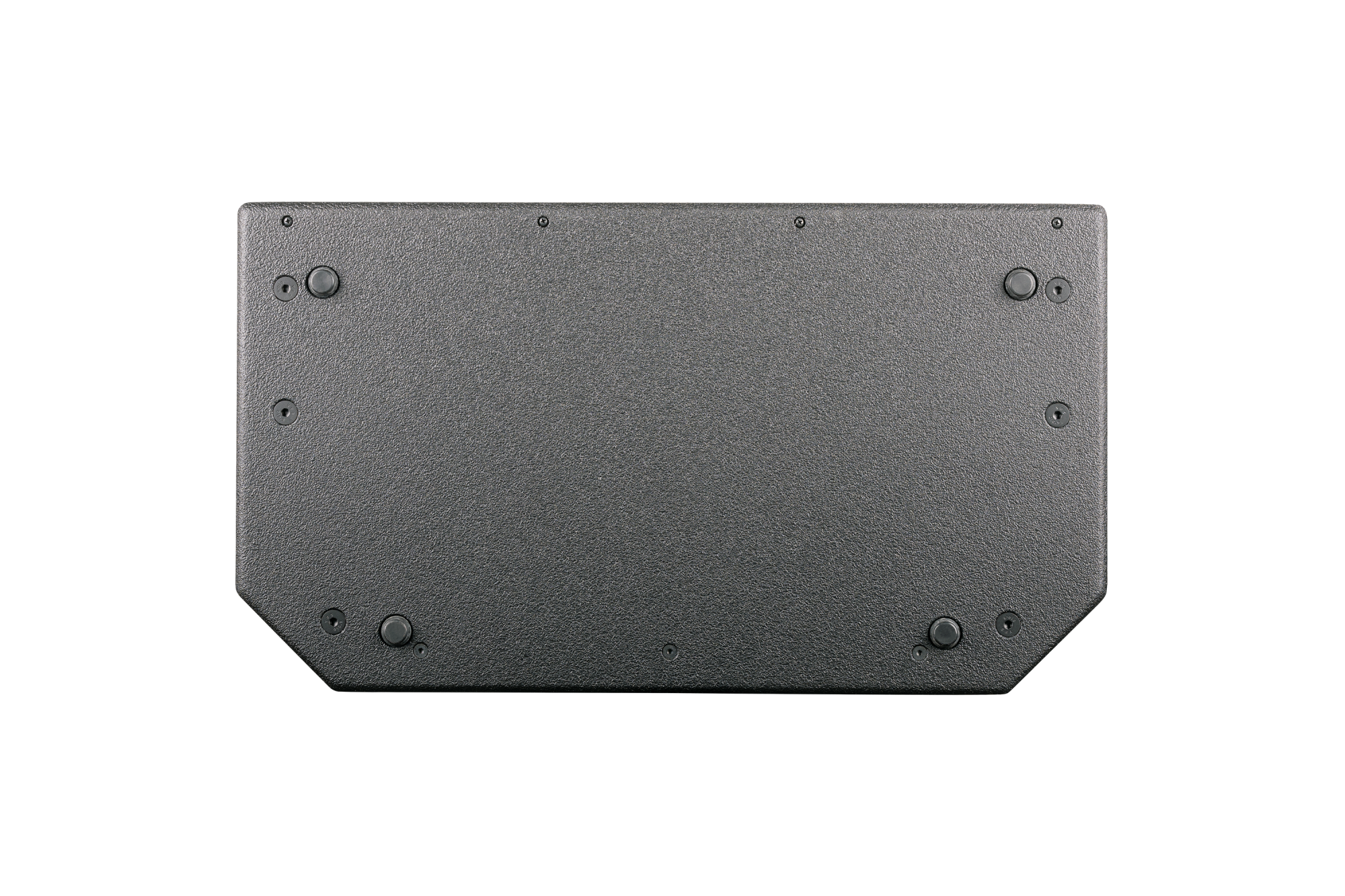

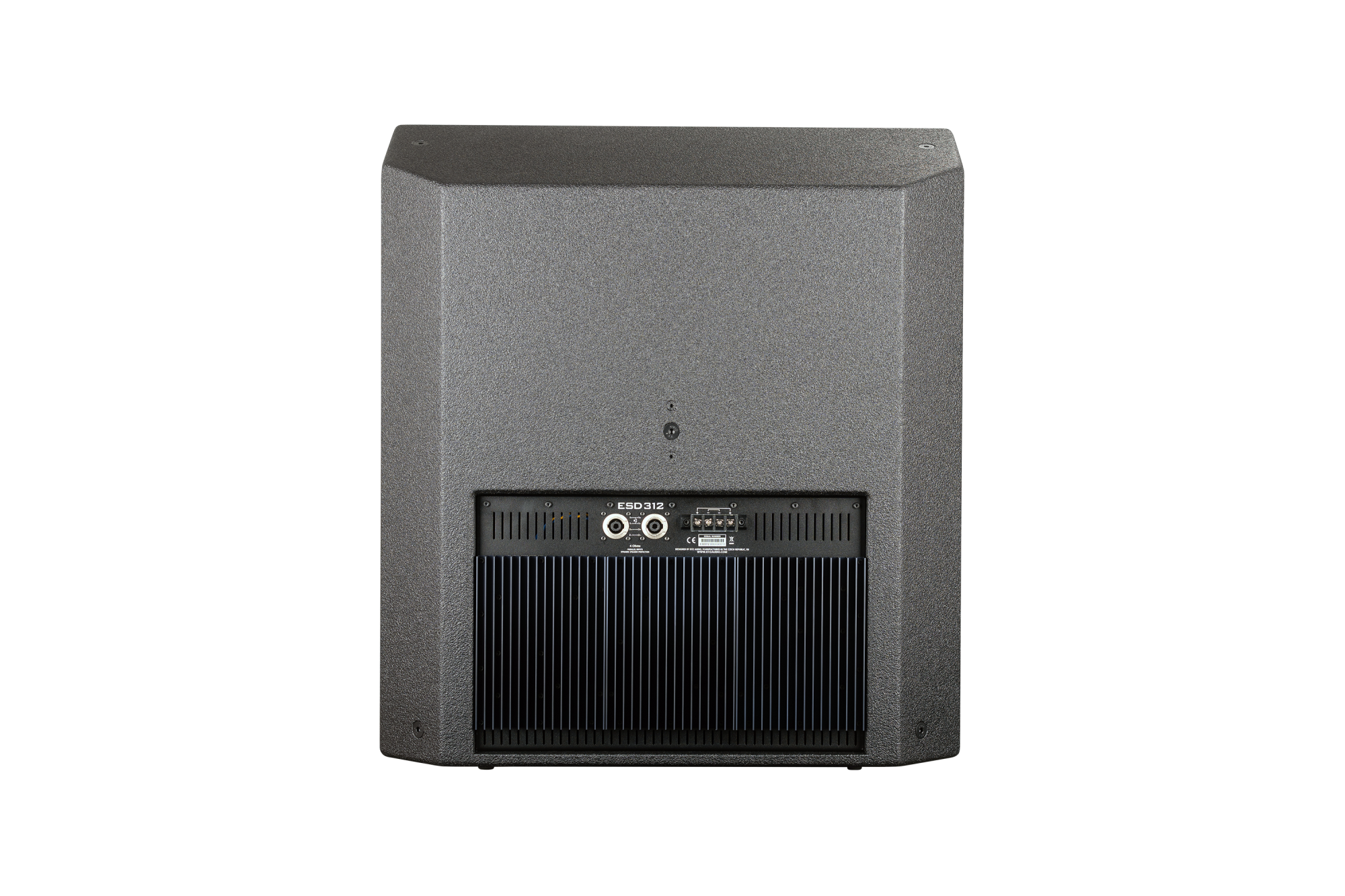

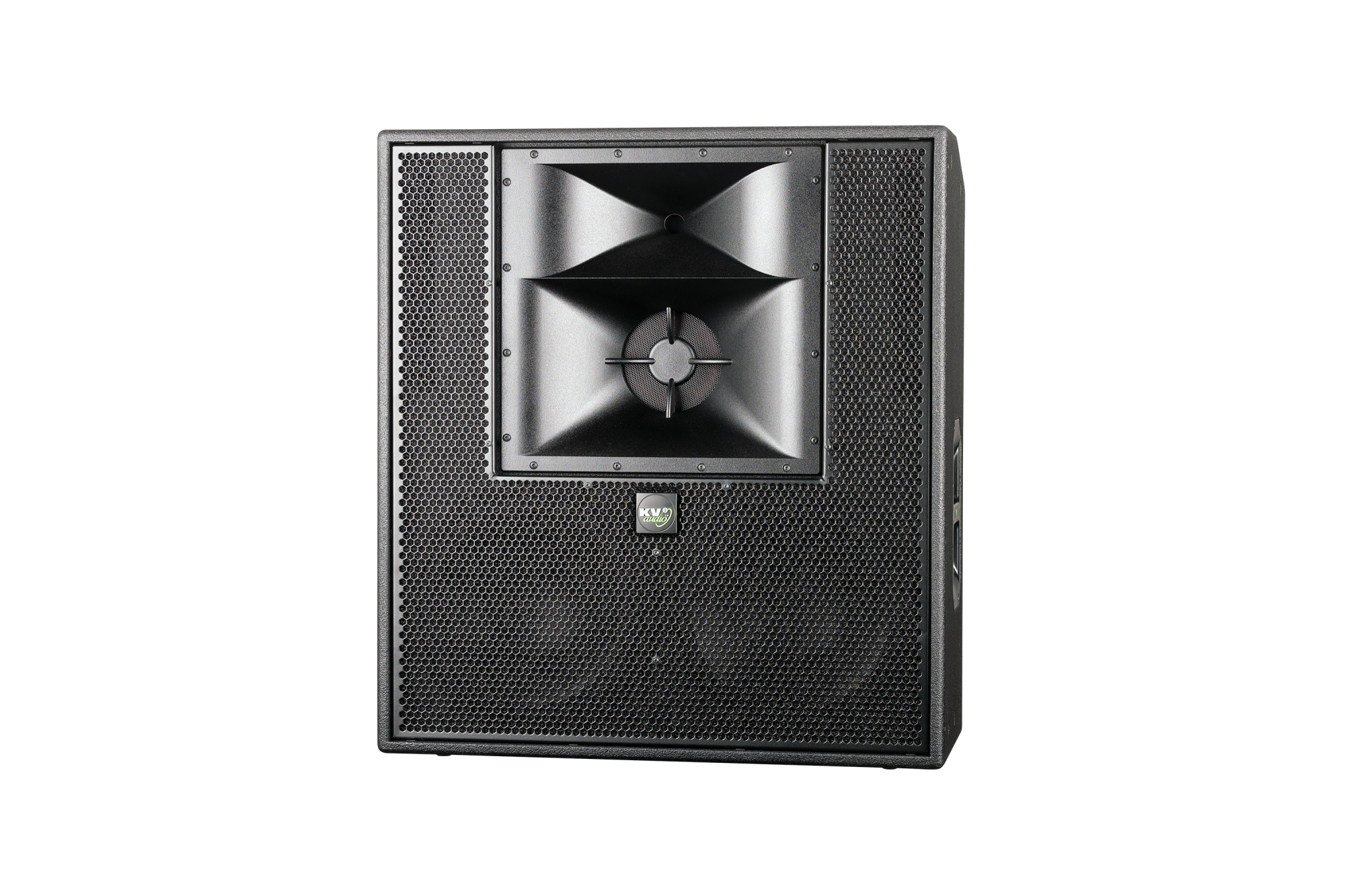

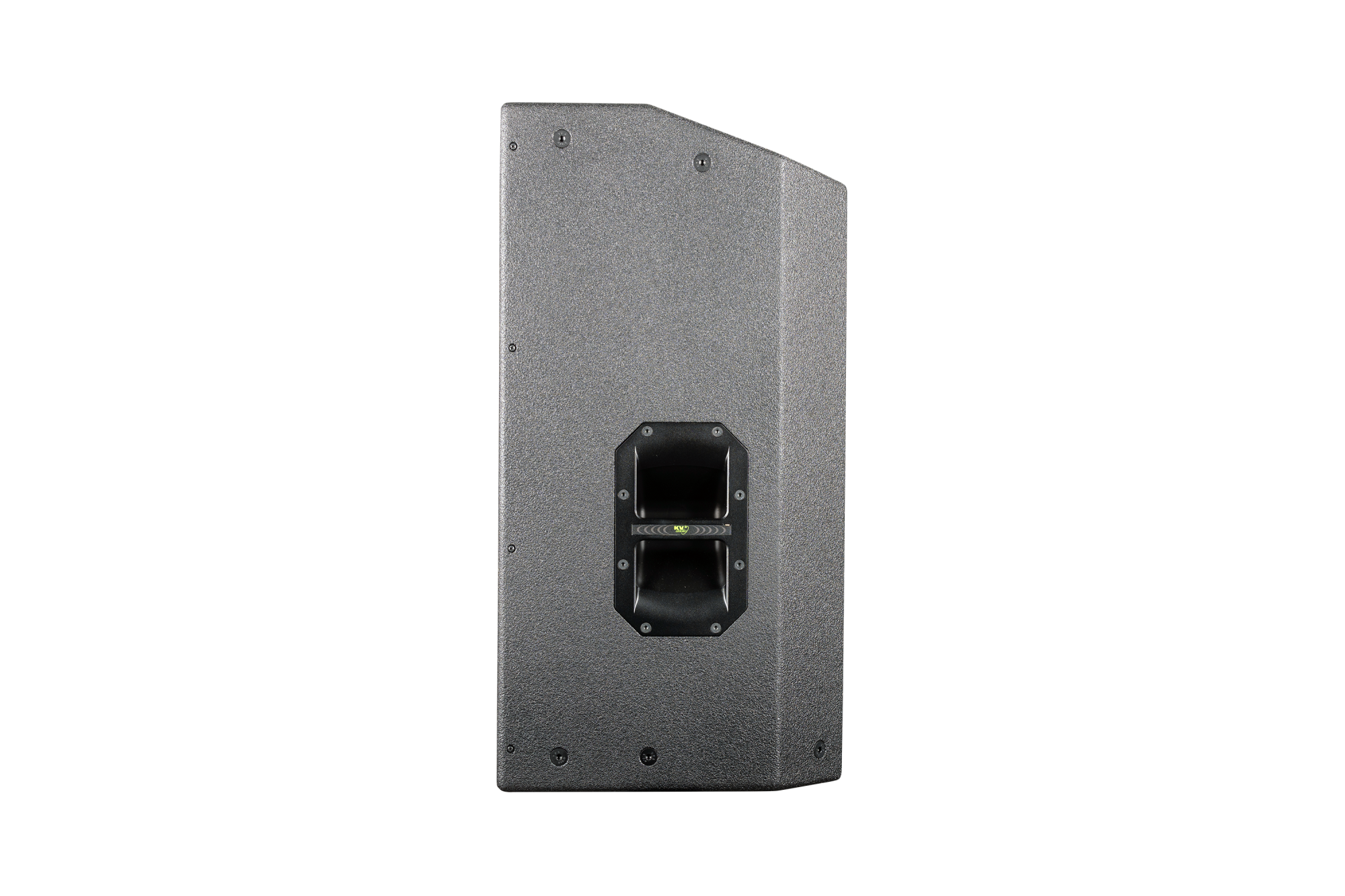

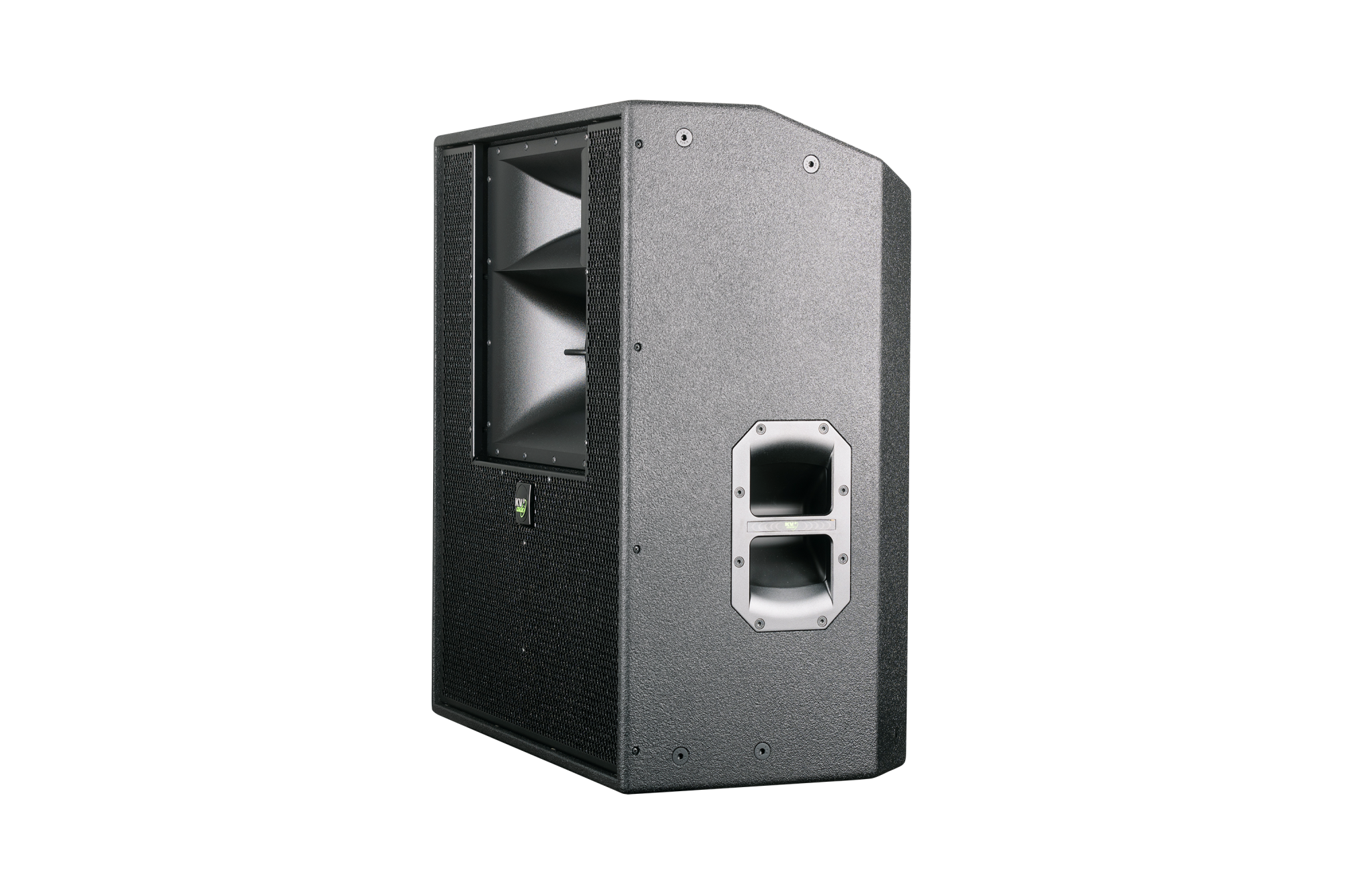

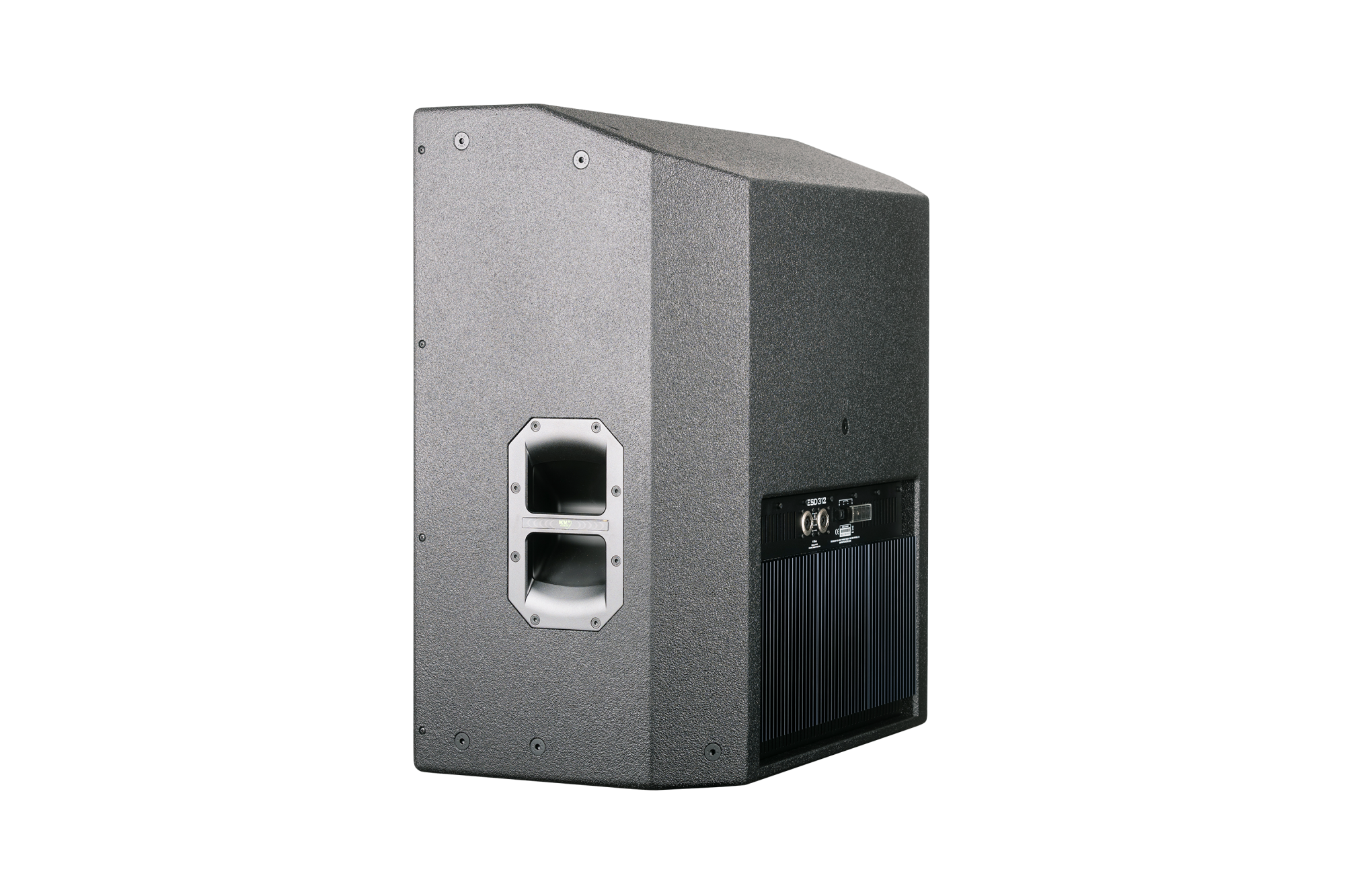

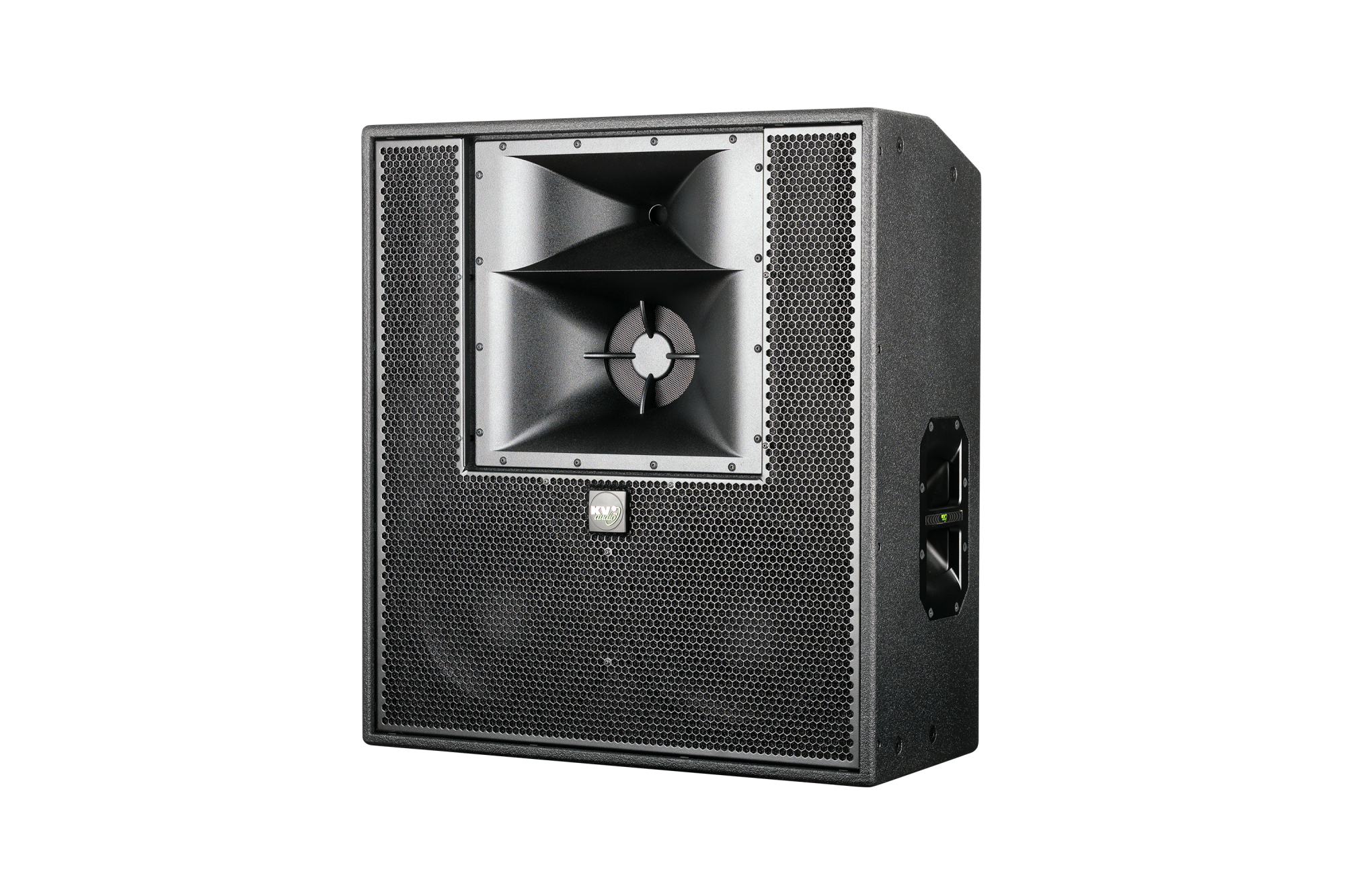

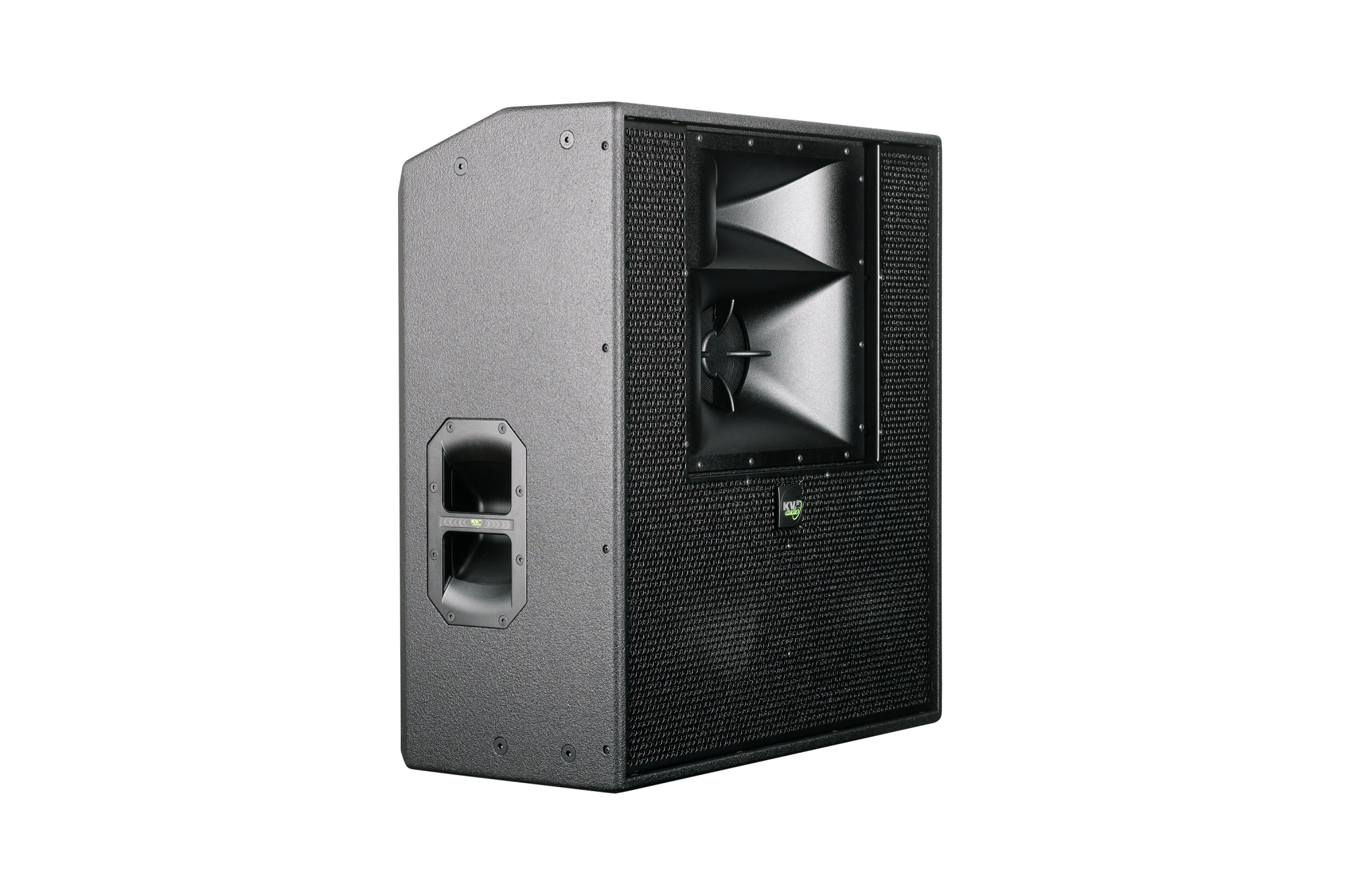

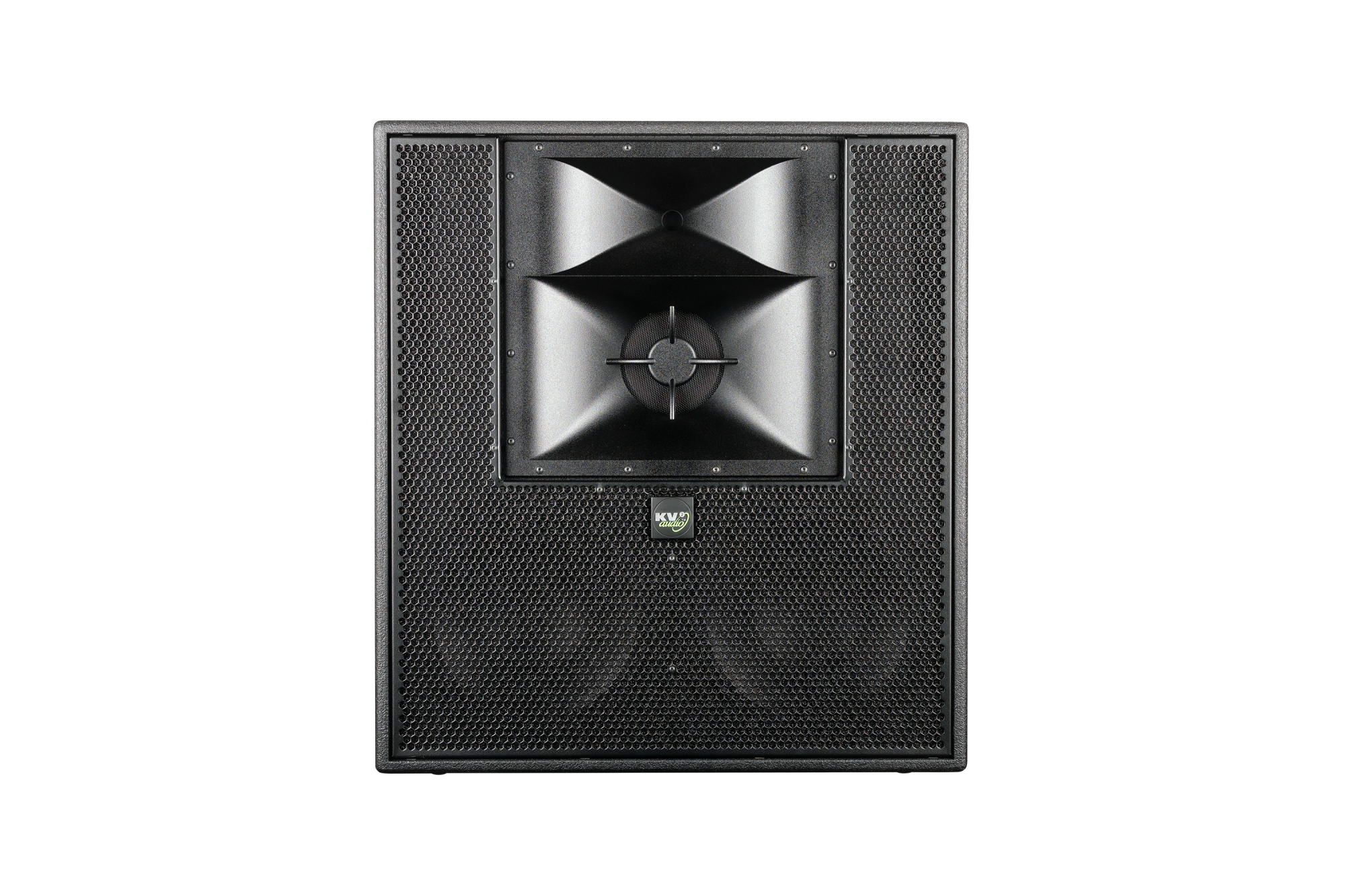

ESD312 - 3-Way Passive Speaker

The ESD312 is a very high output full-range 3-way, passive solution with two bass reflex loaded 12“ woofers, a single horn loaded 6“ mid range and a 1“ compression driver. Housed in a professional robust Baltic Birch cabinet, with a protective polymer paint coating and heavy-duty grille, the ESD312 can be a dedicated close-field DJ Monitor system when used in conjunction with the VHD2.18J Subwoofer and monitor bracket. It can also be applied as a PA system, as an individual full range speaker or as a fill speaker to accompany larger format VHD systems. For added versatility in installation, the ESD312 is supported by dedicated accessories including a vertical bracket enabling a wide range of mounting and deployment options for hanging.

ESD312 Technical Data Sheet

Features

Professional, Baltic Birch construction with wear resistant polymer paint coating
133dB sustained output, 139dB peak
Very high dynamic range
Compact, slim design cabinet
Requires one single amplifier channel
Revolutionary passive delay line technology
90° H x 40° V horn
State of the art 1” compression driver with complex geometry phase plug and neodymium magnetic structure for higher output, exceptionally low distortion and extended frequency response
2x12” neodymium woofers providing low distortion and very high output
Gradual RMS speaker protection

Applications

Specifically designed as an extremely high power passive 3-way solution for:

Live performance
Dj booth monitoring
Portable PA and fill
Fixed Installations

Product code

KVV 987 544

System Acoustic Performance

Max SPL Long-term	133dB
Max SPL Peak	139dB
-3dB Response	57Hz to 20kHz
-10dB Response	40Hz to 20kHz
Recommended Power	1000W
Sensitivity	100dB
Impedance	4Ω
Crossover Point	400Hz; 2kHz

High Frequency Section

Acoustic Design	Horn Loaded
Horn Coverage Horizontal / Vertical	90° x 40°
Throat Exit Diameter / Diaphragm Size	1“ / 1,75“
Diaphragm Material	Titanium
Magnet Type	Neodymium
Protection	RMS limiter

Mid Range Section

Acoustic Design	Horn Loaded
Horn Coverage Horizontal / Vertical	90° x 40°
Woofer Size / Voice Coil Diameter	6“ / 1,75“
Diaphragm Material	Epoxy Reinforced Cellulose
Magnet Type	Neodymium
Protection	RMS Limiter

Low Frequency Section

Acoustic Design	Front Loaded, Bass Reflex
Woofer Size / Voice Coil Diameter	12“ / 3“
Magnet Type	Neodymium
Diaphragm Material	Epoxy Reinforced Cellulose
Protection	RMS Limiter
