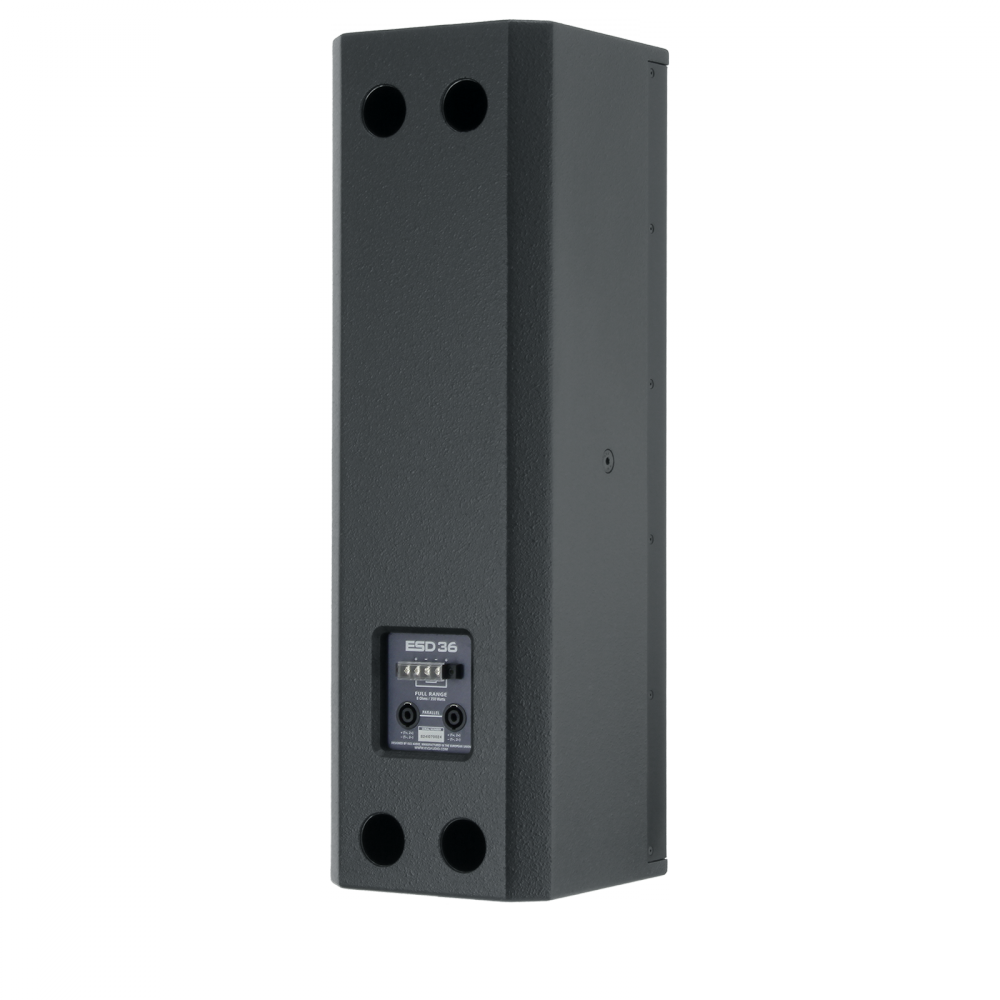

ESD36 - 3-way Passive speaker

One of the more unique loudspeakers offered by KV2 Audio the ESD36 is a passive, full-range 3-way speaker system for speech and music reproduction. The ESD36 features a 6" driver dedicated to high quality mid-range reproduction and a further two low frequency 6" drivers for enhanced bass extension. Alongside the same compression driver as featured in the popular EX6, the ESD36 offers comparable performance to many 12" cabinets with an enhanced vocal performance from this 3-way design.

Watch the product video

ESD36 Technical Data Sheet

Applications

Specifically designed as a passive loudspeaker for reproduction of recorded music in small areas

  • Suitable in Fixed installations as full range stand-alone or with subwoofers
  • Multi-purpose fixed installations
  • Domestic and Professional studio monitoring

Product code

  • KVV 987 224 - ESD36


Features

  • Professional, Baltic birch construction with wear resistant polymer coating
  • 122dB sustained output, 125dB peak with very high dynamic range
  • Compact, asymmetrical cabinet design allows for use as front fill or in under balcony applications
  • Wide dispersion 100° H x 100° V horn
  • Revolutionary new passive delay line
  • 1.75" (44 mm) Nitride Titanium diaphragm compression driver with complex geometry phase plug for higher output, exceptionally low distortion, extended frequency response and neodymium magnetic motor structure
  • 6" Low Inductance Lightweight mid-range dedicated to high-quality vocal reproduction
  • 2 x Low Inductance Lightweight low frequency woofers offer enhanced bass performance
  • Proprietary top handle design for simplified handling and carrying, integrates one M10 suspension point, OmnimountTM bracket point and four M6 points
  • Additional side and bottom M10 points for flexible bracket, rigging and installation options
  • "Top-hat" pole mount fitted at the base of the cabinet


Applications

Specifically designed as a passive loudspeaker for reproduction of recorded music in small areas

  • Suitable in Fixed installations as full range stand-alone or with subwoofers
  • Multi-purpose fixed installations
  • Domestic and Professional studio monitoring

Product code

  • KVV 987 224 - ESD36


System Acoustic Performance

Max SPL Long-term122dB
Max SPL Peak128dB
-3dB Response65Hz to 25kHz
-10dB Response57Hz to 30kHz
Recommended Power350W
Sensitivity94dB
Impedance
Crossover Point600Hz, 2.5kHz

High Frequency Section

Acoustic DesignHorn Loaded
High Horn Coverage Horizontal / Vertical100° x 100°
Throat Exit Diameter / Diaphragm Size1" / 1.75"
Diaphragm MaterialNitride Titanium
Magnet TypeNeodymium
ProtectionRMS Limiter

Mid Range Section

Acoustic DesignSealed enclosure
Woofer Size / Voice Coil Diameter / Design6" / 1.75"
Diaphragm MaterialEpoxy Reinforced Cellulose
Magnet TypeNeodymium
ProtectionRMS Limiter

Low Frequency Section

Acoustic DesignFront Loaded, Bass Reflex
Woofer Size / Voice Coil Diameter / Design2 x 6" / 1.75"
Diaphragm MaterialEpoxy Reinforced Cellulose
Magnet TypeNeodymium
ProtectionRMS Limiter

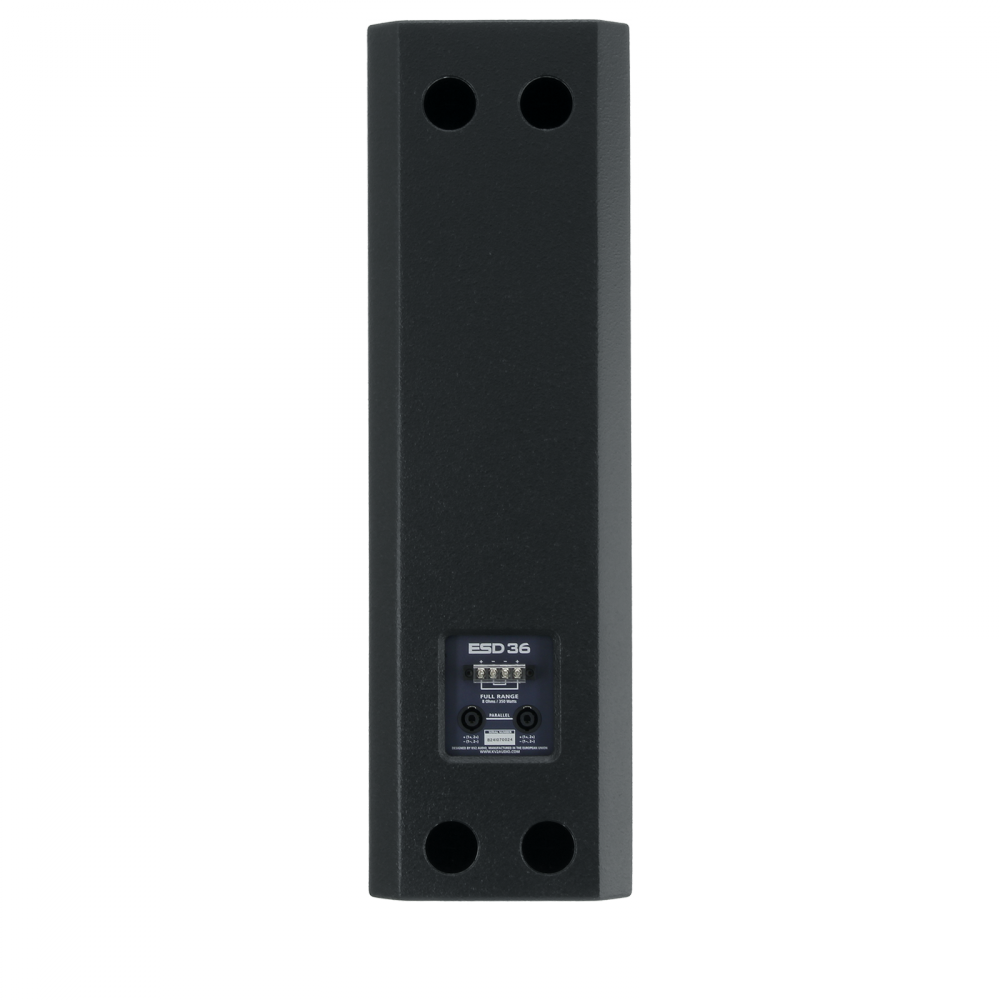

Speaker Input

Speaker Input 2x Neutrik Speakon®, Terminal Block

Cabinet

Cabinet MaterialBaltic birch
Handles1
Pole Mount35 mm
Color"Orange peeled" Matt Black or any RAL

Physical Dimensions

Height730.5 mm (28.76")
Width220 mm (8.66")
Depth244 mm (9.60")
Weight17.6 kg (38.8lbs)


Product code

  • KVV 987 224 - ESD36

PDF

ESD36 Data Sheet

ESD36 Data Sheet



PDF

ESD Series User Guide

ESD Series User Guide - rev 18



DWG

ESD36 - 3D

1:1 scale - clamping points - weight - dwg file



SKP

Top hat adapter for ESD10, ESD12, ESD36, ESD6, EX10, EX12, EX26 SKP

Top hat adapter for ESD10, ESD12, ESD36, ESD6, EX10, EX12, EX26 SketchUp



DWG

ESD36 3D DWG

ESD36 3D DWG



SKP

ESD36 SKP

ESD36 SketchUp



DWG

ESD36 Vertical Bracket 3D DWG

Vertical Bracket for ESD36 3D DWG



SKP

ESD36 Vertical Bracket 3D SKP

Vertical Bracket for ESD36 3D SKP



DWG

ESD36 Horizontal Bracket 3D DWG

Horizontal Bracket for ESD36 3D DWG



SKP

ESD36 Horizontal Bracket 3D SKP

Horizontal Bracket for ESD36 3D SKP



DWG

ESD36 Horizontal Bracket 2D DWG

Horizontal Bracket for ESD36 2D DWG



DWG

ESD36 Vertical Bracket 2D DWG

Vertical Bracket for ESD36 2D DWG



DWG

ESD36 2D DWG

ESD36 2D DWG



SKP

ESD Series SketchUp

ESD Series SketchUp - all boxes and accessories



PDF

ESD36 - 2D

ESD36 2D Drawings



DWG

Top hat adapter for ESD10, ESD12, ESD36, ESD6, EX10, EX12, EX26 3D DWG

Top hat adapter for ESD10, ESD12, ESD36, ESD6, EX10, EX12, EX26 3D DWG



GLL

ESD36 - EASE data

EASE data - .GLL - description



GLL

ESD36 EASE Focus

ESD36 EASE Focus





Speakon speaker cable 4.15

Gallery

Product code

KVV 987 326



Description

- 4 wire speaker cable - Speakon NL4 connectors - 1,5m (5ft) - for ESM, ESD speakers - for K-RIG Bass Module hook-up



Speakon speaker cable 4.40

Gallery

Product code

KVV 987 327



Description

- 4 wire speaker cable - Speakon NL4 connectors - 4m (13ft) - for ESM, ESD speakers - for K-RIG Bass Module hook-up



Speakon speaker cable 4.40

Gallery

Product code

KVV 987 327



Description

- 4 wire speaker cable - Speakon NL4 connectors - 4m (13ft) - for ESM, ESD speakers - for K-RIG Bass Module hook-up



ESD36 Cover

Gallery

Product code

KVV 987 260



Description

- heavy duty - padded



ESD36 Horizontal bracket

Gallery

Product code

KVV 987 490



Description

Horizontal bracket for ESD36
- including two connection bolts and bracket - black



Downloads

DWG

ESD36 Horizontal Bracket 2D DWG

Horizontal Bracket for ESD36 2D DWG

DWG

ESD36 Horizontal Bracket 3D DWG

Horizontal Bracket for ESD36 3D DWG

SKP

ESD36 Horizontal Bracket 3D SKP

Horizontal Bracket for ESD36 3D SKP

ESD36 Vertical bracket

Gallery

Product code

KVV 987 489



Description

Vertical bracket for ESD36
- including two connection bolts - black



Downloads

DWG

ESD36 Vertical Bracket 2D DWG

Vertical Bracket for ESD36 2D DWG

DWG

ESD36 Vertical Bracket 3D DWG

Vertical Bracket for ESD36 3D DWG

SKP

ESD36 Vertical Bracket 3D SKP

Vertical Bracket for ESD36 3D SKP

Speaker pole - universal

Gallery

Product code

KVV 987 130



Description

Heavy duty telescopic speakerpole
- 0,735 to 1,23 m - diameter 35 mm
- weight 2,2 kg - max. load 50 kg
- bottom terminal M20
- matte black



Downloads

SKP

Speaker pole - universal SKP

Speaker pole - universal SketchUp

Top hat adapter for ESD10, ESD12, ESD36, ESD6, EX10, EX12, EX26

Gallery

Product code

KVV 987 090



Description

- including bolts - black



Downloads

DWG

Top hat adapter for ESD10, ESD12, ESD36, ESD6, EX10, EX12, EX26 3D DWG

Top hat adapter for ESD10, ESD12, ESD36, ESD6, EX10, EX12, EX26 3D DWG

SKP

Top hat adapter for ESD10, ESD12, ESD36, ESD6, EX10, EX12, EX26 SKP

Top hat adapter for ESD10, ESD12, ESD36, ESD6, EX10, EX12, EX26 SketchUp
