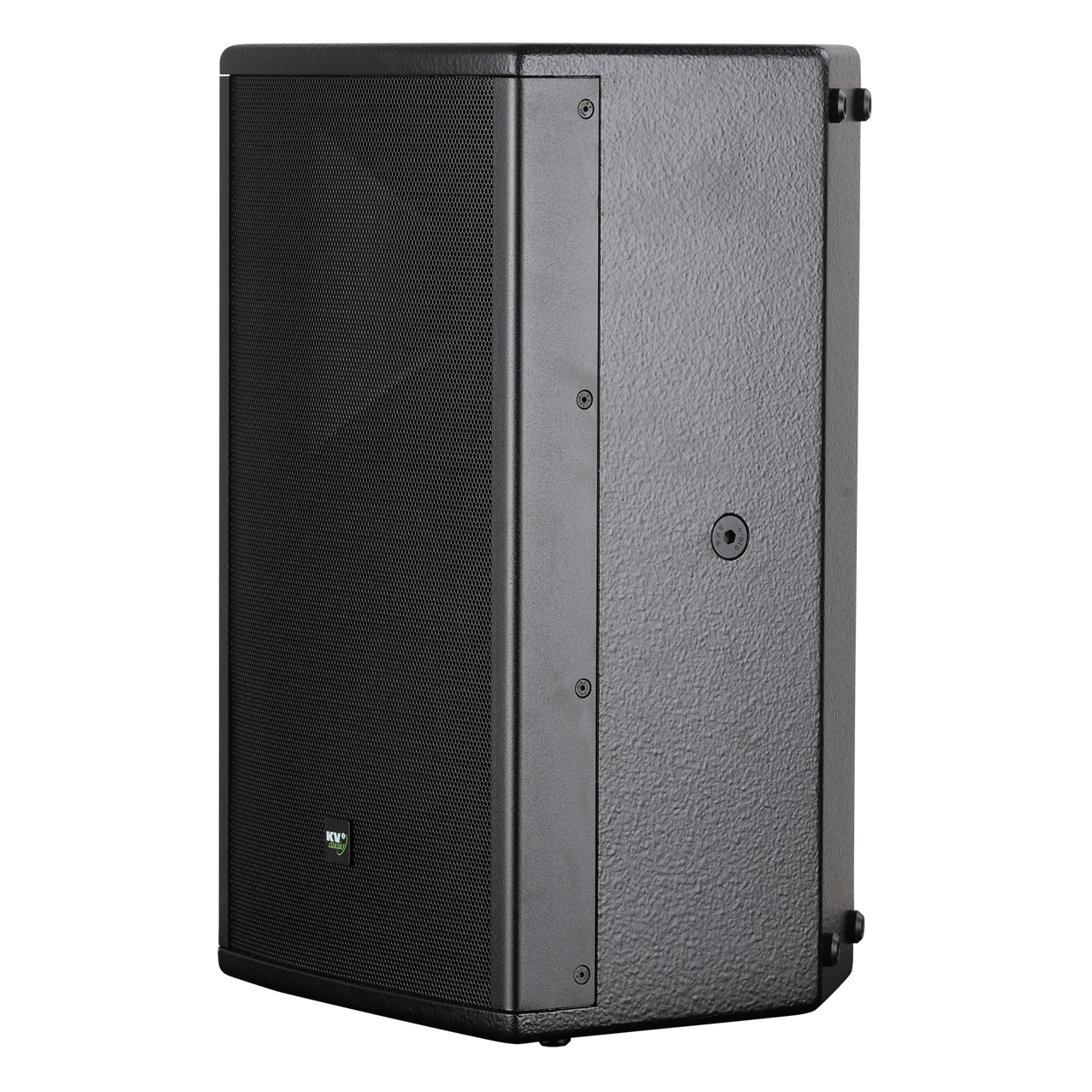

ESD8 - 2 way passive speaker

The ESD8 is a compact passive 2-way, high output full-range loudspeaker incorporating an 8" trans-coil woofer and a 1” compression driver coupled to a wide dispersion horn. Presented conservatively in a unique angled low-profile Baltic birch enclosure and designed to present exceptional speech and music definition, the ESD8 provides a smooth hi fidelity response and delivers a natural sound quality and level that is superior to many larger competing products. Ideal as a main system speaker or as a in-fill for larger systems, the flexible ESD8 can be applied quickly and efficiently on podiums, stands or suspended.

ESD8 Technical Data Sheet

Features

  • Professional Baltic birch construction with unique angles for flexible use
  • Extremely hard-wearing textured plastic paint
  • Compact enclosure allows discreet placement and application
  • Wide dispersion 100 H x 100 V Horn
  • KV2 Audio SLA technology passive crossover inc. thermal breaker protection
  • 1”/ 1,75” Titanium diaphragm compression driver
  • 8” Neodymium low mid woofer


Applications

Purpose designed as a discreet portable passive loudspeaker for speech and music content

  • Corporate presentations and functions
  • Full range performance with addition of subwoofers
  • Infills
  • Close monitoring
  • Fixed installations

Product code

KVV 987 423



System Acoustic Performance

Max SPL Long-term121dB
Max SPL Peak127dB
-3dB Response80Hz to 20kHz
-10dB Response62Hz to 28kHz
Recommended Power275W
Sensitivity94dB
Impedance
Crossover Point2.2kHz

High Frequency Section

Acoustic DesignHorn Loaded
High Horn Coverage Horizontal / Vertical100° x 100°
Rotatable HornSymmetric
Throat Exit Diameter / Diaphragm Size1" / 1.75"
Diaphragm MaterialTitanium
Magnet TypeNeodymium
ProtectionRMS Limiter

Low Frequency Section

Acoustic DesignFront Loaded, Bass Reflex
Number of Drivers1
Woofer Size / Voice Coil Diameter / Design8" / 2" / Trans coil
Diaphragm MaterialEpoxy Reinforced Cellulose
Magnet TypeNeodymium
ProtectionThermal breaker - auto reset

Speaker Input

Speaker Input 2x Neutrik Speakon®, Terminal Block

Cabinet

Cabinet MaterialBaltic birch
Handles1
Color"Orange peeled" Matt Black or any RAL

Physical Dimensions

Height456 mm (17.95")
Width260 mm (10.23")
Depth260 mm (10.23")
Weight13 kg (28.6lbs)


Product code

KVV 987 423


PDF

ESD8 User Guide

ESD8 User Guide


DWG

ESD8 3D DWG

ESD8 3D DWG


DWG

ESD8 2D DWG

ESD8 2D DWG


SKP

ESD8 3D SKP

ESD8 3D SKP


DWG

ESD8 Vertical Bracket 3D DWG

ESD8 Vertical Bracket 3D DWG


DWG

ESD8 Vertical Bracket 2D DWG

ESD8 Vertical Bracket 2D DWG


SKP

ESD8 Vertical Bracket 3D SKP

ESD8 Vertical Bracket SKP


DWG

ESD8 Horizontal Bracket 3D DWG

ESD8 Horizontal Bracket 3D DWG


DWG

ESD8 Horizontal Bracket 2D DWG

ESD8 Horizontal Bracket 2D DWG


SKP

ESD8 Horizontal Bracket 3D SKP

ESD8 Horizontal Bracket SKP


GLL

ESD8 - EASE data

ESD8 - EASE data (.gll)





ESD8 Horizontal Bracket

Gallery

Product code

KVV 987 422



Description

Horizontal bracket for ESD8


Downloads

DWG

ESD8 Horizontal Bracket 3D DWG

ESD8 Horizontal Bracket 3D DWG
DWG

ESD8 Horizontal Bracket 2D DWG

ESD8 Horizontal Bracket 2D DWG
SKP

ESD8 Horizontal Bracket 3D SKP

ESD8 Horizontal Bracket SKP

ESD8 Vertical Bracket

Gallery

Product code

KVV 987 421



Description

Vertical bracket for ESD8


Downloads

DWG

ESD8 Vertical Bracket 3D DWG

ESD8 Vertical Bracket 3D DWG
DWG

ESD8 Vertical Bracket 2D DWG

ESD8 Vertical Bracket 2D DWG
SKP

ESD8 Vertical Bracket 3D SKP

ESD8 Vertical Bracket SKP
