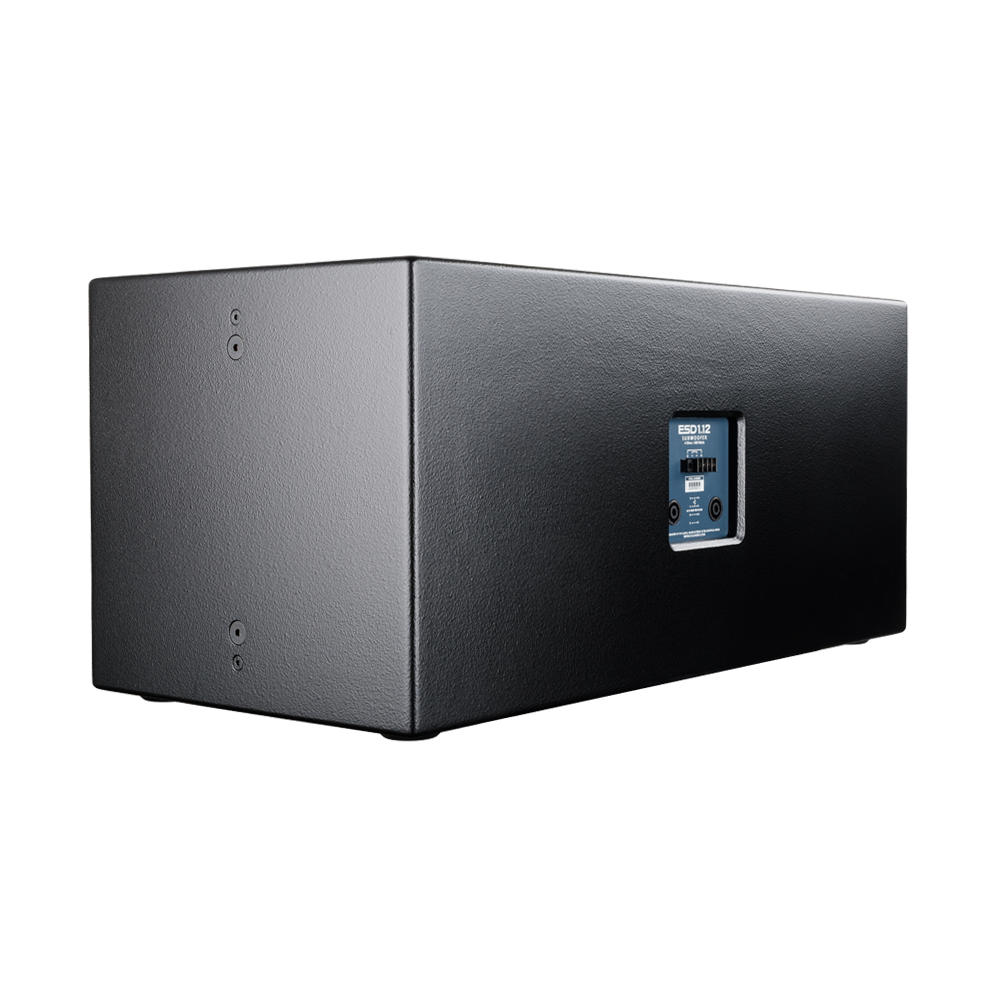

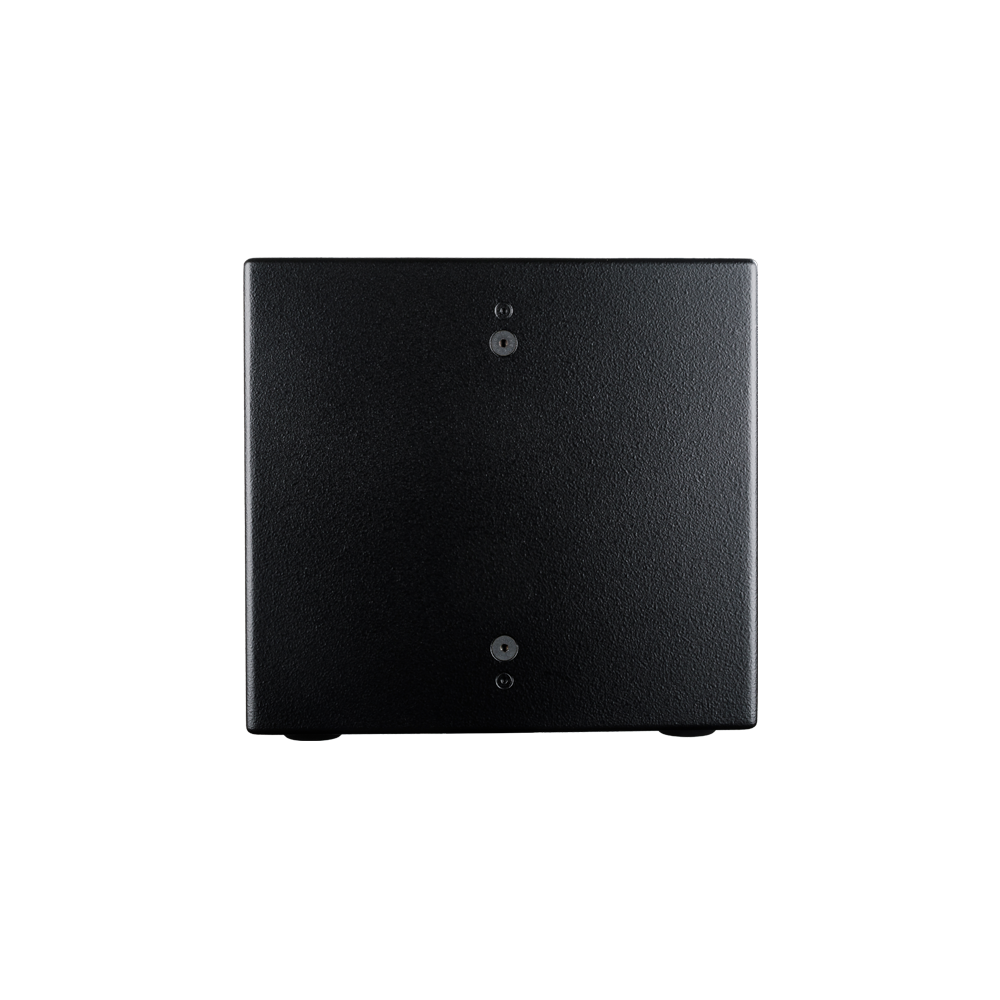

ESD1.12 - Compact Passive Subwoofer

The ESD1.12 is a passive version of the active EX1.2 12" subwoofer and features the same high quality ferrite woofer. This subwoofer’s low profile and size makes it ideal for discreet applications. With power handling of 600 watts the ESD1.12 is capable of delivering tight, fast, controlled bass response at high output levels from a compact cabinet.

Watch the product video



ESD1.12 Technical Data Sheet




Applications

Specifically designed as a passive subwoofer to accompany and compliment the ESD5/6 as a true full range system

  • For fixed installation
  • Bars-small entertainment projects
  • Small footprint and dimensions allow placement under seating and fixtures


Product code

KVV 987 225 - ESD1.12




Features

  • Professional, Baltic birch construction with wear resistant polymer coating
  • 124dB sustained output, 127dB peak
  • Excellent reproduction of bass frequencies with high transient content at high output levels
  • 12" high output, low frequency driver with 3" (75 mm) inside/outside, epoxy baked, high temperature, voice coil assembly and ferrite magnetic structures
  • Two recessed side handles for simplified handling and carrying
  • Pole mount M20
  • Non-threaded 35 mm Pole mount adaptor available as accessory KVV987290
  • Thermal breaker protection with auto reset


Applications

Specifically designed as a passive subwoofer to accompany and compliment the ESD5/6 as a true full range system

  • For fixed installation
  • Bars-small entertainment projects
  • Small footprint and dimensions allow placement under seating and fixtures


Product code

KVV 987 225 - ESD1.12




System Acoustic Performance

Max SPL Long-term124dB
Max SPL Peak127dB
-3dB Response38Hz to 150Hz
-10dB Response34Hz to 170Hz
Recommended Power600W
Sensitivity97 dB (half-space area)
Impedance
Crossover Point80Hz to 150Hz

Low Frequency Section

Acoustic DesignTwin Asymmetrical loading
Number of Drivers1
Woofer Size / Voice Coil Diameter / Design12" / 3" / Inside outside
Diaphragm MaterialEpoxy Reinforced Cellulose
Magnet TypeFerrite
ProtectionThermal breaker - autoreset

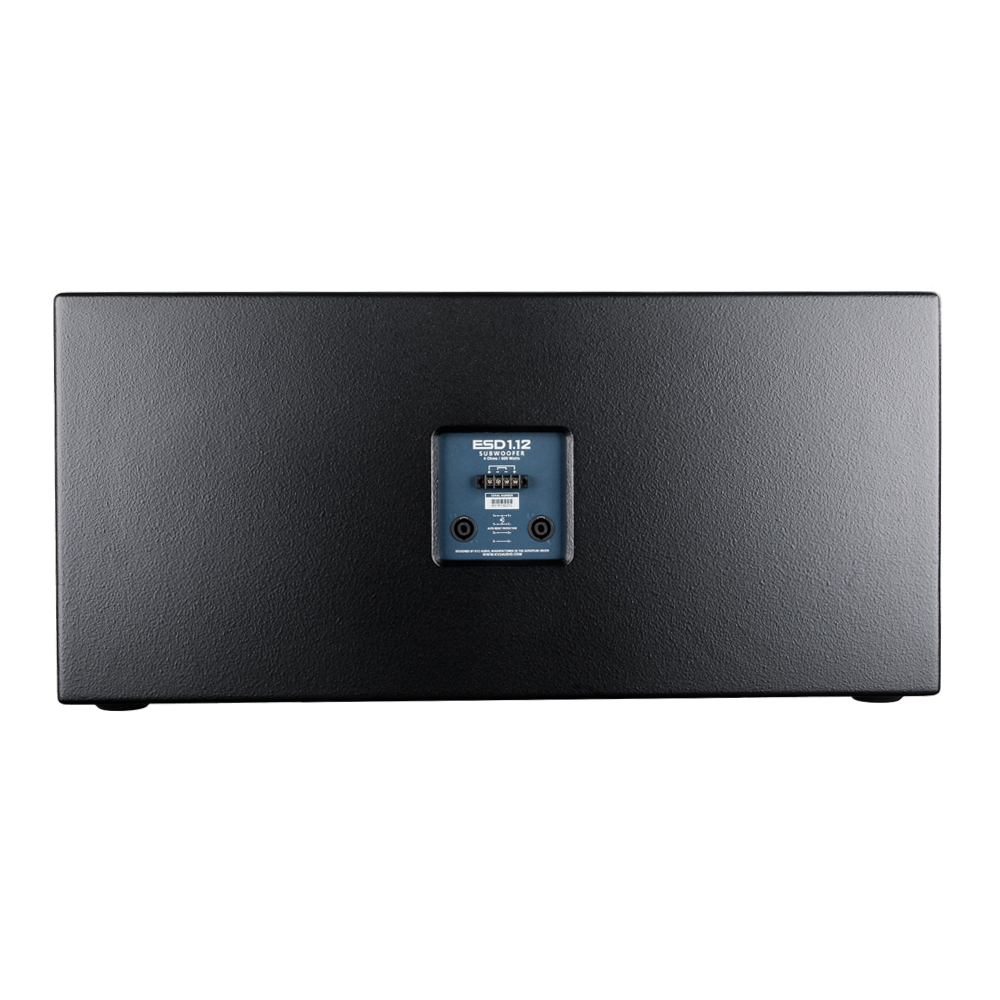

Speaker Input

Speaker Input 2x Neutrik Speakon®, Terminal Block

Cabinet

Cabinet MaterialBaltic birch
Handles2
Pole MountM20
Flyware8x M10 suspension points
Color"Orange peeled" Matt Black or any RAL

Physical Dimensions

Height379.5 mm (14.94")
Width800 mm (31.49")
Depth400 mm (15.75")
Weight26.7 kg (58.8lbs)


Product code

KVV 987 225 - ESD1.12



PDF

ESD Subwoofers User Guide

ESD Subwoofers User Manual - rev. 9



DWG

ESD1.12 - 3D

- 1:1 scale - clamping points - weight - dwg file



PDF

ESD1.12 - 2D

REV.1







Speakon speaker cable 4.15



Product code

KVV 987 326



Description

- 4 wire speaker cable - Speakon NL4 connectors - 1,5m (5ft) - for ESM, ESD speakers - for K-RIG Bass Module hook-up







Speakon speaker cable 4.40



Product code

KVV 987 327



Description

- 4 wire speaker cable - Speakon NL4 connectors - 4m (13ft) - for ESM, ESD speakers - for K-RIG Bass Module hook-up







Speaker pole - universal



Product code

KVV 987 130



Description

Heavy duty telescopic speakerpole
- 0,735 to 1,23 m - diameter 35 mm
- weight 2,2 kg - max. load 50 kg
- bottom terminal M20
- matte black
